Vulcan Single-Deck Full Size Electric Convection Oven NSF 240V - VC4ED-12D3

The Vulcan VC4ED-12D3 is a single deck full size commercial electric convection oven wired for 240V, 3-phase service, built for high-volume foodservice operations that need reliable, consistent baking and roasting capacity in a standard-depth floor model. Operators who need a straightforward analog-controlled oven with a proven track record will find this unit covers the essentials without unnecessary complexity.

• Single deck, full size commercial electric convection oven rated at 12.5 kW total connected load, powered by a two-speed 1/2 HP blower motor for even heat circulation across all rack positions
• Exterior is stainless steel on the front, sides, and top; interior cavity is porcelain enamel on steel measuring 29"W x 22-1/8"D x 20"H, with two interior lights and non-sag insulation on all six sides including the doors

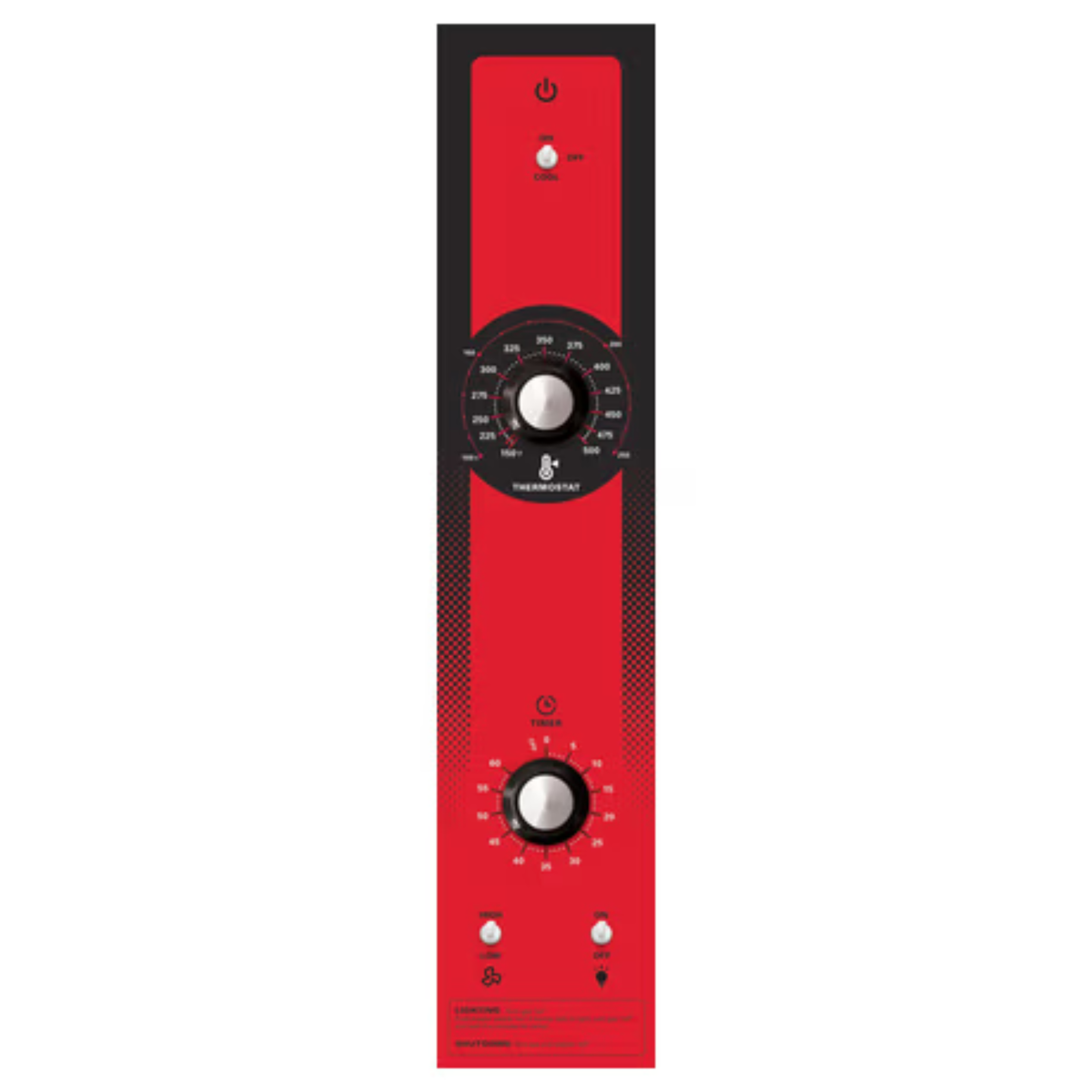

• Cavity holds five full size sheet pans on five included nickel-plated racks (28-1/4" x 20-1/2") with 11 rack positions and positive rack stops; temperature range is 150 to 500 degrees F via solid-state controls with a 60-minute timer and audible alarm
• Wired for 240V, 60 Hz, 3-phase (33 amps); the VC4ED platform also supports 208V single or 3-phase and 240V single-phase configurations, so confirm your electrical service before ordering; stacking knockouts are built in for future double-stack installation
• Two independently operated stainless steel doors with double-pane windows open to 180 degrees, a moisture vent damper controls humidity, and a dedicated oven cool switch allows rapid cooldown between cooking cycles
• Ships as a free-standing floor model on 23-3/4" painted legs with adjustable feet; optional accessories include casters, stainless steel legs, a stacking kit, stainless steel open stand, drip pan, and additional oven racks; warranty is one year limited parts and labor
• NSF listed
• UL listed
• UL listed to Canadian safety standards (cUL)
• ENERGY STAR certified

Dimensions: 40-1/4"W x 41-1/8"D (including motor and door handles) x 54-3/4"H on 23-3/4" legs with feet
