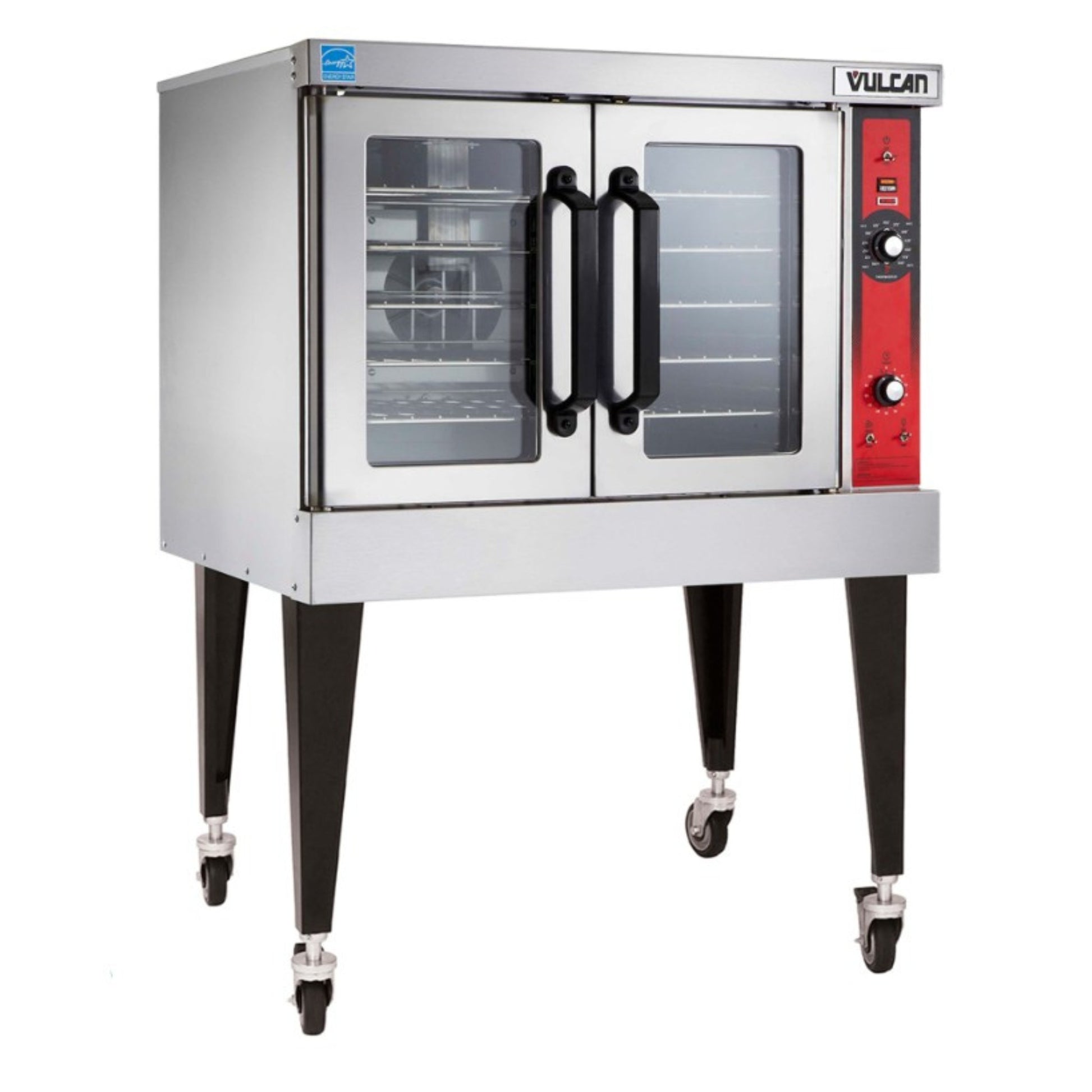

Vulcan Single Deck Full Size Electric Convection Oven NSF 480V 12.5kW - VC4ED-13D1

The Vulcan VC4ED-13D1 is a full size single deck electric convection oven built for commercial foodservice operations running 480V, 3-phase electrical service. It delivers 12.5 kW of heating power across a broad temperature range with straightforward solid-state controls, making it a practical floor model choice for restaurants, bakeries, schools, and high-volume kitchens.

• Commercial single-deck, standard depth, free-standing electric convection oven rated for continuous use in professional foodservice environments
• Exterior is stainless steel on the front, sides, and top; interior cavity is porcelain enamel on steel measuring 29"W x 22-1/8"D x 20"H, with two interior lights for visibility during service
• Holds five full-size sheet pans across 11 rack positions; nickel-plated racks measure 28-1/4" x 20-1/2" with positive rack stops to prevent sliding
• Runs on 480V, 3-phase, 60 Hz electrical service at 12.5 kW total connected load; unit ships with painted legs and includes conduit knockouts in the top and base for stacking configurations
• Solid-state temperature controls range from 150 to 500 degrees F with a 60-minute timer and audible alarm; a two-speed 1/2 HP blower motor circulates heat, and an oven cool switch allows rapid cavity cool-down between cooks
• Non-sag insulation is applied to the top, rear, sides, bottom, and doors; independently operated stainless steel doors with double-pane windows open to 180 degrees and include a moisture vent damper for humidity control; one-year limited parts and labor warranty
• NSF listed
• UL listed
• UL listed to Canadian safety standards (cUL)
• ENERGY STAR certified

Dimensions: 40.25"W x 41.1"D x 54.75"H (on legs)
