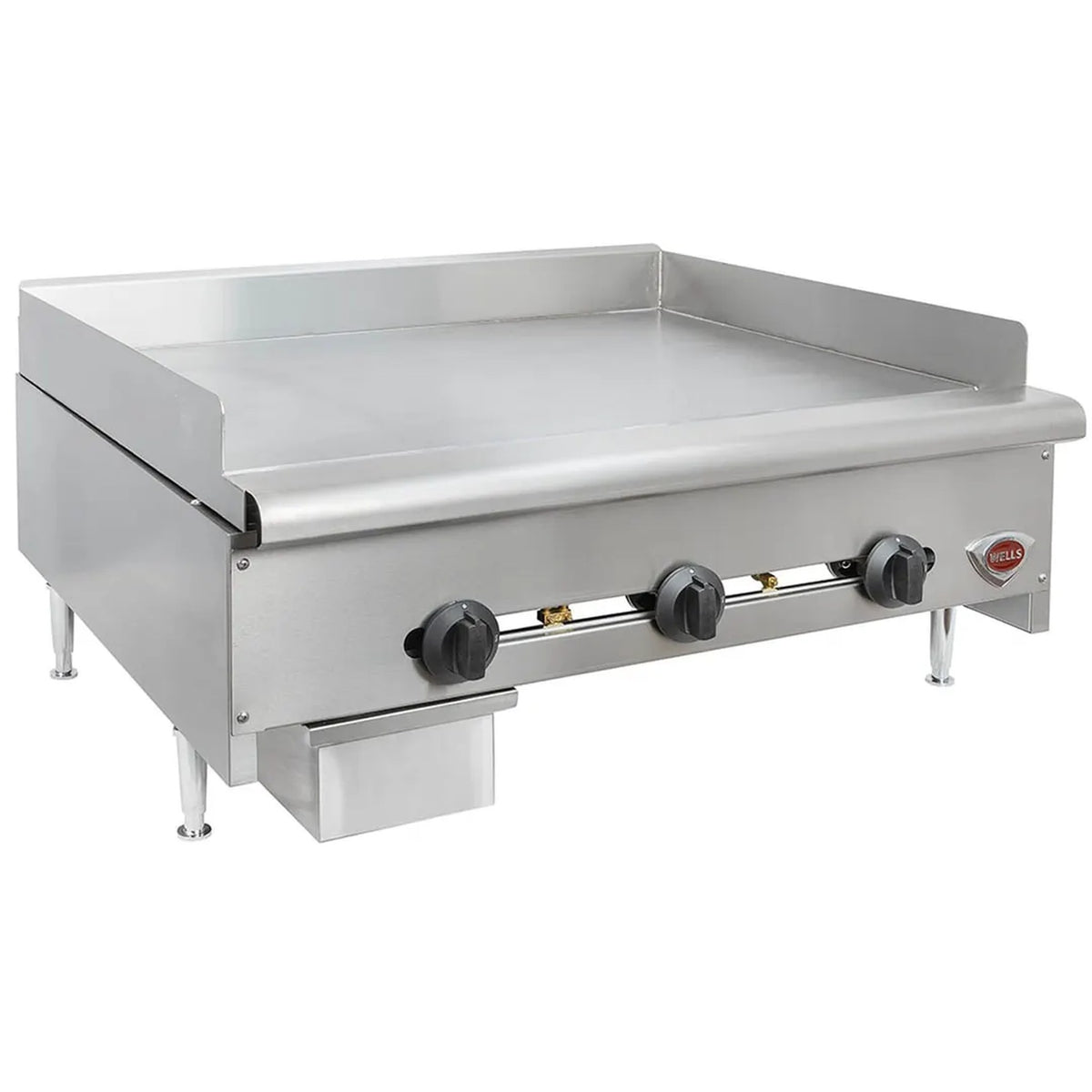

Wells HD Gas Countertop Griddle Manual 36" NSF - 90,000 BTU - HDG-3630G

The Wells HDG-3630G is a heavy-duty commercial gas countertop griddle built for restaurants, diners, cafeterias, and food trucks that need consistent high-output cooking on a 36-inch platform. With three independently controlled burner zones and a total of 90,000 BTU, it handles sustained multi-item cooking without the footprint of a floor-model range.

• Commercial countertop gas griddle with three burner zones, each rated at 30,000 BTU, spaced every 12 inches across the cooking surface for high-production output.
• Cooking surface and exterior housing are constructed of smooth polished steel and all-stainless steel respectively, with stainless steel front, sides, and splashguard.
• Cooking surface measures 35" W x 23-9/16" D with a 3/4" thick steel griddle plate; overall unit dimensions are 36-1/8" W x 31-3/4" D x 17" H, supported by 4" steel legs.
• Ships configured for natural gas with a 3/4" rear NPT gas connection; LP conversion kit is included but requires professional installation for field conversion to propane.
• Each burner control includes an on/off valve, infinite manual heat adjustment, and an adjustable air shutter to optimize combustion; front panel is removable for component access and servicing.
• Full-width front-mounted grease trough and large-capacity removable drip pan manage grease runoff during service; unit ships with a 2-year warranty.
• NSF certified
• cULus certified

Dimensions: 36-1/8" W x 31-3/4" D x 17" H (overall); cooking surface: 35" W x 23-9/16" D
