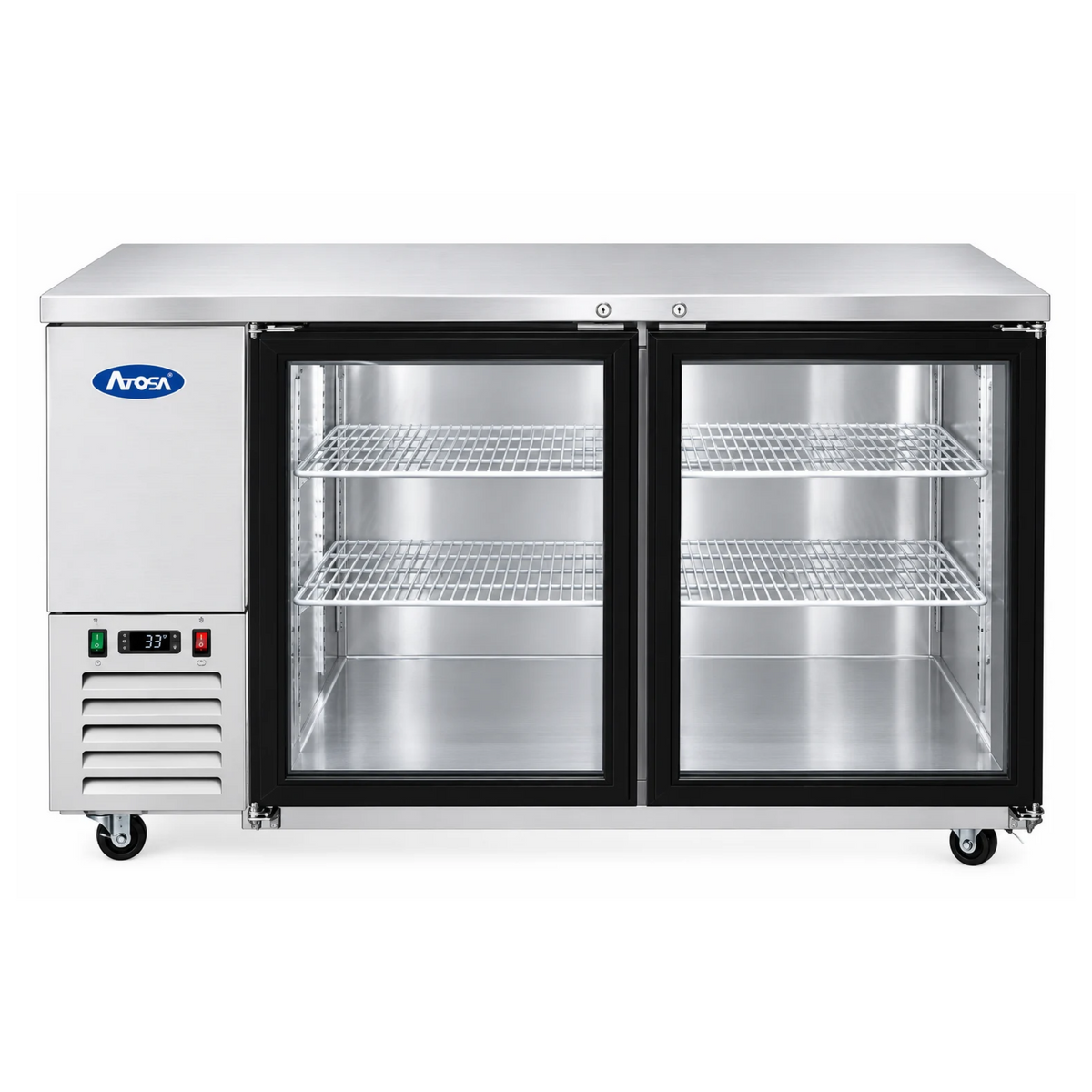

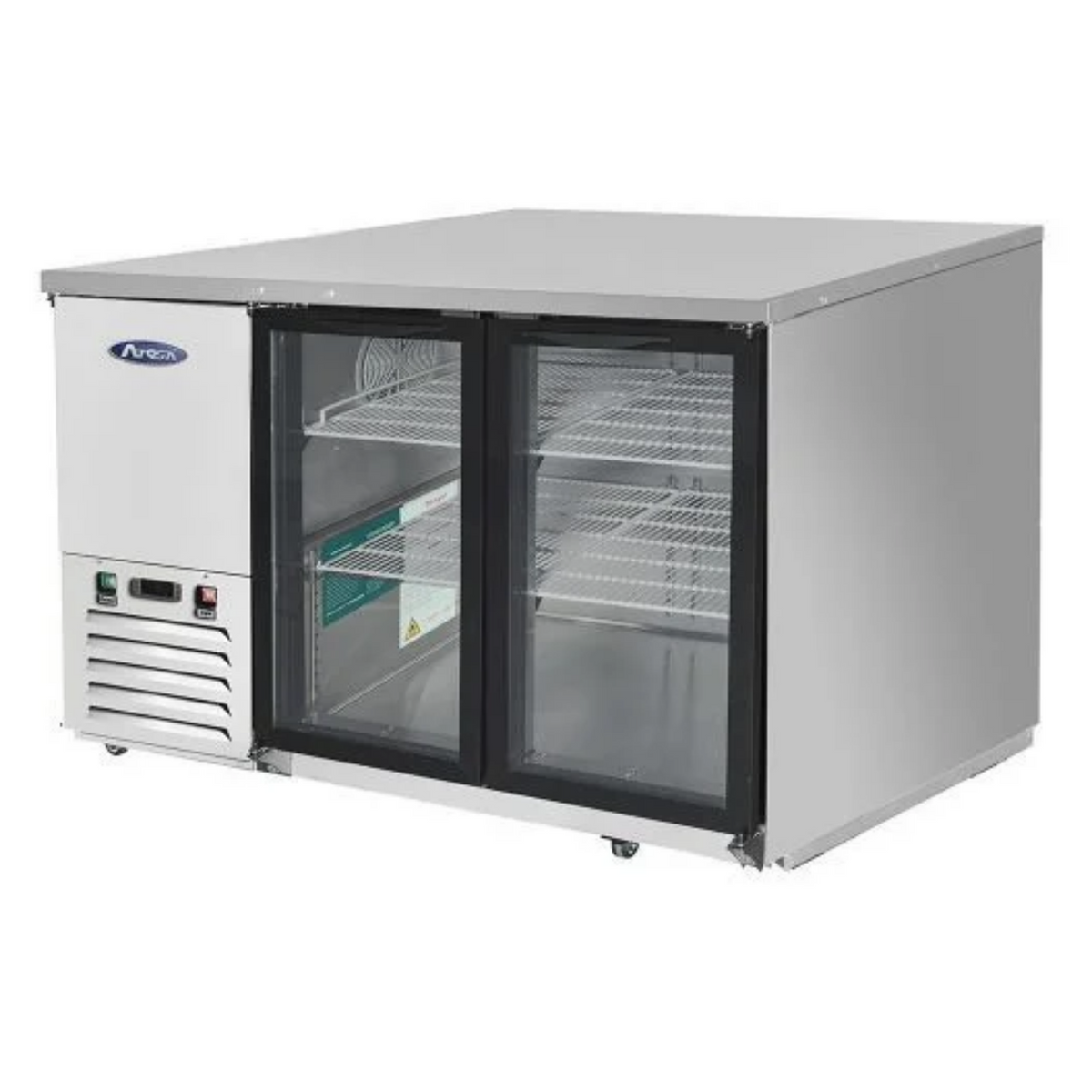

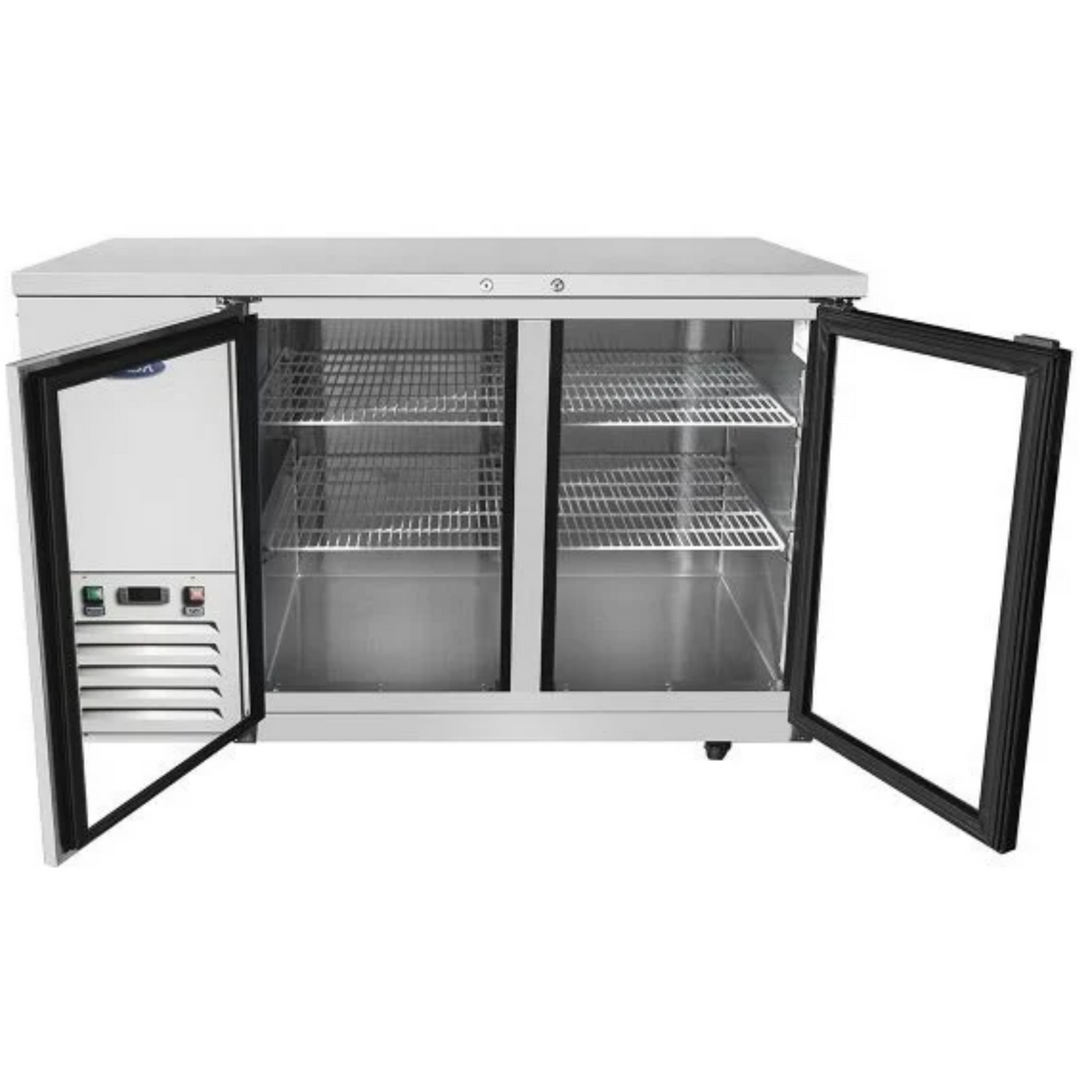

Atosa Back Bar Cooler Stainless Steel 2 Glass Doors 59" - 17.3 Cu. Ft. - MBB59GGR

The Atosa MBB59GGR is a two-section, two-glass-door refrigerated back bar cooler for bars, restaurants and hospitality venues that need chilled bottles, cans and mixers on display behind the counter. It measures 57-4/5" wide, 28-1/10" deep and 40-1/8" high, and holds 17.3 cu. ft. on four epoxy-coated shelves. An electronic controller holds the cabinet between 35°F and 38°F. Cooling comes from a self-contained, side-mounted 1/7 HP Embraco compressor running R290 refrigerant. It plugs into a standard 115V outlet and draws 2.3 amps. The cabinet is stainless steel inside and out. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Two-section cabinet with two locking swing glass doors so staff and guests can see what is inside
• 17.3 cu. ft. refrigerated capacity in a 57-4/5" wide footprint
• Electronic temperature controller holds 35°F to 38°F
• Heavy-duty Embraco 1/7 HP compressor with R290 hydrocarbon refrigerant
• Self-contained, side-mounted refrigeration with a slide-out compressor assembly for easier service
• Four pre-installed epoxy-coated shelves
• Stainless steel exterior and interior
• LED interior lighting
• Magnetic door gaskets for a positive door seal
• Pre-installed 2" casters
• 115V/60Hz/1-phase, 2.3 A, NEMA 5-15P plug

Atosa MBB59GGR specifications

Brand	Atosa
Model number	MBB59GGR
Product type	Refrigerated back bar cooler
Sections / doors	2 sections, 2 swing glass doors, locking
Capacity	17.3 cu. ft.
Exterior width	57-4/5" (57.8")
Exterior depth	28-1/10" (28.1")
Exterior height	40-1/8"
Temperature range	35°F to 38°F
Temperature control	Electronic controller
Refrigeration	Self-contained, side-mounted, slide-out compressor assembly
Compressor	Embraco, 1/7 HP
Refrigerant	R290 hydrocarbon
Electrical	115V / 60 Hz / 1-phase
Rated current	2.3 A
Plug	NEMA 5-15P
Shelves	4, epoxy coated
Exterior material	Stainless steel
Interior material	Stainless steel
Lighting	LED interior
Door gaskets	Magnetic
Casters	2", pre-installed
Net weight	236 lb
Shipping weight	284 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL-Sanitation
Warranty	3 years parts and labor, 5 years sealed compressor

Frequently asked questions

What electrical connection does the Atosa MBB59GGR need?

It needs a standard 115V, 60 Hz, single-phase grounded outlet that accepts its NEMA 5-15P plug (a 15 A, 125V receptacle). The unit draws 2.3 amps.

Is the MBB59GGR a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. The electronic controller holds the cabinet between 35°F and 38°F, which suits beer, soft drinks, mixers and other chilled bar stock. It is not built to freeze.

Will it fit through a standard doorway?

Yes. At 28-1/10" deep it fits through a 36" doorway when carried depth-first, and at 40-1/8" tall it is far below an 80" door opening. The 57-4/5" width is the dimension to plan for in hallways and turns.

How much does it hold?

It has 17.3 cu. ft. of refrigerated space across two sections, with four epoxy-coated shelves, two in each section.

What certifications does it carry?

It is cETLus listed for electrical safety in the US and Canada (conforms to UL 471, certified to CSA C22.2 No. 120) and ETL-Sanitation listed. That means it meets North American safety and sanitation standards for commercial foodservice equipment, which health and building inspectors look for.

What warranty comes with it?

Atosa covers the cabinet and all parts against defects in materials and workmanship for 3 years, parts and labor. The sealed compressor is covered for 2 more years, 5 years in total. The extra compressor coverage applies only to the sealed compressor parts. It does not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical components. Atosa does not cover damage from alteration, neglect, abuse, misuse, accident, transit or installation, fire, flood or acts of God. To make a claim, contact Atosa directly with the model number, serial number, proof of purchase and installation date.

How does the MBB59GGR differ from other Atosa back bar coolers?

The MBB59GR is the same 57-4/5" width and 17.3 cu. ft. capacity but has solid doors. The MBB48GGR is a 48" wide glass-door model with 12.9 cu. ft. The MBB69GGR is 68" wide with 21.5 cu. ft. The MBB90GGR is an 89-3/10" wide three-door model with 30.1 cu. ft., six shelves and a 1/5 HP compressor drawing 2.8 A. For tighter aisles, the SBB59GGRAUS1 is a shallow-depth 2-glass-door model, 24-1/2" deep with 15.0 cu. ft.

How is the refrigeration system serviced?

The refrigeration is self-contained and mounted on the side. The compressor assembly slides out so a technician can reach it. Atosa also recommends cleaning the condenser often and leaving clearance around the unit so air can move freely.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
