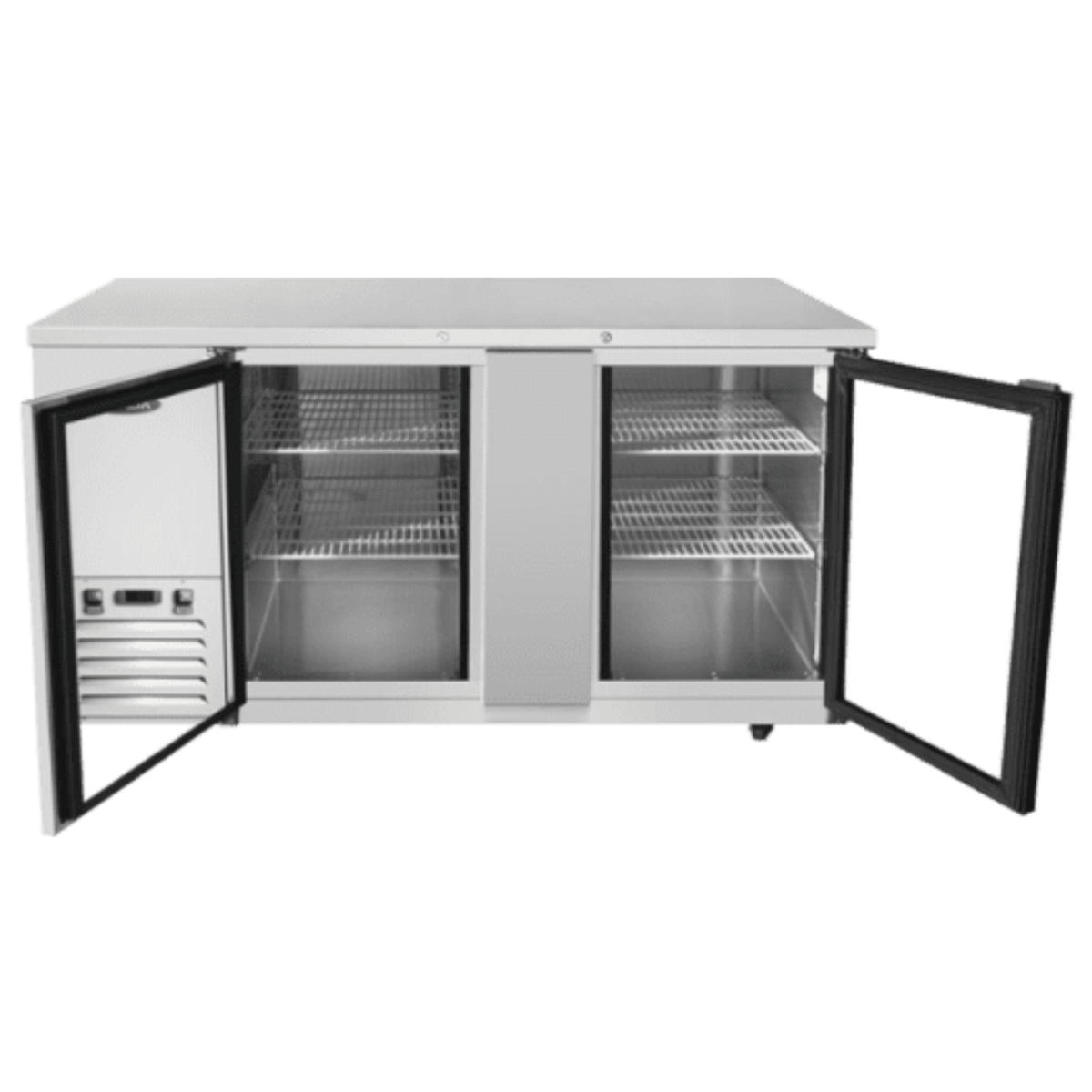

Atosa Back Bar Cooler Stainless Steel 2 Glass Doors 69" Shallow SBB69GGRAUS1

The Atosa SBB69GGRAUS1 is a shallow-depth, two-section back bar cooler with two locking glass doors. It is built for bars, restaurants and hotel lounges that need chilled bottles and cans in view behind the bar. It measures 68" wide, 24-1/2" deep and 40-1/8" high and holds 18.6 cu. ft. on four epoxy-coated shelves. An electronic controller holds 35°F to 38°F, and the self-contained, side-mount R290 refrigeration runs on a standard 115V outlet at 2.3 A. The exterior and interior are stainless steel, and the top is stainless steel. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Shallow 24-1/2" depth for tight back bar runs
• Two locking glass doors with magnetic gaskets for a tight door seal
• LED interior lighting so staff can see stock through the glass
• Electronic temperature controller, holds 35°F to 38°F
• 1/7 HP compressor with R290 hydrocarbon refrigerant
• Self-contained, side-mount refrigeration with a slide-out compressor assembly for service
• Four epoxy-coated shelves come installed
• Stainless steel exterior, interior and top
• 2" casters come installed
• Plugs into a standard 115V outlet with a NEMA 5-15P plug, 2.3 A draw

Atosa SBB69GGRAUS1 specifications

Brand	Atosa
Model number	SBB69GGRAUS1
Product type	Back bar cooler (refrigerator), shallow depth
Sections and doors	2 sections, 2 locking glass swing doors
Capacity	18.6 cu. ft.
Exterior width	68"
Exterior depth	24-1/2"
Exterior height	40-1/8"
Temperature range	35°F to 38°F
Temperature control	Electronic controller
Refrigeration	Self-contained, side-mount, slide-out compressor assembly
Refrigerant	R290
Compressor	1/7 HP
Electrical	115 V / 60 Hz / 1-phase, 2.3 A
Plug	NEMA 5-15P
Shelves	4, epoxy-coated, come installed
Replacement shelf part numbers	Top left W040238101; top right and bottom W040238001
Exterior material	Stainless steel, stainless steel top
Interior material	Stainless steel
Door gaskets	Magnetic
Lighting	LED interior
Casters	2", come installed
Net weight	247 lb
Shipping weight	298 lb
Certifications	cETLus, ETL-Sanitation (UL 471, CSA C22.2 No. 120)
Warranty	3 years parts and labor, 5 years compressor

Frequently asked questions

What outlet does the Atosa SBB69GGRAUS1 need?

It needs a standard 115V, 60 Hz, single-phase outlet that takes its NEMA 5-15P plug. It draws 2.3 A. Plug it straight into a properly grounded wall outlet, because Atosa's warranty does not cover damage caused by extension cords, low voltage or voltage drops.

Is this a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. The electronic controller holds 35°F to 38°F, which suits bottled and canned beer, soda, mixers and other chilled drinks.

Will it fit through a standard doorway?

Yes. At 24-1/2" deep it fits through a 36" doorway when moved front-first or back-first. At 40-1/8" high it is far below an 80" door opening.

How much does it hold?

It holds 18.6 cu. ft. across two sections and comes with four epoxy-coated shelves. Extra shelves are sold separately, and each comes with four shelf clips.

What certifications does it have?

It is cETLus listed for electrical safety in the US and Canada, to UL 471 and CSA C22.2 No. 120. It is also ETL-Sanitation listed, which shows it meets North American food equipment sanitation standards. Health inspectors look for this listing in commercial kitchens and bars.

What warranty comes with it?

Atosa's current refrigeration warranty covers parts and labor for 3 years and the sealed compressor for 5 years. After year 3, coverage applies only to the sealed compressor parts. It does not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical parts. The warranty also excludes:

• damage from power failure, extension cords or low voltage
• alteration, neglect, abuse, misuse or accidents
• damage in transit or during installation
• fire, flood or acts of God

The warranty cannot be transferred and covers only the original purchaser.

How does it differ from other Atosa back bar coolers?

The SBB69GRAUS1 is the same size and capacity but has solid doors and weighs 225 lb net. The SBB69SGGRAUS1 has sliding glass doors instead of swing doors. The SBB69GGRAUS2 is the black-exterior version of this model. For narrower spaces, the SBB59GGRAUS1 is 57-3/4" wide with 15.0 cu. ft., and the SBB48GGRAUS1 is 48" wide with 11.5 cu. ft.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
