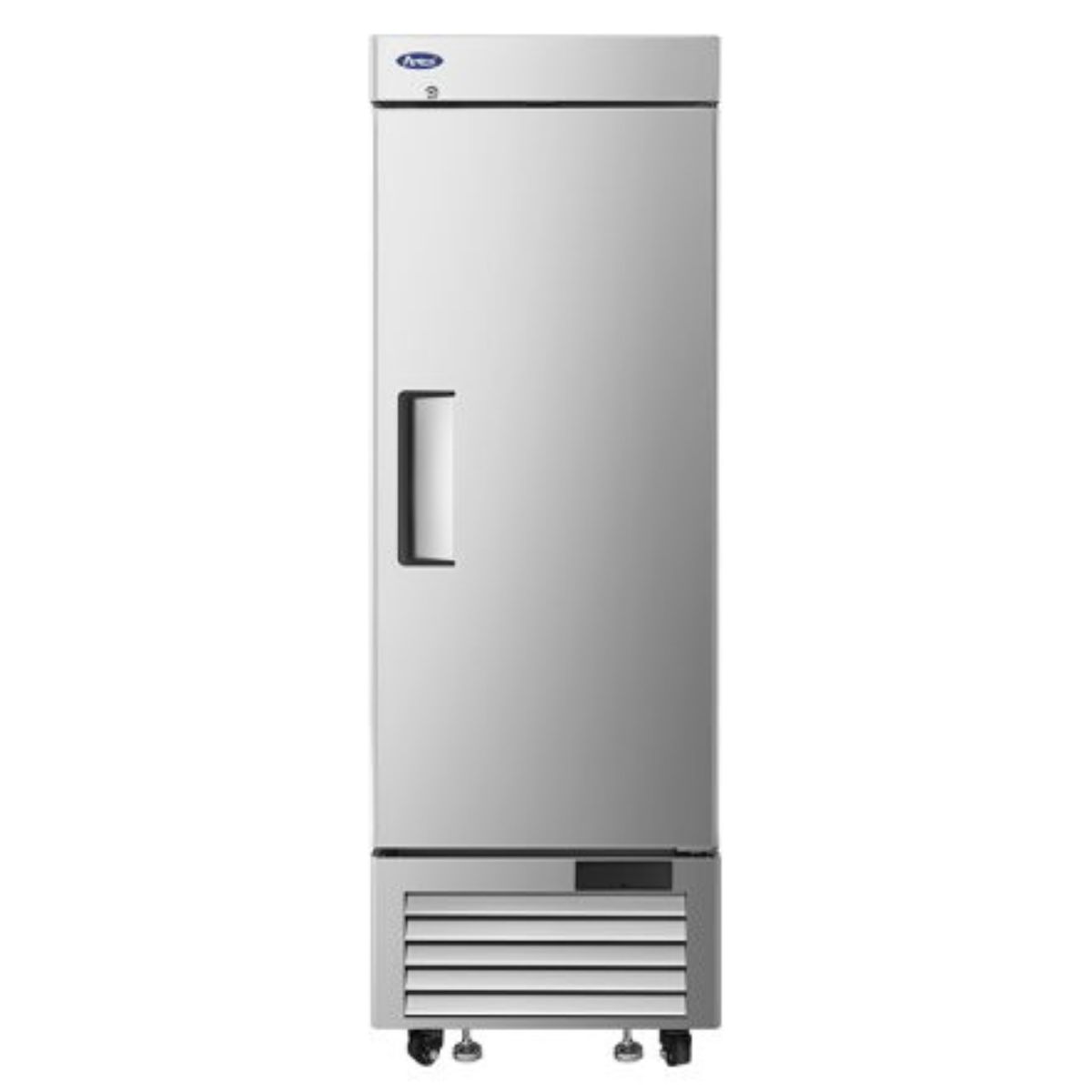

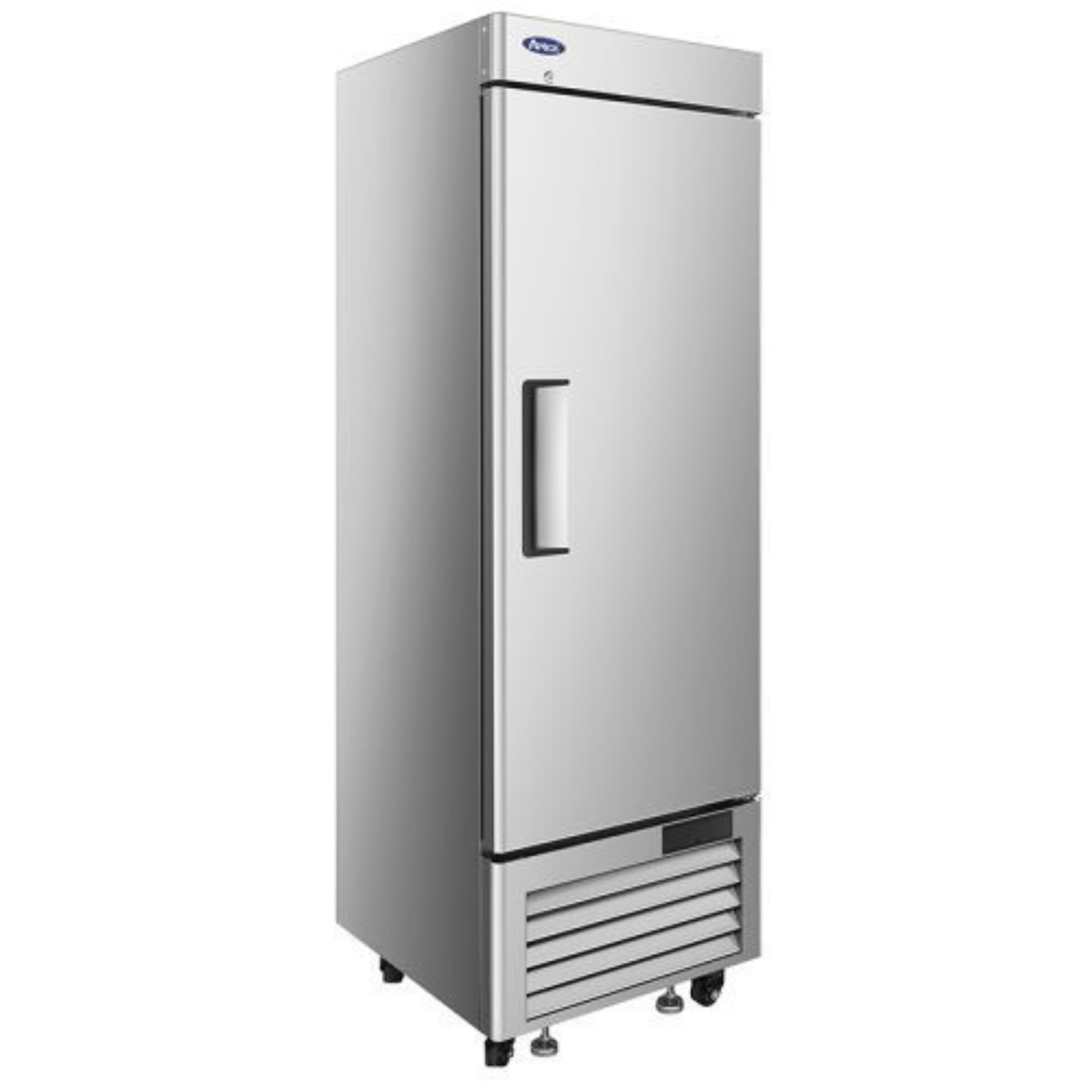

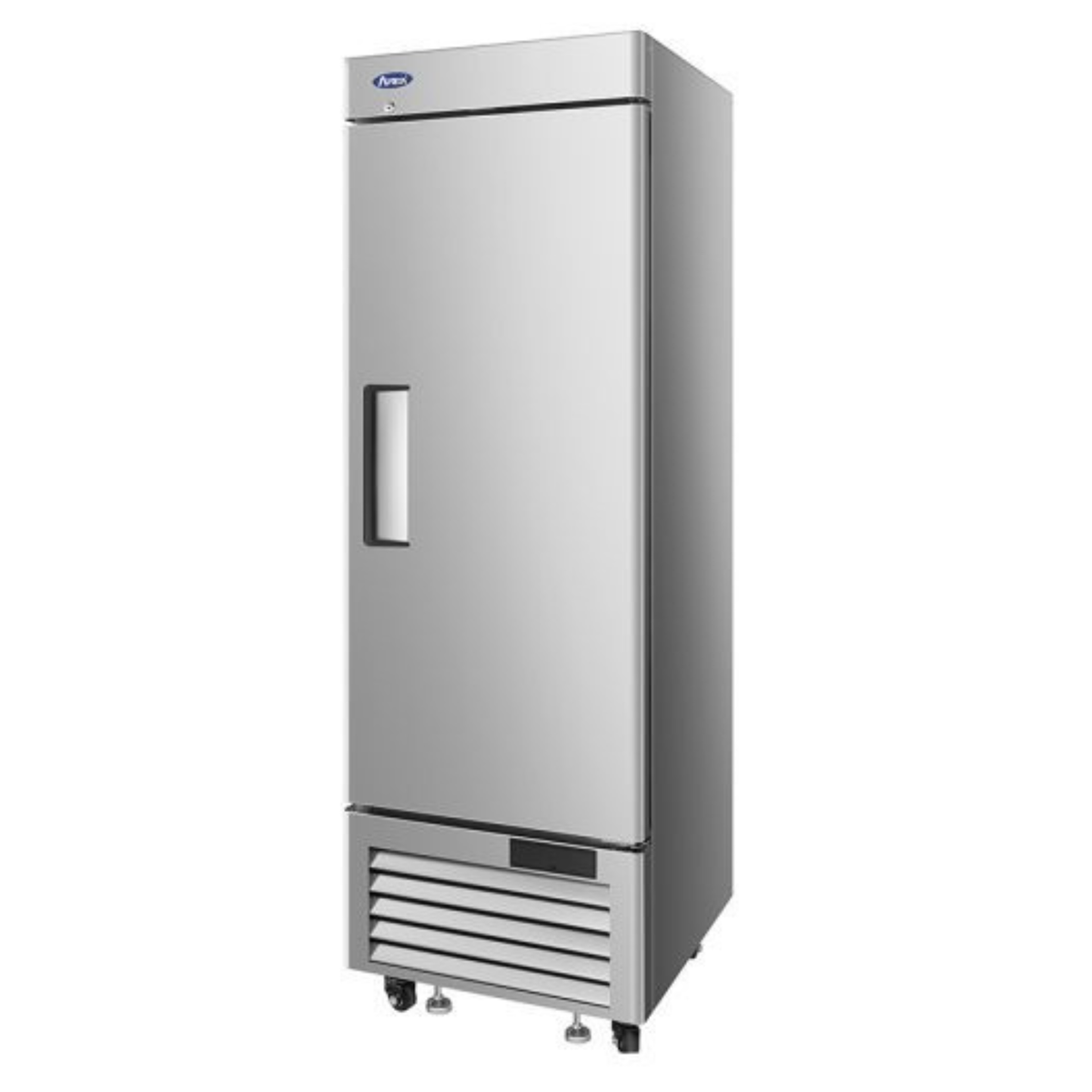

Atosa Bottom-Mount Reach-In Refrigerator Stainless Steel 1-Door 76" - MBF8532GR

The Atosa MBF8532GR is a one-section, one-door, bottom-mount reach-in refrigerator for restaurants, cafes and commercial kitchens that need full-height cold storage in a narrow footprint. It measures 25-5/8" wide, 26" deep and 76-3/8" high and holds 12.57 cu. ft. The self-contained R290 refrigeration system is controlled electronically and holds 35°F to 38°F. It runs on a 1/4 HP compressor at 115V, 2.1 amps, and plugs into a standard NEMA 5-15 outlet. The interior and exterior are stainless steel, with three epoxy-coated shelves and 4" casters already installed. East Bay Restaurant Supply ships this model with free shipping.

Key features

• The compressor is mounted at the bottom, which Atosa recommends for hot areas and cooking lines. It is also easier to reach for service and cleaning.
• An electronic digital controller holds 35°F to 38°F, the range Atosa recommends for food preservation.
• Down-duct refrigeration spreads air evenly through the cabinet.
• Self-closing, stay-open door: it closes on its own when opened 90° or less and stays open past 90°.
• One solid door, hinged on the right, with a recessed handle, a standard door lock and a magnetic gasket for a tight seal.

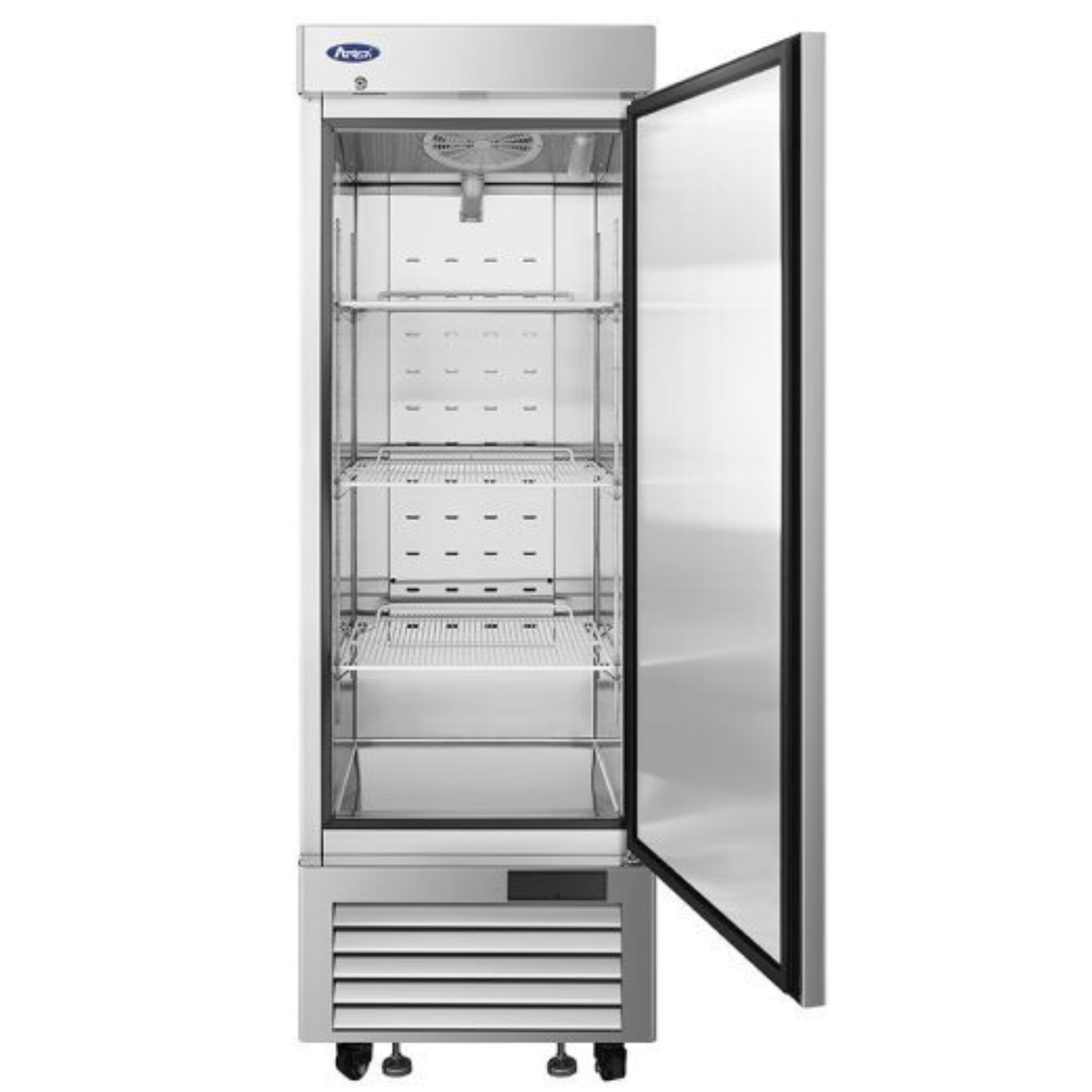

• Three epoxy-coated shelves come installed. Extra shelves are part number W0402315 and come with 4 shelf clips each.
• Stainless steel interior, stainless steel front and sides, and a galvanized steel back.
• LED interior lighting.
• Automatic defrost and automatic condensate evaporation.
• Uses R290 hydrocarbon refrigerant.
• Four 4" casters come installed.

Atosa MBF8532GR specifications

Brand	Atosa
Model number	MBF8532GR
Product type	Reach-in refrigerator, bottom mount
Sections / doors	1 section, 1 solid door, right-hinged, locking
Capacity	12.57 cu. ft.
Exterior width	25-5/8"
Exterior depth	26"
Exterior height	76-3/8"
Temperature range	35°F to 38°F
Refrigeration system	Self-contained, bottom-mount, air-cooled, down-duct airflow
Defrost	Automatic, with automatic condensate evaporation
Temperature control	Electronic digital controller
Refrigerant	R290 hydrocarbon
Compressor	1/4 HP
Electrical	115 V / 60 Hz / 1-phase, 2.1 A
Plug	NEMA 5-15P
Shelves	3 epoxy-coated, adjustable; replacement shelf part W0402315
Exterior material	Stainless steel front and sides, galvanized steel back
Interior material	Stainless steel
Lighting	LED interior light
Door features	Recessed handle, lock, magnetic gasket, self-closing and stay-open hinge
Casters	4", pre-installed
Net weight	232 lb
Shipping weight	276 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation
Warranty	2 years parts and labor; extra 3 years on the sealed compressor (5 years total)

Frequently asked questions

What outlet does the Atosa MBF8532GR need?

It needs a standard 15 A, 125 V grounded outlet (NEMA 5-15R), because it ships with a NEMA 5-15P plug. It draws 2.1 amps at 115 V, 60 Hz, single phase. Plug it straight into the wall: Atosa's warranty does not cover damage caused by extension cords, low voltage or voltage drops.

Will it fit through a standard doorway?

Yes. The cabinet is 26" deep and 25-5/8" wide, so it goes through a 36" doorway with room to spare. At 76-3/8" high it also clears a standard 80" door opening.

Is this a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. The electronic controller holds 35°F to 38°F. The freezer version in the same cabinet size is the MBF8531GR.

How much does it hold?

It holds 12.57 cu. ft. on three adjustable epoxy-coated shelves. You can add more shelves with part number W0402315, which comes with 4 shelf clips per shelf.

What certifications does it have?

It is cETLus listed, which means it meets UL 471 and CSA C22.2 No. 120 safety standards for commercial refrigerators in the US and Canada. It also carries ETL Sanitation certification, which health inspectors look for on food storage equipment in commercial kitchens.

What warranty comes with it?

Atosa covers parts and labor for 2 years from installation, or 27 months from the date Atosa ships it, whichever comes first. The sealed compressor is covered for 3 more years, up to 5 years total. That extra coverage is for the sealed compressor parts only. It does not cover the cabinet, the temperature control, the fans or other electrical parts. The warranty excludes damage from neglect, abuse, misuse, alteration, accidents, damage in transit or during installation, fire, flood, power failures, extension cords and low voltage. It also excludes food spoilage and other consequential losses. You must keep up routine maintenance or the warranty is void, and the warranty cannot be transferred to a new owner.

How does the MBF8532GR compare with other Atosa bottom-mount reach-ins?

The MBF8505GR is a bigger single-door model: 27" wide, 31-7/10" deep and 83-1/10" high, with 19.1 cu. ft. The MBF8505GRL is the same unit with the door hinged on the left. The MBF8519GR is a low-height model: 24-1/4" wide, 24" deep and 63-1/4" high, with 8.3 cu. ft. and 2" casters. The MBF8532GR sits between them. It is about 6-3/4" shorter and 5-3/4" shallower than the MBF8505GR, and it uses a 1/4 HP compressor.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
