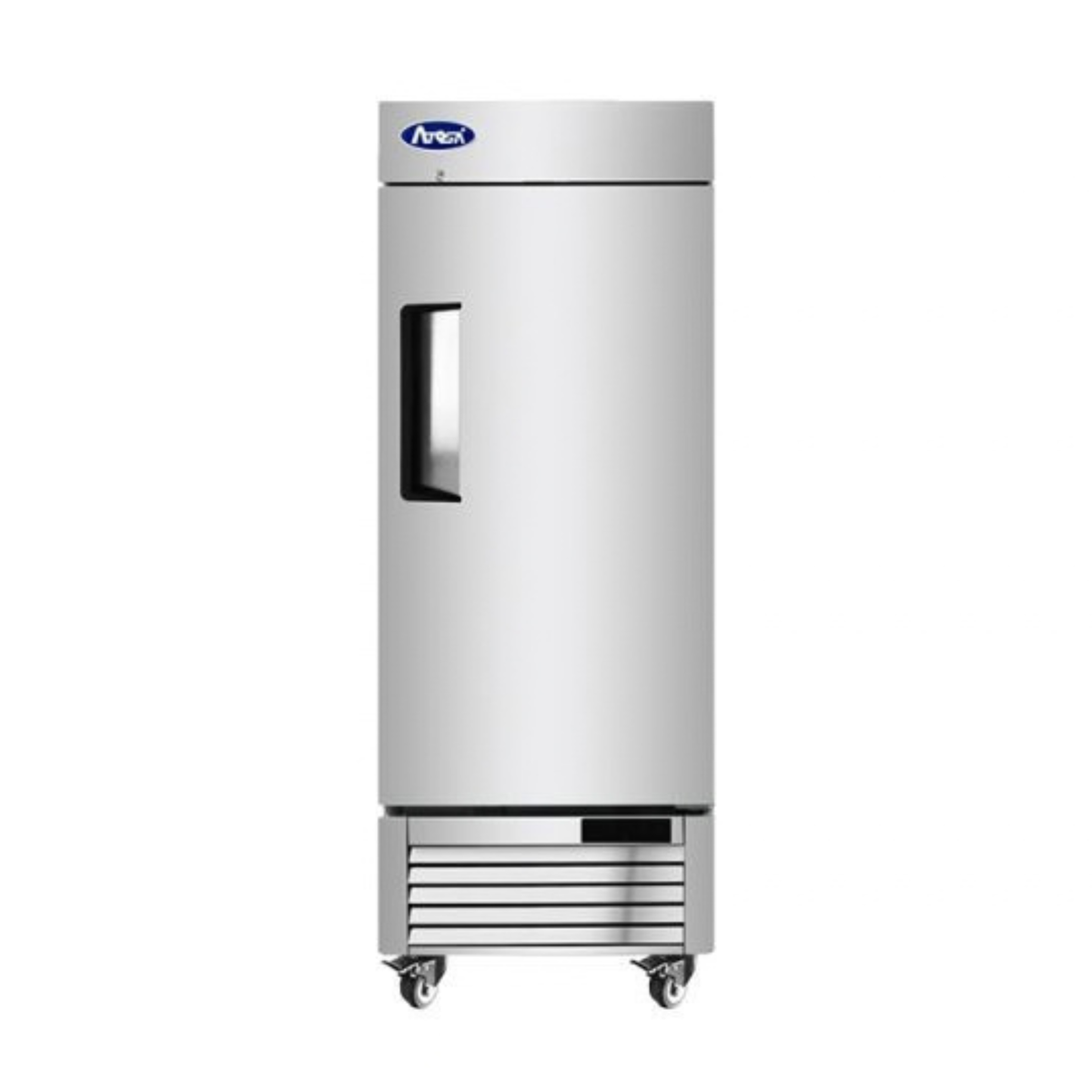

Atosa Stainless Steel Bottom Mount Reach-In Refrigerator 8.3 Cu. Ft. MBF8519GR

The Atosa MBF8519GR is a one-section, low-height reach-in refrigerator with a bottom-mount compressor. It is built for cafes, concession stands, food trucks, satellite stations and other kitchens that need full-height access in a small space. The stainless steel cabinet is 24-1/4" wide, 24" deep and 63-1/4" high and holds 8.3 cu. ft. behind one locking, hinged solid door. An electronic controller holds 35°F to 38°F. The 1/7 HP self-contained system uses R290 refrigerant and runs on a standard 115V circuit, drawing 2.1 A through a NEMA 5-15P plug. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Low-height cabinet, 63-1/4" high, with 8.3 cu. ft. of storage
• Bottom-mount, self-contained compressor using R290 hydrocarbon refrigerant
• Stainless steel exterior and interior
• Electronic temperature controller holds 35°F to 38°F
• Down-duct refrigeration spreads air evenly through the cabinet
• Three pre-installed epoxy-coated shelves that resist rust and corrosion in humid conditions
• Self-closing door with stay-open feature, magnetic gasket for a tight seal, and a standard door lock
• Recessed door handle and LED interior lighting
• Pre-installed 2" casters
• Plugs into a standard 115V outlet with a NEMA 5-15P plug and draws 2.1 A

Atosa MBF8519GR specifications

Brand	Atosa
Model number	MBF8519GR
Product type	Reach-in refrigerator, low height
Sections / doors	1 section, 1 solid hinged door
Door hinge	Right
Capacity	8.3 cu. ft.
Exterior width	24-1/4"
Exterior depth	24"
Exterior height	63-1/4"
Temperature range	35°F to 38°F
Temperature control	Electronic controller
Refrigeration	Self-contained, bottom mount, down-duct airflow
Refrigerant	R290
Compressor	1/7 HP
Electrical	115 V / 60 Hz / 1 phase, 2.1 A
Plug	NEMA 5-15P (15 A, 125 V)
Shelves	3 pre-installed epoxy-coated shelves; extra shelf part W0402316 (4 shelf clips included)
Exterior material	Stainless steel
Interior material	Stainless steel
Lighting	LED interior light
Door hardware	Recessed handle, lock, magnetic gasket, self-closing with stay-open feature
Casters	2", pre-installed
Net weight	176 lb
Shipping weight	209 lb
Certifications	cETLus (conforms to UL Std. 471, certified to CSA Std. C22.2 No. 120), ETL-Sanitation
Warranty	3 years parts and labor, 5 years on the compressor

Frequently asked questions

What outlet does the Atosa MBF8519GR need?

It needs a standard 115V, 60 Hz, single-phase outlet that accepts a NEMA 5-15P plug (a 15 A, 125 V receptacle). It draws 2.1 A. Leave space around the unit for airflow and clean the condenser regularly.

Is the MBF8519GR a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. The electronic controller holds the cabinet between 35°F and 38°F, the range Atosa recommends for food storage.

Will it fit through a standard doorway?

Yes. The cabinet is 24" deep and 24-1/4" wide, well under a 36" doorway. At 63-1/4" high it also clears a standard 80" door opening.

How much does it hold?

It holds 8.3 cu. ft. on three pre-installed epoxy-coated shelves. You can add shelves with Atosa part W0402316, which comes with four shelf clips per shelf.

What certifications does it have?

It is cETLus listed, which means it was tested to UL Std. 471 and CSA Std. C22.2 No. 120 for electrical safety in the US and Canada. It is also ETL-Sanitation certified, which health inspectors accept as proof that a unit meets food equipment sanitation standards.

What warranty comes with it?

Atosa covers parts and labor for 3 years and the sealed compressor for 2 more years, 5 years in total. The extra compressor coverage applies only to the sealed compressor parts. It does not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical components. You make warranty claims directly with Atosa, and each claim needs the model number, serial number, proof of purchase and installation date.

How does it compare with the Atosa MBF8532GR and MBF8505GR?

The MBF8519GR is the smallest and shortest one-door model in this Atosa bottom-mount line. The MBF8532GR holds 12.57 cu. ft., measures 25-5/8" wide by 26" deep by 76-3/8" high, and has a 1/4 HP compressor and 4" casters. The full-height MBF8505GR holds 19.1 cu. ft. and measures 27" wide by 31-7/10" deep by 83-1/10" high. The MBF8505GRL is the same unit hinged on the left.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
