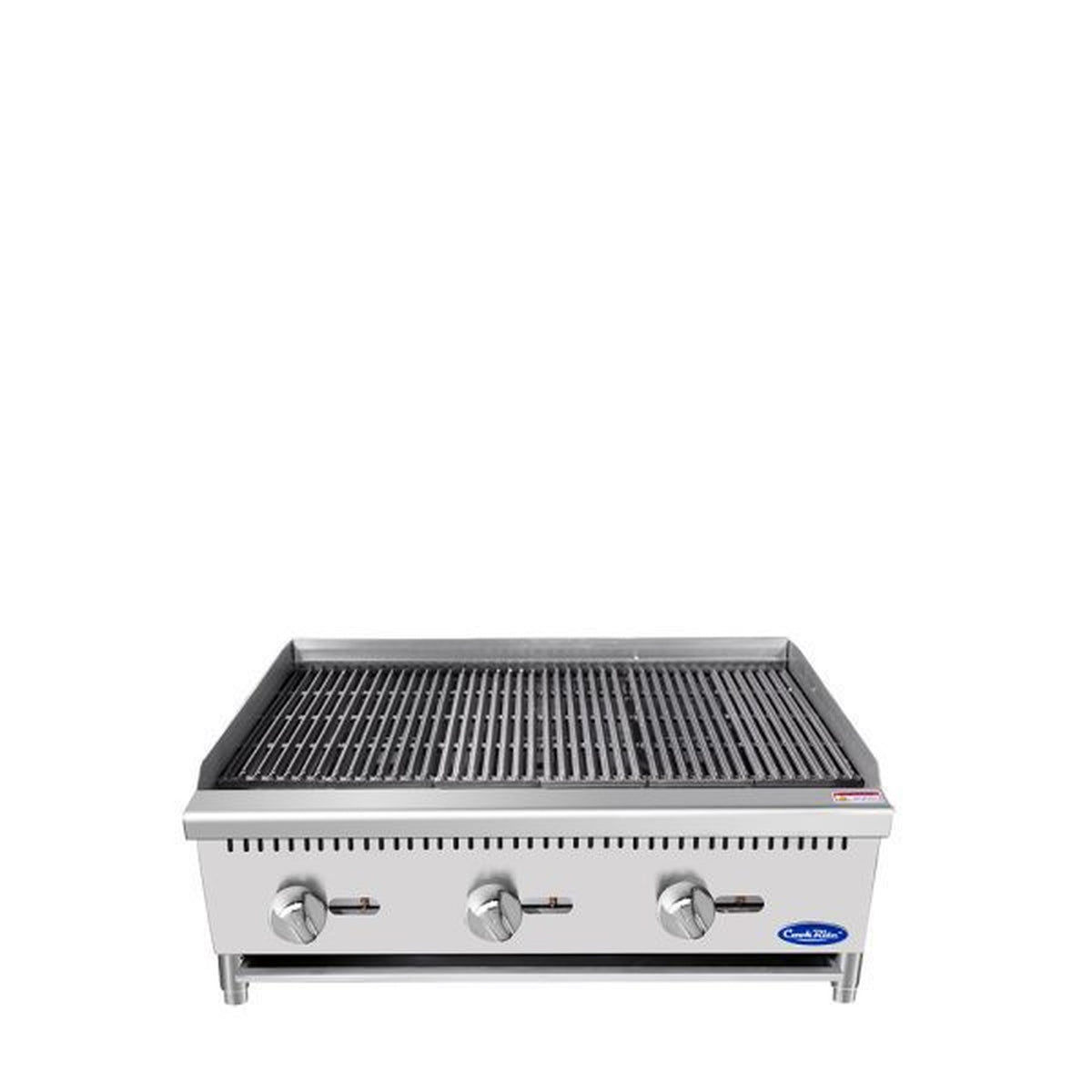

Atosa CookRite Stainless Steel Gas Char-Rock Broiler 36" ATCB-36*

The Atosa CookRite ATCB-36 is a 36" countertop gas char-rock broiler for restaurants, burger operations and institutional cooklines that need char-grilled output from a countertop unit. It has three 35,000 BTU stainless steel burners, for a total of 105,000 BTU, and each burner is controlled separately. The cooking area is 35.7" wide by 20.2" deep, and the unit measures 36" wide, 27-3/5" deep and 15-1/5" high. Stainless steel radiant plates and the included lava briquettes sit under reversible cast iron grates, and the housing is stainless steel inside and out. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Three 35,000 BTU stainless steel burners, 105,000 BTU total
• Independent manual controls every 12", giving three separate heat zones
• Standby pilot on each burner
• Lava briquettes included as standard, set over stainless steel radiant plates
• Heavy-duty reversible cast iron grates
• Adjustable multi-level top grates
• Stainless steel exterior and interior
• Adjustable stainless steel legs for leveling on the counter
• Removable catch tray for grease and debris
• 3/4" NPT rear gas connection with regulator included. Ships for natural gas with an LP conversion kit

Atosa ATCB-36* specifications

Brand	Atosa (CookRite line)
Model number	ATCB-36
Product type	Countertop gas char-rock (lava rock) broiler
Burners	3 stainless steel burners, 35,000 BTU each
Total input	105,000 BTU/hr
Controls	Independent manual control per burner, one per 12" section
Ignition	Standby pilots
Gas type	Natural gas as shipped, LP conversion kit included
Gas connection	3/4" NPT, rear
Regulator and pressure	Regulator included. 4" W.C. natural gas, 10" W.C. LP
Orifice size	#36 natural gas, #50 LP
Cooking area	35.7" wide x 20.2" deep
Exterior width	36"
Exterior depth	27-3/5" (27.6")
Exterior height	15-1/5" (15.2")
Grates	Heavy-duty reversible cast iron, adjustable multi-level
Heat media	Lava briquettes over stainless steel radiant plates
Construction	Stainless steel exterior and interior
Legs	Adjustable stainless steel
Grease management	Removable catch tray
Net weight	191 lb
Shipping weight	238 lb
Certifications	cETLus, ETL-Sanitation
Warranty	1 year parts and labor

Frequently asked questions

What gas connection does the Atosa ATCB-36 need?

It connects through a 3/4" NPT rear gas inlet. The regulator is included. As shipped it runs on natural gas at 4" W.C. A qualified gas installer should make the connection.

Can the ATCB-36 run on propane?

Yes. It ships set up for natural gas and comes with an LP conversion kit. On LP it uses #50 orifices and runs at 10" W.C. Have a qualified technician do the conversion.

How much grilling space does it have?

The cooking area is 35.7" wide by 20.2" deep, which is about 721 sq. in. It is split into three 12" zones, each with its own burner control, so you can run different heat levels side by side.

Will it fit through a standard doorway?

Yes. The unit is 27-3/5" deep and 15-1/5" high, so it fits through a standard 36" doorway turned sideways. It weighs 191 lb uncrated, so plan for two people to lift it.

What certifications does it have?

It is cETLus listed and ETL-Sanitation certified. cETLus means Intertek has tested it to the gas safety standards used in the US and Canada. ETL-Sanitation means it meets food equipment sanitation requirements. Health inspectors and code officials look for both.

What warranty comes with the ATCB-36?

Atosa gives a one-year parts and labor warranty, counted from the date the unit ships from Atosa. It covers defects in materials and workmanship, including gas components such as the cast iron grates, stainless steel radiants and briquettes. Labor covers standard straight-time rates and reasonable travel time. The warranty does not cover alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood or acts of God. File claims directly with Atosa and include the model number, serial number and proof of purchase.

How does the ATCB-36 differ from other Atosa charbroilers?

The ATCB-24 is the 24" version with two burners and 70,000 BTU. The ATCB-48 is the 48" version with four burners and 140,000 BTU. The ATRC-36 is the same width and BTU rating but is a radiant charbroiler that does not use lava briquettes.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
