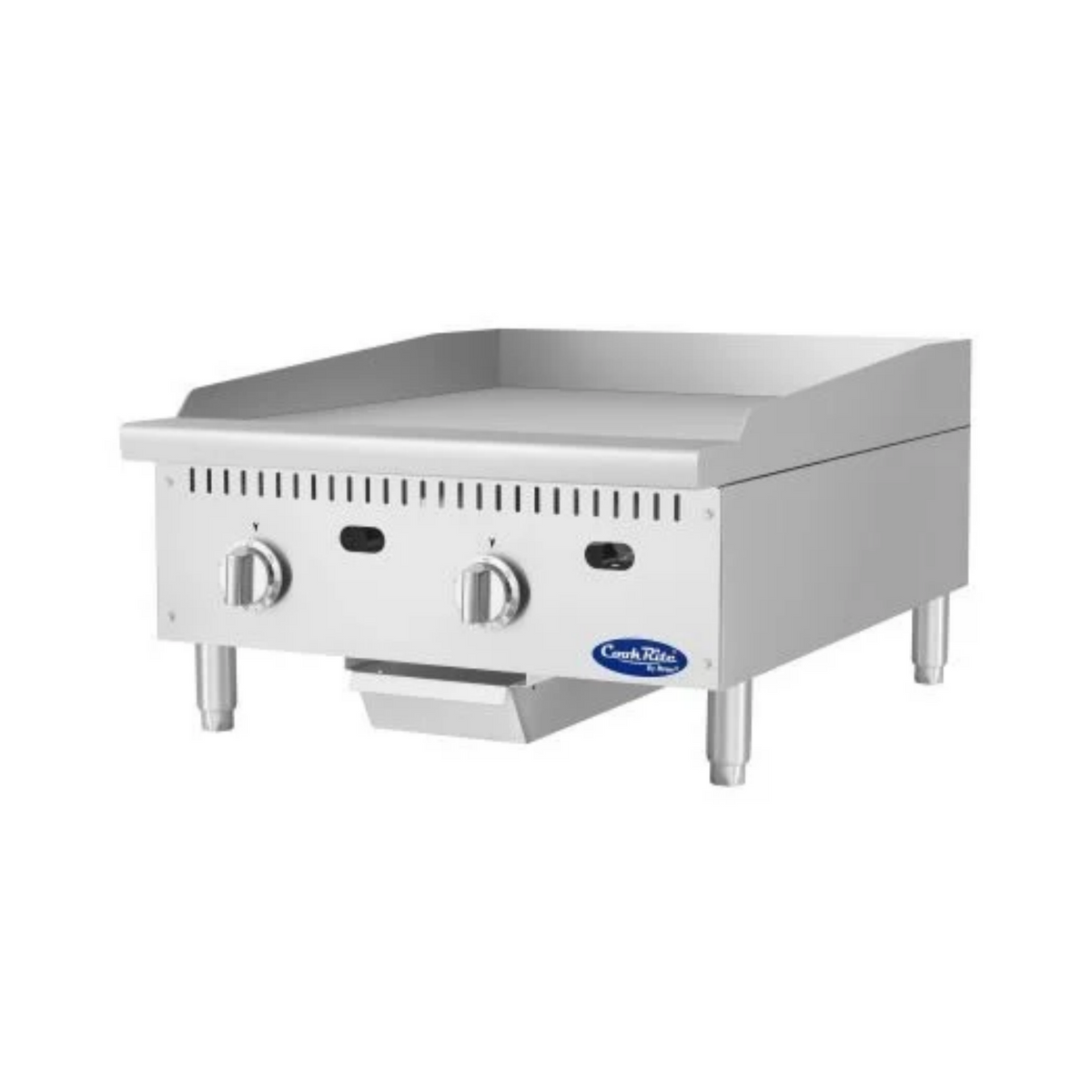

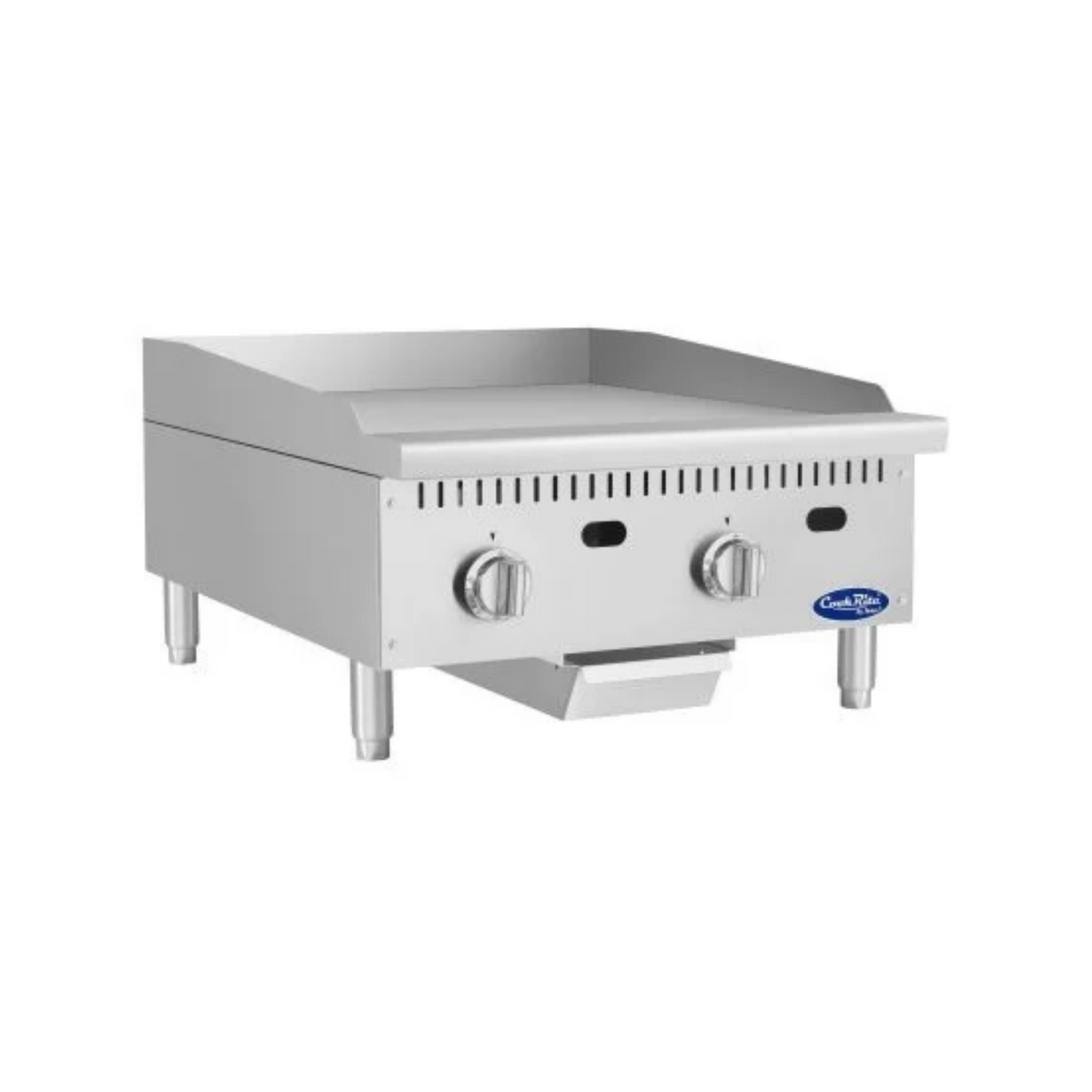

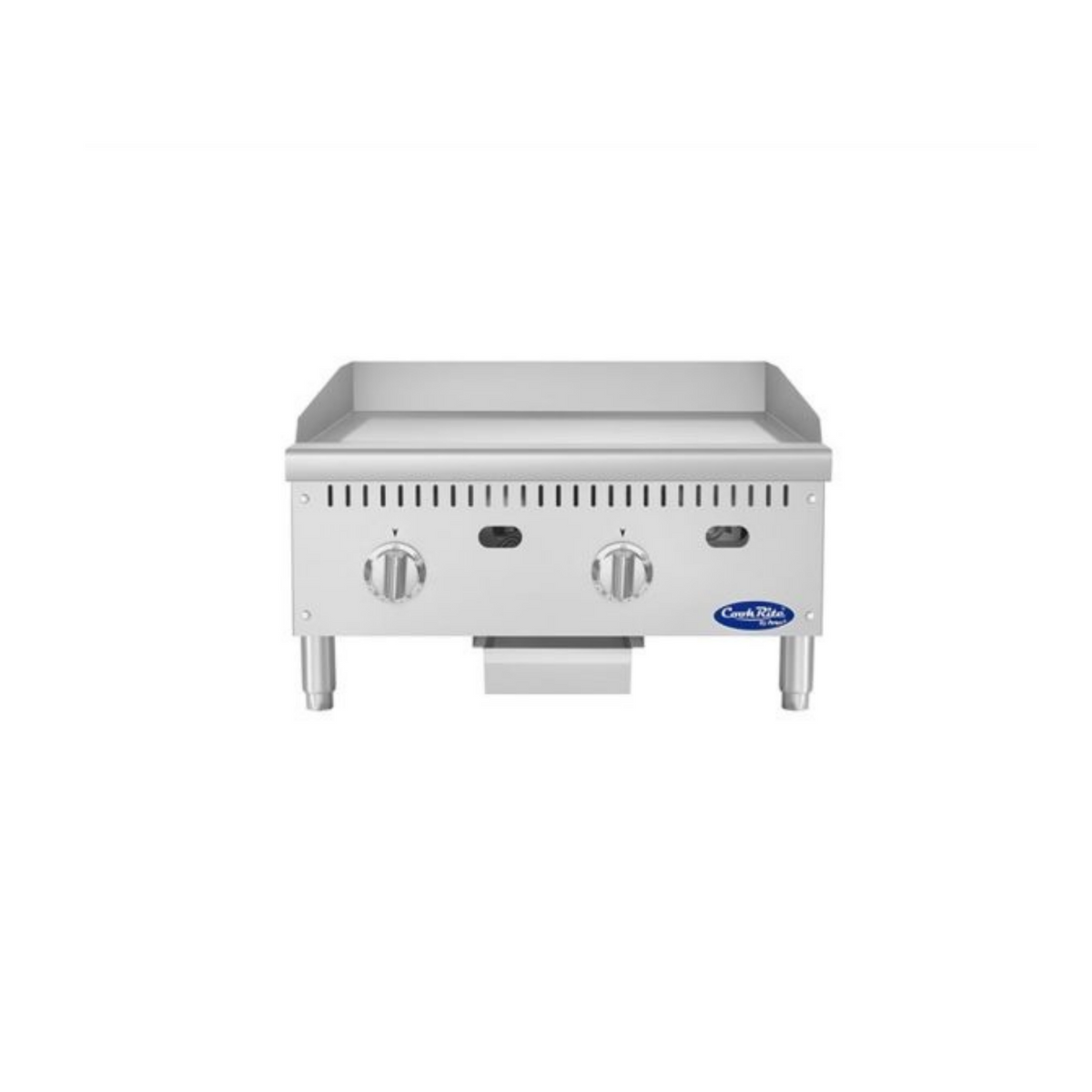

Atosa CookRite Gas Countertop Griddle Steel 24" - 60,000 BTU - ATG-2424-S

The Atosa CookRite ATG-2424-S is a 24" countertop gas griddle with thermostatic controls for restaurants, diners, cafeterias and other high-volume kitchens that need steady flat-top output in a small footprint. It has a 24" x 24" cooking area on a 1" thick polished steel plate, heated by two 30,000 BTU/h U-shaped burners for a total of 60,000 BTU/h. Each 12" section has its own snap-action thermostat adjustable from 200°F to 450°F. The unit is 24" wide, 32" deep and 15-1/4" high, with stainless steel inside and out, stainless steel legs, and a 3/4" NPT rear gas connection with the regulator included. East Bay Restaurant Supply ships this model with free shipping.

Key features

• 24" x 24" cooking area on a 1" thick polished steel griddle plate
• Two U-shaped 30,000 BTU/h burners, one per 12" section, 60,000 BTU/h total
• Independent snap-action thermostatic control for each 12" section, 200°F to 450°F
• Standing pilot ignition with automatic gas shut-off if the pilot goes out
• 2 mm thick, 14-gauge stainless steel rear and side splashes
• Stainless steel grease drawer, 6-3/4" wide x 17-1/2" deep x 2-1/2" high, 4 qt. capacity
• 12-3/4" working height with a protruding front edge that reduces operator contact with the hot plate
• Stainless steel exterior and interior, stainless steel legs standard
• 3/4" NPT rear gas connection with regulator included; available for natural gas or liquid propane
• cETLus and ETL Sanitation listed

Atosa ATG-2424-S specifications

Brand	Atosa (CookRite line)
Model number	ATG-2424-S
Product type	Countertop gas griddle, thermostatic controls
Cooking area (width x depth)	24" x 24"
Griddle plate	1" thick polished steel
Exterior width	24"
Exterior depth	32"
Exterior height	15-1/4"
Working height	12-3/4"
Burners	2 U-shaped burners, 30,000 BTU/h each
Total input	60,000 BTU/h
Controls	Independent snap-action thermostat per 12" section
Temperature range	200°F to 450°F
Ignition	Standing pilots with automatic gas shut-off
Gas type	Natural gas or liquid propane
Gas connection	3/4" NPT, rear
Regulator	Included; 4" W.C. natural gas, 10" W.C. propane
Splashes	Rear and sides, 2 mm (14-gauge) stainless steel
Grease drawer	Stainless steel, 6-3/4" W x 17-1/2" D x 2-1/2" H, 4 qt.
Construction	Stainless steel exterior and interior
Legs	Stainless steel, standard
Clearance to combustible construction	Rear 6", sides 4" to 6"
Clearance to non-combustible construction	0"
Net weight	217 lb
Shipping weight	263 lb
Certifications	cETLus, ETL Sanitation
Warranty	1 year parts and labor; extended coverage up to 5 years available

Frequently asked questions

What gas connection does the ATG-2424-S need?

It connects through a 3/4" NPT fitting at the rear and comes with a pressure regulator. Natural gas units run at 4" W.C. and propane units at 10" W.C., so tell us which gas you have when you order. A qualified gas technician should install it according to local codes.

What temperature range does it hold, and can I run two temperatures at once?

Yes. Each 12" section has its own snap-action thermostat that holds 200°F to 450°F, so one half can run hot for searing while the other stays lower for eggs or holding.

How much counter space and clearance does it need?

The griddle takes up 24" of width and 32" of depth and stands 15-1/4" high. Next to combustible construction, it needs 6" at the rear and 4" to 6" at the sides. Next to non-combustible construction, it needs no clearance.

What certifications does it have?

It is cETLus and ETL Sanitation listed. cETLus means Intertek has tested it to U.S. and Canadian gas safety standards. ETL Sanitation means it meets sanitation requirements for commercial foodservice equipment, which health inspectors look for.

What warranty comes with it?

Atosa covers the CookRite line for one year of parts and labor from the date the unit ships from Atosa. Labor covers standard straight-time charges and reasonable travel time. The warranty does not cover alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood or acts of God. Extended coverage of up to 5 years is available.

How is the ATG-2424-S different from the ATG-2424-C and ATTG-24?

The ATG-2424-C is the same size and has the same 60,000 BTU output, but its 1" plate is chrome plated instead of polished steel. The ATTG-24 is an older thermostatic model with two 25,000 BTU burners (50,000 BTU total) and a smaller 23-9/10" x 19-9/10" cooking area.

What larger sizes are in the same series?

The ATG-3624-S has three burners and a 36" x 24" cooking area. The ATG-4824-S has four burners, 120,000 BTU/h and a 48" x 24" cooking area. The ATG-6024-S is the 60" model. All of them use the same 1" polished steel plate and 30,000 BTU/h burner per 12" section.

How is grease handled?

Grease drains into a removable stainless steel drawer that holds 4 qt. and measures 6-3/4" W x 17-1/2" D x 2-1/2" H. Stainless steel splashes on the rear and sides keep spatter on the cooking surface.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
