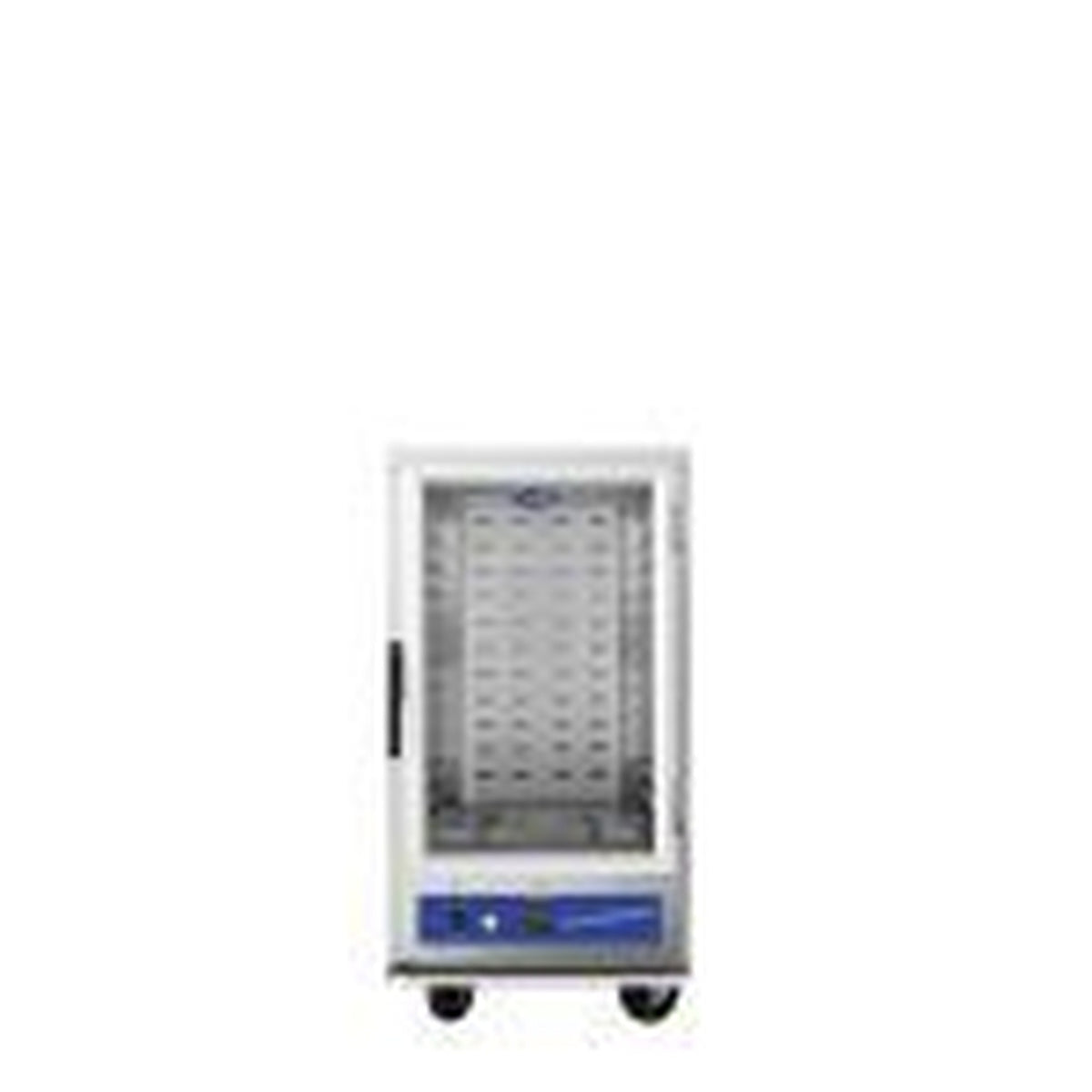

Atosa CookRite Insulated Stainless Steel Warming Cabinet - 12 Pan - ATWC-12

The Atosa CookRite ATWC-12 is an insulated, mobile warming and holding cabinet for restaurants, caterers and institutional kitchens that need to hold cooked food at serving temperature before service. It holds twelve 18" x 26" pans on integrated slides in a cabinet 21-1/2" wide, 31-3/4" deep and 42-3/4" high. The temperature is adjustable from 90°F to 205°F, using dial controls and an LED temperature display. It runs on 120V at 13.2 A and 1,580 W, has a 10 ft cord with a NEMA 5-15P plug, and is built of stainless steel inside and out with a foam-insulated cabinet and a clear polycarbonate door. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Holds twelve 18" x 26" full-size sheet pans on integrated slides
• Adjustable heat from 90°F to 205°F, with dial controls
• LED display shows cabinet temperature at a glance
• Clear polycarbonate door lets staff see product without opening the cabinet
• Door closes itself when opened to 90° or less and stays open past 90° for loading
• Field-reversible door hinging for left or right placement
• Fully insulated cabinet with foam insulation to reduce heat loss
• Integrated slides and a removable control drawer for easier cleaning and service
• Four casters, two swivel and two locking, for moving and parking the cabinet
• Plugs into a standard 120V outlet with a 10 ft cord and NEMA 5-15P plug

Atosa ATWC-12 specifications

Brand	Atosa (CookRite line)
Model number	ATWC-12
Product type	Insulated warming and holding cabinet, heated
Sections / doors	1 section, 1 door
Pan capacity	12 pans, 18" x 26"
Exterior width	21-1/2"
Exterior depth	31-3/4"
Exterior height	42-3/4" overall
Temperature range	90°F to 205°F
Heat-up time	About 15 minutes from 72°F (22°C) to 160°F (71°C)
Controls	Dial controls with LED temperature display
Electrical	120 V / 60 Hz / 1 phase, 13.2 A
Power	1,580 W
Plug	NEMA 5-15P
Cord length	10 ft
Door	Clear polycarbonate, field reversible, stays open past 90°
Interior	Integrated pan slides, removable control drawer
Exterior material	Stainless steel
Interior material	Stainless steel
Insulation	Fully insulated cabinet with foam insulation
Casters	4 casters: 2 swivel, 2 locking
Gross weight	135 lb
Certifications	cETLus, ETL Sanitation
Warranty	1 year parts and labor

Frequently asked questions

What outlet does the Atosa ATWC-12 need?

The ATWC-12 plugs into a standard 120V NEMA 5-15R or 5-20R receptacle using its 10 ft cord and NEMA 5-15P plug. It draws 13.2 A at 120 V, 60 Hz, single phase, which uses most of a 15 A circuit. Don't put other high-draw equipment on the same circuit.

What temperature does it hold?

The ATWC-12 is a heated holding cabinet, not a refrigerator or proofer, and you can set it anywhere from 90°F to 205°F. It takes about 15 minutes to heat from a 72°F room to 160°F.

How much does it hold?

It holds twelve 18" x 26" pans on integrated slides.

Will it fit through a standard doorway?

Yes. At 31-3/4" deep and 21-1/2" wide, it fits through a 36" doorway, and at 42-3/4" high it is well under an 80" door opening.

What certifications does it have?

The ATWC-12 is cETLus and ETL Sanitation certified. cETLus means it meets electrical safety standards for the US and Canada. ETL Sanitation means it meets food equipment sanitation standards, which health inspectors look for in commercial kitchens.

What warranty comes with it?

Atosa gives a 1 year parts and labor warranty on its CookRite cooking and holding equipment, starting on the date the unit ships from Atosa. Claims go directly to Atosa and must include the model number, serial number and proof of purchase. The warranty doesn't cover parts damaged by alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood or acts of God.

How does the ATWC-12 differ from the ATWC-24 and ATHC-9ES?

The ATWC-24 has the same 21-1/2" x 31-3/4" footprint, power draw and temperature range, but it is 69-3/4" high and holds twenty-four 18" x 26" pans. The ATHC-9ES holds nine pans, is 25-1/8" wide, draws 1,900 W on a NEMA 5-20P plug and is ENERGY STAR rated. ENERGY STAR applies only to the ATHC models, not the ATWC models.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
