Atosa CookRite Heated Holding Cabinet Stainless Steel 18 Pan - ATHC-18ES

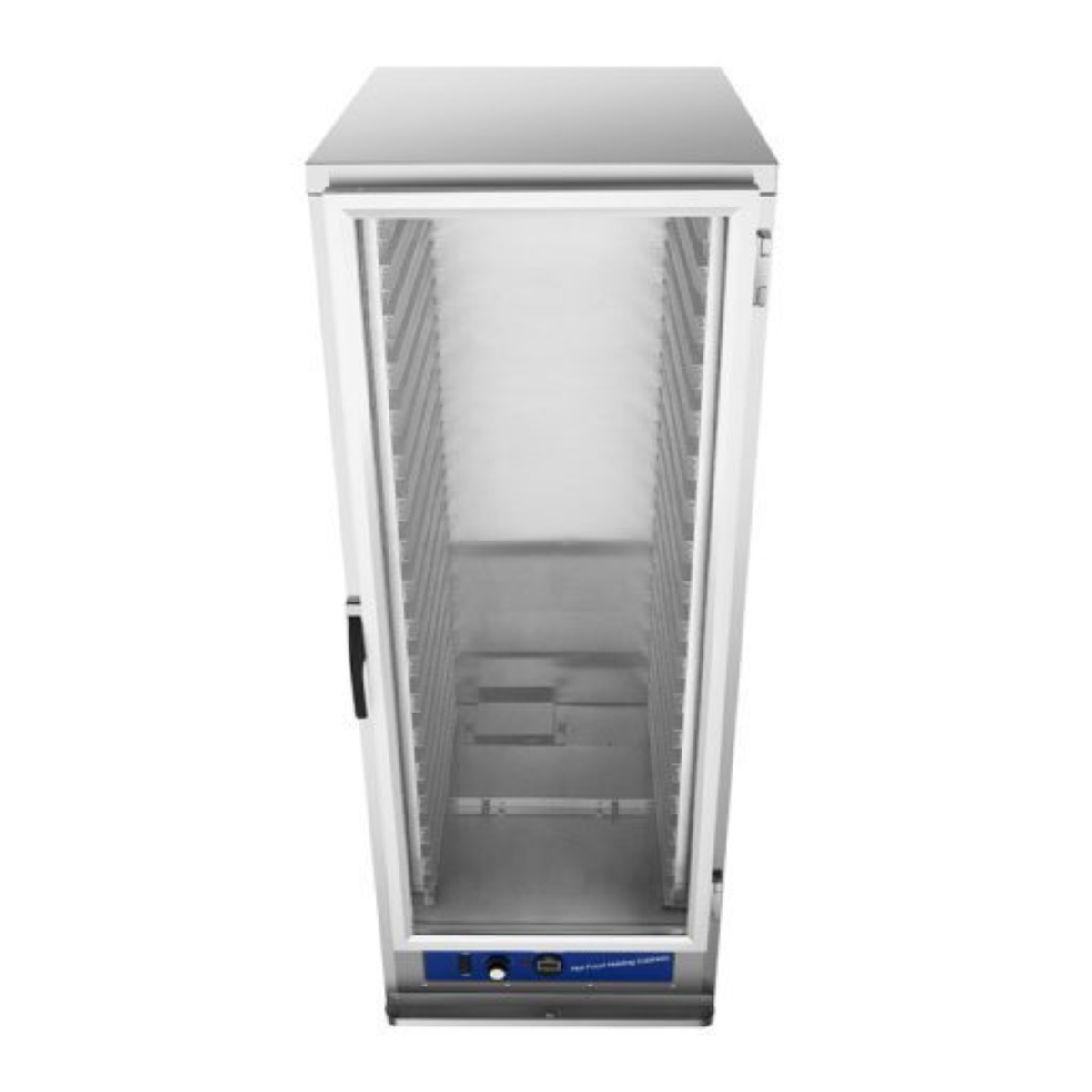

The Atosa ATHC-18ES is a full-height, mobile, insulated heated holding cabinet from the CookRite line. It is built for restaurants, caterers, banquet kitchens and cafeterias that need to keep cooked food hot between the end of cooking and service. The cabinet is 25-1/8" wide, 31" deep and 69-3/4" high and holds eighteen 18" x 26" sheet pans. You can set it anywhere from 85°F to 207°F, and it runs on 120V, 1900 W with a NEMA 5-20P plug. It has a stainless steel interior and exterior, foam-insulated walls, a tempered glass door and four casters. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Holds eighteen 18" x 26" full-size sheet pans on integrated slides
• Adjustable heating mode from 85°F to 207°F
• Easy-to-read LED temperature display with dial controls
• Fully insulated cabinet using environmentally friendly foaming material to reduce heat loss and energy use
• ENERGY STAR certified hot food holding cabinet
• Self-closing door that closes automatically when opened to 90° or less and stays open past 90° for loading
• Single tempered glass door, field reversible
• Integrated slides and removable control drawer for easier cleaning
• Four pre-installed casters with bumpers, two with brakes, each caster rated for over 250 lb
• 10 ft power cord with NEMA 5-20P plug

Atosa ATHC-18ES specifications

Brand	Atosa (CookRite line)
Model number	ATHC-18ES
Product type	Insulated heated holding cabinet, mobile, full height
Sections / doors	1 section, 1 door
Pan capacity	18 sheet pans, 18" x 26" (18 layers)
Exterior width	25-1/8"
Exterior depth	31"
Exterior height	69-3/4"
Temperature range	85°F to 207°F
Controls	Dial controls with LED display
Electrical	120 V / 60 Hz / 1 phase, 1900 W
Plug	NEMA 5-20P
Cord length	10 ft
Door	Tempered glass, field reversible, self-closing at 90° or less, stays open past 90°
Interior configuration	Integrated pan slides, removable control drawer
Materials	Stainless steel exterior and interior
Insulation	Fully insulated, environmentally friendly foaming material
Casters	4 pre-installed casters with bumpers, 2 with brakes, rated over 250 lb each
Shipping weight	225 lb
Certifications	cETLus, ETL Sanitation, ENERGY STAR
Warranty	1 year parts and labor

Frequently asked questions

What outlet does the Atosa ATHC-18ES need?

It needs a 120 V, 20 A NEMA 5-20R receptacle, because it ships with a NEMA 5-20P plug on a 10 ft cord. A 20 A plug will not fit a standard 15 A (5-15R) outlet. The unit draws 1900 W on 120 V, 60 Hz, single phase.

What temperature does it hold?

It holds anywhere from 85°F to 207°F, which you set with a dial and read on the LED display. It is a heated holding cabinet for keeping food hot after it has been cooked in other equipment. It is not a refrigerator, a proofer or a cook-and-hold oven.

How much does it hold?

It holds eighteen full-size 18" x 26" sheet pans, one per slide position.

Will it fit through a standard doorway?

Yes. It is 31" deep and 25-1/8" wide, so it goes through a 36" doorway. At 69-3/4" high it also clears a standard 80" door opening upright.

What certifications does it have?

It is cETLus listed, ETL Sanitation listed and ENERGY STAR certified. cETLus covers electrical safety in the US and Canada. ETL Sanitation means it meets food equipment sanitation standards that health inspectors look for. ENERGY STAR means its idle energy use meets the EPA limit for commercial hot food holding cabinets.

What warranty comes with it?

Atosa covers it for one year, parts and labor, starting on the date it ships from Atosa. The warranty covers defects in materials or workmanship, and labor is limited to standard straight-time rates plus reasonable travel time. Claims go directly to Atosa with the model number, serial number and proof of purchase. Only the original purchaser is covered, and the warranty cannot be transferred. It does not cover damage from alteration, neglect, abuse, misuse, accident, transit or installation damage, fire, flood or acts of God. It also does not cover food or product spoilage.

How does the ATHC-18ES differ from the ATHC-9ES and ATHC-18P?

The ATHC-9ES is the half-height version of the same ENERGY STAR cabinet. It holds 9 sheet pans and stands 42-3/4" high, with the same width, depth, 85°F to 207°F range, 1900 W rating and NEMA 5-20P plug. The ATHC-18P is a heated cabinet in the same 18-pan size with a different design. It has a clear polycarbonate door, a humidifying water tray, a 90°F to 220°F range, 2000 W power and a 6 ft cord.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
