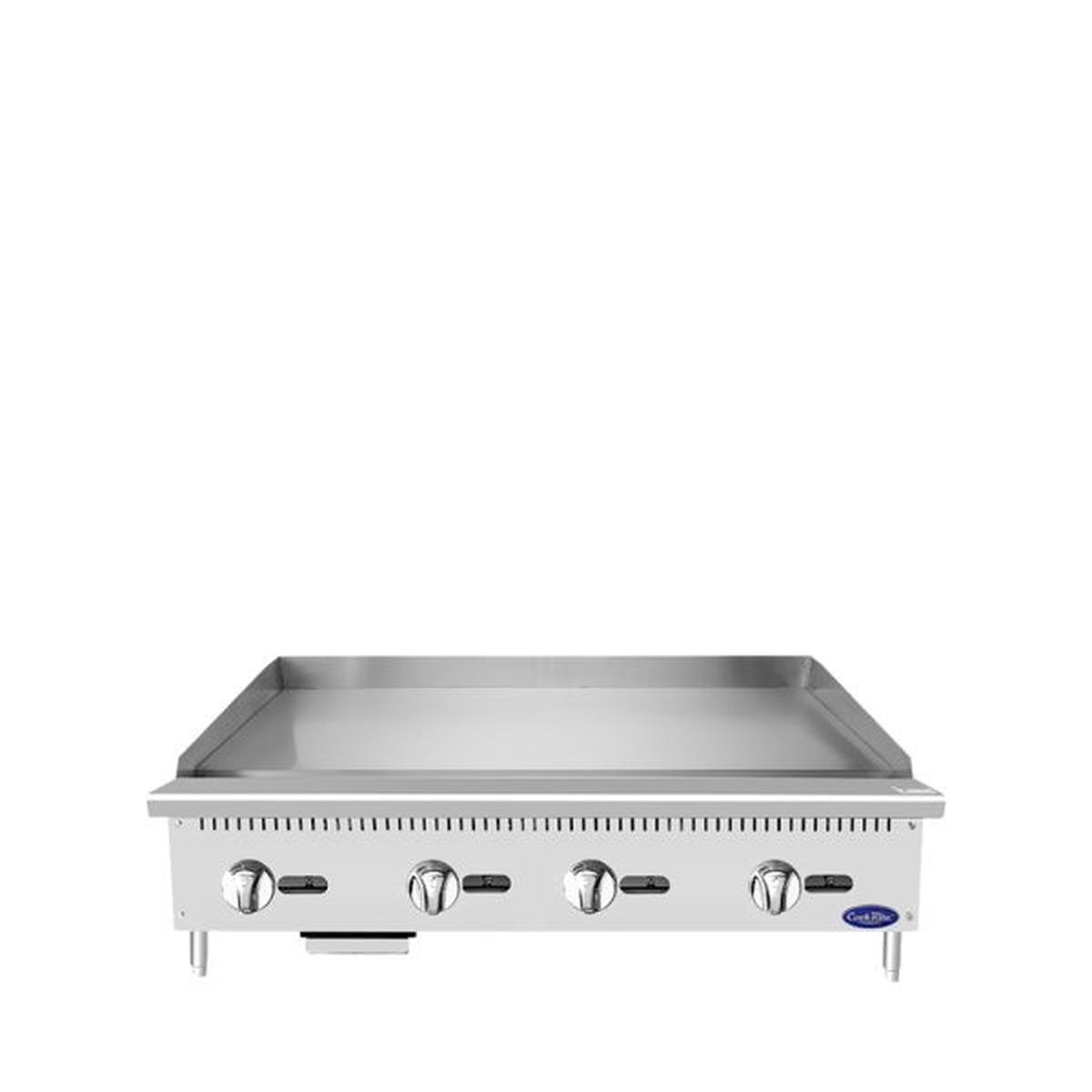

Atosa CookRite Manual Countertop Gas Griddle 48" - 120,000 BTU ATMG-48*

The Atosa CookRite ATMG-48 is a 48" heavy duty countertop manual gas griddle for restaurants, diners, breakfast operations and other commercial kitchens that run eggs, pancakes, burgers and sandwiches in volume. The unit measures 48" wide by 28-3/5" deep by 15-1/5" high and has a 47-9/10" by 19-9/10" cooking area on a 3/4" thick polished steel griddle plate. Four 30,000 BTU stainless steel burners, one under each 12" section, deliver 120,000 BTU total and each has its own standby pilot and manual control valve. You can order it for natural gas or liquid propane, and it connects through a 3/4" NPT rear gas inlet with a regulator included. East Bay Restaurant Supply ships this model with free shipping.

Key features

• 120,000 BTU total input from four 30,000 BTU stainless steel burners
• Each 12" section has its own manual control, so you can run separate heat zones at the same time
• Standby pilots on every burner
• 3/4" thick polished steel griddle plate holds heat and recovers after a full load
• 47-9/10" wide by 19-9/10" deep cooking area
• Stainless steel exterior and interior
• Stainless steel grease drawer for collection and cleanup
• Adjustable stainless steel legs to level the unit on a counter or equipment stand
• 3/4" NPT rear gas connection with regulator included
• Order for natural gas or liquid propane
• cETLus listed and ETL-Sanitation certified

Atosa ATMG-48* specifications

Brand	Atosa (CookRite series)
Model number	ATMG-48 (ATMG-48*, gas type specified at order)
Product type	Countertop manual gas griddle, heavy duty
Exterior width	48"
Exterior depth	28-3/5" (28.6")
Exterior height	15-1/5" (15.2")
Cooking area width	47-9/10" (47.9")
Cooking area depth	19-9/10" (19.9")
Griddle plate	3/4" thick polished steel
Burners	4 stainless steel burners, one per 12" section
BTU per burner	30,000 BTU/h
Total BTU	120,000 BTU/h (natural gas or LP)
Controls	4 independent manual controls
Ignition	Standby pilots
Gas type	Natural gas (NG) or liquid propane (LP)
Intake-tube pressure	NG 4" W.C., LP 10" W.C.
Regulator	Included; NG 4" W.C., LP 10" W.C.
Gas connection	3/4" NPT, rear
Exterior and interior material	Stainless steel
Grease management	Stainless steel grease drawer
Legs	Adjustable stainless steel legs, standard
Net weight	294 lb
Gross (shipping) weight	414 lb
Certifications	cETLus, ETL-Sanitation (NSF/ANSI 4); ANSI Z83.11b / CSA 1.8b
Warranty	1 year parts and labor from date of shipment from Atosa

Frequently asked questions

What gas connection does the Atosa ATMG-48 need?

It connects through a 3/4" NPT gas inlet at the rear, and a regulator comes with the unit. Order it for natural gas, which runs at 4" W.C., or liquid propane, which runs at 10" W.C. Total input is 120,000 BTU/h. A qualified gas technician should install it according to local codes.

Does the ATMG-48 need electricity?

No. It runs on gas only, with standing pilots and manual control valves, so you don't need an electrical outlet.

How large is the cooking surface?

The cooking area is 47-9/10" wide by 19-9/10" deep, on a 3/4" thick polished steel plate. The plate is split into four 12" heat zones, and each zone has its own burner and control.

Is this griddle manual or thermostatic?

It is manual. Each control valve sets the flame for its burner rather than holding a set temperature. If you want thermostatic control, look at the Atosa ATTG-48.

Will it fit through a standard doorway?

Yes. At 28-3/5" deep and 15-1/5" high, it fits through a standard 36" doorway and well under an 80" door opening. The unit weighs 294 lb, so plan for at least two people to set it on the counter or stand.

What certifications does it have?

It is cETLus listed for gas safety in the US and Canada and ETL-Sanitation certified to NSF/ANSI Standard 4. It is also certified to ANSI Z83.11b / CSA 1.8b, the standard for commercial gas food service equipment. Health inspectors and fire code officials generally look for these listings in commercial kitchens.

What warranty comes with it?

Atosa covers it for 1 year of parts and labor from the date it ships from Atosa. Labor coverage is limited to standard straight-time labor charges and reasonable travel time, as determined by Atosa. All claims go directly to Atosa and must include the model number, serial number and proof of purchase. The warranty excludes alteration, neglect, abuse, misuse, accidents, damage during transit or installation, fire and acts of God. You can buy extended coverage from Atosa at the time of purchase.

How does the ATMG-48 differ from other models in the line?

The ATMG-24 has 2 burners and 60,000 BTU, and the ATMG-36 has 3 burners and 90,000 BTU. Both share the ATMG-48's 3/4" plate and 28-3/5" depth. The ATTG-48 is the same 48" width with thermostatic controls, a 1" thick plate and 100,000 BTU total.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
