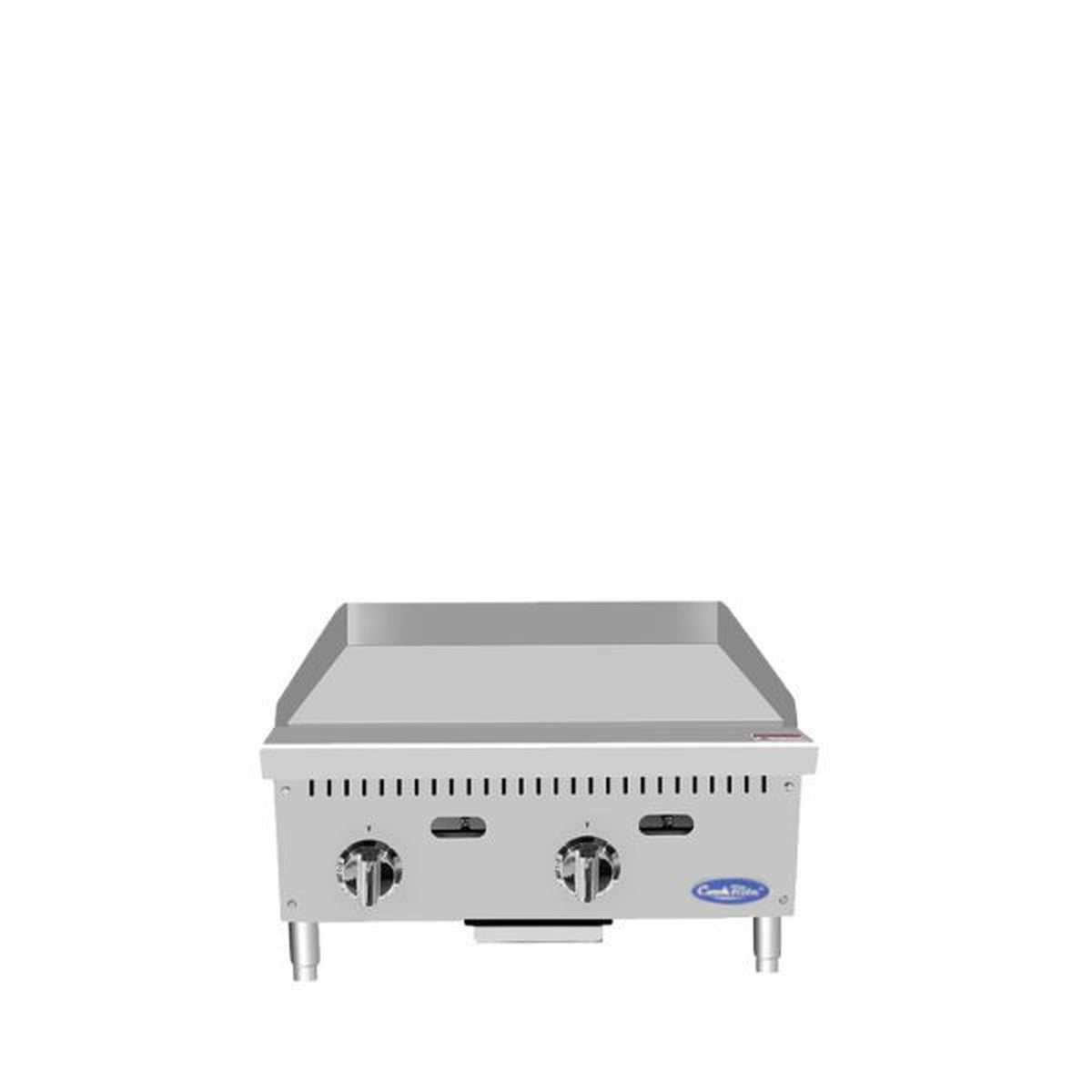

Atosa CookRite Thermostatic Gas Griddle 24" - 50,000 BTU ATTG-24*

The Atosa ATTG-24 is a 24" countertop gas griddle with thermostatic controls from the CookRite line. It suits restaurants, diners, cafes and food trucks that need steady plate temperatures on a small footprint. The unit is 24" wide, 28-3/5" deep and 15-1/5" high, with a 23-9/10" x 19-9/10" cooking surface on a 1" thick polished steel plate. Two 25,000 BTU burners give 50,000 BTU total, and each 12" section has its own thermostat. The griddle runs on natural gas or liquid propane through a 3/4" NPT rear connection with a regulator included. East Bay Restaurant Supply ships this model with free shipping.

Key features

• 1" thick polished steel griddle plate for heat retention and recovery
• Two 25,000 BTU stainless steel burners, one per 12" section, 50,000 BTU total
• Thermostat valve on each section adjusts gas flow automatically to hold the set plate temperature
• Standby pilot on each burner
• Flame-out protection device
• Stainless steel exterior and interior
• Stainless steel grease drawer
• Adjustable stainless steel legs for leveling on the counter
• 3/4" NPT rear gas connection with regulator standard
• cETLus and ETL-Sanitation listed

Atosa ATTG-24* specifications

Brand	Atosa (CookRite line)
Model number	ATTG-24
Product type	Countertop thermostatic gas griddle
Exterior width	24"
Exterior depth	28-3/5" (28.6")
Exterior height	15-1/5" (15.2")
Cooking surface width	23-9/10" (23.9")
Cooking surface depth	19-9/10" (19.9")
Griddle plate	1" thick polished steel
Burners	2 stainless steel burners, 25,000 BTU each, one per 12" section
Total output	50,000 BTU/hr
Controls	Independent thermostat valve per 12" section, standby pilots
Gas type	Natural gas or liquid propane
Manifold pressure	Natural gas 4" w.c., LP 10" w.c.
Gas connection	3/4" NPT rear, regulator included
Materials	Stainless steel exterior and interior
Grease management	Stainless steel grease drawer
Legs	Adjustable stainless steel legs
Net weight	161 lb
Shipping weight	195 lb
Certifications	cETLus, ETL-Sanitation; conforms to ANSI Z83.11b-2009 (2011) and NSF/ANSI 4; certified to CSA 1.8b-2009 (2011)
Warranty	1 year parts and labor

Frequently asked questions

What gas connection does the Atosa ATTG-24 need?

It needs a gas supply to a 3/4" NPT connection at the rear, and a regulator comes standard. The manifold pressure is 4" w.c. on natural gas and 10" w.c. on liquid propane. Specify the gas type when ordering, and have a qualified gas installer connect the unit.

Does the ATTG-24 need electricity?

No. It is an all-gas griddle with standing pilots and thermostat valves, so it does not need an electrical outlet.

How is the ATTG-24 different from a manual griddle?

Each 12" section has a thermostat valve that automatically adjusts gas flow to hold the temperature you set, so cooks do not have to keep adjusting the flame. A manual griddle like the Atosa ATMG-24 only sets the flame height. The ATMG-24 also has a thinner 3/4" plate and 60,000 BTU total.

How big is the cooking surface?

The cooking surface is 23-9/10" wide by 19-9/10" deep, split into two 12" sections that can run at different temperatures.

Will it fit on my counter and through a standard doorway?

Yes. The unit is 24" wide, 28-3/5" deep and 15-1/5" high, so it fits through a standard 36" doorway. Check that your equipment stand or counter is at least 24" wide and 28-3/5" deep, and that it can carry a 161 lb unit.

What certifications does the ATTG-24 have?

It is cETLus listed for gas safety in the US and Canada and ETL-Sanitation listed to NSF/ANSI 4 for commercial cooking equipment. Those are the listings health and building inspectors usually look for. It also conforms to ANSI Z83.11b and is certified to CSA 1.8b.

What warranty comes with it?

Atosa covers parts and labor for one year from the date the unit ships from Atosa. Labor coverage is limited to standard straight-time rates and reasonable travel time. Claims go directly to Atosa and must include the model number, serial number and proof of purchase. The warranty covers only the original purchaser and cannot be transferred. It excludes damage from alteration, neglect, abuse, misuse, accident, damage in transit or during installation, fire, flood and acts of God, as well as food or product spoilage.

What other sizes are in the ATTG line?

The Atosa ATTG-36 is 36" wide with three 25,000 BTU burners (75,000 BTU) and a 35-7/10" wide cooking surface. The Atosa ATTG-48 is 48" wide with four burners (100,000 BTU) and a 47-9/10" wide cooking surface. All three models have the same 1" plate, 28-3/5" depth and 15-1/5" height.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
