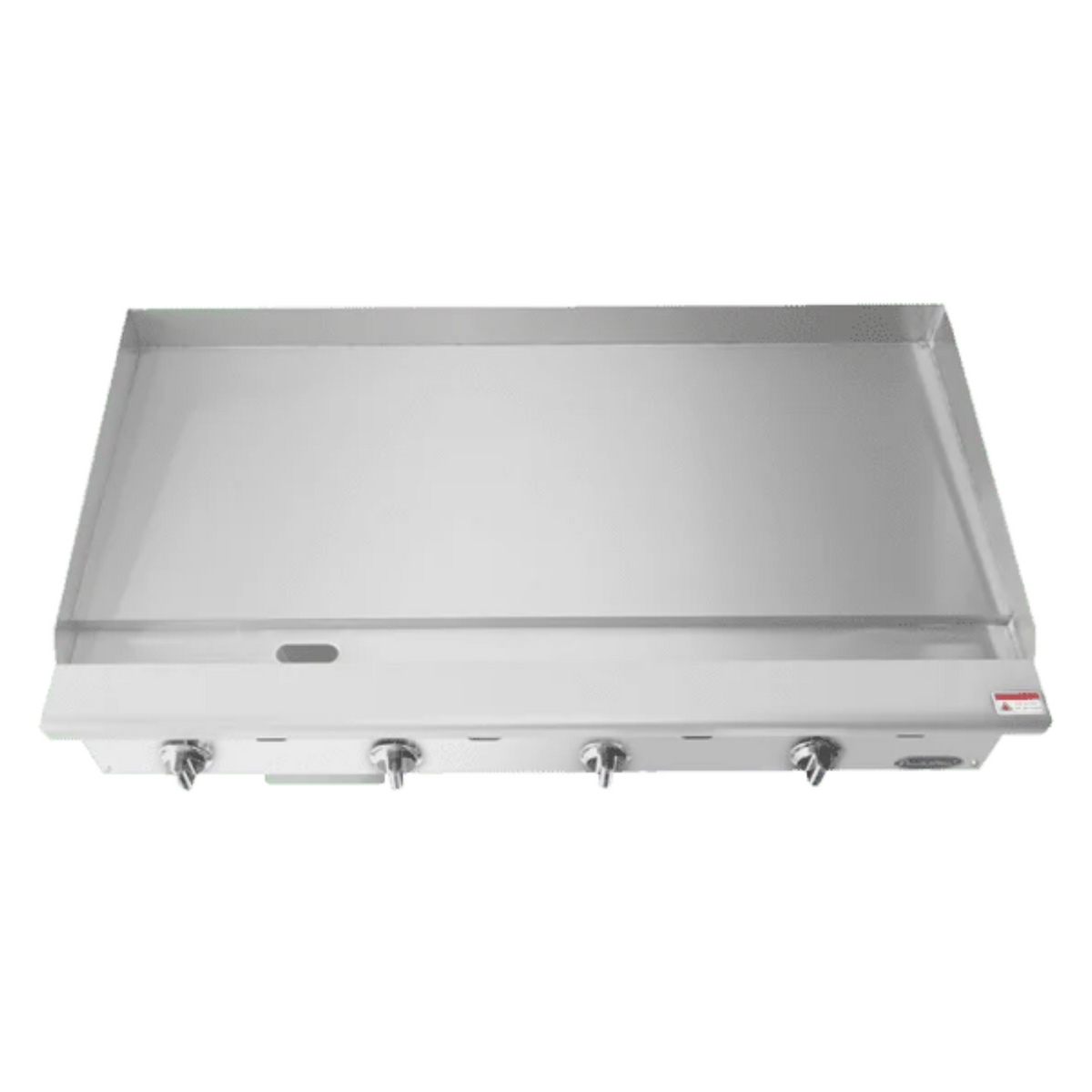

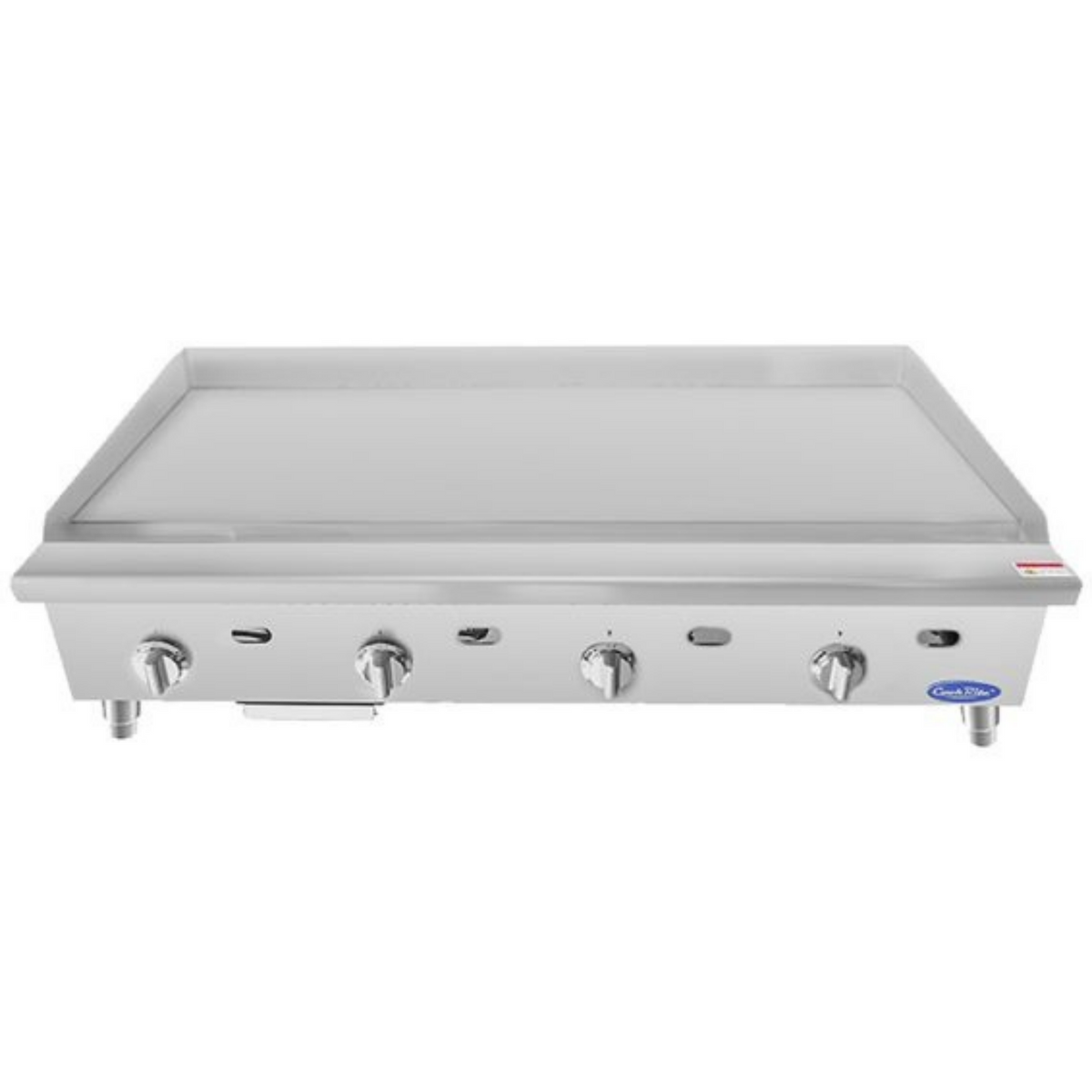

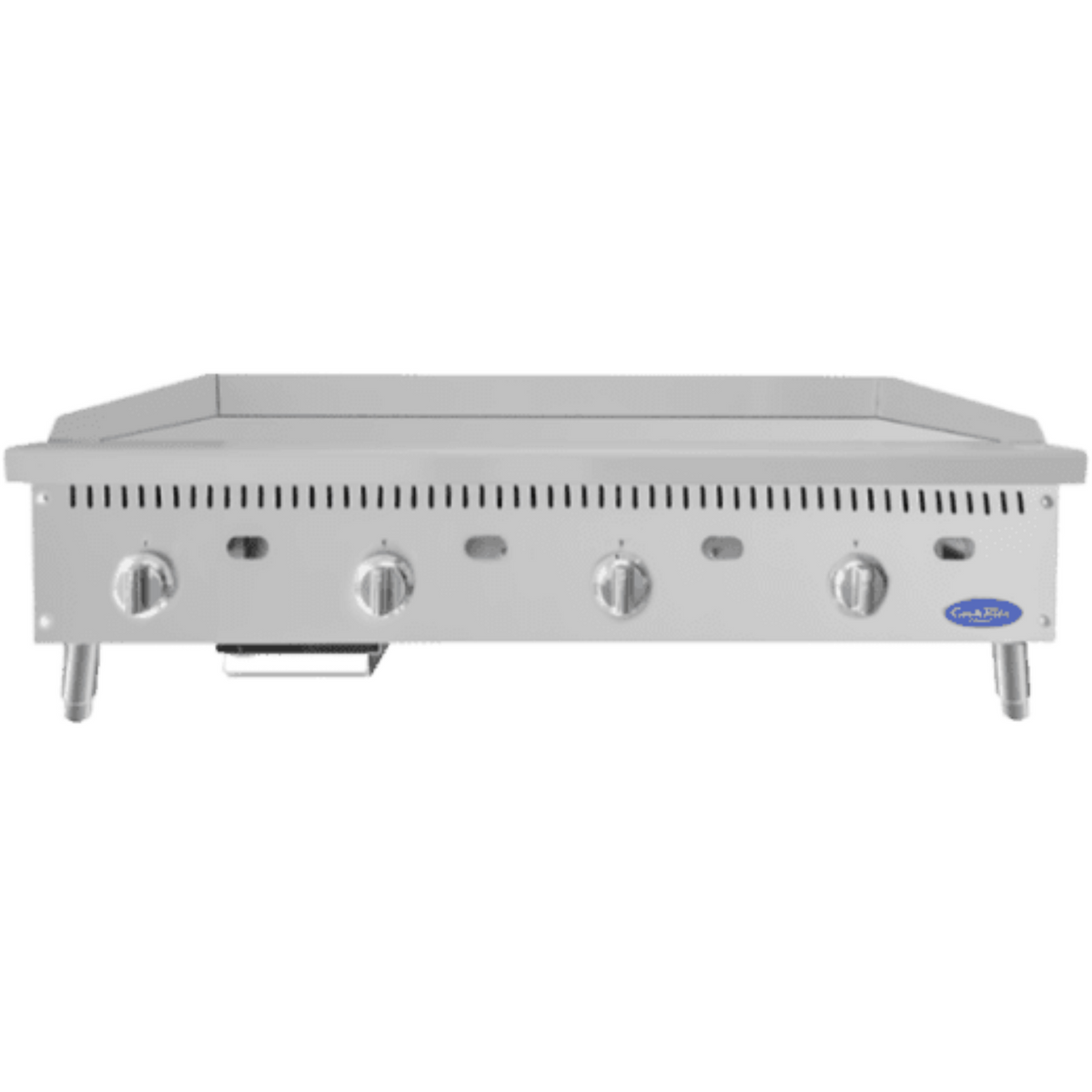

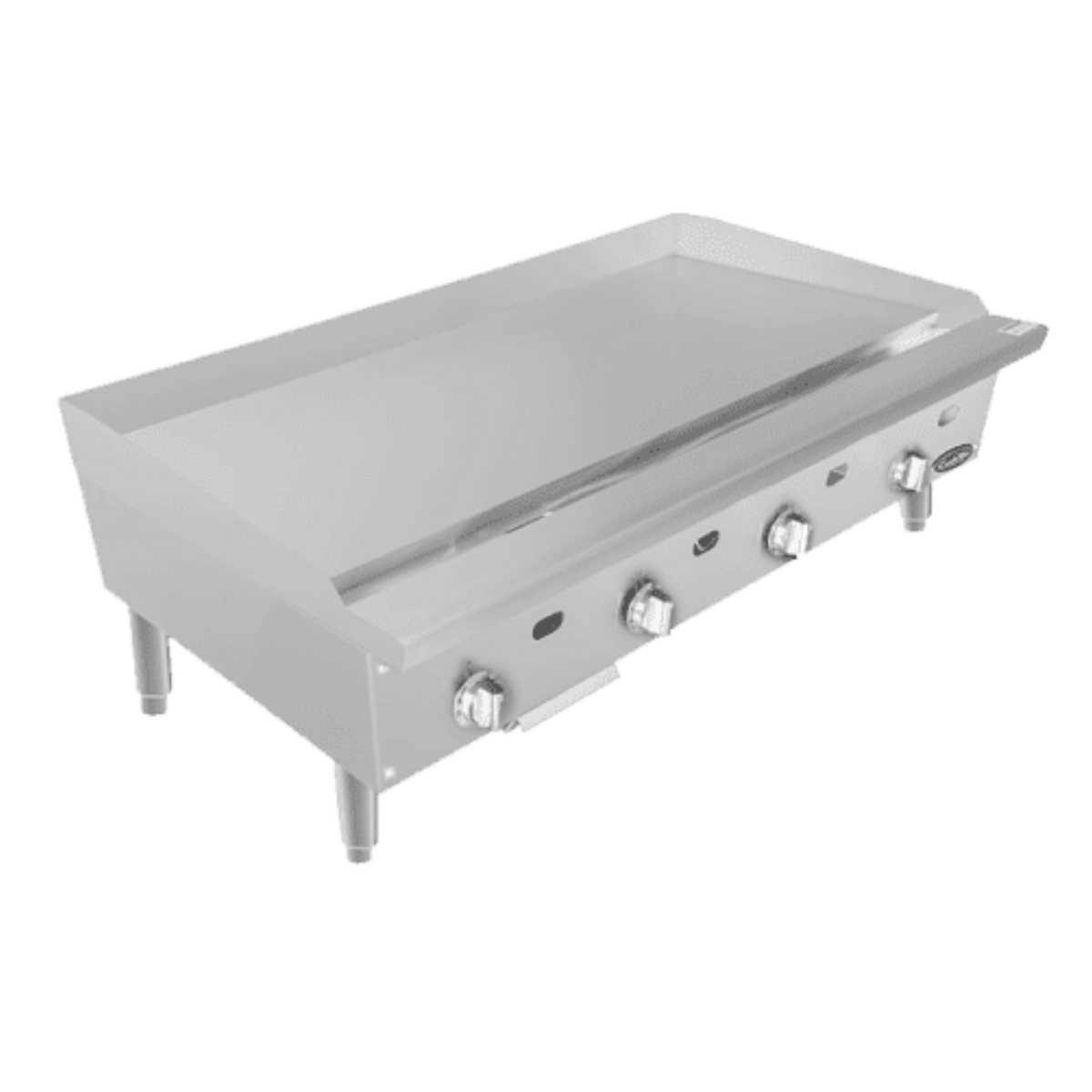

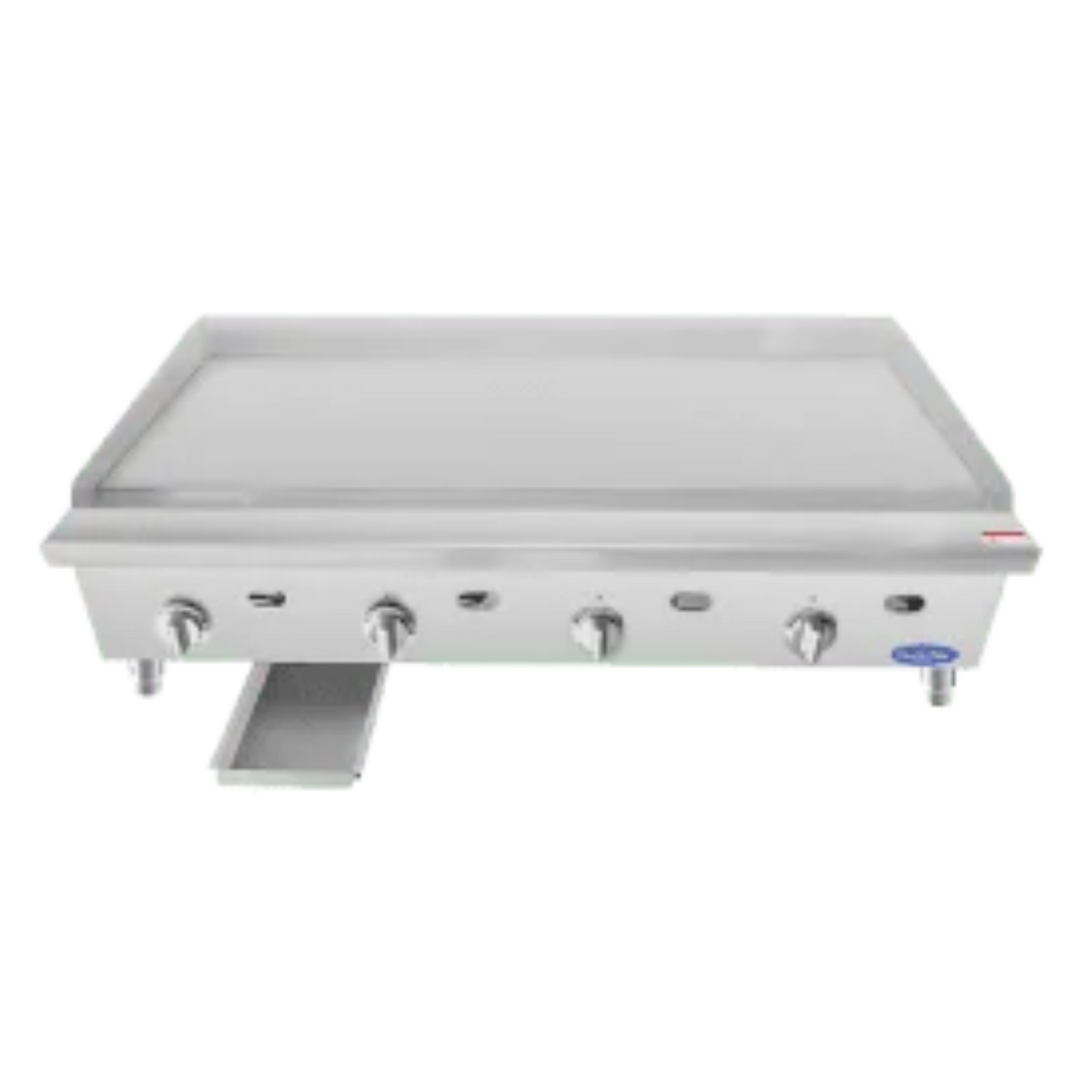

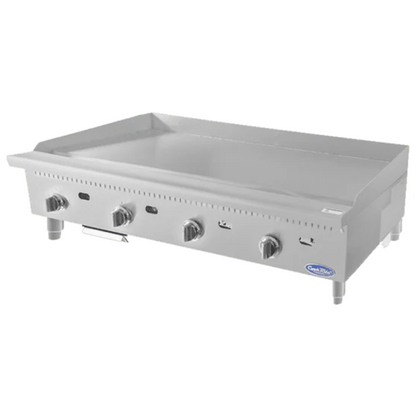

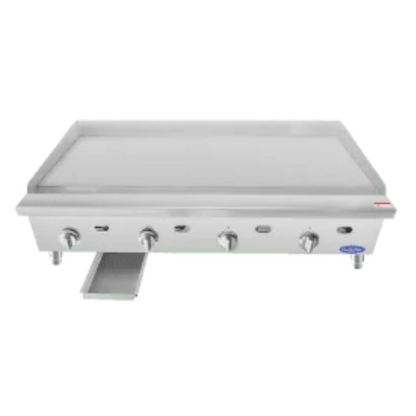

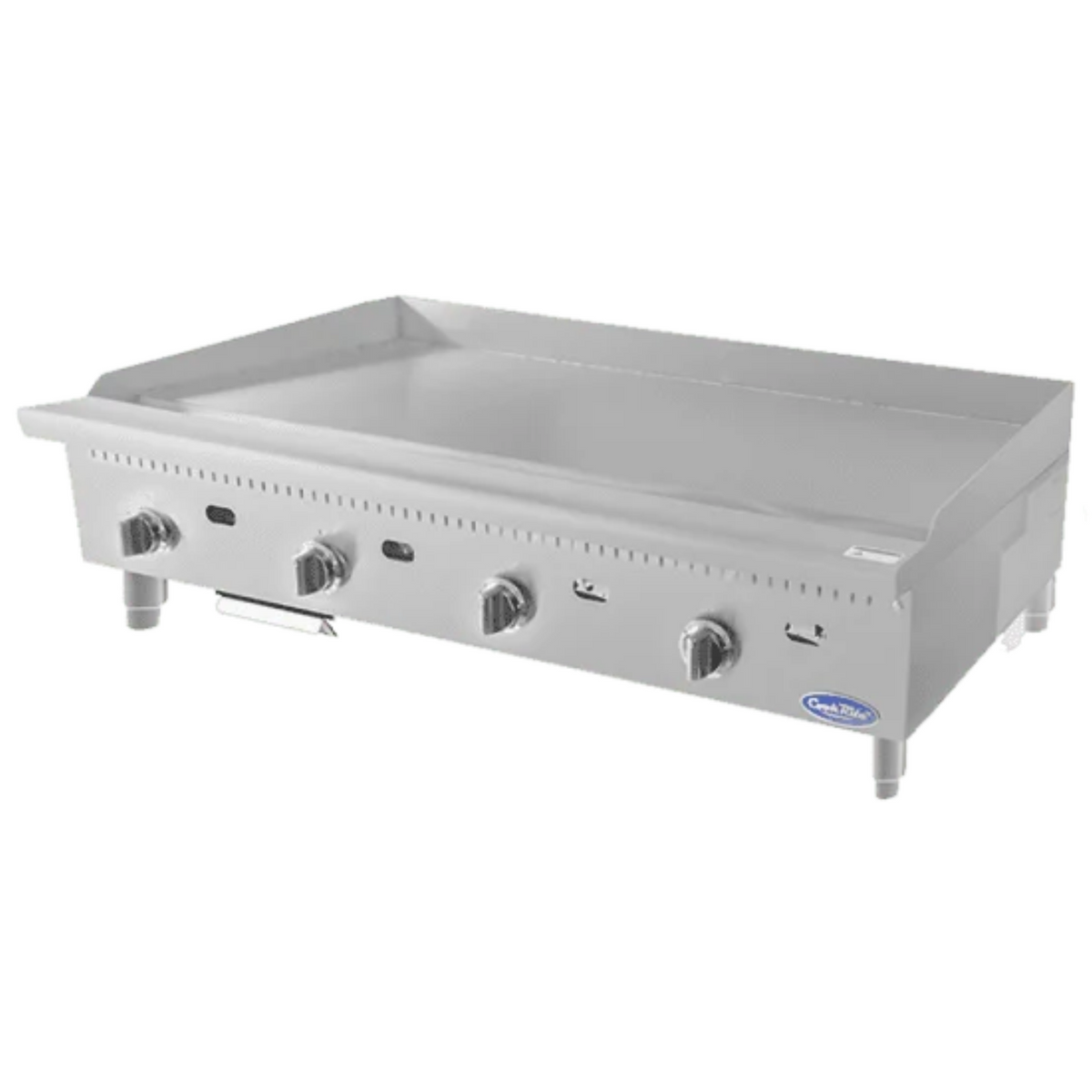

Atosa CookRite Thermostatic Gas Griddle 1" Plate 48" - 100,000 BTU ATTG-48*

The Atosa CookRite ATTG-48 is a 48" countertop thermostatic gas griddle for restaurants, diners, breakfast operations and commissaries that need a large flat-top with set-and-hold temperature control. It has a 47-9/10" wide by 19-9/10" deep cooking surface on a 1" thick polished steel plate, heated by four 25,000 BTU/hr stainless steel burners for 100,000 BTU/hr total. Each 12" section has its own burner and control, so four zones can run at different temperatures at the same time. The unit measures 48" wide, 28-3/5" deep and 15-1/5" high, is built in stainless steel inside and out, and is available for natural gas or liquid propane. East Bay Restaurant Supply ships this model with free shipping.

Key features

• 1" thick polished steel griddle plate for heat retention under heavy loads
• Four 25,000 BTU/hr stainless steel burners, one per 12" section, 100,000 BTU/hr total
• Independent thermostatic control for each of the four 12" sections
• Standby pilots on every burner
• 47-9/10" wide by 19-9/10" deep cooking surface, about 953 sq. in.
• Stainless steel exterior and interior
• Stainless steel grease drawer
• Adjustable stainless steel legs standard
• 3/4" NPT rear gas connection, gas regulator included
• cETLus listed and ETL Sanitation listed, conforms to NSF/ANSI 4

Atosa ATTG-48* specifications

Brand	Atosa
Model number	ATTG-48 (natural gas or liquid propane, specify at order)
Product type	Countertop thermostatic gas griddle
Series	CookRite
Exterior width	48"
Exterior depth	28-3/5" (28.6")
Exterior height	15-1/5" (15.2")
Cooking surface width	47-9/10" (47.9")
Cooking surface depth	19-9/10" (19.9")
Griddle plate	1" thick polished steel
Burners	4 stainless steel, 25,000 BTU/hr each
Total input	100,000 BTU/hr
Controls	4 independent thermostatic controls, one per 12" section
Ignition	Standby pilots
Gas type	Natural gas or liquid propane
Gas connection	3/4" NPT, rear
Intake-tube pressure	4" W.C. natural gas, 10" W.C. liquid propane
Regulator	Included, 4" W.C. (natural gas) or 10" W.C. (liquid propane)
Construction	Stainless steel exterior and interior
Grease management	Stainless steel grease drawer
Legs	Adjustable stainless steel legs
Net weight	359 lb
Shipping weight	431 lb
Certifications	cETLus, ETL Sanitation; conforms to ANSI Z83.11b, certified to CSA 1.8b, conforms to NSF/ANSI 4
Warranty	1 year parts and labor from date of shipment from Atosa

Frequently asked questions

What gas connection does the ATTG-48 need?

It connects to a 3/4" NPT gas supply at the rear of the unit, and the gas regulator is included. Natural gas units run at 4" W.C. and liquid propane units at 10" W.C., and the supply line has to deliver 100,000 BTU/hr. Order the gas type that matches your kitchen and have a qualified gas technician install it.

Is this a thermostatic griddle, and can I run different temperatures across the plate?

Yes. Each of the four 12" sections has its own 25,000 BTU/hr burner and its own thermostatic control, so you can set each zone separately, for example eggs on one side and burgers on the other.

How much cooking surface does it have?

The cooking surface is 47-9/10" wide by 19-9/10" deep, which works out to about 953 sq. in. of usable plate, split into four 12" zones.

Will it fit through a standard doorway and on my counter?

Yes. At 28.6" deep and 15.2" high it fits through a standard 36" doorway with room to spare. On the counter it takes up 48" of width and 28.6" of depth. The unit weighs 359 lb, so the counter or equipment stand must be rated to carry it.

What certifications does it have?

It is cETLus listed and ETL Sanitation listed, and it conforms to NSF/ANSI 4, ANSI Z83.11b and CSA 1.8b. In practice that means it meets US and Canadian gas appliance safety standards and the commercial cooking equipment sanitation standard that health inspectors look for.

What warranty comes with the ATTG-48?

Atosa covers the ATTG-48 for 1 year parts and labor, starting on the date it ships from Atosa. Labor coverage means standard straight-time labor and reasonable travel time, as determined by Atosa. You make claims directly to Atosa and need the model number, serial number and proof of purchase. The warranty does not cover parts damaged by alteration, neglect, abuse, misuse, accident, damage in transit or during installation, fire, flood or acts of God.

How does the ATTG-48 differ from other Atosa griddles?

The ATTG-24 and ATTG-36 are the same design in smaller sizes, with 2 burners (50,000 BTU/hr) and 3 burners (75,000 BTU/hr). The ATMG-48 is the same 48" width with manual controls, a 3/4" plate and 30,000 BTU/hr burners for 120,000 BTU/hr total. The ATG-4824-S is a larger thermostatic model with a 48" by 24" work area, 30,000 BTU/hr burners for 120,000 BTU/hr total, and a 48" by 32" by 15-1/4" footprint.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
