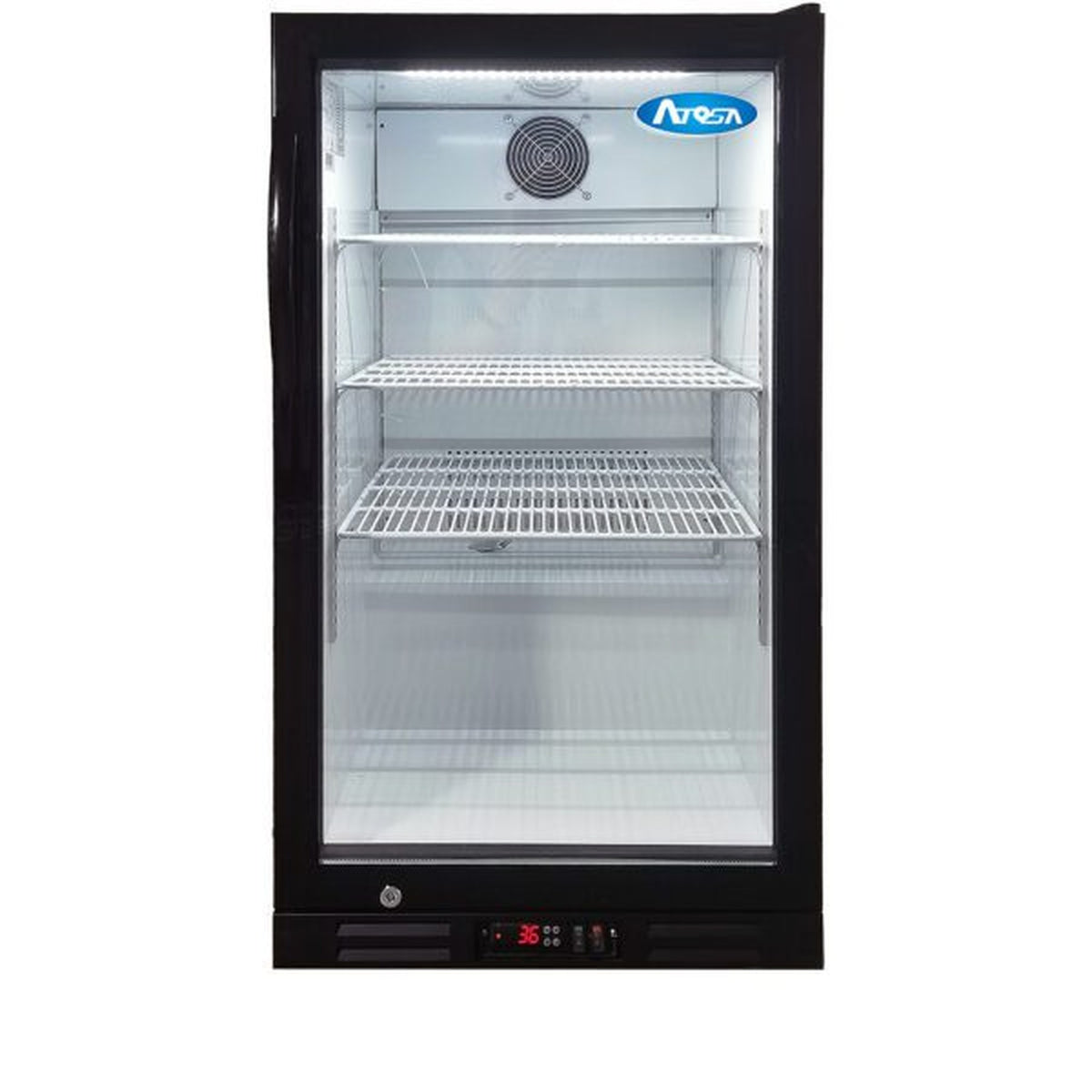

Atosa Countertop Glass Door Merchandiser Refrigerator 7 Cu Ft - CTD-7T

The Atosa CTD-7T is a one-section countertop glass door merchandiser refrigerator for cafes, delis, convenience stores and foodservice counters that sell bottled beverages and packaged grab-and-go food at the point of sale. It offers 7.0 cu. ft. of storage in a cabinet that measures 21-1/2" wide, 24" deep and 38" high, and it holds 35°F to 38°F with an electronic temperature controller. A self-contained, rear-mounted 1/8 HP compressor runs on R600a refrigerant and draws 1.3 amps at 115V, using a 5 ft cord with a NEMA 5-15P plug. The cabinet is black outside with a white interior and has a double-pane glass door with a lock. East Bay Restaurant Supply ships this model with free shipping.

Key features

• 7.0 cu. ft. capacity in a 21-1/2" wide by 24" deep countertop footprint
• Electronic temperature controller holds 35°F to 38°F
• Double-pane hinged glass door with recessed handle and a standard door lock
• Magnetic door gasket seals the door without a latch
• Three removable PVC-coated wire shelves come pre-installed
• LED interior lighting shows product against the white interior
• Foamed-in-place high-density polyurethane insulation
• R600a (isobutane) hydrocarbon refrigerant with low global warming potential
• Runs on 115V, 1.3 A, with a 5 ft cord and NEMA 5-15P plug
• Certified for packaged foods and bottled beverages
• Leveling legs for setting the unit level on uneven counters

Atosa CTD-7T specifications

Brand	Atosa
Model number	CTD-7T
Product type	Countertop glass door merchandiser refrigerator
Sections / doors	1 section, 1 hinged glass door
Capacity	7.0 cu. ft.
Exterior width	21-1/2"
Exterior depth	24"
Exterior height	38"
Interior dimensions	20-1/4" wide x 18-1/4" deep x 31-5/8" high
Temperature range	35°F to 38°F
Temperature control	Electronic temperature controller
Refrigeration	Self-contained, rear-mounted
Refrigerant	R600a
Compressor	1/8 HP
Electrical	115V / 60 Hz / 1-phase, 1.3 A
Plug	NEMA 5-15P
Cord length	5 ft
Shelves	3, removable, PVC-coated wire
Door	Double-pane glass, recessed handle, lock, magnetic gasket
Exterior finish	Black cabinet, black door frame
Interior finish	White
Insulation	Foamed-in-place high-density polyurethane
Lighting	LED interior
Legs	Leveling legs
Net weight	101 lb
Shipping weight	113 lb
Certifications	cETLus, ETL Sanitation
Warranty	2 years parts and labor; compressor covered 3 more years, 5 years total

Frequently asked questions

What outlet does the Atosa CTD-7T need?

It plugs into a standard 115V, 15 A NEMA 5-15R wall outlet. It comes with a 5 ft cord and a NEMA 5-15P plug and draws 1.3 amps at 115V, 60 Hz, single phase.

What temperature does the CTD-7T hold? Is it a refrigerator or a freezer?

It is a refrigerator, not a freezer. The electronic temperature controller holds 35°F to 38°F, which suits bottled beverages and packaged foods.

How much counter space does it take up?

It needs a space 21-1/2" wide and 24" deep, and the cabinet is 38" tall. Make sure there is enough clearance above the counter, under any cabinets or shelving, for the full 38" height.

How much does the CTD-7T hold?

It has 7.0 cu. ft. of storage. The interior is 20-1/4" wide, 18-1/4" deep and 31-5/8" high, with three removable PVC-coated wire shelves.

What certifications does it have?

It is cETLus listed and ETL Sanitation certified. cETLus means it meets US and Canadian electrical safety standards. ETL Sanitation means it was tested to NSF/ANSI sanitation standards for commercial foodservice equipment. Atosa certifies this model for packaged foods and bottled beverages, so it is not meant for open or unwrapped food.

What warranty comes with the Atosa CTD-7T?

Atosa covers the cabinet and all parts against defects in materials and workmanship for 2 years, parts and labor included. The sealed compressor is covered for another 3 years, 5 years in total. The extra compressor coverage applies only to the compressor's sealed parts. It does not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical parts. Warranty claims go directly to Atosa and need the model number, serial number, proof of purchase and installation date.

How does the CTD-7T compare with the other models in the Atosa CTD line?

The CTD-7T is the largest model in the series, with 7.0 cu. ft. and three shelves. The CTD-3T is a 2.4 cu. ft. unit with two shelves that measures 17-1/4" wide, 19-3/4" deep and 27-1/2" high. The CTD-3ST is also 2.4 cu. ft., in a taller cabinet 18-1/8" wide, 18-1/2" deep and 33" high. The CTD-5T sits in the middle at 21-1/4" wide and 22" deep.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
