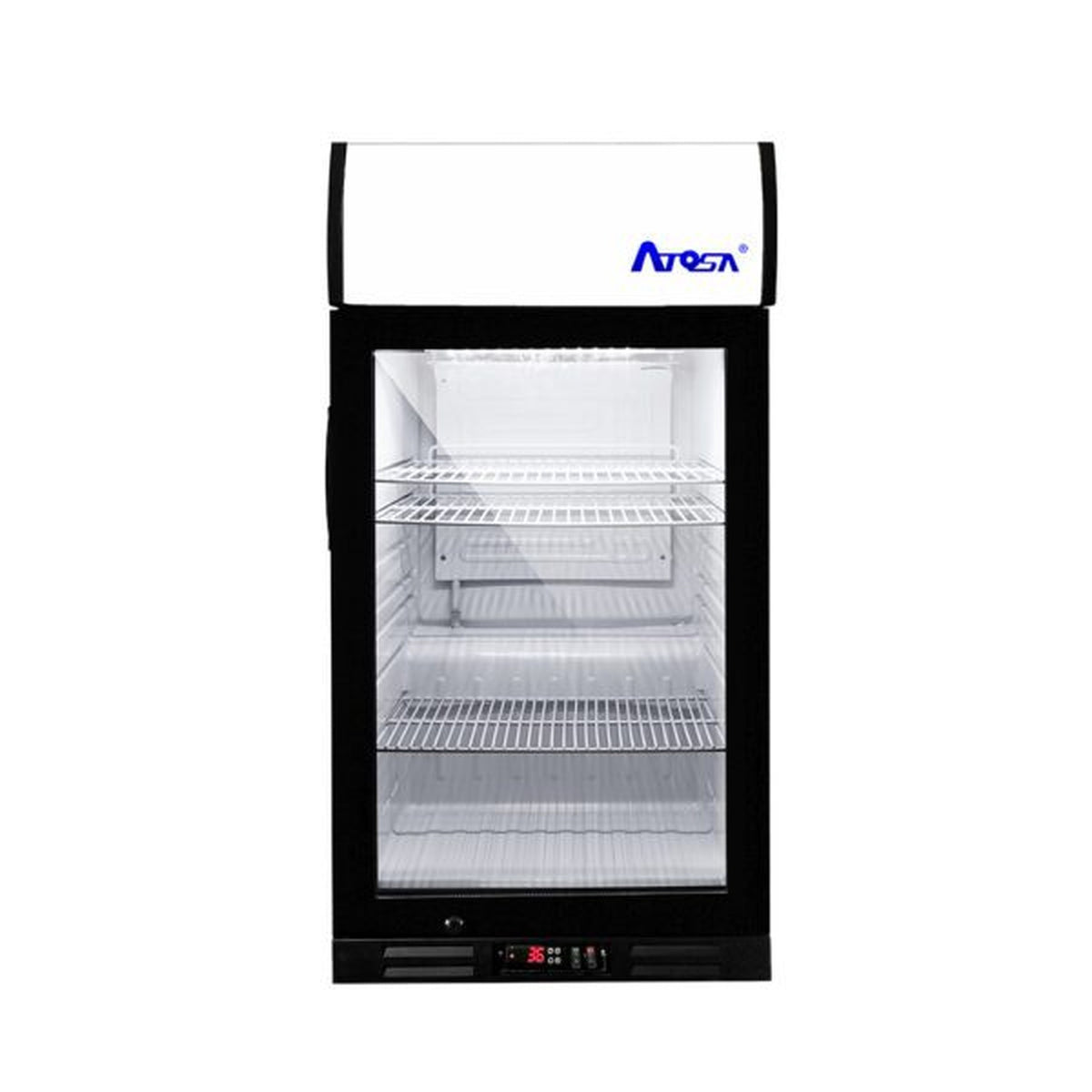

Atosa Glass Door Countertop Merchandiser Cooler 2.4 Cu. Ft. CTD-3ST

The Atosa CTD-3ST is a one-door countertop refrigerated merchandiser for cafes, delis, convenience counters, bars and concession stands that sell bottled beverages and packaged grab-and-go food at the point of sale. It holds 2.4 cu. ft. in a cabinet 18-1/8" wide, 18-1/2" deep and 33" high, with a display header panel above the glass door. An electronic temperature controller holds 33°F to 38°F, and the unit runs on R600a refrigerant with a 1/8 HP compressor. It plugs into a standard 115V outlet, draws 1.0 A and has a 5' cord with a NEMA 5-15P plug. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Electronic temperature controller with digital display, holds 33°F to 38°F
• Certified for packaged foods and bottled beverages
• Display header panel above the door for signage or branding
• Double pane glass door with recessed handle
• Door lock standard
• Magnetic door gasket for a positive door seal
• LED interior lighting
• Two pre-installed, removable PVC-coated wire shelves
• Foamed-in-place high density polyurethane insulation
• Black exterior cabinet and door frame with white interior
• Leveling legs for uneven countertops

Atosa CTD-3ST specifications

Brand	Atosa
Model number	CTD-3ST
Product type	Countertop glass door refrigerated merchandiser
Doors	1 hinged glass door, double pane, with lock
Capacity	2.4 cu. ft.
Exterior width	18-1/8"
Exterior depth	18-1/2"
Exterior height	33" including display header
Interior dimensions	14-1/2" wide x 13" deep x 22" high
Temperature range	33°F to 38°F
Temperature control	Electronic controller
Refrigerant	R600a
Compressor	1/8 HP
Electrical	115 V / 60 Hz / 1 phase, 1.0 A
Plug	NEMA 5-15P
Cord length	5'
Shelves	2 removable PVC-coated wire shelves
Exterior finish	Black cabinet and door frame
Interior finish	White
Insulation	Foamed-in-place high density polyurethane
Lighting	LED interior
Legs	Leveling legs
Net weight	64 lb
Shipping weight	70 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation
Warranty	1 year parts and labor, sealed compressor covered up to 5 years

Frequently asked questions

What outlet does the Atosa CTD-3ST need?

It plugs into a standard 115V, 15 A grounded outlet (NEMA 5-15R) using its 5' cord and NEMA 5-15P plug. It draws 1.0 A at 115 V / 60 Hz / single phase, so it needs no special circuit or hardwiring.

Is the CTD-3ST a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. The electronic controller holds 33°F to 38°F, and the unit is certified for packaged foods and bottled beverages. It is not meant for frozen product or for open, unwrapped food.

How much does it hold?

It has 2.4 cu. ft. of storage, with interior dimensions of 14-1/2" wide, 13" deep and 22" high. Two removable PVC-coated wire shelves come installed.

How much counter space does it need?

The cabinet is 18-1/8" wide, 18-1/2" deep and 33" high including the display header. It fits easily through a standard 36" doorway. Leave open space around the unit for airflow, and clean the condenser regularly so it keeps holding temperature.

What certifications does it have?

It is cETLus listed to UL 471 and CSA C22.2 No. 120, the electrical safety standards for commercial refrigerators in the US and Canada. It is also ETL Sanitation listed, which health inspectors accept as proof of sanitation compliance for packaged food and beverage merchandising.

What warranty comes with the CTD-3ST?

Atosa covers parts and labor for 1 year, and the sealed compressor is covered for up to 5 years total. Warranty claims go directly through Atosa and need the model number, serial number, proof of purchase and installation date. The warranty does not cover damage from alteration, neglect, abuse, misuse, accidents, transit or installation, fire, flood or acts of God.

Does the door lock?

Yes. A door lock is standard, and the double pane glass door has a recessed handle and a magnetic gasket that seals without a latch.

How does the CTD-3ST differ from the Atosa CTD-3T and CTD-3S?

The CTD-3T has the same 2.4 cu. ft. capacity and electronic control but no display header. It measures 17-1/4" wide, 19-3/4" deep and 27-1/2" high and draws 0.65 A with a 1/10 HP compressor. The CTD-3S has the same 18-1/8" x 18-1/2" x 33" cabinet with a header but uses a mechanical controller. The CTD-5T is a larger countertop model in the same electronic-control line.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
