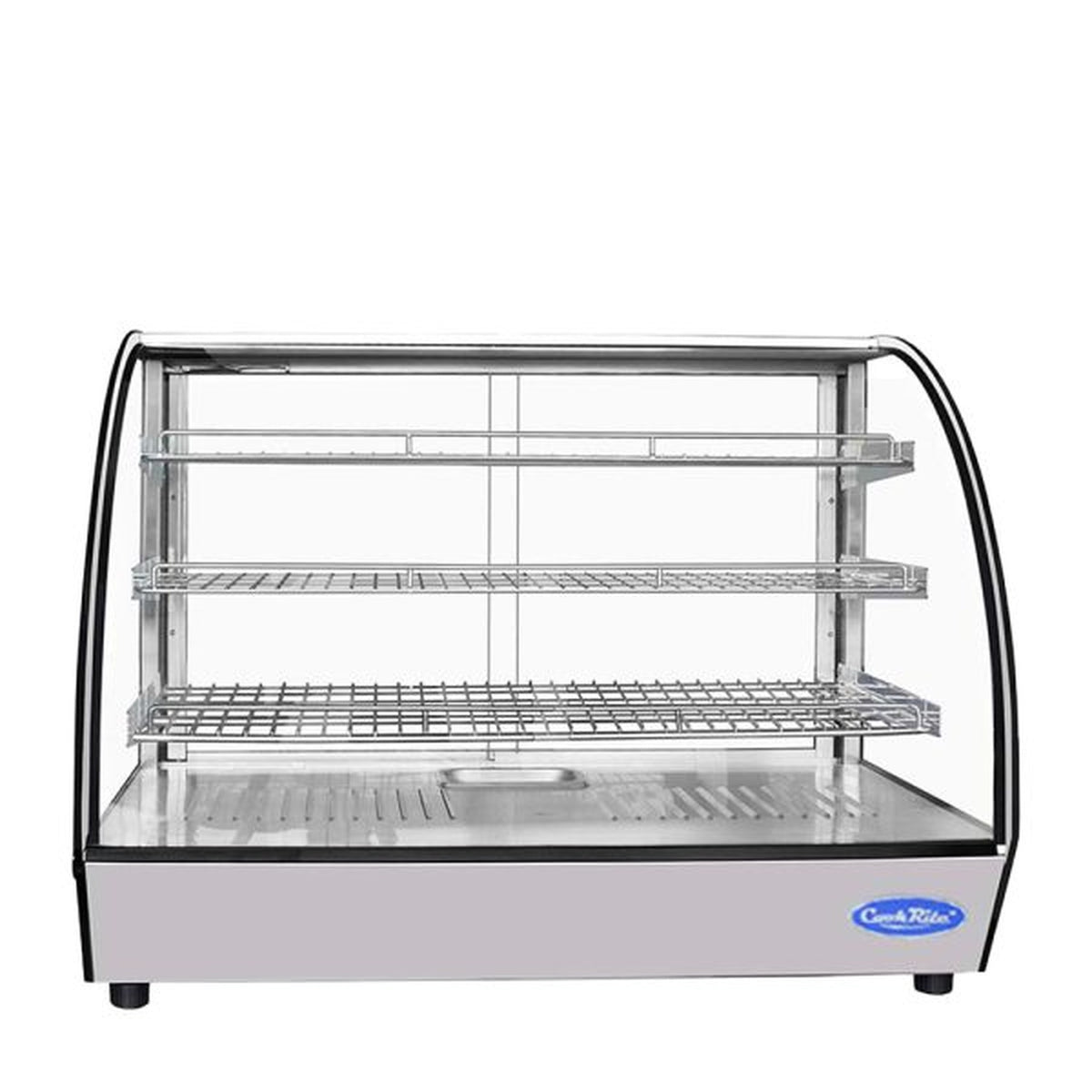

Atosa Countertop Heated Display Case Stainless Steel Curved Glass 5.6 CHDC-56

The Atosa CHDC-56 is a countertop heated display case with a curved front glass. It is built for delis, bakeries, cafeterias, convenience stores and other foodservice operations that hold and sell hot food at the counter. It holds 5.6 cu. ft. of product on three stainless steel shelves in a cabinet 35-7/8" wide, 22-3/4" deep and 26-1/2" high, and an electronic digital controller holds temperatures from 86°F to 194°F. It runs on 115V, 13.7 A and 1,650 W, and it plugs in with a NEMA 5-20P cord. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Curved front glass for full product visibility from the customer side
• Electronic digital controller, adjustable from 86°F to 194°F
• Removable water pan to add humidity and help keep held food from drying out
• Three stainless steel shelves come standard
• Two rear sliding glass doors for staff loading and service
• Magnetic door gaskets seal the doors tight
• LED interior lighting
• Stainless steel exterior and interior
• Leveling legs (1.5") for setting the unit level on uneven counters
• cETLus listed for electrical safety and ETL Sanitation listed

Atosa CHDC-56 specifications

Brand	Atosa
Model number	CHDC-56
Product type	Countertop heated display case, curved glass
Doors	2 rear sliding glass doors
Capacity	5.6 cu. ft.
Exterior width	35-7/8"
Exterior depth	22-3/4"
Exterior height	26-1/2"
Temperature range	86°F to 194°F
Controller	Electronic digital
Electrical	115 V / 60 Hz / 1 phase, 13.7 A
Power	1,650 W
Plug	NEMA 5-20P
Cord length	5 ft.
Shelves	3, stainless steel
Humidity	Removable water pan
Exterior material	Stainless steel with curved front glass
Interior material	Stainless steel
Door gaskets	Magnetic
Lighting	LED interior
Legs	Leveling legs, 1.5"
Net weight	108 lb
Shipping weight	154 lb
Certifications	cETLus, ETL Sanitation
Warranty	1 year parts and labor

Frequently asked questions

What outlet and circuit does the Atosa CHDC-56 need?

It needs a 115V NEMA 5-20R receptacle on a 20 A single-phase circuit, because it ships with a NEMA 5-20P plug and draws 13.7 A (1,650 W). A standard 15 A household-style 5-15R outlet will not accept the plug. Have an electrician confirm the receptacle before the unit arrives.

What temperature does the CHDC-56 hold?

The digital controller adjusts from 86°F to 194°F. This is a heated holding and display case. It does not refrigerate or freeze. The removable water pan adds humidity so held food stays moist.

How much counter space does the CHDC-56 take up?

It needs a counter area at least 35-7/8" wide and 22-3/4" deep, and 26-1/2" of height clearance. It sits on 1.5" leveling legs, so it needs no cutout or built-in installation. At 22-3/4" deep it fits easily through a standard 36" doorway.

How much food does it hold?

It holds 5.6 cu. ft. of product on three stainless steel shelves behind curved front glass. Staff load and serve through the two rear sliding glass doors.

What certifications does the CHDC-56 have?

It is cETLus listed and ETL Sanitation listed. cETLus means an independent lab tested it to US and Canadian electrical safety standards. ETL Sanitation means it meets North American food equipment sanitation standards, which health inspectors look for in commercial kitchens.

What warranty comes with the CHDC-56?

Atosa covers it for one year parts and labor from the date it ships from Atosa. Labor covers standard straight-time charges and reasonable travel time, as determined by Atosa. Claims go directly to Atosa and must include the model number, serial number and proof of purchase. The warranty excludes damage from alteration, neglect, abuse, misuse, accident, transit or installation, fire, flood or acts of God. It also excludes consequential losses, and it does not apply outside the continental United States. Atosa also offers an extended warranty of up to five years.

How does the CHDC-56 compare with the CHDC-44, CHDS-53 and CHDS-71?

The CHDC-44 is the smaller curved-glass model at 4.4 cu. ft., about 27-1/2" wide, and it uses a NEMA 5-15 plug. The CHDS-53 (5.3 cu. ft., NEMA 5-15 plug) and CHDS-71 (7.1 cu. ft., NEMA 5-20 plug) have square front glass instead of curved. The CHDS-71 has the same 1,650 W, 13.7 A rating as the CHDC-56. All four models share the same 86°F to 194°F range, three shelves, water pan and rear sliding doors.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
