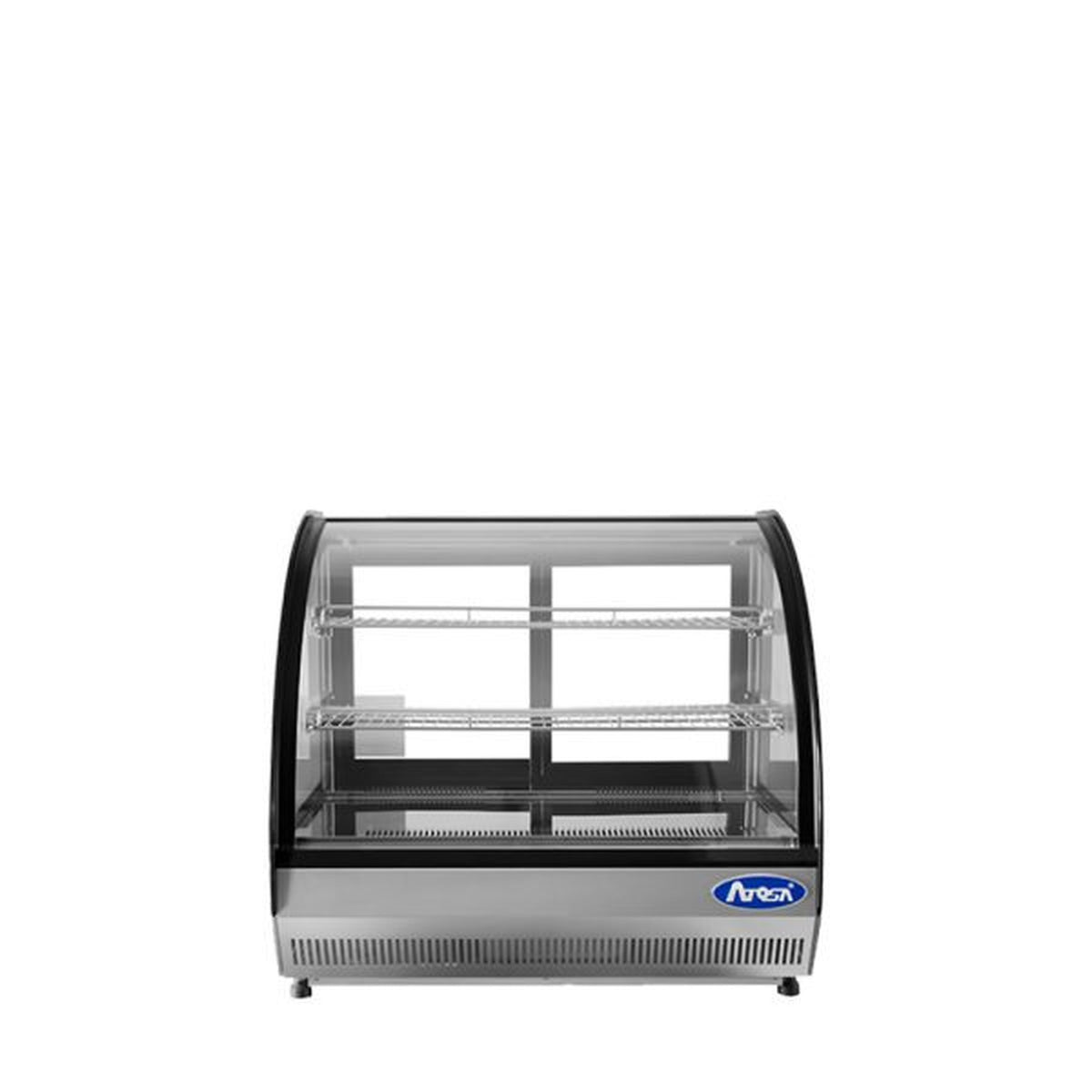

Atosa Countertop Refrigerated Display Case Curved Glass 3.5 Cu Ft CRDC-35

The Atosa CRDC-35 is a countertop refrigerated display case with a curved front glass. It is built for cafes, bakeries, delis and grab-and-go counters that need to show chilled pastries, desserts, sandwiches or drinks right at the point of sale. The case holds 3.5 cu. ft. and measures 27-3/5" wide, 22-1/10" deep and 26-2/5" high, so it fits on a standard counter run. An electronic controller holds 35°F to 38°F, using a self-contained, rear-mounted 1/5 HP compressor that runs on R290 refrigerant and plugs into a standard 115V NEMA 5-15 outlet. The cabinet is stainless steel inside and out with black frames, two stainless steel shelves and two rear sliding doors for staff access. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Curved front glass gives customers a full view of the product
• Defog feature keeps the glass clear
• Electronic temperature controller holds 35°F to 38°F
• Self-contained, rear-mounted compressor running on R290 hydrocarbon refrigerant
• Two rear sliding doors let staff restock from behind the counter
• Magnetic door gaskets seal the doors without latches
• Two stainless steel shelves included
• LED interior lighting
• Stainless steel exterior and interior with black frames
• Leveling legs for setting the case level on uneven countertops
• Draws 2 A at 115V and comes with a NEMA 5-15 plug

Atosa CRDC-35 specifications

Brand	Atosa
Model number	CRDC-35
Product type	Countertop refrigerated display case
Glass style	Curved front glass with defog feature
Service type	Full service, loaded and served from the rear
Doors	2 rear sliding doors with magnetic gaskets
Capacity	3.5 cu. ft.
Exterior width	27-3/5" (27.6")
Exterior depth	22-1/10" (22.1")
Exterior height	26-2/5" (26.4")
Interior width	25-1/5" (25.2")
Interior depth	16"
Interior height	15-7/10" (15.7")
Temperature range	35°F to 38°F
Controller	Electronic temperature controller
Refrigeration	Self-contained, rear-mounted compressor
Refrigerant	R290
Compressor	1/5 HP
Electrical	115V / 60 Hz / 1-phase, 2 A rated current
Plug	NEMA 5-15P
Shelves	2, stainless steel
Exterior material	Stainless steel with black frames
Interior material	Stainless steel
Lighting	LED interior lighting
Legs	Leveling legs
Net weight	139 lb
Shipping weight	172 lb
Certifications	cETLus (conforms to UL 471, certified to CSA C22.2 No. 120), ETL Sanitation
Warranty	2 years parts and labor, 5 years on the compressor (an extra 3 years on the sealed compressor)

Frequently asked questions

What outlet does the Atosa CRDC-35 need?

It needs a standard 115V, 15 A grounded receptacle (NEMA 5-15R), since it comes with a NEMA 5-15P plug. It runs on 115V, 60 Hz, single phase and draws 2 A, so no hardwiring or special circuit is needed.

Is the CRDC-35 a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. The electronic controller holds 35°F to 38°F, which suits chilled pastries, desserts, sandwiches and bottled drinks. It is not built to hold frozen product.

How much counter space does it take, and how much does it hold?

It needs a spot about 27-3/5" wide and 22-1/10" deep, and the case stands 26-2/5" high. Inside it holds 3.5 cu. ft., about 25-1/5" wide, 16" deep and 15-7/10" high, with two stainless steel shelves. The unit weighs 139 lb, so the counter has to carry that weight plus the product.

Can customers serve themselves from this case?

No. It is a full-service case. Customers look through the curved front glass, and staff load and serve through the two rear sliding doors.

What certifications does the CRDC-35 have?

It is cETLus listed and ETL Sanitation certified. The cETLus listing means Intertek tested it to UL 471 and CSA C22.2 No. 120, the electrical safety standards for commercial refrigerators in the US and Canada. The ETL Sanitation mark shows it meets the NSF/ANSI sanitation standards that health inspectors look for on refrigeration in commercial kitchens.

What warranty comes with the Atosa CRDC-35?

Atosa covers parts and labor for 2 years against defects in materials or workmanship. The sealed compressor is covered for an extra 3 years from the original installation date, for 5 years total. The extra compressor years cover only the sealed compressor parts. They do not cover the cabinet, finish, temperature control, refrigerant, fan assembly or other electrical parts. All warranty claims go directly to Atosa and need the model number, serial number, proof of purchase and installation date.

How does the CRDC-35 differ from the CRDC-46, CRDS-42 and CRDS-56?

The CRDC-35 is the smallest curved glass case in this Atosa countertop line. The CRDC-46 has the same curved glass and the same 1/5 HP, 115V system in a wider case of about 35-2/5" that holds 4.6 cu. ft. The CRDS-42 and CRDS-56 are the flat (square) glass versions. The CRDS-42 is the same 27-3/5" width and holds 4.2 cu. ft., and the CRDS-56 is about 35-2/5" wide and holds 5.6 cu. ft.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
