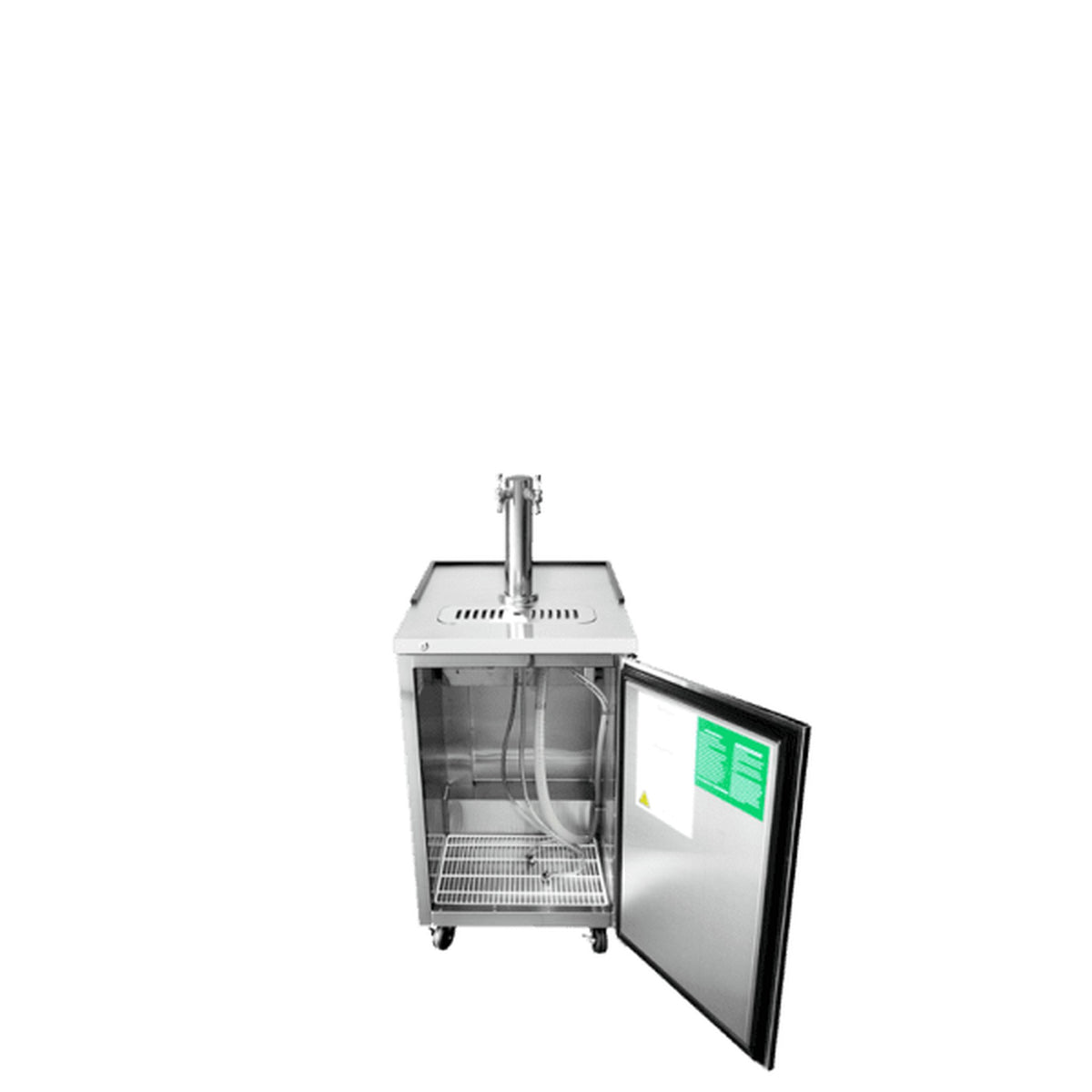

Atosa Direct Draw Keg Cooler Stainless Steel Dual Tap 23" MKC23GR

The Atosa MKC23GR is a 23" single-door direct draw keg cooler for bars, restaurants, pubs and taprooms that need draft service in a small footprint. It holds one half barrel keg in a 7.1 cu. ft. stainless steel cabinet and holds 35°F to 38°F with a digital electronic controller. The unit measures 23" wide by 31-1/10" deep, runs on a standard 115V circuit at 2.3 A, and uses a 1/7 HP Embraco compressor with R290 hydrocarbon refrigerant. A dual tap tower, manifold, ball taps, door lock and casters come standard. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Holds one keg at a time: 1 half barrel, 1 quarter barrel, 2 slim quarter barrels or 4 sixth barrels.
• Comes with a stainless steel dual faucet tower, so you can pour two beers from one cabinet.
• Manifold and ball taps are included.
• Digital electronic controller holds 35°F to 38°F for draft beer.
• Heavy duty Embraco compressor, 1/7 HP, with R290 hydrocarbon refrigerant.
• The compressor assembly slides out for service.
• Stainless steel exterior and interior.
• Stainless steel drip tray on the top and a recessed door handle.
• Magnetic door gasket for a tight seal, plus a standard door lock to control access.
• Interior light.
• Four 3-1/2" casters come installed, two of them with brakes.

Atosa MKC23GR specifications

Brand	Atosa
Model number	MKC23GR
Product type	Direct draw keg cooler (draft beer cooler)
Doors	1 solid door, locking
Capacity	7.1 cu. ft.
Keg capacity	1 half barrel, 1 quarter barrel, 2 slim quarter barrels or 4 sixth barrels
Tap tower	1 dual faucet tower (2 taps)
Exterior width	23"
Exterior depth	31-1/10"
Depth with door open	53"
Cabinet height	39-1/4"
Overall height, including tap tower	54-4/5"
Temperature range	35°F to 38°F
Controller	Digital electronic controller
Refrigeration	Self-contained, rear-mounted, slide-out compressor assembly
Compressor	Embraco, 1/7 HP
Refrigerant	R290 hydrocarbon
Electrical	115 V / 60 Hz / 1 phase, 2.3 A
Plug	NEMA 5-15P
Shelves	1
Exterior material	Stainless steel
Interior material	Stainless steel
Included	Dual tap tower, manifold, ball taps, stainless steel drip tray, door lock, interior light
Casters	3-1/2", set of 4, 2 with brakes, installed at the factory
Net weight	132 lb
Shipping weight	188 lb
Certifications	cETLus, ETL-Sanitation
Warranty	2 years parts and labor, plus 3 more years on the compressor part (5 years total on the compressor)

Frequently asked questions

What outlet does the Atosa MKC23GR need?

It plugs into a standard 115V grounded wall outlet with its NEMA 5-15P plug. It runs on 115 V, 60 Hz, single phase and draws 2.3 A, so it works on a typical 15 A circuit.

How many kegs does the MKC23GR hold?

It holds one keg at a time. That can be 1 half barrel, 1 quarter barrel, 2 slim quarter barrels or 4 sixth barrels. Interior capacity is 7.1 cu. ft., and the dual tower lets you pour two taps.

What temperature does it hold?

The MKC23GR is a refrigerated keg cooler, not a freezer. Its digital electronic controller holds 35°F to 38°F, which is the normal range for draft beer.

Will it fit through a standard doorway?

Yes. At 23" wide and 31-1/10" deep, it goes through a standard 36" doorway with room to spare. The cabinet is 39-1/4" high and 54-4/5" high to the top of the tap tower, both well under an 80" door opening.

What certifications does it have?

It is cETLus listed and ETL-Sanitation certified. cETLus means it was tested to US and Canadian electrical safety standards. ETL-Sanitation means it meets sanitation standards for commercial foodservice equipment, which health inspectors look for.

What warranty comes with it?

Atosa covers the cabinet and all parts for 2 years against defects in materials or workmanship, including parts and labor. The sealed compressor is covered for 3 more years, up to 5 years total. Labor covers standard straight-time rates and reasonable travel time, as Atosa decides. The extra compressor years cover only the sealed compressor parts. They do not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or electrical components. All claims go directly to Atosa and need the model number, serial number and proof of purchase.

Can I change the casters?

No. The MKC23GR comes with 3-1/2" casters installed. It is the only model in Atosa's MKC series that cannot be fitted with other caster sizes.

How is the MKC23GR different from the MKC58GR, MKC68GR and MKC90GR?

The MKC23GR is the smallest model in Atosa's direct draw line, with one door, one half barrel and one dual tap tower. The 57-4/5" wide MKC58GR has two doors, 17.3 cu. ft., two half barrels and two dual tap towers. The MKC68GR holds 3 half barrels and the MKC90GR holds 4.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
