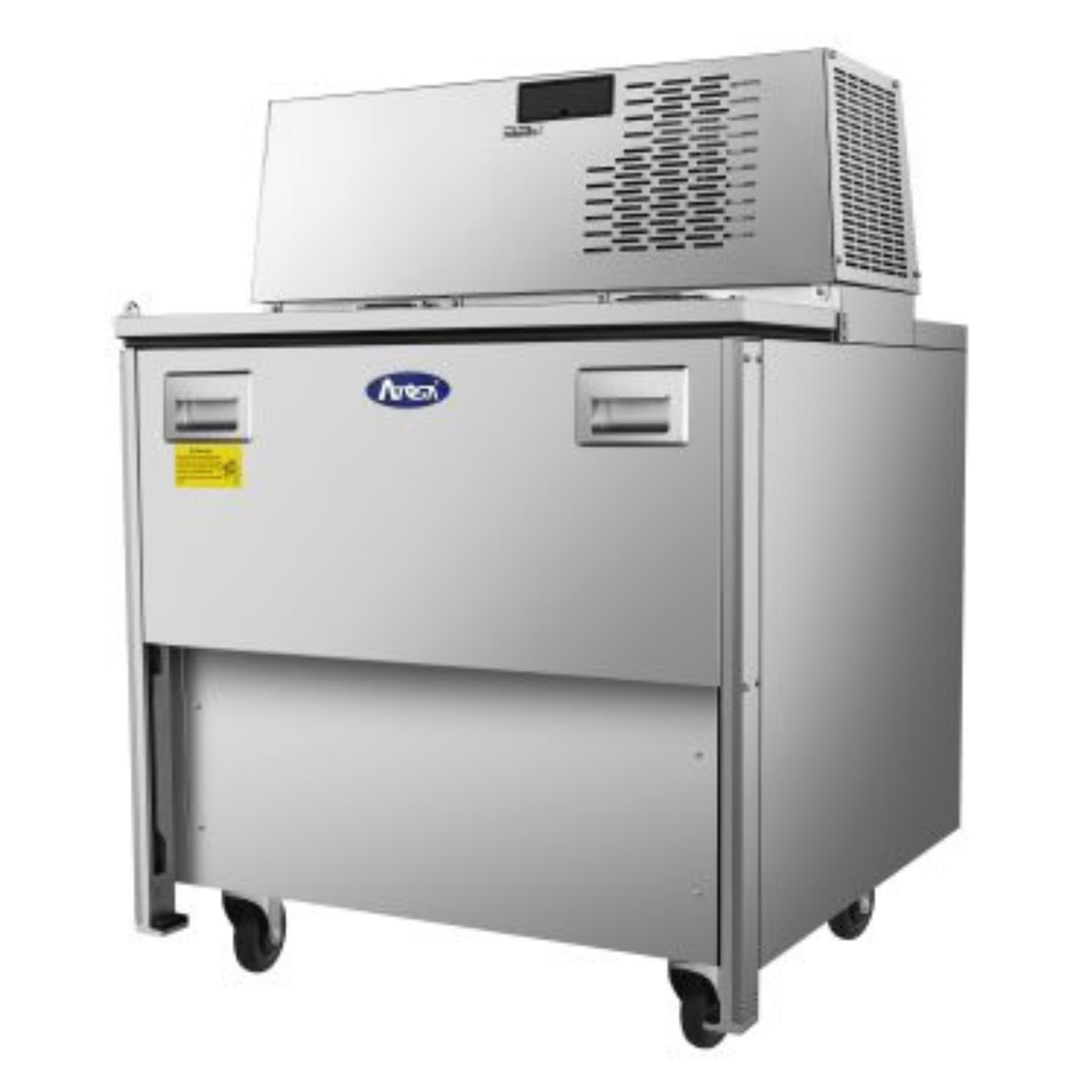

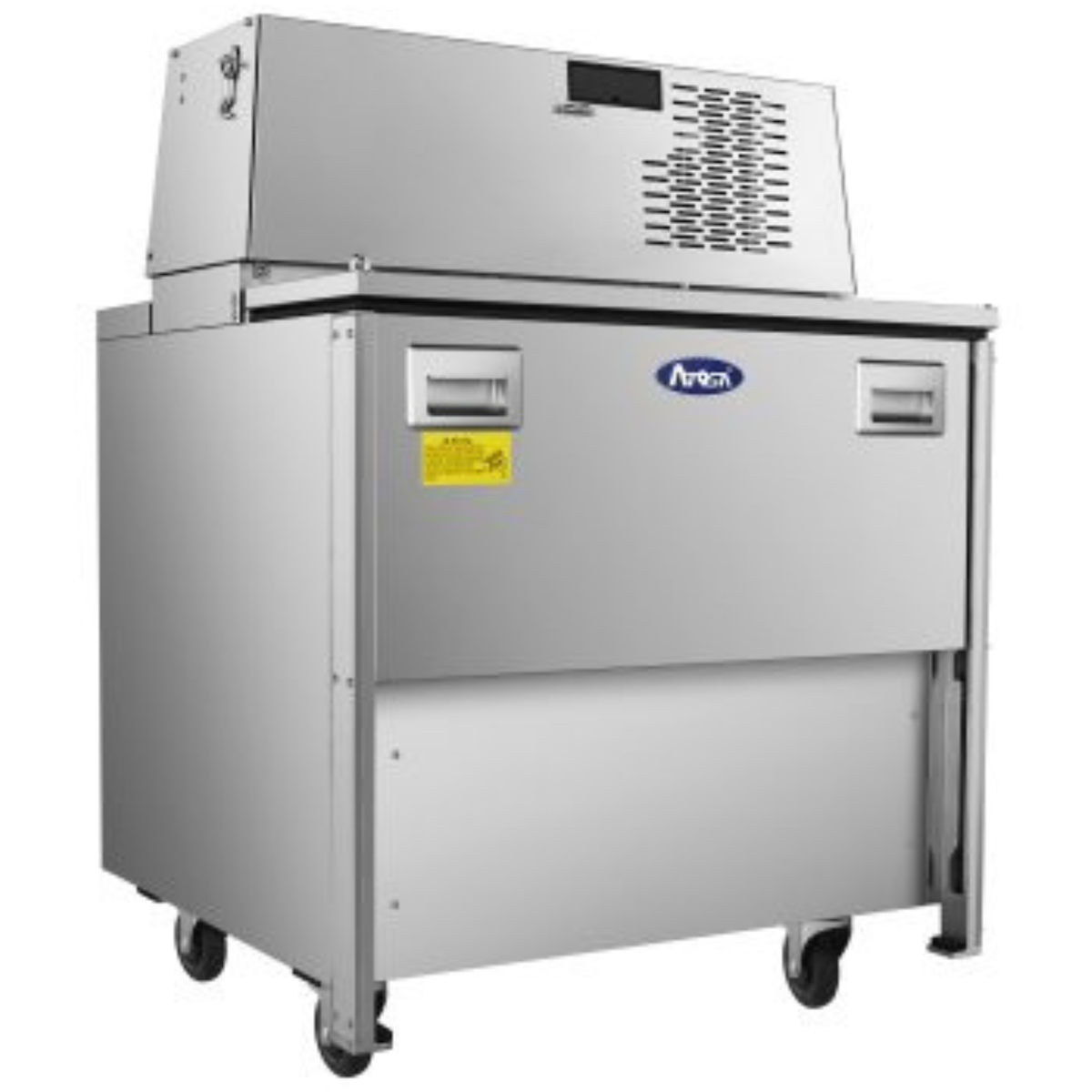

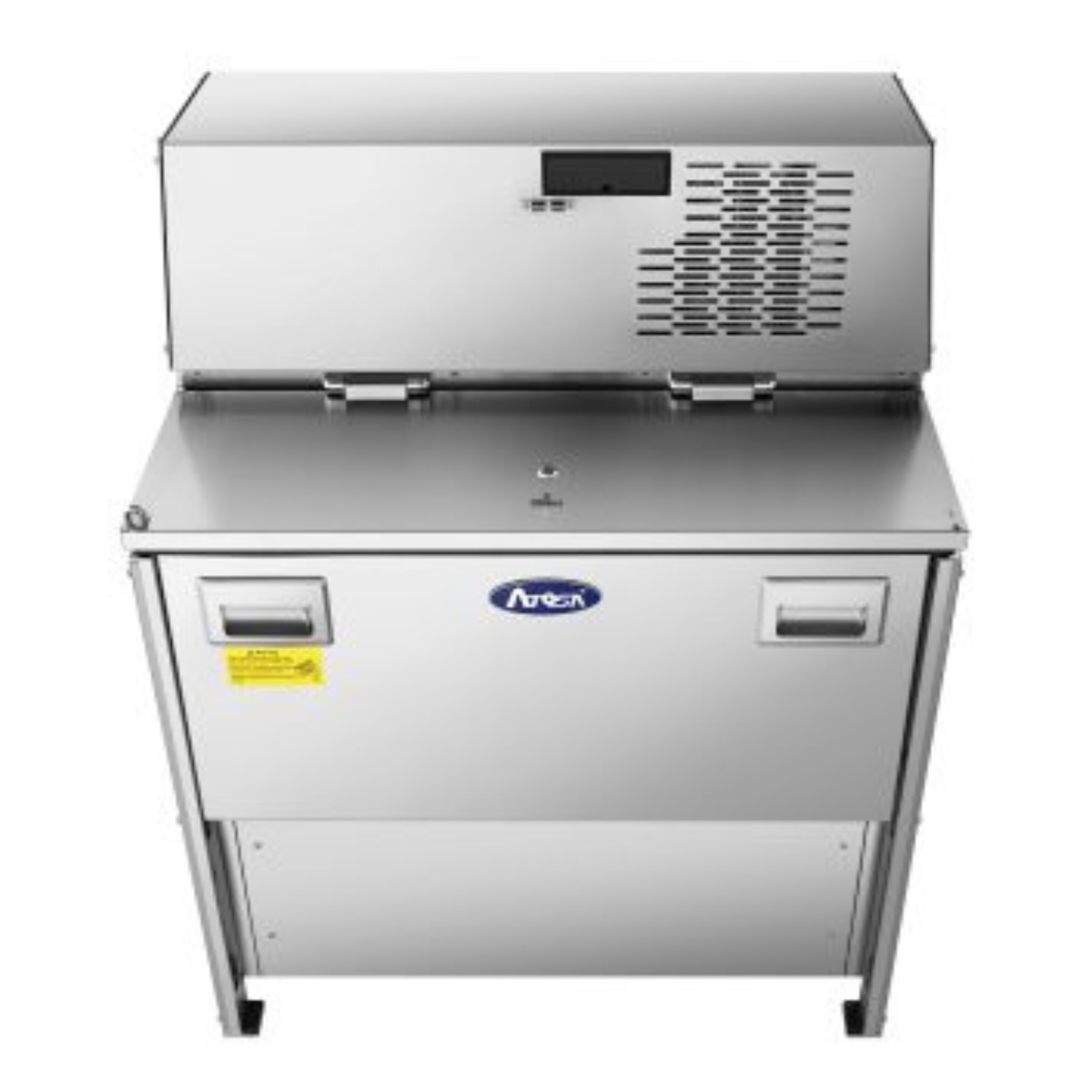

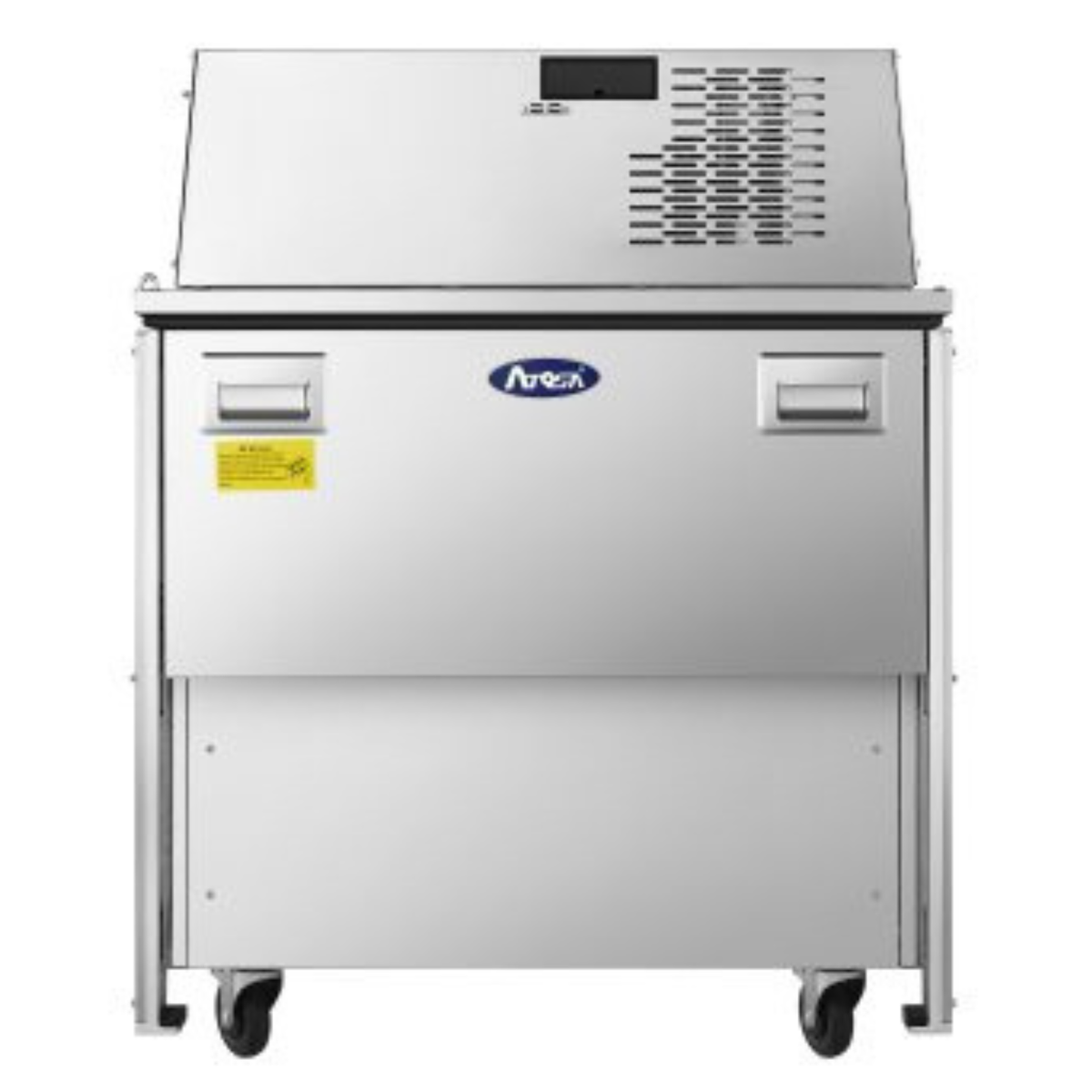

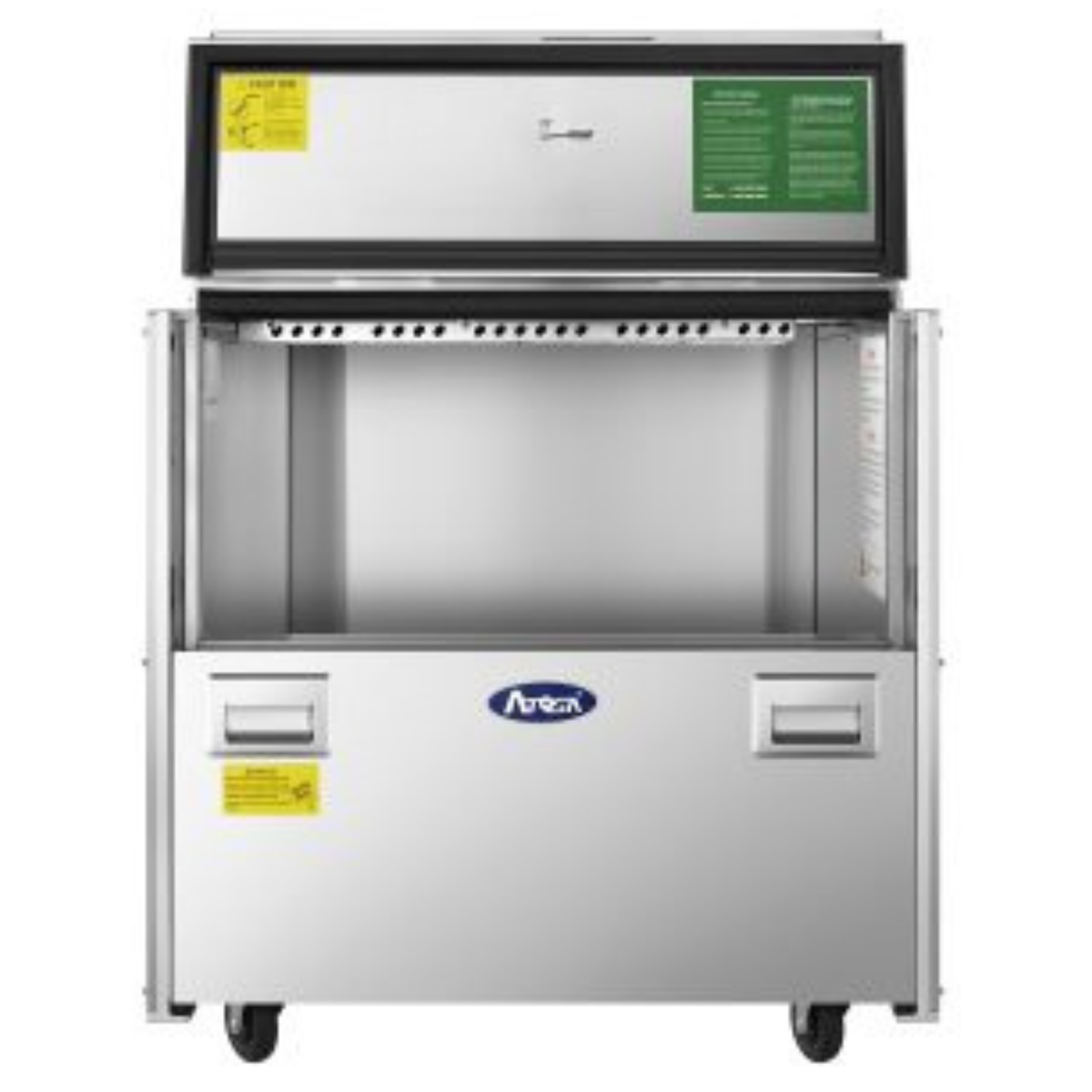

Atosa Forced Air Milk Cooler Stainless Steel 34" - 8 Crate AMC-3401

The Atosa AMC-3401 is a 34" single-sided, forced air milk cooler for school cafeterias, institutional foodservice and convenience operations that serve milk by the crate. It holds eight 13" x 13" milk crates in 11.69 cu. ft. of refrigerated space. The cabinet measures 34" wide by 32-1/8" deep by 47-1/8" high and rolls on 4" casters. It is stainless steel inside and out, has a top-mount refrigeration system using R290 refrigerant, and plugs into a standard 115V outlet with a NEMA 5-15P plug while drawing 2.2 A. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Holds eight standard 13" x 13" milk crates, 11.69 cu. ft. of capacity
• Top-mount forced air refrigeration moves cold air through the whole cabinet
• Digital temperature controller
• Single-sided design with a sliding door for loading and serving from one side
• Stainless steel exterior and interior
• Heavy-duty reinforced floor with dunnage racks to support full crates
• Metal door handles and a standard door lock
• Snap-in door gaskets that can be replaced in the field
• Floor drain with plug for washing out the cabinet
• 4" casters for moving the unit to the serving line and for cleaning
• R290 hydrocarbon refrigerant, 1/7 HP compressor, 115V plug-in operation

Atosa AMC-3401 specifications

Brand	Atosa
Model number	AMC-3401
Product type	Forced air milk cooler, single-sided
Doors	1 sliding door, single-sided access
Crate capacity	8 milk crates, 13" x 13"
Capacity	11.69 cu. ft.
Exterior width	34"
Exterior depth	32-1/8"
Exterior height	47-1/8"
Operating temperature range	33°F to 45°F (rated at 109°F ambient, 60% RH)
Refrigeration	Top-mount, forced air
Refrigerant	R290
Compressor	1/7 HP
Electrical	115 V / 60 Hz / 1 phase, 2.2 A
Plug	NEMA 5-15P
Controls	Digital temperature controller
Exterior material	Stainless steel
Interior material	Stainless steel
Floor	Heavy-duty reinforced floor with dunnage racks and floor drain with plug
Casters	4"
Net weight	234 lb
Certifications	cETLus, ETL-Sanitation
Warranty	2 years parts and labor, plus 3 additional years on the sealed compressor (5 years compressor total)

Frequently asked questions

What electrical connection does the Atosa AMC-3401 need?

It needs a standard 115V, 60 Hz, single-phase outlet that accepts a NEMA 5-15P plug, and it draws 2.2 A. Plug it directly into the outlet. Atosa's warranty does not cover failures caused by extension cords, low voltage or voltage drops.

What temperature does the AMC-3401 hold?

It is a refrigerator, not a freezer, and it operates between 33°F and 45°F when rated at 109°F ambient and 60% relative humidity. You set the temperature on the digital controller.

How much milk does the AMC-3401 hold?

It holds eight standard 13" x 13" milk crates, for 11.69 cu. ft. of refrigerated capacity.

Will the AMC-3401 fit through a standard doorway?

Yes. At 32-1/8" deep and 34" wide, it fits through a standard 36" doorway. At 47-1/8" high, it clears an 80" door opening easily.

What certifications does the AMC-3401 have?

It is cETLus listed and ETL-Sanitation listed. cETLus means it was tested to US and Canadian electrical safety standards. ETL-Sanitation means it meets food equipment sanitation standards, which health inspectors look for in a commercial kitchen.

What warranty comes with the AMC-3401?

Atosa covers the cabinet and all parts against defects in materials and workmanship for 2 years, parts and labor. It also covers the sealed compressor for 3 more years, for 5 years of compressor coverage in total. The compressor extension covers only the sealed compressor parts. It does not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical components. Atosa also offers extended warranties of up to 5 years.

How does the AMC-3401 differ from the AMC-3402, AMC-4901 and AMC-5801?

The AMC-3402 holds the same 8 crates and 11.69 cu. ft. but is double-sided, with sliding doors on both sides, and it is 34-1/4" deep. The AMC-4901 is a 49" single-sided model that holds 12 crates and 17.52 cu. ft. and has a 1/4 HP compressor. The AMC-5801 is a 58" single-sided model that holds 16 crates.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
