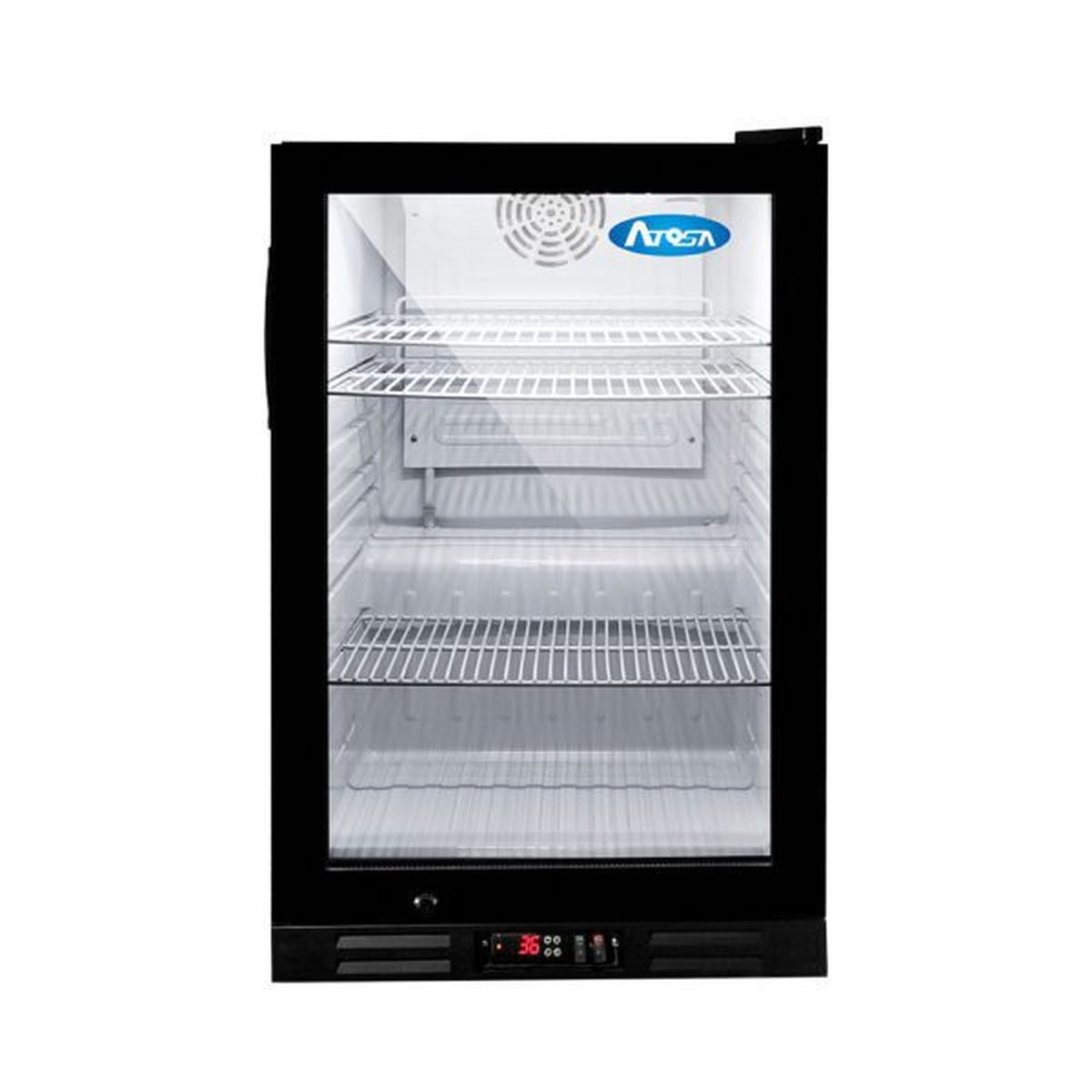

Atosa Countertop Glass Door Merchandiser Cooler 4.6 Cu Ft - CTD-5T

The Atosa CTD-5T is a countertop glass door merchandiser refrigerator for cafes, delis, convenience stores, bars and checkout counters that display packaged foods and bottled beverages where customers buy. It measures 21-1/4" wide, 22" deep and 33-3/4" high, holds 4.6 cu. ft. on three removable PVC-coated wire shelves, and keeps product between 33°F and 38°F with an electronic temperature controller. A self-contained 1/8 HP refrigeration system uses R600a refrigerant and runs on 115V at 1.5 A through a 5' cord with a NEMA 5-15P plug. The black cabinet has a white interior, foamed-in-place high density polyurethane insulation, a locking double-pane glass door and LED interior lighting. East Bay Restaurant Supply ships this model with free shipping.

Key features

• 4.6 cu. ft. capacity in a 21-1/4" wide by 22" deep countertop footprint
• Electronic temperature controller holds 33°F to 38°F
• Double-pane glass door with recessed handle for product visibility
• Door lock comes standard to secure inventory after hours
• Magnetic door gasket for a positive door seal
• Three pre-installed, removable PVC-coated wire shelves
• LED interior lighting
• R600a hydrocarbon refrigerant with a 1/8 HP compressor
• Plugs into a standard 115V outlet: 1.5 A, 5' cord, NEMA 5-15P plug
• Leveling legs for setting the unit level on a counter
• 3-year parts and labor warranty and 5-year compressor warranty

Atosa CTD-5T specifications

Brand	Atosa (Atosa USA, Inc.)
Model number	CTD-5T
Product type	Countertop glass door merchandiser refrigerator
Doors	1 hinged double-pane glass door with lock
Capacity	4.6 cu. ft.
Exterior width	21-1/4"
Exterior depth	22"
Exterior height	33-3/4"
Interior dimensions	18" wide x 17" deep x 29" high
Temperature range	33°F to 38°F
Temperature control	Electronic temperature controller
Refrigerant	R600a
Compressor	1/8 HP, self-contained
Electrical	115V / 60 Hz / 1-phase, 1.5 A
Plug	NEMA 5-15P
Cord length	5'
Shelves	3 removable PVC-coated wire shelves
Exterior	Black cabinet with black door frame
Interior	White
Insulation	Foamed-in-place high density polyurethane
Door gasket	Magnetic
Lighting	LED interior lighting
Legs	Leveling legs
Net weight	88 lb
Shipping weight	95 lb
Approved use	Packaged foods and bottled beverages
Certifications	cETLus (conforms to UL 471, certified to CSA C22.2 No. 120), ETL Sanitation
Warranty	3 years parts and labor, 5 years compressor

Frequently asked questions

What outlet does the Atosa CTD-5T need?

It needs a standard 115V, 15 A grounded receptacle (NEMA 5-15R). The unit draws 1.5 A and comes with a 5' cord and NEMA 5-15P plug, so no dedicated or hardwired circuit is needed. Plug it straight into the wall. Atosa's warranty does not cover failures caused by extension cords, low voltage or voltage drops.

Is the CTD-5T a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. It holds 33°F to 38°F, set with an electronic temperature controller. It cannot freeze or hold frozen product.

How much does the CTD-5T hold?

It holds 4.6 cu. ft. The interior is 18" wide, 17" deep and 29" high, with three removable PVC-coated wire shelves for bottles, cans and grab-and-go packaged items.

How much counter space does it take up?

It takes up 21-1/4" of width and 22" of depth, and it stands 33-3/4" high. It weighs 88 lb, so use a counter that can carry that weight plus the product inside. The leveling legs adjust for uneven surfaces.

What certifications does the CTD-5T have?

It is cETLus listed for electrical safety in the US and Canada (it conforms to UL 471 and is certified to CSA C22.2 No. 120), and it is ETL Sanitation certified for commercial foodservice. Atosa certifies it for packaged foods and bottled beverages, so it is meant for sealed product, not open or unwrapped food.

What warranty comes with the Atosa CTD-5T?

Atosa covers the cabinet and all parts against defects in materials and workmanship for 3 years, parts and labor. The sealed compressor is covered for 2 more years, 5 years in total. The extra compressor coverage applies only to the compressor's sealed parts. It does not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical components. You file claims directly with Atosa and need the model number, serial number, proof of purchase and installation date.

Does the door lock?

Yes. A door lock is standard. The double-pane glass door also has a recessed handle and a magnetic gasket for a tight seal.

How does the CTD-5T compare with the Atosa CTD-3T, CTD-7T and CTD-5?

The CTD-5T is the mid-size model in the line. The CTD-3T is smaller: 2.4 cu. ft., two shelves, 0.65 A, 17-1/4" wide by 19-3/4" deep by 27-1/2" high. The CTD-7T is larger: 7.0 cu. ft., three shelves, 1.3 A, 21-1/2" wide by 24" deep by 38" high. The CTD-5 is the earlier 4.6 cu. ft. model, which has a mechanical controller instead of the CTD-5T's electronic controller.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
