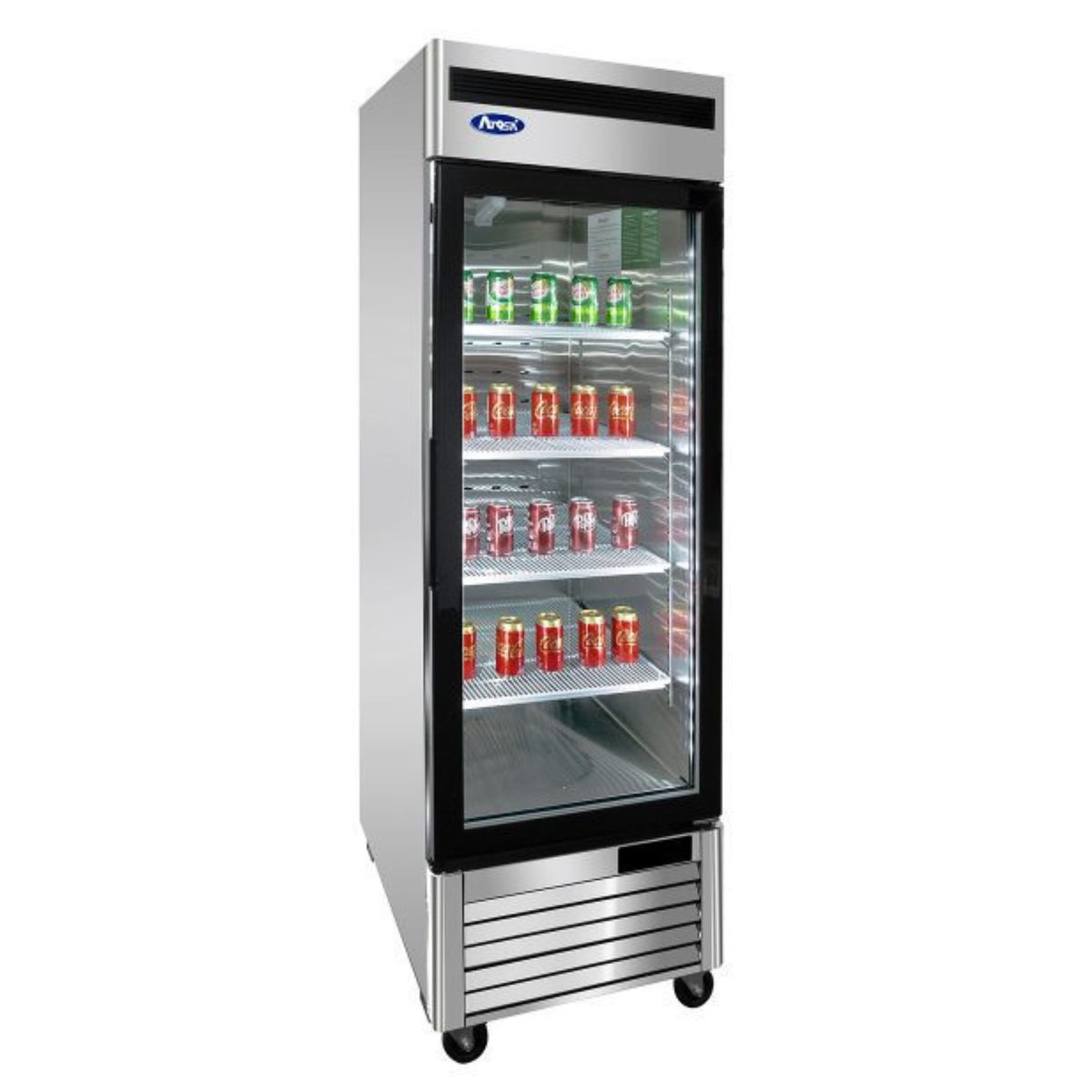

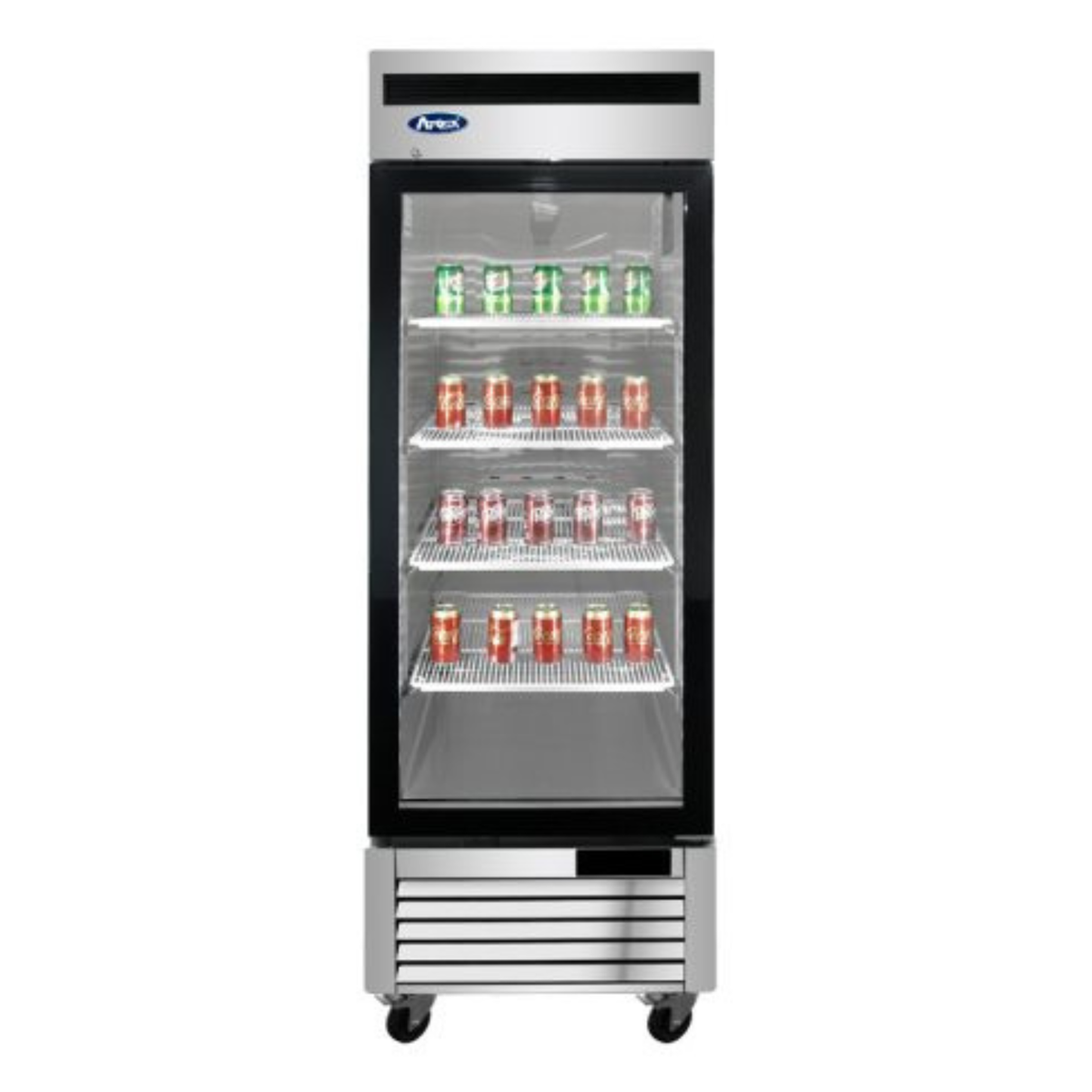

Atosa Stainless Steel Glass Door Merchandiser Refrigerator 27" - MCF8705GR

The Atosa MCF8705GR is a one-section, one-door glass door merchandiser refrigerator. It suits restaurants, delis, cafes, markets and convenience stores that want to show bottled drinks and packaged food in a 27" wide floor space. It holds 19.1 cu. ft. and measures 27" wide, 31-7/10" deep and 83-1/10" high. An electronic controller keeps it at 35°F to 38°F. A bottom-mounted 1/7 HP Embraco compressor uses R290 refrigerant and runs on 115 V with a NEMA 5-15P plug, drawing 2.1 A. The cabinet is stainless steel inside and out, and it comes with four epoxy-coated shelves and 4" casters already installed. East Bay Restaurant Supply ships this model with free shipping.

Key features

• One self-closing, double-pane glass door that is hinged on the right, with a recessed handle and a magnetic gasket
• Door lock comes standard
• The door closes by itself when opened 90° or less and stays open when pushed past 90°
• Bottom-mounted, self-contained, air-cooled refrigeration with a variable-capacity Embraco compressor and R290 hydrocarbon refrigerant
• Electronic temperature controller holds 35°F to 38°F
• ENERGY STAR certified, with a rated energy use of 1.72 kWh per 24 hours
• LED interior lighting for product display
• Four epoxy-coated wire shelves come installed and can be adjusted. They resist rust and corrosion in humid conditions
• Stainless steel exterior and interior with a galvanized steel back
• Air defrost with automatic condensate evaporation
• Four 4" casters come installed, with bumpers and brakes

Atosa MCF8705GR specifications

Brand	Atosa
Model number	MCF8705GR
Product type	Glass door merchandiser refrigerator, reach-in
Sections / doors	1 section, 1 hinged glass door, hinged on the right
Capacity	19.1 cu. ft.
Exterior width	27"
Exterior depth	31-7/10"
Exterior height	83-1/10"
Temperature range	35°F to 38°F
Temperature control	Electronic controller
Refrigeration	Self-contained, bottom-mounted, air-cooled
Refrigerant	R290
Compressor	1/7 HP Embraco
Electrical	115 V / 60 Hz / 1-phase, 2.1 A
Plug	NEMA 5-15P
Energy use	1.72 kWh per 24 hours
Shelves	4 epoxy-coated wire shelves, 24-1/2" wide x 21-1/2" deep, 155 lb load rating each
Door	Double-pane glass, self-closing with stay-open feature, recessed handle, magnetic gasket, lock
Exterior material	Stainless steel, galvanized steel back
Interior material	Stainless steel
Lighting	LED interior
Defrost	Air defrost, automatic condensate evaporation
Casters	4" casters with bumper and brake, installed
Net weight	293 lb
Shipping weight	326 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation, ENERGY STAR
Warranty	3 years parts and labor, 5 years sealed compressor

Frequently asked questions

What outlet does the Atosa MCF8705GR need?

It needs a standard 115 V, 15 A grounded outlet (NEMA 5-15R) for its NEMA 5-15P plug. The unit draws 2.1 A on 115 V / 60 Hz / single-phase power.

Will it fit through a standard doorway?

Yes. At 27" wide and 31-7/10" deep, it fits through a 36" doorway. However, at 83-1/10" high it is about 3" taller than a standard 80" door opening. Measure door heights along the move-in path and plan to tilt the cabinet.

Is this a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. Its electronic controller holds 35°F to 38°F, which suits drinks, dairy, deli items and packaged food. The freezer version with the same 27" footprint is the Atosa MCF8701GR.

How much does it hold?

It holds 19.1 cu. ft. and comes with four adjustable shelves that measure 24-1/2" x 21-1/2". Each shelf is rated for 155 lb. You can add more shelves (part W0402394, which comes with four shelf clips).

What certifications does it have?

It is cETLus listed to UL 471 and CSA C22.2 No. 120 for electrical safety in the US and Canada. It is also ETL Sanitation listed, which means it meets food equipment sanitation standards health inspectors look for. It is ENERGY STAR certified at 1.72 kWh per 24 hours, which may qualify it for local utility rebates.

What warranty comes with it?

Atosa covers 3 years parts and labor on the cabinet and all parts, plus 2 more years on the sealed compressor, for 5 years of compressor coverage from the original installation date. The extra compressor years cover only the sealed compressor parts. They do not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical parts. Claims go through Atosa and need the model number, serial number, proof of purchase and installation date. The compressor warranty is void if R290 service procedures are not followed or if the replacement compressor does not come from Atosa.

Can I get the door hinged on the left?

Yes. The MCF8705GRL is the same cabinet with the door hinged on the left. The standard MCF8705GR is hinged on the right.

How does it compare with the MCF8707GR and MCF8709GR?

The MCF8705GR is the one-door, 27" wide model in this line. The MCF8707GR is a 54-2/5" wide two-section model with two hinged glass doors and door locks. The MCF8709GR is also 54-2/5" wide but has two sliding glass doors and no door lock.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
