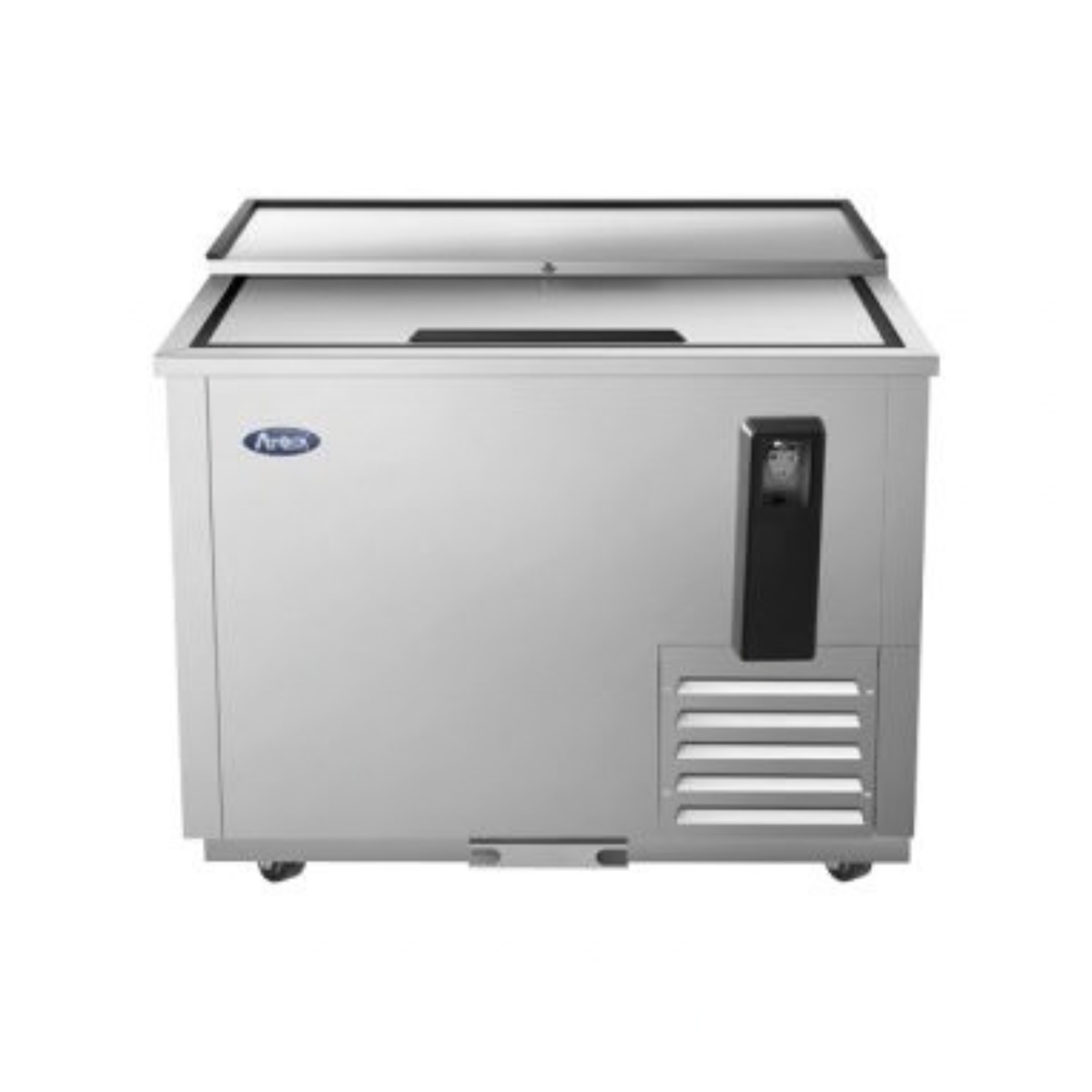

Atosa Stainless Steel Horizontal Bottle Cooler 36" - 7.7 Cu. Ft. MBC36GR

The Atosa MBC36GR is a 36" commercial horizontal bottle cooler for bars, restaurants and beverage stations that need chilled bottles at the point of service. It holds 7.7 cu. ft. of storage behind one locking sliding stainless steel lid, and the cabinet measures 36-3/4" wide, 26-3/4" deep and 38-1/2" high. An electronic controller holds 35°F to 38°F. Cooling comes from a self-contained, side-mounted Embraco compressor (1/7 HP) that uses R290 refrigerant and plugs into a standard 115V outlet with a NEMA 5-15P plug, drawing 2.3 A. East Bay Restaurant Supply ships this model with free shipping.

Key features

• 7.7 cu. ft. capacity in a 36-3/4" wide cabinet
• Stainless steel exterior and interior
• Electronic temperature controller holds 35°F to 38°F
• Heavy-duty Embraco compressor, 1/7 HP, with R290 hydrocarbon refrigerant
• Slide-out compressor assembly makes service easier
• One easy-glide stainless steel sliding lid with handle and a standard lid lock
• Bottle opener and cap catcher come standard
• Two epoxy-coated wire dividers to organize bottles
• 2" casters come installed
• 115V, 2.3 A, NEMA 5-15P plug

Atosa MBC36GR specifications

Brand	Atosa
Model number	MBC36GR
Product type	Horizontal bottle cooler (refrigerated)
Lids	1 locking sliding stainless steel lid with handle
Capacity	7.7 cu. ft.
Exterior width	36-3/4"
Exterior depth	26-3/4"
Exterior height	38-1/2"
Temperature range	35°F to 38°F
Temperature control	Electronic controller
Refrigeration	Self-contained, side mount, slide-out compressor assembly
Compressor	Embraco, 1/7 HP
Refrigerant	R290
Electrical	115 V / 60 Hz / 1 phase, 2.3 A
Plug	NEMA 5-15P
Dividers	2 epoxy-coated wire dividers
Exterior material	Stainless steel
Interior material	Stainless steel
Included accessories	Bottle opener, cap catcher, lid lock
Casters	2", installed at the factory
Net weight	170 lb
Shipping weight	207 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation
Warranty	2 years parts and labor, 5 years compressor (parts only after year 2)

Frequently asked questions

What outlet does the Atosa MBC36GR need?

It needs a standard 115V, 60 Hz, single-phase outlet that accepts a NEMA 5-15P plug (15 A, 125 V), and it draws 2.3 A. Plug it straight into the wall. Atosa's warranty does not cover damage caused by extension cords, low voltage or voltage drops.

What temperature does the MBC36GR hold?

It holds 35°F to 38°F, set with an electronic controller. It is a refrigerated bottle cooler, not a freezer.

Will the MBC36GR fit through a standard doorway?

Yes, if you move it depth-first. At 26-3/4" deep it clears a 36" doorway, and at 38-1/2" high it is well under an 80" door opening. It is 36-3/4" wide, so it will not go through a 36" doorway facing forward.

What certifications does the MBC36GR have?

It is cETLus listed: it conforms to UL 471 and is certified to CSA C22.2 No. 120, so it meets electrical safety requirements in the US and Canada. It also carries ETL Sanitation certification, which inspectors look for on commercial foodservice equipment.

What warranty comes with the MBC36GR?

Atosa covers it for 2 years parts and labor, plus 3 more years on the sealed compressor, for 5 years of compressor coverage in total. The extra compressor years cover only the sealed compressor parts. They do not cover the cabinet, temperature control, fan assembly, refrigerant or other electrical parts. The warranty excludes damage from alteration, neglect, abuse, misuse, accident, damage in transit or installation, fire and acts of God. You file claims directly with Atosa, with the model number, serial number and proof of purchase.

What comes with the MBC36GR?

It comes with a locking sliding stainless steel lid, a bottle opener, a cap catcher, two epoxy-coated wire dividers and 2" casters, all installed or included as standard.

How does the MBC36GR compare with the MBC24GR and MBC50GR?

The MBC36GR is the middle size. The MBC24GR is 24-3/8" wide and holds 4 cu. ft. The MBC50GR is about 49" wide and holds 11.7 cu. ft., with two sliding lids and three dividers. The MBC36GR gives you 7.7 cu. ft. under a single lid.

How do you service the MBC36GR?

The compressor assembly slides out, so a technician can work on the refrigeration system without taking the cabinet apart. The casters let you roll the unit out for cleaning and service.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
