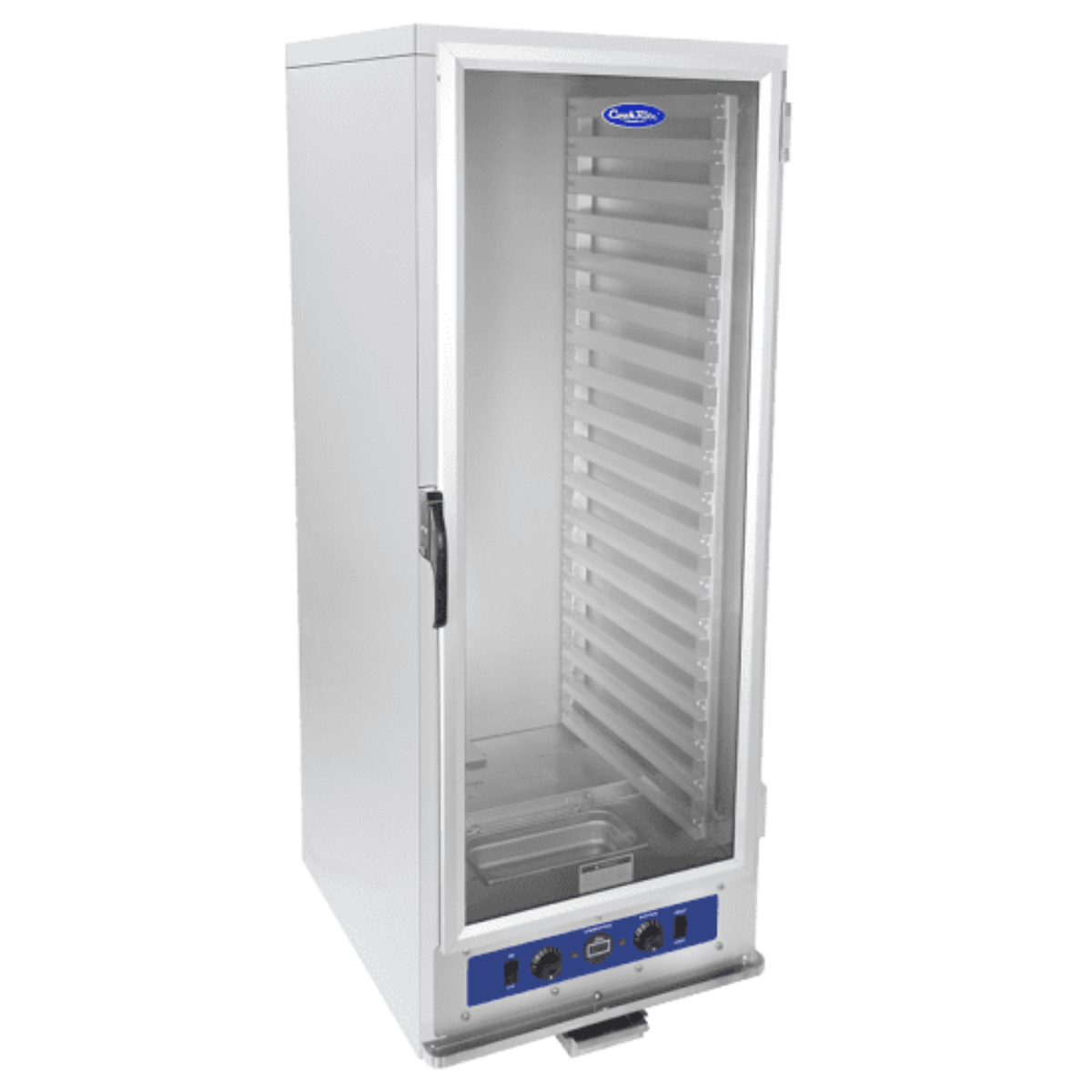

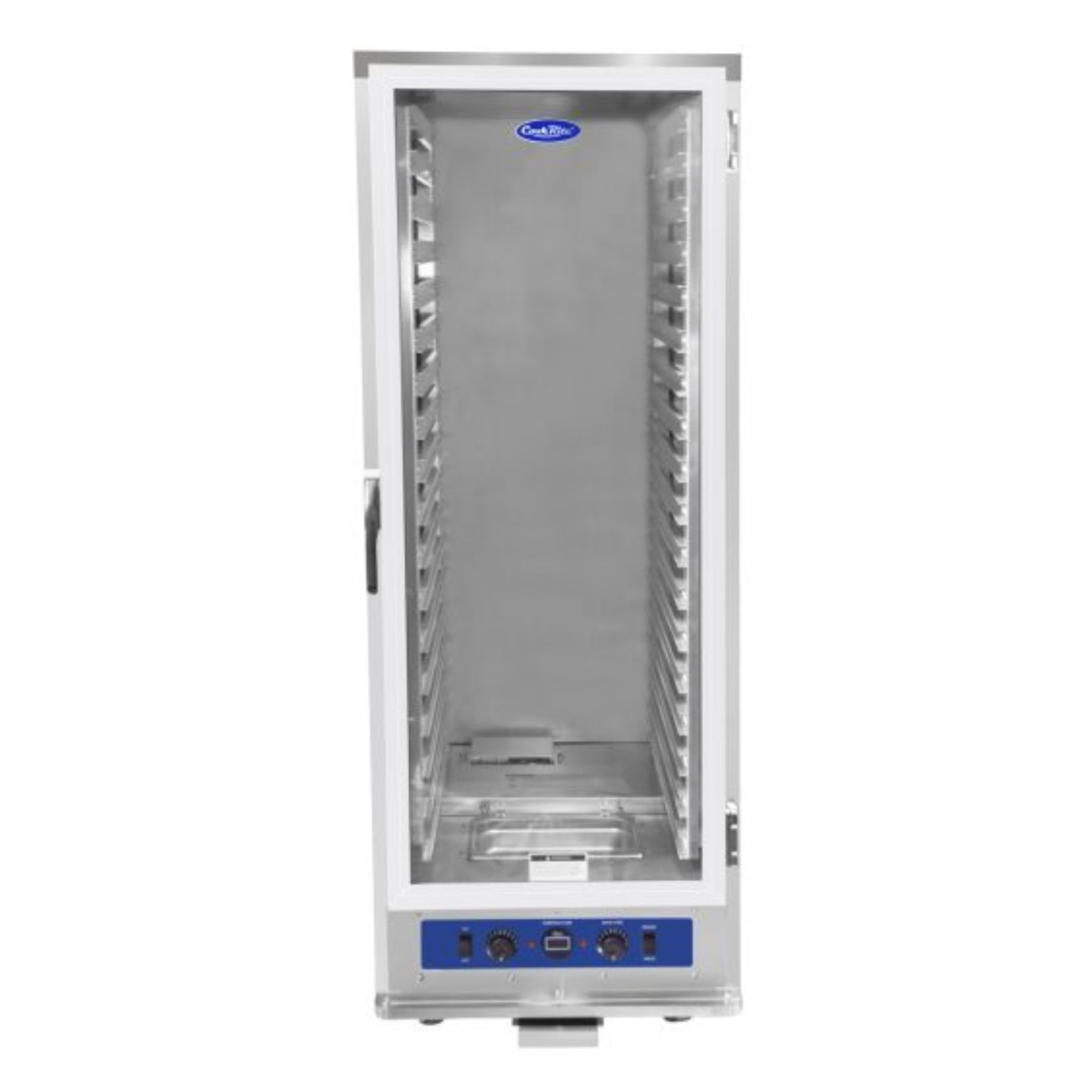

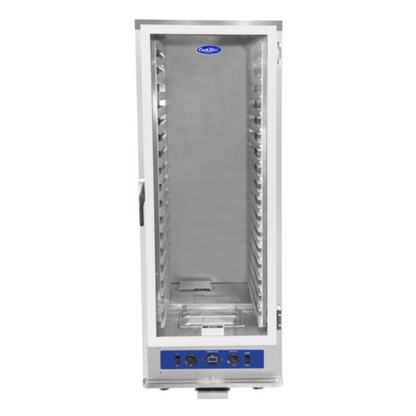

Atosa Heated Holding Cabinet Stainless Steel Insulated Mobile 18 Pan ATHC-18-P

The Atosa ATHC-18-P (manufacturer model ATHC-18P) is a mobile, full-height insulated heated holding and proofing cabinet for restaurants, caterers, banquet kitchens, bakeries and institutional foodservice. It holds eighteen 18" x 26" full-size sheet pans in a cabinet 25.1" wide, 30.7" deep and 69.7" high. A PROOF/HOLD mode switch, separate temperature and moisture dials and a humidifying water tray let it hot-hold cooked food or proof dough, with an adjustable temperature range of 90°F to 220°F. It runs on 120 V, 60 Hz, single-phase power at 2,000 W through a NEMA 5-20P plug, and it is built with a stainless steel exterior and interior and a fully insulated cabinet. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Holds eighteen 18" x 26" full-size sheet pans on integrated slides with 1.3" between slides.
• Combination proof and hold operation, set with a PROOF/HOLD mode switch.
• Separate temperature and moisture dials, with an LED display for checking conditions.
• Heating mode adjusts from 90°F to 220°F.
• Humidifying water tray helps keep held food from drying out.
• Fully insulated cabinet with foamed-in insulation to cut heat loss.
• Clear polycarbonate door that stays open at 90° for hands-free loading.
• Stainless steel exterior and interior.
• Removable control drawer for cleaning.
• Four casters come installed, two locking and two swivel, with a bumper.
• Plugs into a standard 120 V circuit: 2,000 W, 6' cord, NEMA 5-20P plug.

Atosa ATHC-18-P specifications

Brand	Atosa (CookRite line)
Model number	ATHC-18P (also listed as ATHC-18-P)
Product type	Insulated heated holding and proofing cabinet, mobile, full height
Sections and doors	1 section, 1 door
Pan capacity	18 full-size 18" x 26" sheet pans
Slide spacing	1.3" between slides
Exterior width	25.1" (25-1/10")
Exterior depth	30.7" (30-7/10")
Exterior height	69.7" (69-7/10")
Temperature range	90°F to 220°F
Operating modes	Hold (heat only) and proof (heat plus moisture)
Controls	Temperature dial, moisture dial, PROOF/HOLD switch, on/off switch, LED display
Humidity source	Humidifying water tray
Power	2,000 W
Electrical	120 V / 60 Hz / 1-phase
Plug	NEMA 5-20P
Cord length	6'
Door	Clear polycarbonate, 90° stay-open
Exterior material	Stainless steel
Interior material	Stainless steel
Insulation	Fully insulated, foamed-in
Casters	4 installed casters: 2 locking, 2 swivel, with bumper
Gross weight	212 lb
Certifications	cETLus, ETL Sanitation
Warranty	1 year parts and labor from date of shipment from Atosa

Frequently asked questions

What outlet and circuit does the Atosa ATHC-18-P need?

It needs a 120 V NEMA 5-20R outlet on a dedicated 20 A circuit. The unit has a 6' cord with a NEMA 5-20P plug and draws 2,000 W, which is about 17 A at 120 V. It is a plug-in unit and does not need to be hardwired.

Will it fit through a standard doorway?

Yes. The cabinet is 25.1" wide and 30.7" deep, so it fits through a 36" doorway. At 69.7" high, it also clears a standard 80" door opening.

What temperature does it hold, and can it proof dough?

It holds from 90°F to 220°F, and it can proof dough as well as hot-hold food. The PROOF/HOLD switch picks the mode. In hold mode, only heat is applied. In proof mode, the moisture dial and water tray add humidity. The top of the range is well above the FDA Food Code minimum of 135°F for hot holding.

How much does it hold?

It holds eighteen 18" x 26" full-size sheet pans, with 1.3" between slides.

What certifications does it have?

It is cETLus and ETL Sanitation listed. cETLus means it meets US and Canadian electrical safety standards. ETL Sanitation means it meets North American food equipment sanitation standards, which health departments commonly accept for commercial kitchens.

What warranty comes with it?

Atosa covers it for 1 year of parts and labor, counted from the date the unit ships from Atosa. Defective parts are repaired or replaced, and labor covers standard straight-time charges plus reasonable travel time. Claims go directly to Atosa and must include the model number, serial number and proof of purchase. The warranty does not cover alteration, neglect, abuse, misuse, accidents, damage during transit or installation, fire, flood or acts of God.

How does it differ from the Atosa ATHC-9P and ATHC-18ES?

The ATHC-9P has the same 25.1" x 30.7" footprint, controls and 2,000 W rating, but it holds 9 pans and stands 42.7" high. The ATHC-18ES also holds 18 pans and is ENERGY STAR rated. It is a holding cabinet rated at 1,900 W with a range of 85°F to 207°F and a 10' cord, and it measures 31" deep and weighs 225 lb.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
