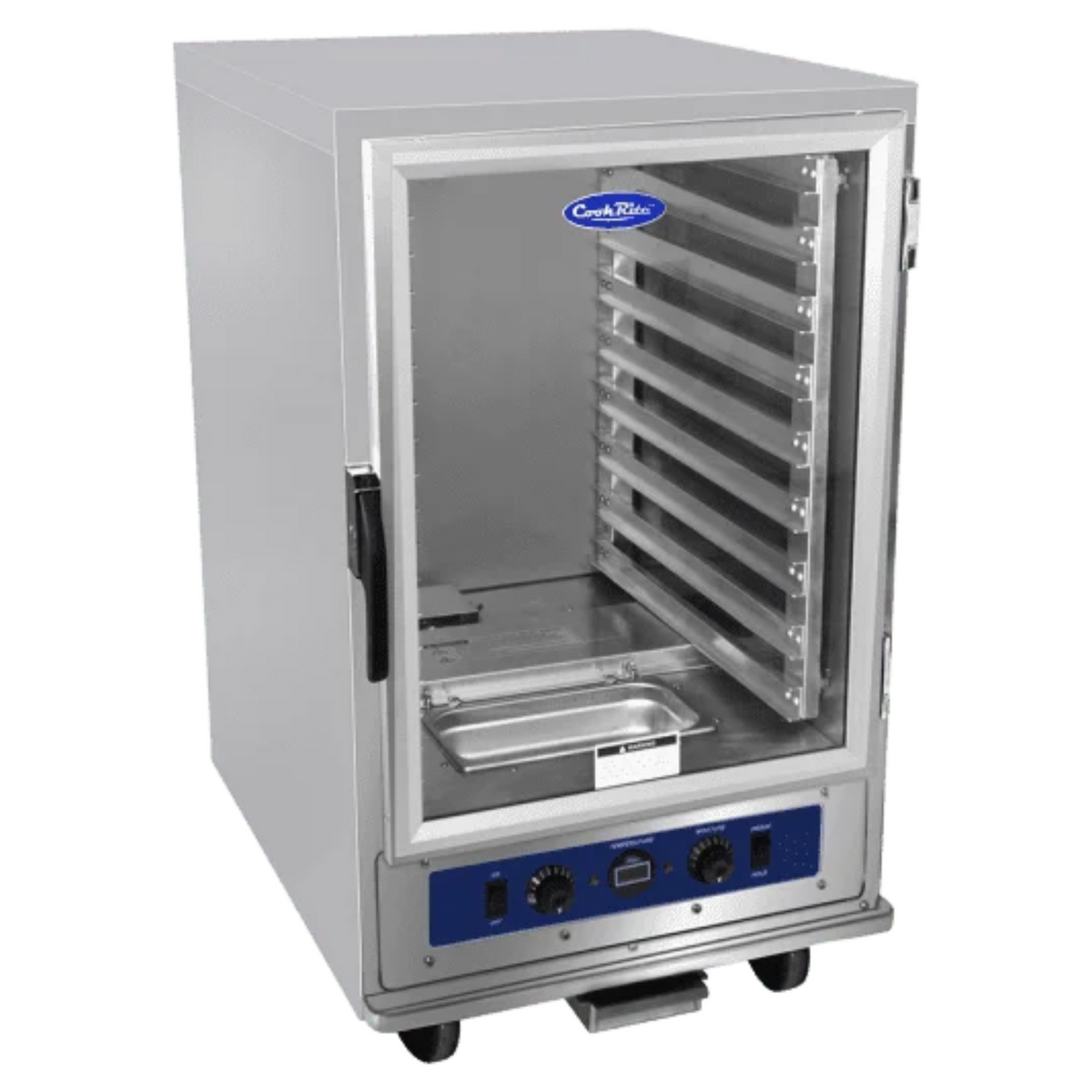

Atosa CookRite Insulated Heated Holding Cabinet Stainless Steel 9-Pan - ATHC-9-P

The Atosa ATHC-9-P is a mobile, half height insulated heated holding cabinet from the CookRite line. It suits restaurants, caterers and cafeterias that need to keep food hot on 18" x 26" sheet pans close to the line. The cabinet holds nine full size pans and measures 25.1" wide, 30.7" deep and 42.7" high. It holds from 90°F to 220°F and runs on 120V, 2,000 W power with a NEMA 5-20P plug. The interior and exterior are stainless steel, the walls are fully foamed-in insulated, and the clear polycarbonate door lets staff see product without opening it. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Holds nine (9) full size 18" x 26" sheet pans, with 1.3" clearance between slides
• Heating range adjusts from 90°F to 220°F
• Dial controls with an LED display and a temperature and humidity control panel
• Humidifying water tray keeps food from drying out during holding
• Clear polycarbonate door stays open at 90° for loading and unloading
• Fully insulated cabinet with foamed-in insulation cuts heat loss
• Stainless steel exterior and interior
• Integrated slides and a removable control drawer make cleaning easier
• Four casters come standard: two locking and two swivel
• Plugs into a standard 120V outlet with a 6 ft. cord and NEMA 5-20P plug

Atosa ATHC-9-P specifications

Brand	Atosa (CookRite line)
Model number	ATHC-9-P (also listed as ATHC-9P)
Product type	Insulated heated holding cabinet, mobile, half height
Sections / doors	1 section, 1 full height clear polycarbonate door
Pan capacity	9 full size 18" x 26" sheet pans
Slide spacing	1.3" clearance between slides
Exterior width	25.1" (25-1/10")
Exterior depth	30.7" (30-7/10")
Exterior height	42.7" (42-7/10")
Temperature range	90°F to 220°F
Controls	Dial controls, LED display, temperature and humidity control panel
Humidity	Humidifying water tray
Electrical	120 V / 60 Hz / single phase, 2,000 W
Plug	NEMA 5-20P
Cord length	6 ft.
Exterior material	Stainless steel
Interior material	Stainless steel
Insulation	Fully insulated, foamed-in
Door	Transparent polycarbonate, stays open at 90°
Casters	4 casters: 2 locking, 2 swivel
Gross weight	168 lb
Certifications	cETLus, ETL Sanitation (conforms to NSF/ANSI Standard 4)
Warranty	1 year parts and labor

Frequently asked questions

What outlet does the Atosa ATHC-9-P need?

It needs a 120V, 20 amp NEMA 5-20R receptacle, because it ships with a NEMA 5-20P plug on a 6 ft. cord. It draws 2,000 W on 120V, 60 Hz, single phase power, so a dedicated 20 amp circuit is the best choice. No hardwiring is needed.

What temperature does it hold?

The heating range adjusts from 90°F to 220°F. You set it with dial controls and read it on the LED display. This is a heated cabinet for hot holding, not a refrigerator.

How much does it hold?

It holds nine full size 18" x 26" sheet pans on slides spaced 1.3" apart. Use the slide spacing to check clearance for taller product.

Will it fit through a standard doorway?

Yes. At 30.7" deep and 25.1" wide, it clears a standard 36" doorway. At 42.7" tall, it is well under an 80" door opening.

What certifications does it have?

The ATHC-9-P is cETLus listed for electrical safety in the US and Canada. It is also ETL Sanitation listed to NSF/ANSI Standard 4, which covers commercial cooking and hot food holding equipment. Health inspectors look for these listings in commercial kitchens.

What warranty comes with it?

Atosa gives a one year parts and labor warranty, starting on the date the unit ships from Atosa. Labor coverage is limited to standard straight time labor and reasonable travel time. Only the original purchaser is covered, and the warranty cannot be transferred. It excludes damage from alteration, neglect, abuse, misuse, accident, transit or installation damage, fire, flood and acts of God. Claims go directly to Atosa and need the model number, serial number and proof of purchase.

How does the ATHC-9-P differ from the ATHC-18P and ATHC-9ES?

The ATHC-18P is the full height version. It holds 18 sheet pans at 69.7" tall with the same 25.1" x 30.7" footprint, the same 2,000 W and the same 90°F to 220°F range. The ATHC-9ES also holds nine pans, but it has a tempered glass door, a 1,900 W heater, an 85°F to 207°F range and a 10 ft. cord.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
