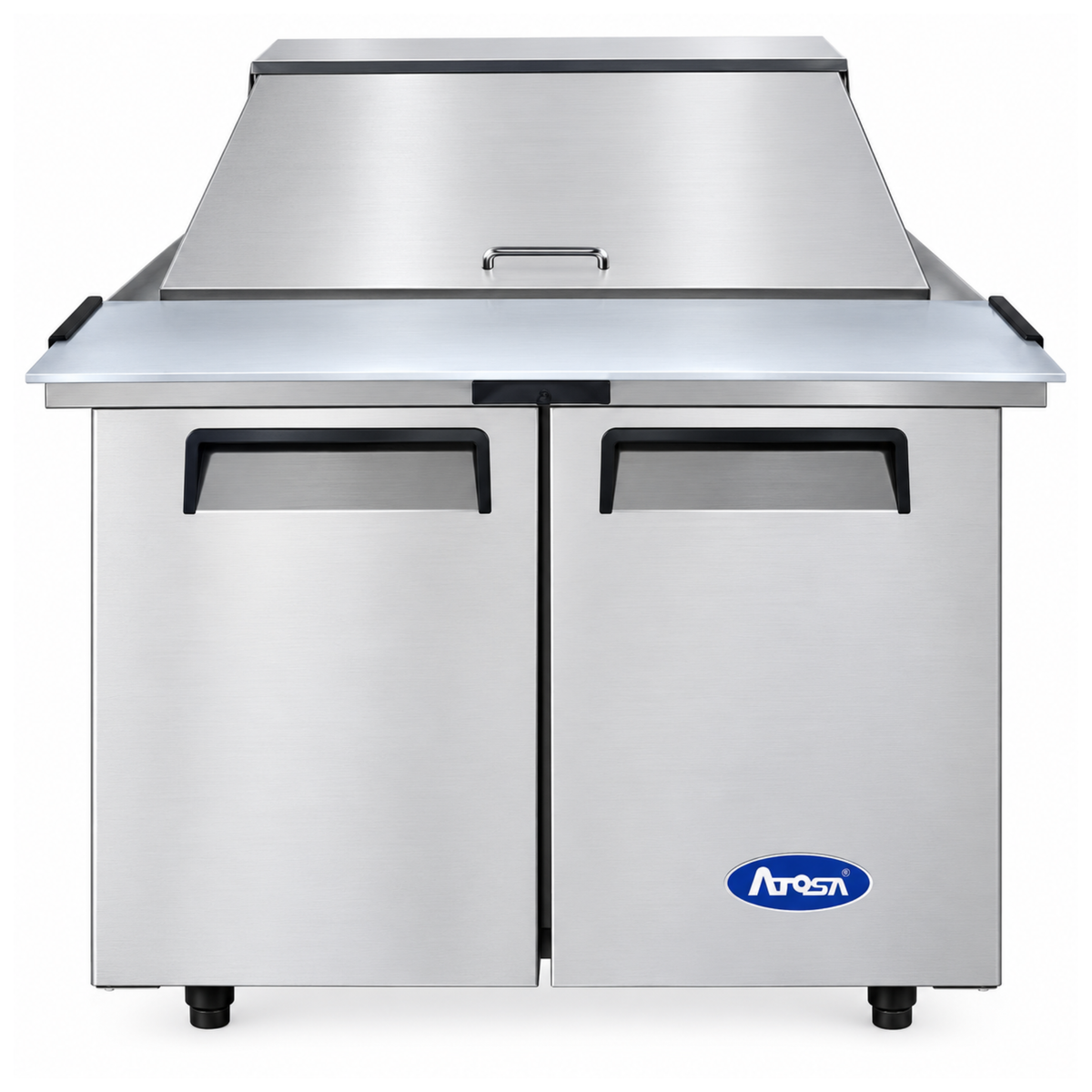

Atosa Refrigerated Mega Top Sandwich Prep Table 36" - 15 Poly Pans - MSF3615GR

The Atosa MSF3615GR is a 36" two-door refrigerated mega top sandwich and salad prep table for delis, sandwich shops, cafes and restaurant lines that need more toppings on hand in a small footprint. The raised mega top holds (15) 1/6-size, 6" deep poly pans, which come installed. Below it is an 8.7 cu. ft. refrigerated base with one shelf in each of its two sections. The unit measures 36-5/16" wide, 36-3/4" deep and 46-5/8" high, holds 35°F to 38°F with an electronic controller, and runs on a standard 115V circuit using R290 refrigerant. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Mega top pan rail holds (15) 1/6-size pans. Fifteen 6" deep poly pans are included.
• 8.7 cu. ft. refrigerated base with two sections and one shelf per section.
• Electronic temperature controller holds 35°F to 38°F.
• Concentrated airflow design spreads cold air evenly around the pans.
• Rear-mounted, self-contained 1/7 HP refrigeration using R290 hydrocarbon refrigerant.
• Removable stainless steel pan liner and locking divider bars for cleaning and laying out pans.
• 9-1/4" deep cutting board runs along the front of the work surface.
• Stainless steel exterior and interior.
• Self-closing doors with a stay-open feature, recessed handles and magnetic gaskets that seal the doors.
• Four 2" swivel casters come installed. Two of them have brakes, and each is rated for more than 250 lb.
• Plugs into a 115V outlet with a NEMA 5-15P plug and draws 2.3 A.

Atosa MSF3615GR specifications

Brand	Atosa
Model number	MSF3615GR
Product type	Refrigerated mega top sandwich/salad prep table
Sections and doors	2 sections, 2 solid hinged self-closing doors with stay-open feature
Pan capacity	(15) 1/6-size pans, 6" deep poly pans included
Cabinet capacity	8.7 cu. ft.
Exterior width	36-5/16"
Exterior depth	36-3/4"
Exterior height	46-5/8"
Temperature range	35°F to 38°F
Temperature control	Electronic temperature controller
Refrigeration	Self-contained, rear-mounted compressor, concentrated airflow around pans
Refrigerant	R290
Compressor	1/7 HP
Electrical	115V / 60 Hz / 1-phase, 2.3 A
Plug	NEMA 5-15P
Shelves	2 (one per section)
Cutting board depth	9-1/4"
Pan rail	Removable stainless steel pan liner, locking divider bars
Exterior and interior material	Stainless steel
Door hardware	Recessed handles, magnetic door gaskets
Casters	(4) 2" swivel casters, brakes on 2, rated over 250 lb each
Net weight	174 lb
Shipping weight	240 lb
Certifications	cETLus (conforms to UL 471, certified to CSA C22.2 No. 120), ETL-Sanitation
Optional accessories	Double overshelf, 12" cross bar (part 82021902), night covers
Warranty	3 years parts and labor, 5 years compressor

Frequently asked questions

What electrical outlet does the Atosa MSF3615GR need?

It needs a standard 115V, 60 Hz, single-phase outlet that accepts a NEMA 5-15P plug. It draws 2.3 A. Plug it directly into a properly grounded receptacle. Atosa's warranty excludes damage caused by extension cords, low voltage or voltage drops.

Will the MSF3615GR fit through a standard doorway?

Not upright through a standard 36" door. The cabinet is 36-5/16" wide and 36-3/4" deep, so both are wider than a 36" doorway. Its 46-5/8" height is well below an 80" door opening. Measure the actual clear opening of every door on the delivery path before you order.

Is this a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. The electronic controller holds the base and pan rail between 35°F and 38°F, which is the range Atosa recommends for preserving food. It is not built to store frozen product.

How much does the MSF3615GR hold?

The mega top holds fifteen 1/6-size pans, and fifteen 6" deep poly pans come with it. The refrigerated base has 8.7 cu. ft. of storage behind two doors, with one shelf in each section.

What certifications does it have?

It is cETLus listed for electrical safety in the US and Canada. That means it conforms to UL 471 and is certified to CSA C22.2 No. 120. It is also ETL-Sanitation certified, which shows it meets food equipment sanitation standards for commercial kitchens.

What warranty comes with it?

Atosa covers this model for 3 years parts and labor. The sealed compressor is covered for 2 more years, up to 5 years from the original installation date. The added compressor years cover only the sealed compressor, not the cabinet, temperature control, refrigerant, fan assembly or other electrical parts. The warranty applies only to the original purchaser. It excludes damage from misuse, neglect, alteration, accidents, transit or installation, and improper power. Food spoilage is not covered. Warranty claims go directly to Atosa and need the model number, serial number, proof of purchase and installation date.

How does the MSF3615GR differ from other Atosa sandwich prep tables?

The MSF3610GR is the 36" standard top version. It holds 10 pans instead of 15 and has the same 8.7 cu. ft. base, but it is shallower and shorter at 30" deep and 41-3/8" high. The MSF8306GR is the 48" mega top, with 18 pans and 13.4 cu. ft. The MSF8305GR is the 27" one-door mega top, with 7.2 cu. ft.

What accessories are available?

Atosa offers three options for this model: a double overshelf, a 12" cross bar (part 82021902) and night covers to cover the pan rail when the line is closed.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
