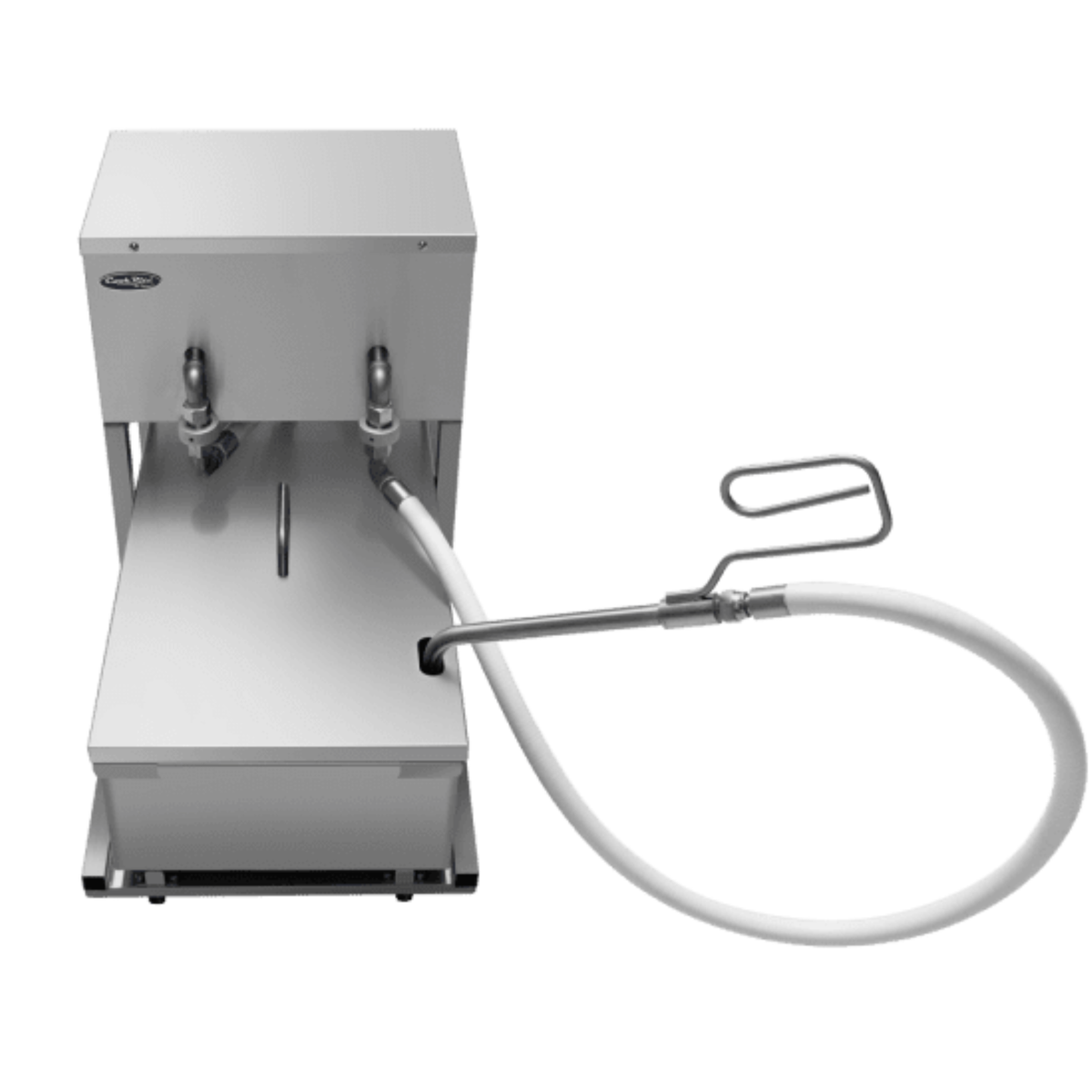

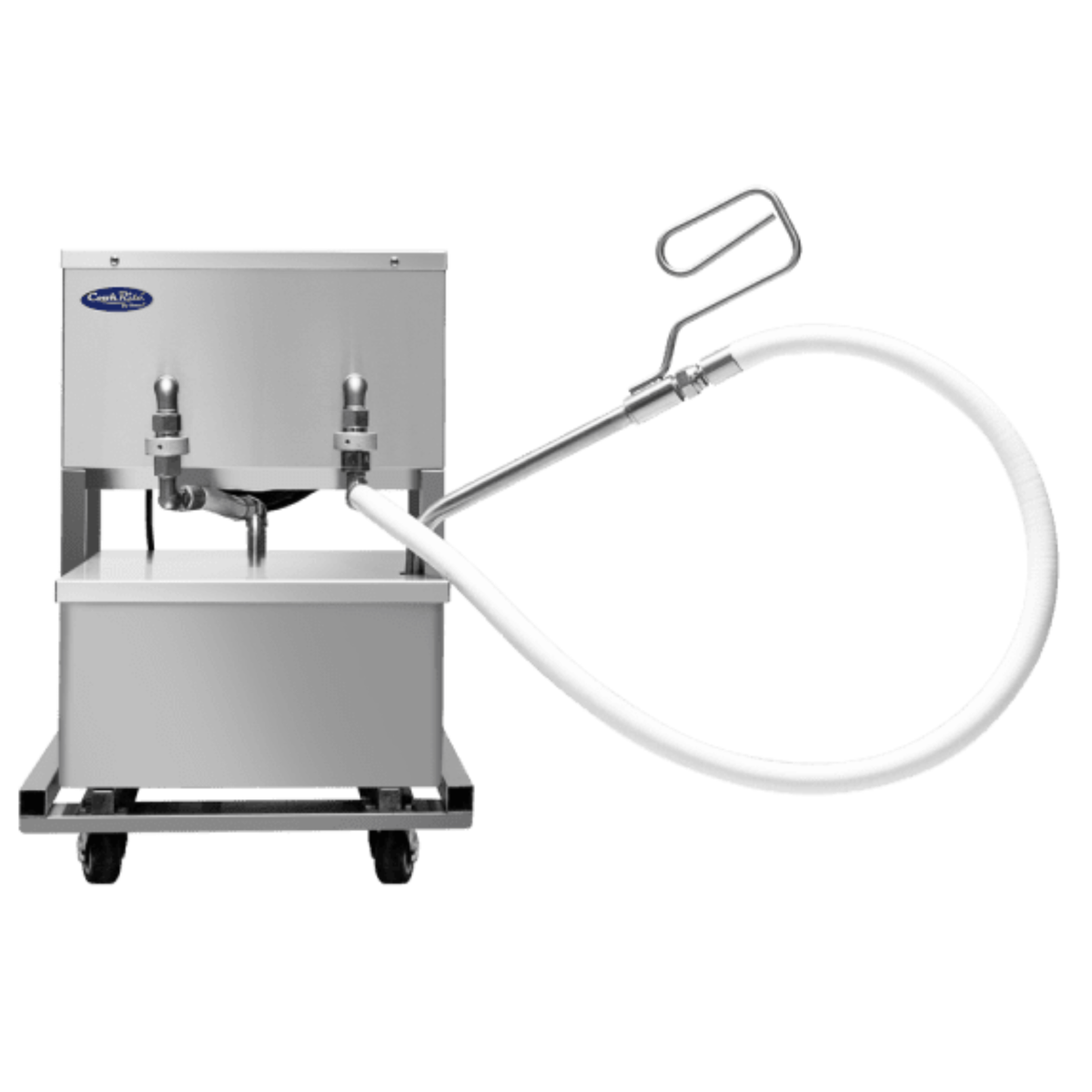

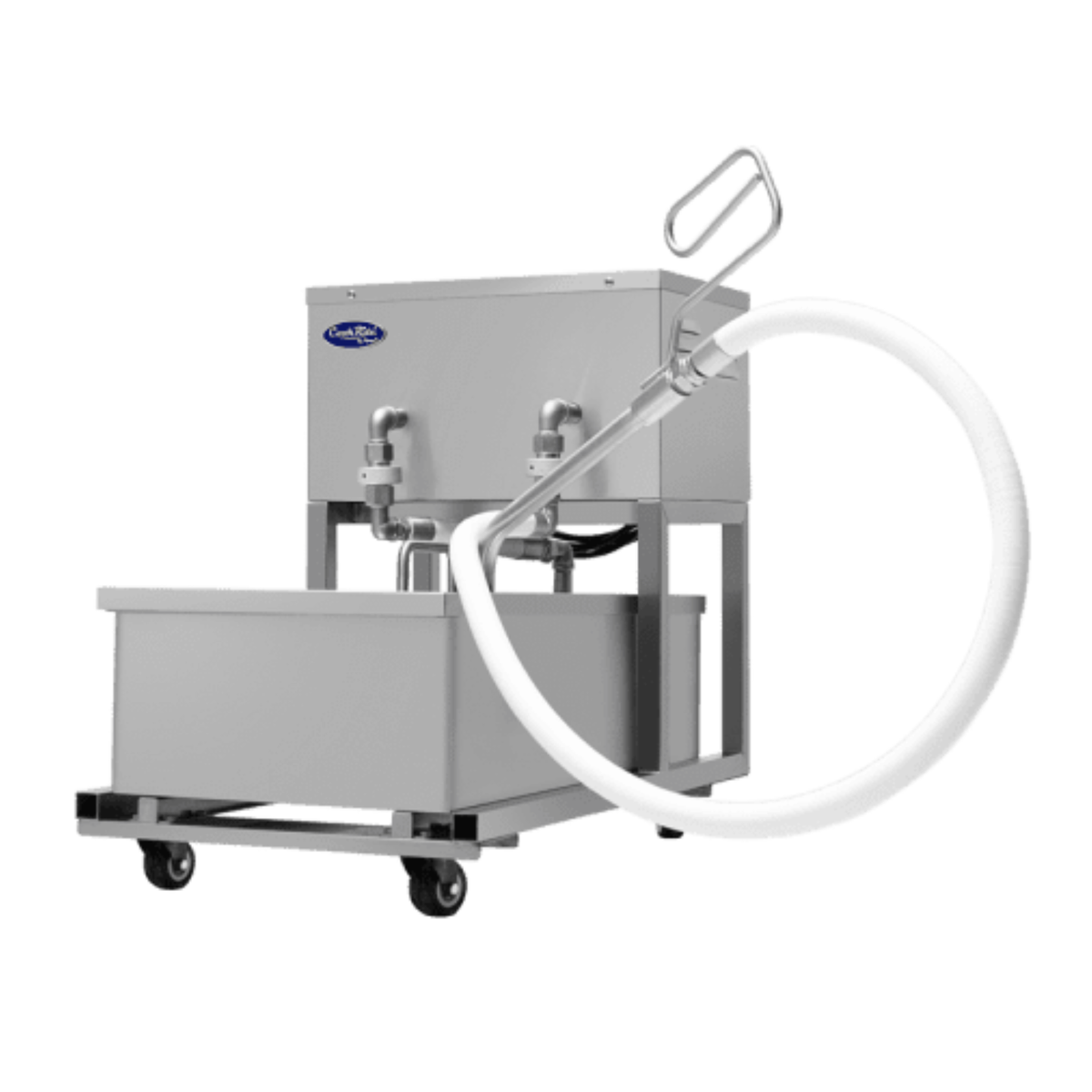

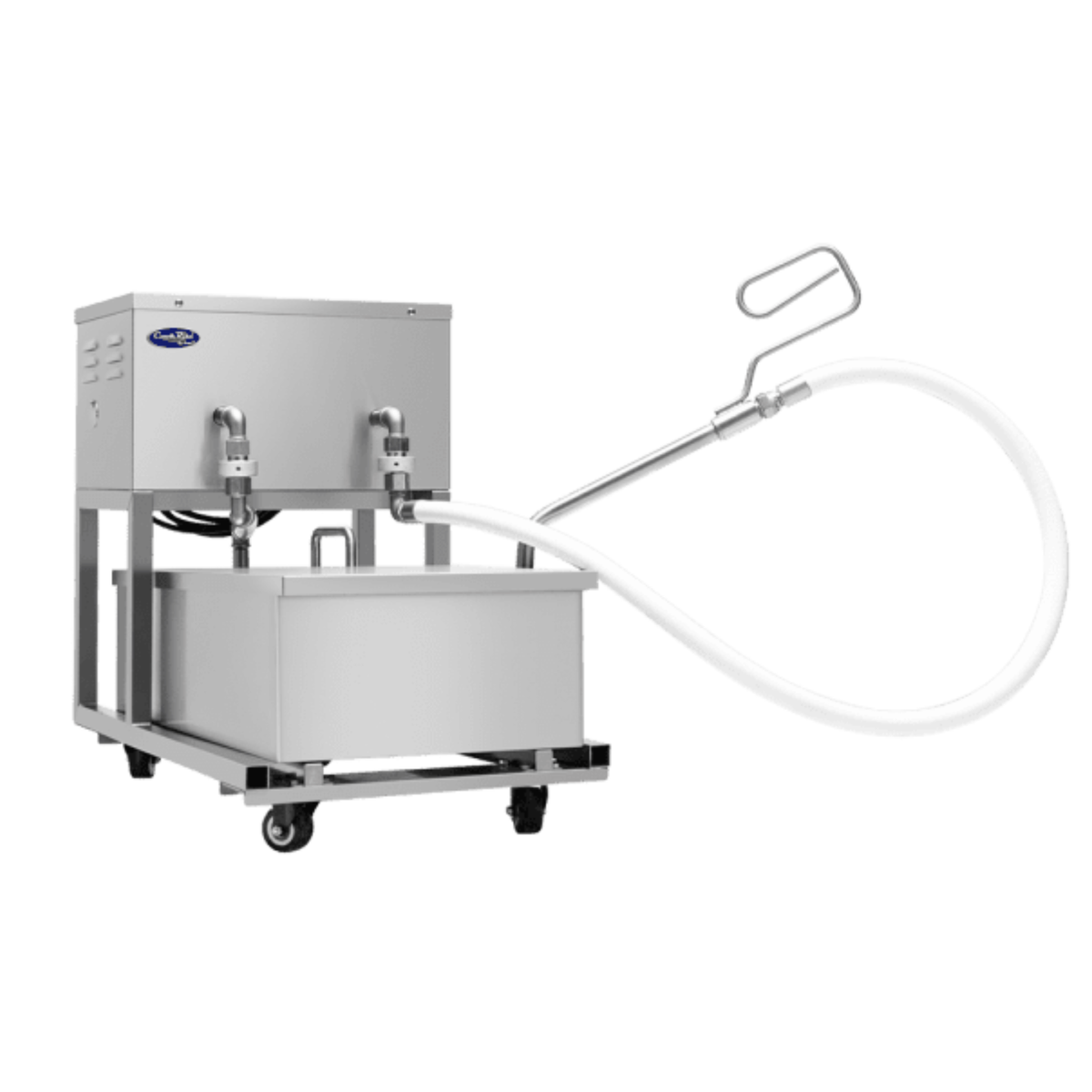

Atosa Portable Fryer Filter Stainless Steel 50 lb Capacity FPOF-50

The Atosa FPOF-50 is a mobile fryer oil filter for restaurants and quick-service kitchens. It drains, filters and returns the oil from fryers that hold up to 50 lb. It measures 16-1/4" wide, 29-1/2" deep and 24" high, and its low profile lets it roll under the fryer drain. A reversible 1/3 HP pump moves 3.43 gallons per minute on a 115V, 6 A single-phase supply, and the oil goes back to the fryer through a 5' high-temperature hose and wand. The body is stainless steel inside and out on a welded steel frame with 3" swivel casters. East Bay Restaurant Supply ships this model with free shipping.

Key features

• 50 lb oil capacity, sized for 50 lb fryers
• Low profile design for placement under the fryer drain
• Reversible heavy-duty pump, 1/3 HP, 1450 RPM, 3.43 gallons per minute
• Simple On/Off/Heater controls
• 5' flexible high-temperature return hose and wand with heat-resistant handle
• Quick-disconnect hose connection for fast assembly
• Lift-out filter pan and easy-to-remove filter assembly for cleaning and paper changes
• Includes filter catch basket and clean-out scoop
• Stainless steel exterior and interior on a welded steel frame
• Pre-installed 3" swivel casters
• Uses Atosa FP-1324-5 filter paper, 13-1/2" x 24", 100 sheets per box (sold separately)

Atosa FPOF-50 specifications

Brand	Atosa
Model number	FPOF-50
Product type	Portable fryer filter
Oil capacity	50 lb
Exterior width	16-1/4"
Exterior depth	29-1/2"
Exterior height	24"
Pump	Reversible, 1/3 HP, 1450 RPM
Flow rate	3.43 gallons per minute
Electrical	115 V / 60 Hz / 1 phase, 6 A
Plug	Oil-resistant cord with grounded three-prong plug
Controls	On/Off/Heater
Return hose	5' flexible high-temperature hose and wand, quick-disconnect
Filter paper	Atosa FP-1324-5, 13-1/2" x 24", 100 sheets per box
Filter aid per filtering	12 oz
Materials	Stainless steel exterior and interior, welded steel frame
Casters	3" swivel, pre-installed
Included accessories	Filter catch basket, clean-out scoop
Net weight	81 lb
Shipping weight	135 lb
Packed dimensions	18-7/8" wide x 31-7/8" deep x 29-3/4" high
Certifications	cETLus, ETL-Sanitation; conforms to UL Std. 1889
Warranty	1 year parts and labor

Frequently asked questions

What electrical connection does the FPOF-50 need?

It runs on a standard 115V, 60 Hz, single-phase grounded outlet and draws 6 A. The cord has a three-prong grounding plug. Never cut off or remove the ground prong.

What size fryer is the FPOF-50 for?

It is built for fryers that hold up to 50 lb of oil. For 80 lb fryers, use the Atosa FPOF-80.

Will it fit under my fryer drain and through a doorway?

It is a low-profile unit, 24" high, made to sit under the fryer drain. Check the clearance under your own fryer's drain valve before ordering. At 16-1/4" wide it passes easily through a standard 36" doorway.

What filter paper does it use?

It uses Atosa FP-1324-5 filter paper, 13-1/2" x 24", sold in boxes of 100 sheets. Atosa calls for 12 oz of filter aid on top of the paper each time you filter.

How hot should the oil be when filtering?

Atosa recommends filtering when the oil is about 250°F (121°C). Let the filter assembly cool to room temperature before you handle its parts.

What certifications does it have?

It is cETLus listed for electrical safety in the US and Canada, ETL-Sanitation certified for food equipment sanitation, and conforms to UL Std. 1889. Health inspectors and insurers commonly look for these listings in commercial kitchens.

What warranty comes with it?

Atosa covers it for 1 year of parts and labor from the date it ships from Atosa. Labor coverage is standard straight-time labor plus reasonable travel time. The warranty excludes damage from alteration, neglect, abuse, misuse, accident, transit or installation damage, fire, flood and acts of God. It is not transferable from the original purchaser.

How does the FPOF-50 differ from the FPOF-80?

The FPOF-80 holds 80 lb, measures 20-1/4" wide by 33-1/2" deep, weighs 97 lb and uses FP-17287-5 filter paper. The FPOF-50 holds 50 lb, measures 16-1/4" by 29-1/2" and weighs 81 lb. Both are 24" high and use the same 1/3 HP, 6 A pump.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
