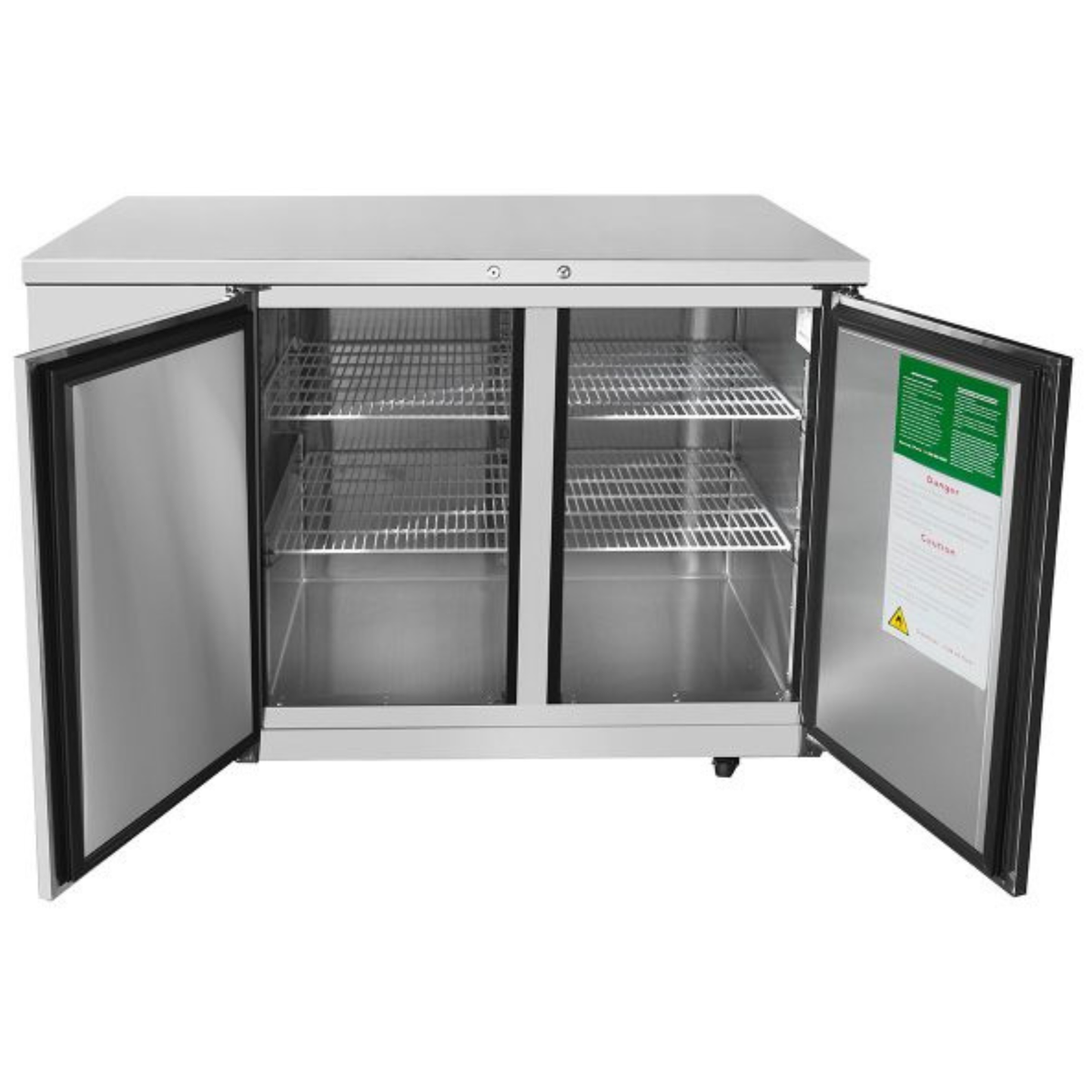

Atosa Stainless Steel Shallow Depth Back Bar Cooler 69" - 2 Solid - SBB69GRAUS1

The Atosa SBB69GRAUS1 is a two-section, solid door, shallow depth back bar cooler for bars, restaurants and taverns that need refrigerated bottle and beverage storage behind the bar where full-depth units will not fit. It measures 68" wide, 24-1/2" deep and 40-1/8" high and offers 18.6 cu. ft. of storage. A self-contained, side-mounted 1/7 HP compressor running on R290 refrigerant holds 35°F to 38°F under an electronic temperature controller. The cabinet is stainless steel inside and out, with two locking doors, four epoxy coated shelves and 2" casters, and it runs on 115V. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Shallow 24-1/2" depth for tight back bar installations
• 18.6 cu. ft. capacity across two sections with two solid swing doors
• Electronic temperature controller, set range 35°F to 38°F
• Self-contained, side-mounted 1/7 HP compressor with R290 hydrocarbon refrigerant
• Compressor assembly slides out for service
• Stainless steel interior, exterior and top
• Door locks and magnetic door gaskets come standard on both doors
• LED interior lighting
• Four epoxy coated shelves come pre-installed, with a coating that resists rust and corrosion in humid conditions
• Pre-installed 2" casters
• Runs on 115V, 2.3 A with a NEMA 5-15P plug

Atosa SBB69GRAUS1 specifications

Brand	Atosa
Model number	SBB69GRAUS1
Product type	Shallow depth back bar cooler (refrigerator)
Sections / doors	2 sections, 2 solid swing doors with locks
Capacity	18.6 cu. ft.
Exterior width	68"
Exterior depth	24-1/2"
Exterior height (overall)	40-1/8"
Temperature range	35°F to 38°F
Temperature control	Electronic digital controller
Refrigeration	Self-contained, side mount, slide-out compressor assembly
Refrigerant	R290
Compressor	1/7 HP
Electrical	115 V / 60 Hz / 1 phase, 2.3 A
Plug	NEMA 5-15P
Shelves	4, epoxy coated
Exterior material	Stainless steel, including top
Interior material	Stainless steel
Lighting	LED interior
Casters	2", pre-installed
Net weight	225 lb
Shipping weight	276 lb
Certifications	cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation
Warranty	3 years parts and labor, 5 years sealed compressor

Frequently asked questions

What electrical outlet does the Atosa SBB69GRAUS1 need?

It needs a standard 115V, 60 Hz, single-phase receptacle that accepts its NEMA 5-15P plug. It draws 2.3 A, so it does not need a special circuit or hardwiring.

Is the SBB69GRAUS1 a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. Its electronic controller holds 35°F to 38°F, which suits chilled beer, wine, soft drinks, mixers and garnishes.

Will it fit through a standard doorway?

Yes. At 24-1/2" deep it clears a 36" doorway with room to spare, and at 40-1/8" high it sits far below an 80" door opening. The 68" width means it has to go through the doorway sideways.

What certifications does it have?

It is cETLus listed to UL 471 and CSA C22.2 No. 120, which means it meets electrical safety standards for commercial refrigerators in the United States and Canada. It is also ETL Sanitation listed, which means it meets North American food equipment sanitation standards. Health inspectors look for both listings in a commercial kitchen or bar.

What warranty comes with the SBB69GRAUS1?

Atosa covers new refrigerated components, including the cabinet and all parts, against defects in materials or workmanship for 3 years, parts and labor. Atosa covers the sealed compressor for 2 more years, for 5 years total. The extended compressor coverage applies only to the sealed compressor parts. It does not cover other parts or components. Warranty claims go directly to Atosa and need the model number, serial number, proof of purchase and installation date.

How does the SBB69GRAUS1 differ from other Atosa shallow depth back bar coolers?

The SBB48GRAUS1 (48" wide, 11.5 cu. ft.) and SBB59GRAUS1 (57-3/4" wide, 15 cu. ft.) are the narrower solid door versions, with the same 24-1/2" depth and 40-1/8" height. At the same 68" width, the SBB69GGRAUS1 has glass swing doors, the SBB69SGGRAUS1 has glass sliding doors, and the SBB69GRAUS2 is a black finish model.

Can I buy extra or replacement shelves?

Yes. Atosa sells extra shelves with 4 shelf clips per shelf. For the SBB69GRAUS1, the top left shelf is part number W040238101, and the top right and bottom shelves are part number W040238001.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
