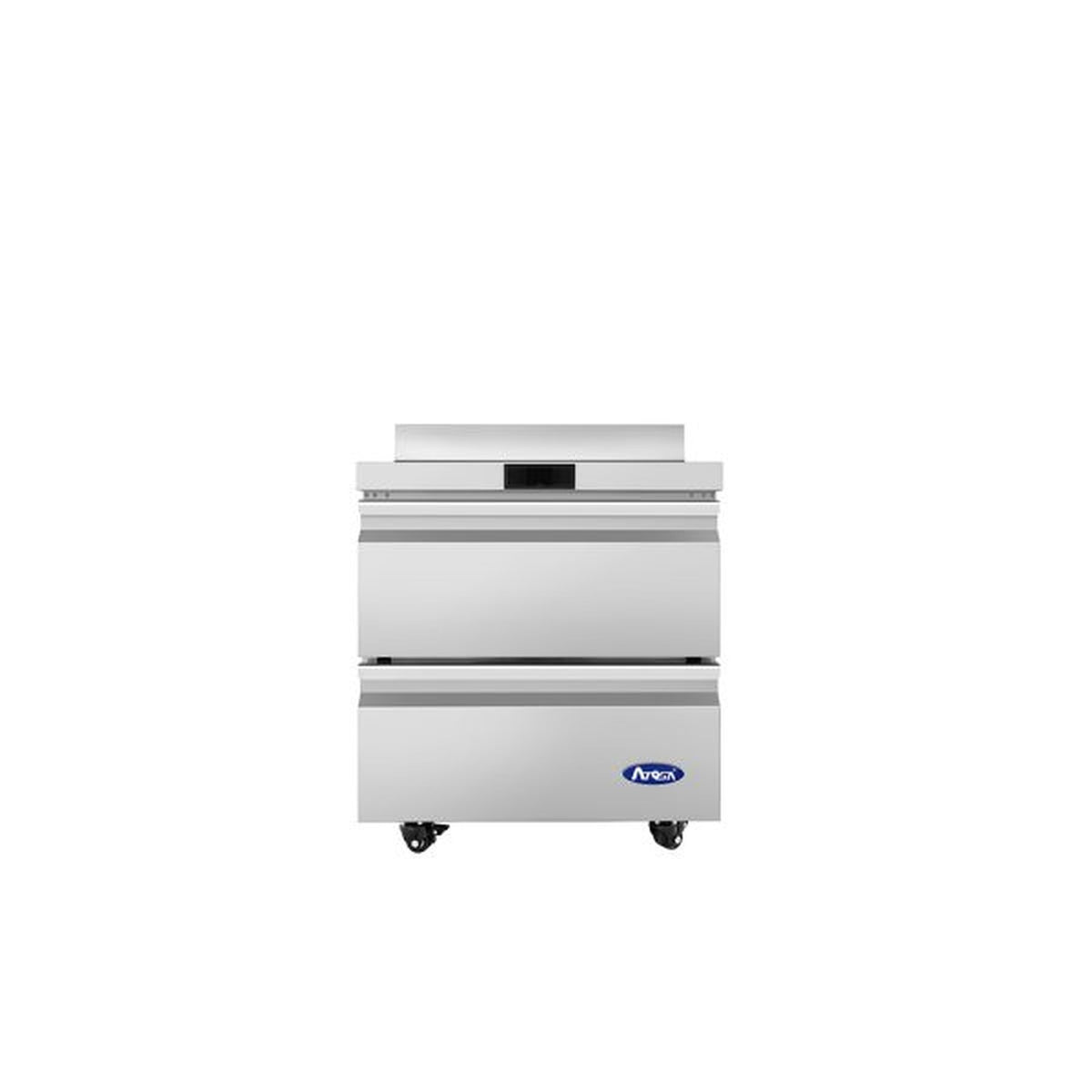

Atosa Stainless Steel Worktop Refrigerator 2-Drawer 27" - AWR27D2

The Atosa AWR27D2 is a 27-1/2" wide, two-drawer worktop refrigerator with a backsplash. It is built for restaurants, sandwich shops and prep stations that need refrigerated pan storage right under a stainless steel work surface. It holds 6.53 cu. ft. at 35°F to 38°F, set by an electronic temperature controller. The cabinet measures 27-1/2" wide by 30" deep by 38-7/8" high and sits on 5" pre-installed casters. It plugs into 115V at 3.4 A with a NEMA 5-15P plug and runs a 1/7+ HP compressor on R290 refrigerant. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Two refrigerated drawers, each supplied with one full-size 12" x 20" pan, 6" deep
• Each drawer also holds six 1/6-size pans
• Reinforced stainless steel top with foamed-in-place backsplash for prep work
• Stainless steel inside and out
• Electronic temperature controller holds 35°F to 38°F
• Magnetic drawer gaskets and recessed handles
• R290 hydrocarbon refrigerant, global warming potential of 3
• 5" pre-installed casters and a rear grate
• Plugs into 115V at 3.4 A, NEMA 5-15P plug
• cETLus and ETL Sanitation listed
• 2-year parts and labor warranty plus 3 more years on the compressor (5 years total). Extended warranty up to 5 years is available.

Atosa AWR27D2 specifications

Brand	Atosa
Model number	AWR27D2
Product type	Worktop refrigerator with drawers and backsplash
Drawers	2
Capacity	6.53 cu. ft.
Exterior width	27-1/2"
Exterior depth	30"
Exterior height	38-7/8"
Temperature range	35°F to 38°F
Temperature control	Electronic controller
Refrigerant	R290
Compressor	1/7+ HP
Electrical	115V / 60 Hz / 1-phase, 3.4 A
Plug	NEMA 5-15P
Pans included	One full-size 12" x 20" x 6" deep pan per drawer
Pan capacity per drawer	Six 1/6-size pans
Exterior material	Stainless steel
Interior material	Stainless steel
Work surface	Reinforced stainless steel top with foamed-in-place backsplash
Drawer seal and handles	Magnetic gaskets, recessed handles
Casters	5", pre-installed
Net weight	143 lb
Shipping weight	198 lb
Certifications	cETLus, ETL Sanitation
Warranty	2 years parts and labor, additional 3 years on sealed compressor (5 years total)

Frequently asked questions

Is the AWR27D2 a refrigerator or a freezer?

It is a refrigerator that holds 35°F to 38°F. The freezer with the same 27-1/2" two-drawer cabinet is the Atosa AWF27D2, which holds -8°F to 1°F.

What electrical outlet does the AWR27D2 need?

It needs a standard grounded 115V outlet that accepts a NEMA 5-15P plug. It draws 3.4 A on 115V, 60 Hz, single-phase power, so no hardwiring or 208/230V circuit is needed.

Will it fit through a standard doorway?

Yes. It is 30" deep and 27-1/2" wide, so either side fits through a 36" doorway. At 38-7/8" high it is well under an 80" door opening.

How many food pans does it hold?

Each drawer comes with one full-size 12" x 20" pan, 6" deep, and can hold six 1/6-size pans. With two drawers, that is two full-size pans or twelve 1/6-size pans.

What certifications does it have?

It is cETLus and ETL Sanitation listed. cETLus means Intertek tested it to U.S. and Canadian electrical safety standards. ETL Sanitation means it was evaluated for sanitation in commercial foodservice, which health inspectors look for.

What warranty comes with the AWR27D2?

Atosa covers parts and labor for 2 years from original installation or 27 months from shipment, whichever comes first. The sealed compressor is covered for 3 more years, up to 5 years in total. Compressor coverage does not extend to the cabinet, finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical parts. The warranty excludes damage from alteration, neglect, misuse, accidents, transit or installation, fire, flood and acts of God. It also excludes food spoilage and other consequential losses. It cannot be transferred, and it requires routine maintenance such as regular condenser cleaning. You can buy an extended warranty of up to 5 years.

How does the AWR27D2 differ from similar Atosa models?

The AWR27SD has the same 27-1/2" worktop cabinet but uses one solid door with shelves instead of drawers. The AWR36D2 is a 36-3/8" wide two-drawer worktop refrigerator with 8.97 cu. ft. The AUR27D2 is a 32-1/2" high undercounter drawer refrigerator without a backsplash. The AWF27D2 is the freezer version.

Does the AWR27D2 replace the Atosa MGF8423GR?

Yes. The AWR27D2 replaced the MGF8423GR as Atosa's 27" two-drawer worktop refrigerator with backsplash. Its height, capacity, electrical rating and casters differ from the older model, so check its own specs when planning space.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
