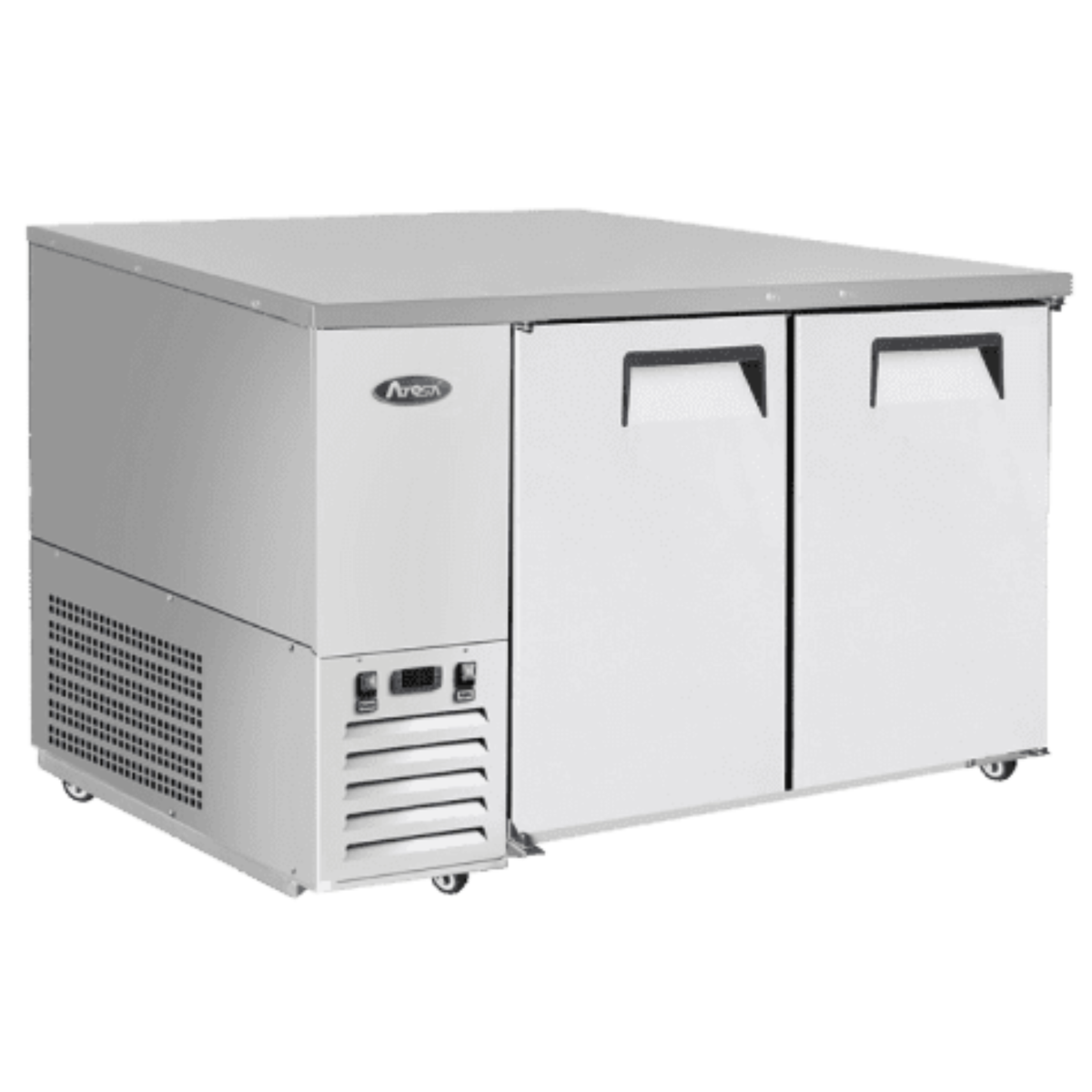

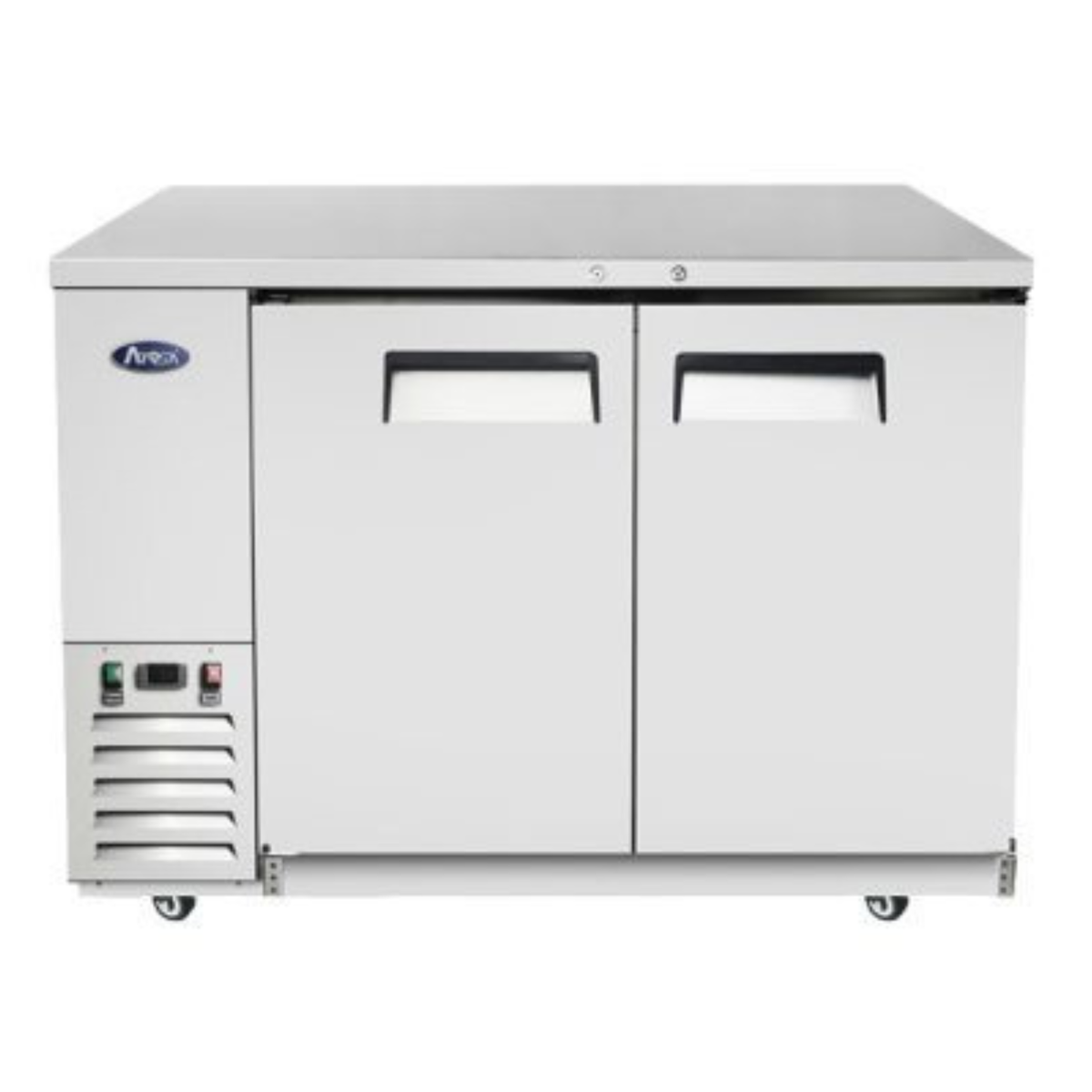

Atosa Stainless Steel Shallow Depth Back Bar Cooler 59" - 2 Solid SBB59GRAUS1

The Atosa SBB59GRAUS1 is a shallow depth, two-section back bar cooler with two locking solid doors, built for bars, restaurants and hotels that need beverage refrigeration behind the bar or along a wall. It has a nominal 59" size and measures 57-3/4" wide, 24-1/2" deep and 40-1/8" high, with 15 cu. ft. of capacity. The electronic controller holds 33°F to 40°F. A 1/7 HP side mount compressor running on R290 refrigerant cools the cabinet, and the unit draws 2.3 A at 115V through a NEMA 5-15P plug. East Bay Restaurant Supply ships this model with free shipping.

Key features

• 24-1/2" shallow depth for tight back bar installations
• Stainless steel exterior and interior with a stainless steel top
• Two locking solid swing doors with recessed handles
• Magnetic door gaskets for a positive door seal
• Electronic temperature controller with digital display, rated 33°F to 40°F
• Self-contained side mount refrigeration with a slide-out compressor assembly for service access
• R290 hydrocarbon refrigerant, 1/7 HP compressor

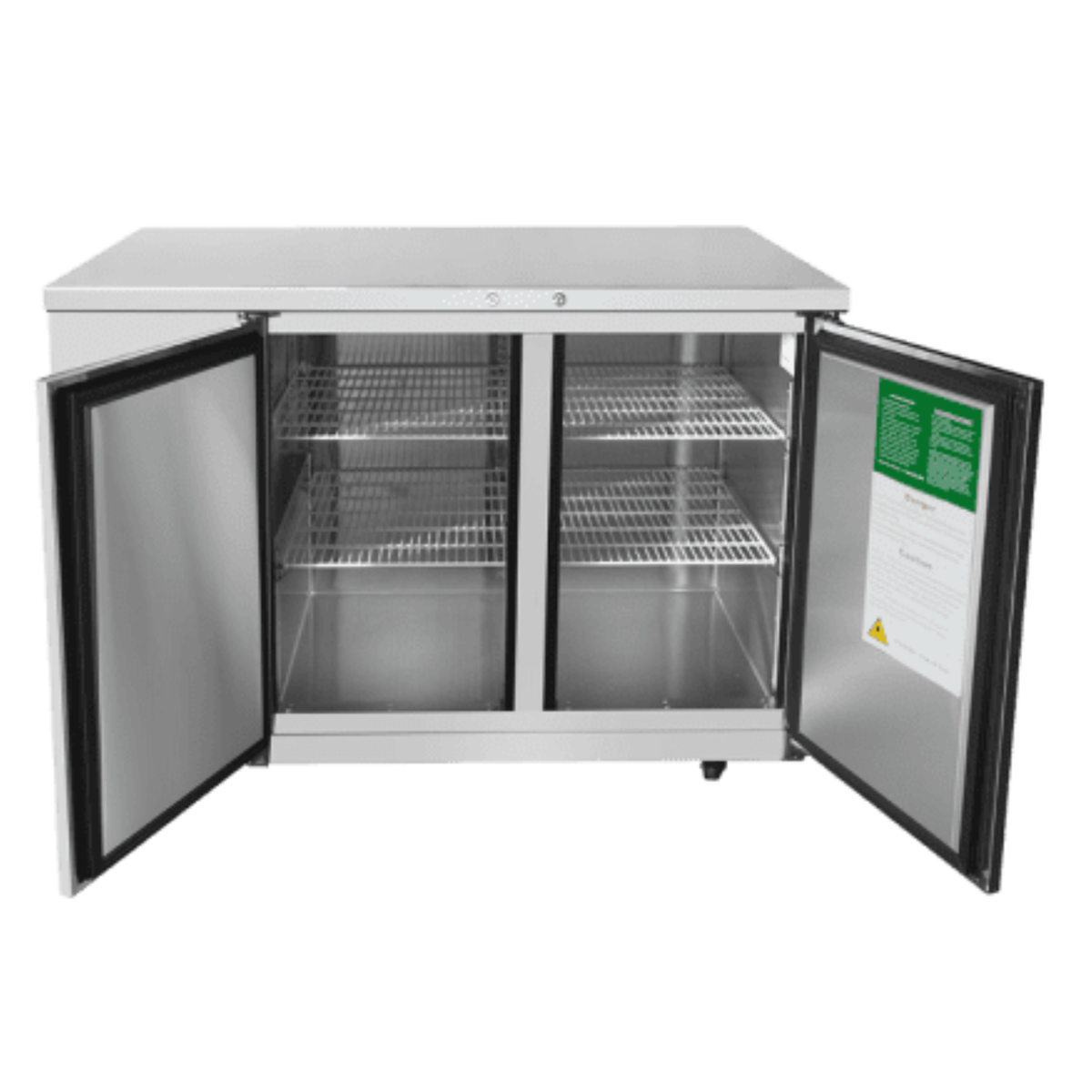

• Four pre-installed epoxy coated shelves
• LED interior lighting
• Four pre-installed 2" swivel casters, brakes on two, each rated over 250 lb
• Plugs into a standard 115V outlet with a NEMA 5-15P plug, 2.3 A draw

Atosa SBB59GRAUS1 specifications

Brand	Atosa
Model number	SBB59GRAUS1
Product type	Shallow depth back bar cooler (refrigerator)
Sections / doors	2 sections, 2 locking solid swing doors
Capacity	15 cu. ft.
Exterior width	57-3/4" (nominal 59" class)
Exterior depth	24-1/2"
Exterior height	40-1/8"
Temperature range	33°F to 40°F
Temperature control	Electronic, digital display
Refrigeration	Self-contained, side mount, slide-out compressor assembly
Refrigerant	R290 hydrocarbon
Compressor	1/7 HP
Electrical	115V / 60 Hz / 1-phase, 2.3 A
Plug	NEMA 5-15P
Shelves	4 epoxy coated, pre-installed
Exterior material	Stainless steel, stainless steel top
Interior material	Stainless steel
Door features	Locks, recessed handles, magnetic gaskets
Lighting	LED interior
Casters	4 pre-installed 2" swivel casters, 2 with brakes
Net weight	203 lb
Shipping weight	247 lb
Certifications	cETLus, ETL Sanitation; conforms to UL Std. 471, certified to CSA Std. C22.2 No. 120
Warranty	3 years parts and labor; 5 years on sealed compressor

Frequently asked questions

What outlet does the Atosa SBB59GRAUS1 need?

It needs a standard 115V, 15 A grounded outlet (NEMA 5-15R) for its NEMA 5-15P plug. The unit runs on 115V / 60 Hz / single phase and draws 2.3 A. Plug it straight into the outlet. Atosa does not cover failures caused by extension cords or low voltage.

Is this a refrigerator or a freezer, and what temperature does it hold?

It is a refrigerator. The electronic controller holds the cabinet between 33°F and 40°F, which suits bottled and canned beverages, beer, mixers and garnishes.

Will it fit through a standard doorway?

Yes, if you carry it through sideways. At 57-3/4" wide it will not go through a 36" doorway front first. Its 24-1/2" depth clears a 36" opening, and at 40-1/8" high it is well under a standard 80" door height.

What certifications does it have?

It is cETLus listed for electrical safety in the US and Canada (UL Std. 471, CSA Std. C22.2 No. 120). It also carries ETL Sanitation certification, which shows that it meets food equipment sanitation standards that health inspectors look for in commercial kitchens and bars.

What warranty comes with it?

Atosa covers the cabinet and all parts against defects in materials and workmanship for 3 years parts and labor. The sealed compressor is covered for 2 more years, 5 years in total from the date of original installation. The extra compressor coverage applies only to the sealed compressor parts. It does not cover the cabinet, paint finish, temperature control, refrigerant, fan assembly or other electrical components. Claims go directly to Atosa and need the model number, serial number, proof of purchase and installation date.

What accessories are available?

Atosa sells extra shelves, each with 4 shelf clips. For this model, the top left shelf is part W040235801, and the top right and bottom shelves are part W040235701.

How does it differ from other Atosa shallow depth back bar coolers?

The SBB59GRAUS1 is the 57-3/4" wide, 15 cu. ft. model with solid doors and a stainless exterior. The SBB59GGRAUS1 has the same size, capacity and electrical specs but uses glass doors. The SBB48GRAUS1 is 48" wide with 11.5 cu. ft., and the SBB69GRAUS1 is 68" wide with 18.6 cu. ft. The SBB59GRAUS2 is the 59" model with a black exterior.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
