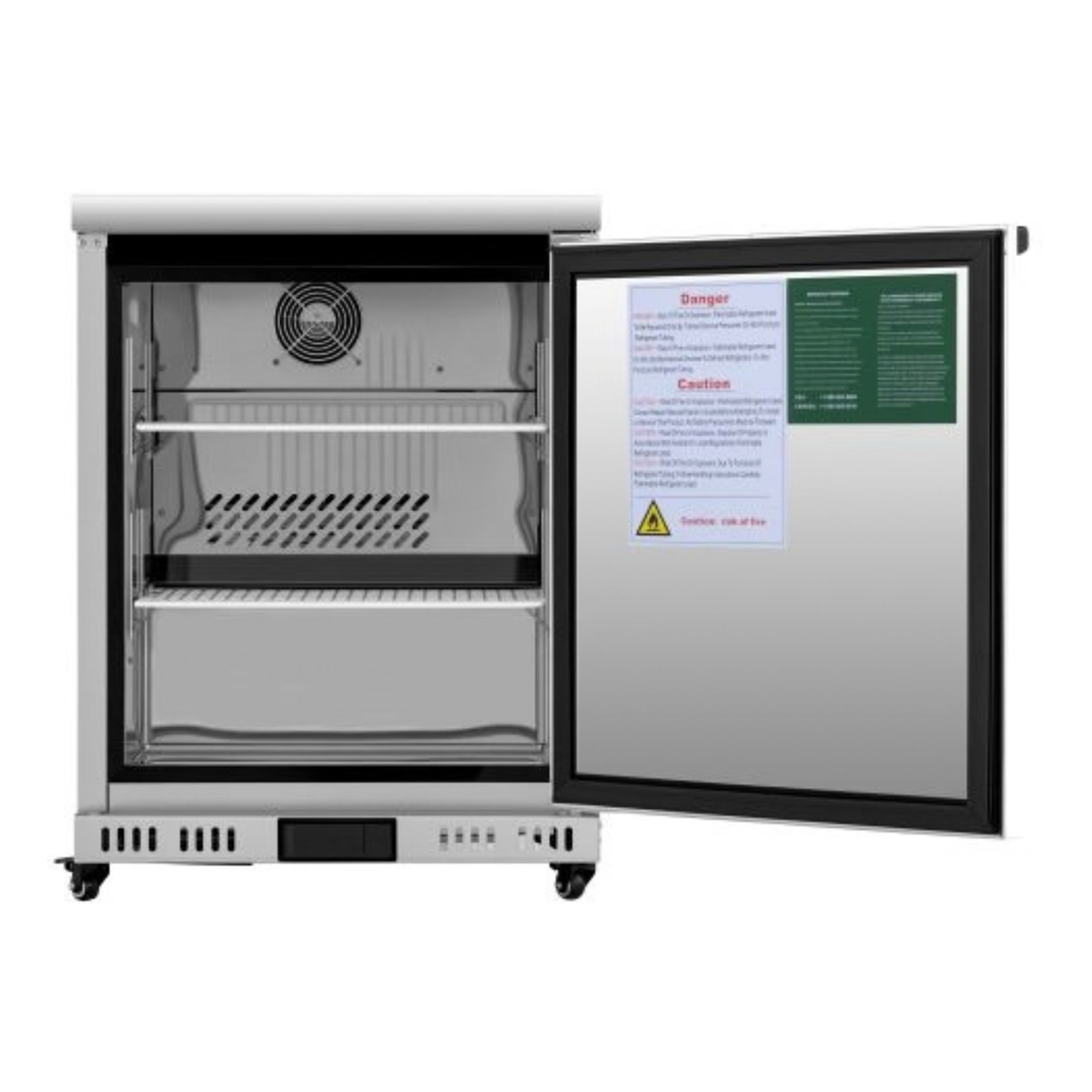

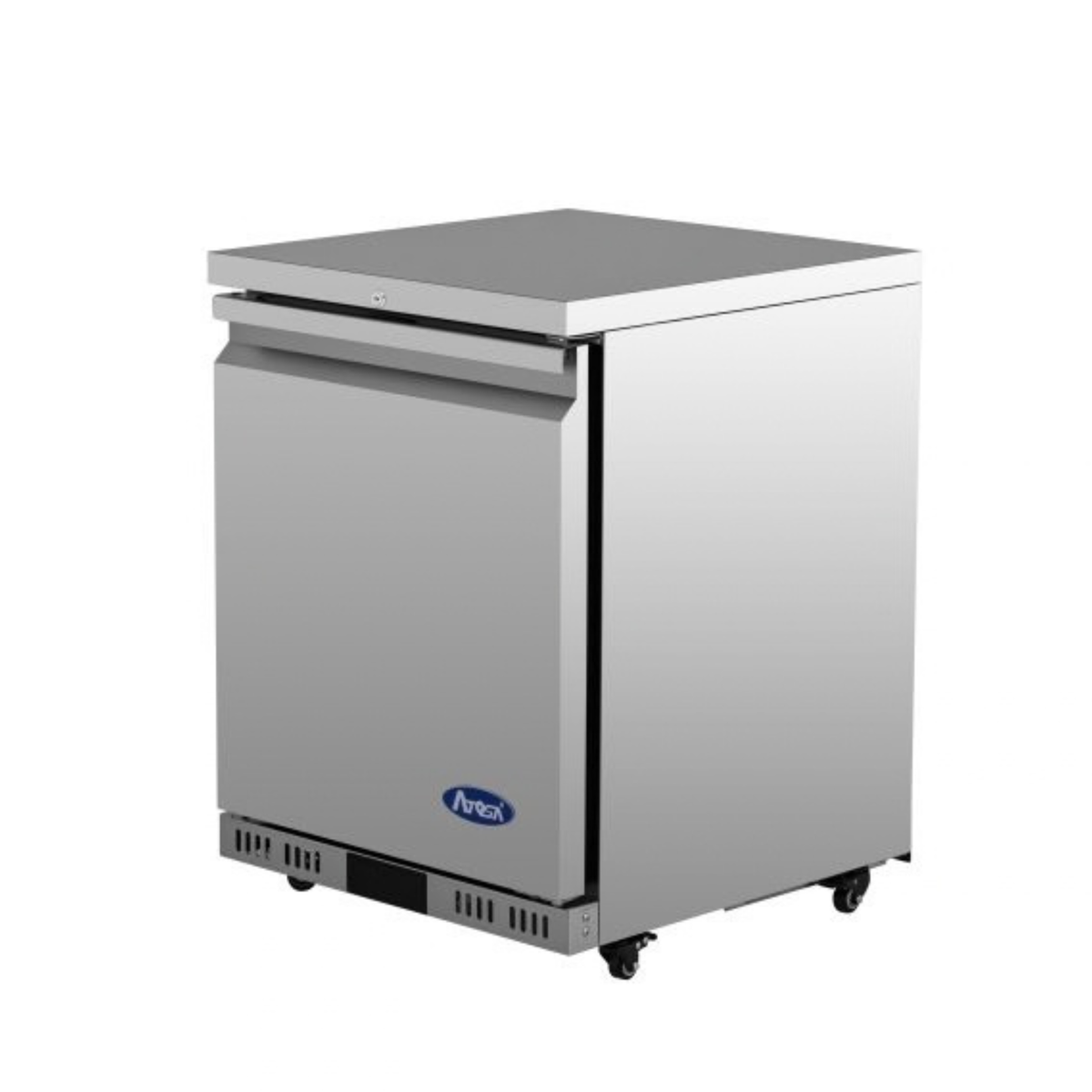

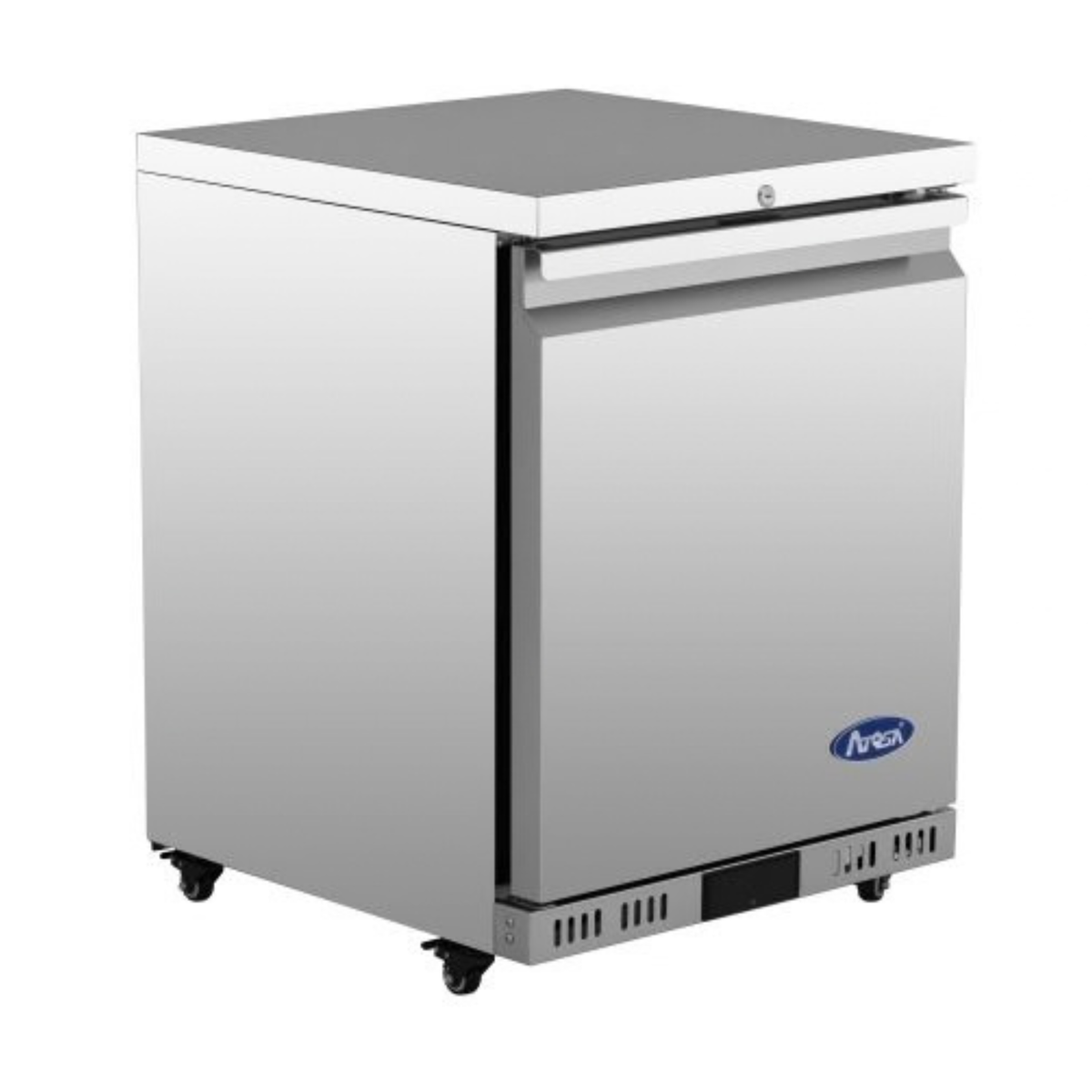

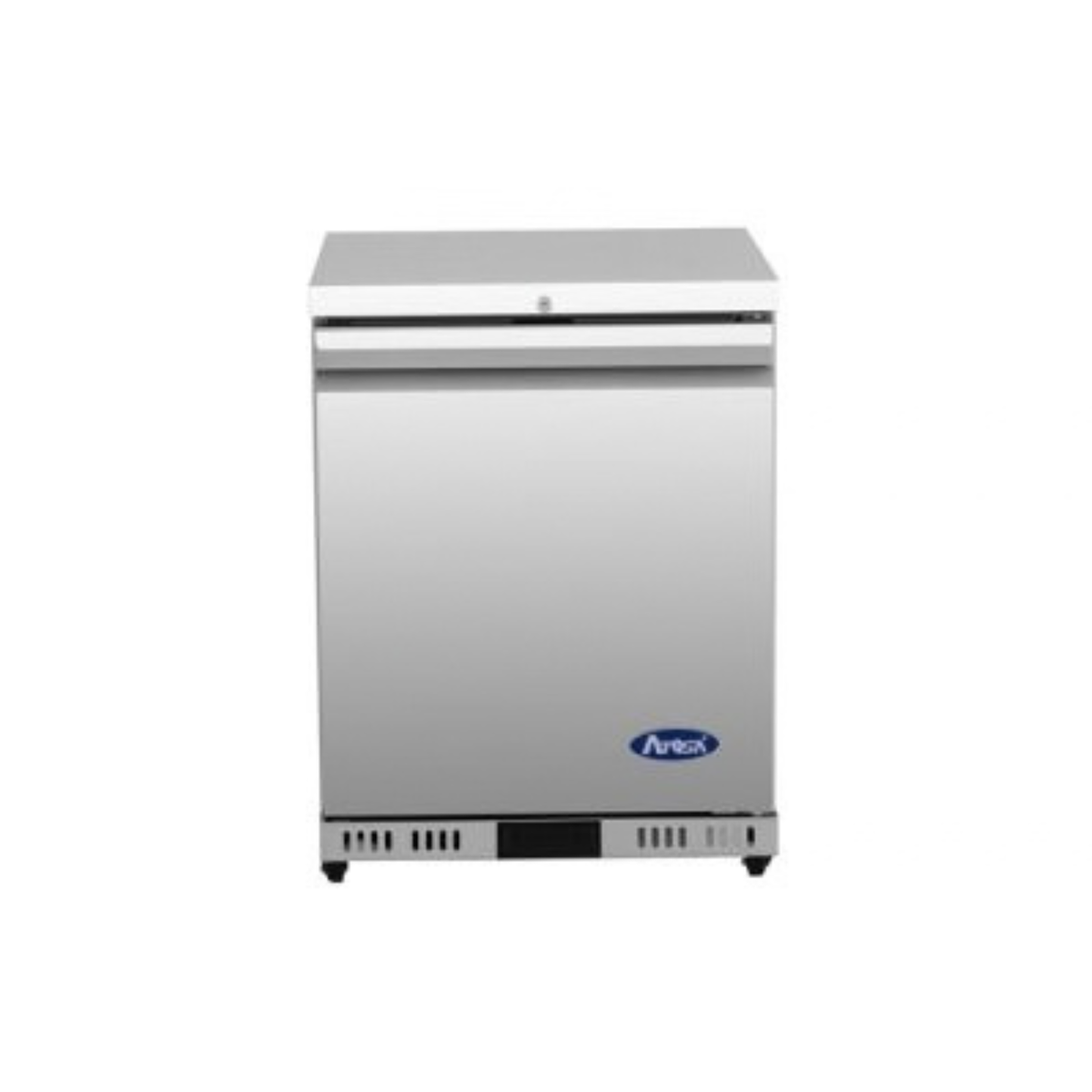

Atosa Stainless Steel Undercounter Freezer 24" - 1 Reversible Door - AUF24SD

The Atosa AUF24SD is a one-section, one-door commercial undercounter freezer for restaurants, bars and prep stations that need frozen storage at the point of use. It measures 23-7/8" wide, 26" deep and 32-1/2" high, holds 3.7 cu. ft. and maintains -8°F to 0°F with an electronic temperature controller. The rear-mounted, self-contained R290 system uses a 1/5 HP compressor and runs on 115 V with a NEMA 5-15P plug. The cabinet is stainless steel inside and out, with a field reversible solid door and two epoxy-coated shelves. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Holds -8°F to 0°F, set with an electronic digital temperature controller.
• 3.7 cu. ft. of storage in a cabinet 23-7/8" wide, sized for 24" openings under counters.
• Field reversible door, so the hinge side can be changed on site to suit the layout.
• Self-closing door with a stay-open feature for loading.
• Magnetic door gasket seals the door without a latch. The gasket is NSF approved.
• Two pre-installed epoxy-coated shelves that resist rust and corrosion.
• Stainless steel exterior and interior.
• Self-contained, rear-mounted refrigeration with R290 hydrocarbon refrigerant, electric defrost and automatic condensate evaporation.
• Four pre-installed 2" heavy-duty swivel plate casters, two of them with brakes.
• Plugs into a standard 115 V outlet with a NEMA 5-15P plug and draws 2.4 A.

Atosa AUF24SD specifications

Brand	Atosa
Model number	AUF24SD
Product type	Undercounter freezer, reach-in
Sections and doors	1 section, 1 hinged solid door, field reversible
Capacity	3.7 cu. ft.
Exterior width	23-7/8"
Exterior depth	26"
Exterior height	32-1/2"
Temperature range	-8°F to 0°F
Temperature control	Electronic digital controller
Refrigeration	Self-contained, rear-mounted
Refrigerant	R290
Compressor	1/5 HP
Electrical	115 V / 60 Hz / 1 phase
Rated current	2.4 A
Plug	NEMA 5-15P
Defrost	Electric defrost, automatic condensate evaporation
Shelves	2 epoxy-coated shelves, pre-installed
Exterior material	Stainless steel, galvanized steel back
Interior material	Stainless steel
Door gasket	Magnetic, NSF approved
Casters	4 pre-installed 2" swivel plate casters, 2 with brakes, each rated over 250 lb
Net weight	108 lb
Shipping weight	138 lb
Certifications	cETLus, ETL-Sanitation
Warranty	3 years parts and labor, 5 years compressor

Frequently asked questions

Is the Atosa AUF24SD a refrigerator or a freezer?

It is a freezer that holds -8°F to 0°F. The refrigerator with the same cabinet size is the Atosa AUR24SD, which holds 35°F to 38°F.

What outlet does the AUF24SD need?

It needs a standard 115 V, 60 Hz, single-phase receptacle that accepts a NEMA 5-15P plug. The unit draws 2.4 A, so it does not need special wiring.

Will it fit through a standard doorway?

Yes. At 23-7/8" wide and 26" deep, it fits through a 36" doorway in either direction. At 32-1/2" high, it is well under an 80" door opening.

How much does the AUF24SD hold?

It holds 3.7 cu. ft. on two pre-installed epoxy-coated shelves in a single stainless steel compartment.

What certifications does it have?

It is cETLus listed for electrical safety in the US and Canada, and ETL-Sanitation listed, which means it meets the food equipment sanitation standards that health inspectors check for in commercial kitchens.

What warranty comes with it?

Atosa covers parts and labor for 3 years, and covers the sealed compressor for an additional 2 years, for 5 years in total. The extra compressor coverage applies only to the sealed compressor parts. It does not cover the cabinet, paint finish, temperature control, refrigerant, metering device, motor starting equipment, fan assembly or other electrical components. Claims go directly through Atosa and must include the model number, serial number, proof of purchase and installation date. Atosa offers extended warranty options of up to 5 years.

What factory options are available?

Atosa offers 1.2" and 1.5" low-profile swivel plate casters and 4" and 5" swivel stem casters in place of the standard 2" casters. Extended warranty coverage of up to 5 years is also available.

How does it differ from the Atosa AUF27SD and AUF36SD?

The AUF24SD is the narrowest freezer in this line. The AUF27SD is 27-1/2" wide and 30" deep and holds 6.4 cu. ft. The AUF36SD is 36-3/8" wide and 30" deep, has two doors and holds 8.6 cu. ft. All three hold -8°F to 0°F.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
