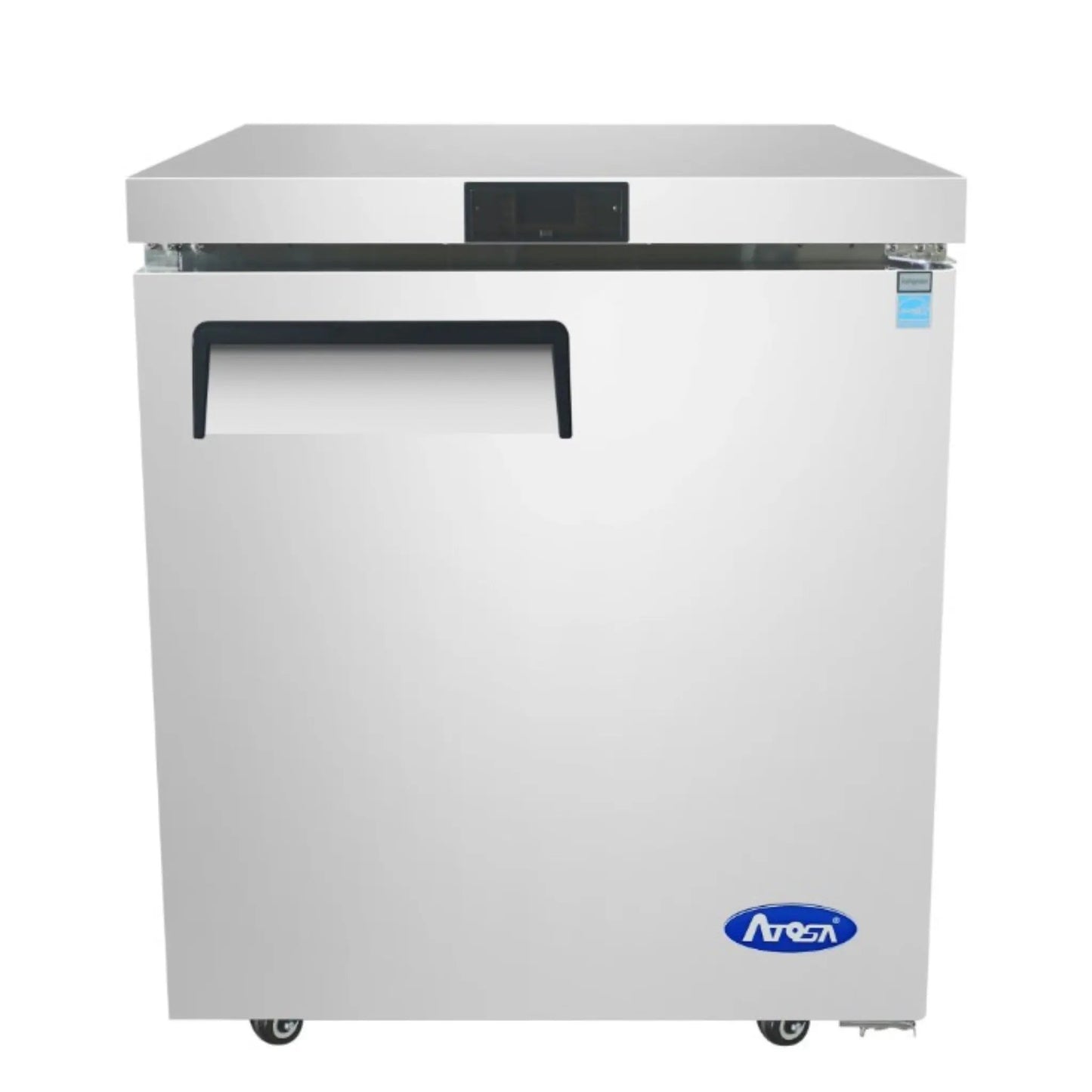

Atosa Stainless Steel Undercounter Refrigerator 27" - 1 Door MGF8401GR
Atosa Stainless Steel Undercounter Refrigerator 27" - 1 Door MGF8401GR
The Atosa MGF8401GR is a 27" one-section, one-door undercounter refrigerator for restaurants, bars, cafes and prep lines that need cold storage under a work counter. It is 27-1/2" wide, 30" deep and 34-1/2" high, with 7.2 cu. ft. of storage behind a right-hinged solid door. An electronic temperature controller holds 35°F to 38°F, and the rear-mounted, self-contained system uses R290 refrigerant with a 1/7 HP compressor. The cabinet is stainless steel inside and out with a reinforced stainless steel top, and it plugs into a standard 115V outlet. East Bay Restaurant Supply ships this model with free shipping.
Key features
- Stainless steel exterior and interior with a reinforced stainless steel top
- Electronic temperature controller holds 35°F to 38°F
- Rear-mounted, self-contained refrigeration with R290 hydrocarbon refrigerant
- Draws 2.3 A on 115V and comes with a cord and NEMA 5-15P plug
- Self-closing door with stay-open feature
- Magnetic door gasket for a positive seal
- Recessed door handle that does not stick out into the aisle
- One epoxy-coated shelf installed at the factory. Extra shelves (part W0402568) come with 4 shelf clips each
- 2" casters installed at the factory
- Also sold with a left-hinged door as model MGF8401GRL
Atosa MGF8401GR specifications
| Brand | Atosa |
|---|---|
| Model number | MGF8401GR |
| Product type | Undercounter reach-in refrigerator |
| Sections / doors | 1 section, 1 solid swing door, right-hinged |
| Capacity | 7.2 cu. ft. |
| Exterior width | 27-1/2" |
| Exterior depth | 30" |
| Exterior height | 34-1/2" |
| Temperature range | 35°F to 38°F |
| Temperature control | Electronic controller |
| Refrigeration | Self-contained, rear-mounted |
| Refrigerant | R290 |
| Compressor | 1/7 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 2.3 A rated current |
| Plug | NEMA 5-15P (15 A, 125 V) |
| Shelves | 1 epoxy-coated shelf included. Extra shelf part number W0402568 |
| Exterior material | Stainless steel with reinforced stainless steel top and galvanized steel back |
| Interior material | Stainless steel |
| Door hardware | Recessed handle, self-closing with stay-open feature, magnetic gasket |
| Casters | 2", installed at the factory |
| Net weight | 137 lb |
| Shipping weight | 172 lb |
| Certifications | cETLus (UL 471, CSA C22.2 No. 120), ETL Sanitation, ENERGY STAR |
| Warranty | 2 years parts and labor. 5 years on compressor parts (US only) |
Frequently asked questions
What electrical connection does the Atosa MGF8401GR need?
It needs a standard 115V, 60 Hz, single-phase outlet that accepts its NEMA 5-15P plug. Rated current is 2.3 A. Plug it straight into the wall. The warranty does not cover damage caused by extension cords, low voltage or voltage drops.
Is the MGF8401GR a refrigerator or a freezer, and what temperature does it hold?
It is a refrigerator. It holds 35°F to 38°F. The matching 27" undercounter freezer is the Atosa MGF8405GR.
Will it fit under a counter and through a standard doorway?
Yes. It is 34-1/2" high, which fits under a standard 36" counter. At 27-1/2" wide and 30" deep, it goes through a 36" doorway without removing the door, and it is far shorter than an 80" door opening. The refrigeration system is at the rear, so leave space for airflow and clean the condenser regularly.
What certifications does it have?
It is cETLus listed to UL 471 and CSA C22.2 No. 120, which covers electrical safety in the US and Canada. It is also ETL Sanitation listed for use in commercial kitchens subject to health inspection, and it is ENERGY STAR rated, which can qualify it for utility rebates in some areas.
What warranty comes with it?
Atosa covers parts and labor for 2 years from the date the unit ships from Atosa. Atosa also covers the sealed compressor for an extra 3 years, up to 5 years in total. Coverage is for the US only. The compressor coverage applies only to the compressor's sealed parts. It does not cover the cabinet, temperature control, refrigerant, metering device, motor starting equipment or fan assembly. The warranty excludes damage from alteration, neglect, abuse, misuse, accidents, shipping or installation, fire, flood, acts of God, power failures, extension cords and low voltage. Claims go directly to Atosa and must include the model number, serial number, proof of purchase and installation date.
What options are available?
You can order extra shelves under part number W0402568, and each comes with 4 shelf clips. If your layout needs the door to open the other way, order the left-hinged version, model MGF8401GRL.
How does it compare with other Atosa MGF undercounter refrigerators?
The MGF8401GR is the 27" one-door model at 7.2 cu. ft. The MGF24RGR is smaller: 23-13/16" wide, 25" deep and 32-1/2" high, with 4.8 cu. ft. and 2 shelves. The MGF36RGR is 36-5/16" wide with 2 doors and 8.7 cu. ft. The MGF8402GR is 48-1/4" wide with 2 doors and 13.4 cu. ft. Except for the MGF24RGR, these models share the same 30" depth and 34-1/2" height and all run on 115V.
Does it ship free, and how is it delivered?
Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
