Frymaster High-Efficiency Gas Floor Fryer, ENERGY STAR, 35 lb ESG35T
Frymaster High-Efficiency Gas Floor Fryer, ENERGY STAR, 35 lb ESG35T

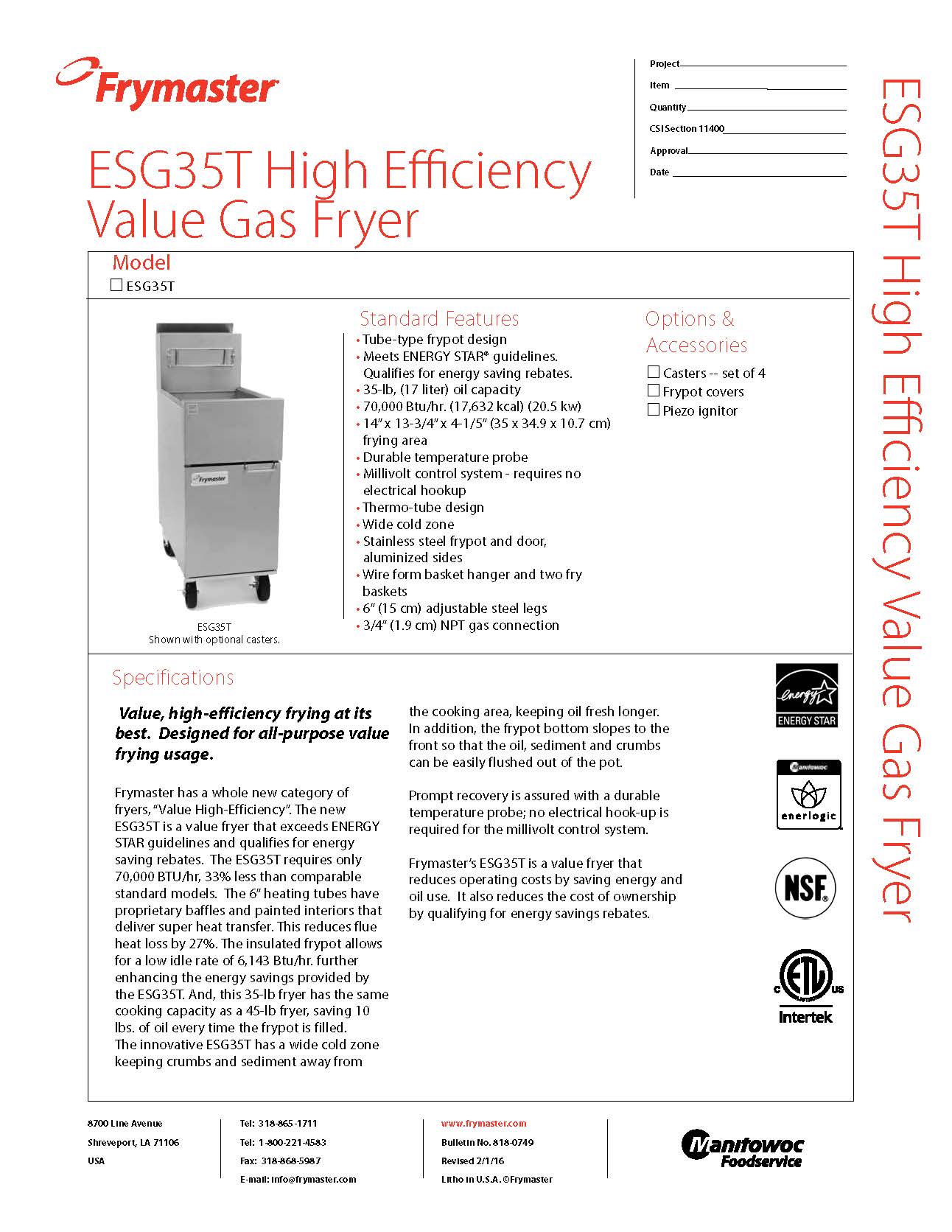

The Frymaster ESG35T is a single-vat, high-efficiency gas floor fryer for restaurants and foodservice kitchens that want full-size fry output with less oil and gas. It holds 35 lb (17 L) of oil, and Frymaster rates its cooking capacity equal to a 45 lb fryer, which saves 10 lb of oil per fill. Input is 70,000 BTU/hr on natural gas or 67,000 BTU/hr on propane. The millivolt controls need no electrical connection. The cabinet is 15.5" wide, 29.13" deep and 44" high, with a stainless steel frypot, door and sides.
Key features
- ENERGY STAR certified, with 52% cooking energy efficiency and an idle rate of 6,143 Btu/hr.
- Uses 33% less gas input than comparable standard fryers and recovers up to 2.5 times faster, per Frymaster.
- Thermo-Tube frypot with 6" heating tubes. It adds 2" of tube height and 36% more heat transfer area, which reduces heat per square inch on the oil by 22%.
- Baffled tubes and an insulated frypot reduce flue heat loss by 27%.
- A wide cold zone keeps crumbs and sediment out of the cooking area. The frypot bottom slopes forward for draining and flushing.
- Millivolt thermostat with a durable temperature probe. Piezo push-button ignition is available as an option.
- Comes with two twin baskets, a wire basket hanger, a rack-type basket support and 6" adjustable steel legs.

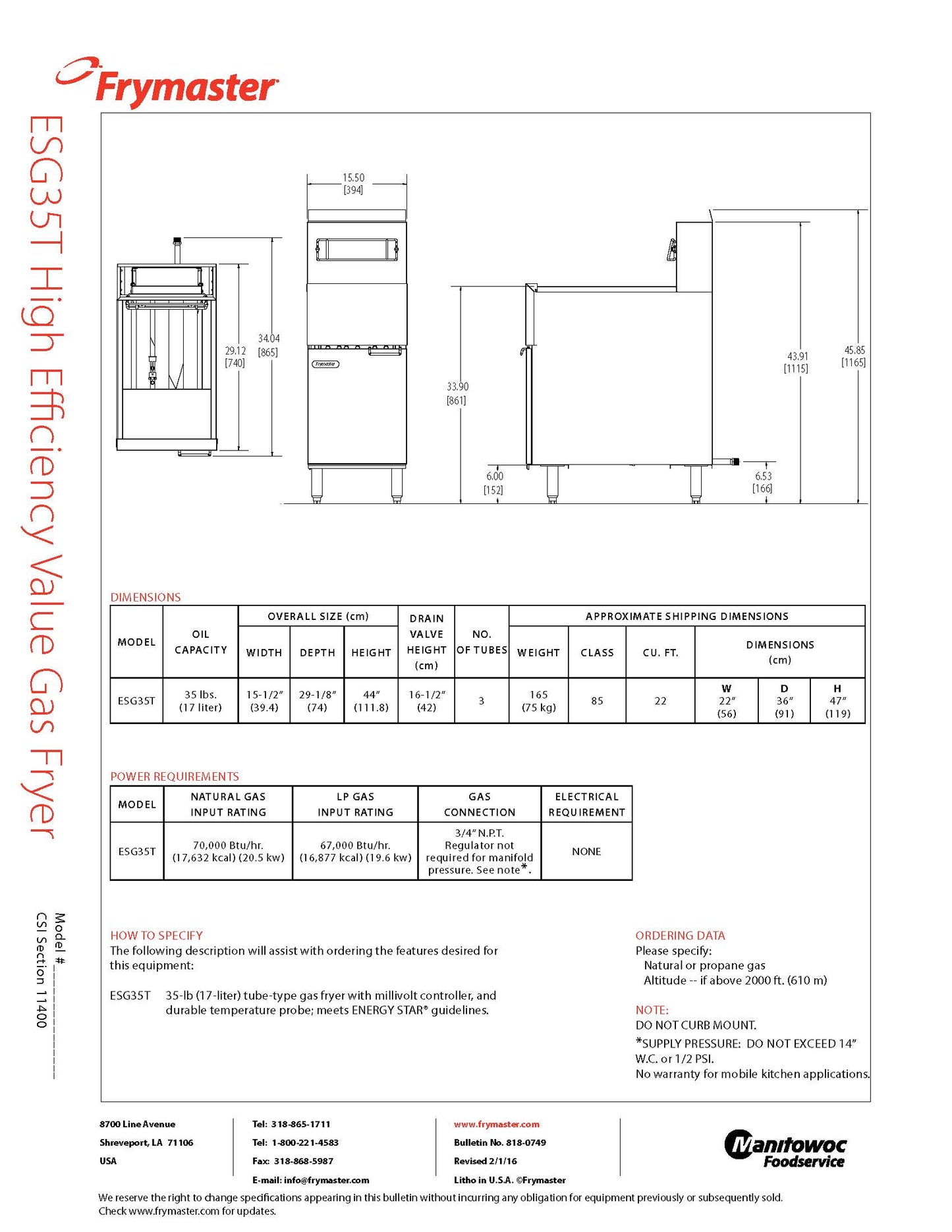

Frymaster ESG35T specifications
| Brand | Frymaster |
|---|---|
| Model number | ESG35T |
| Product type | Gas floor fryer, tube type |
| Number of frypots | 1 |
| Oil capacity | 35 lb (17 L) |
| Frying area (width x front to back x depth) | 14" x 13-3/4" x 4-1/5" (35 x 34.9 x 10.7 cm) |
| Exterior width | 15.5" (39.4 cm) |
| Exterior depth | 29.13" (74 cm) |
| Height | 44" (111.8 cm) |
| Drain height | 16.5" (42 cm) |
| Gas type | Natural gas or propane (LP), specify at order |
| Input rating | Natural gas 70,000 BTU/hr (20.5 kW); propane 67,000 BTU/hr |
| Gas connection | 3/4" NPT |
| Incoming gas pressure | 6" to 14" W.C. |
| Electrical | None required |
| Controls | Millivolt thermostat with temperature probe |
| Cooking energy efficiency | 52% |
| Idle energy rate | 6,143 Btu/hr |
| Filtration | None built in |
| Construction | Stainless steel frypot, door and cabinet sides |
| Included | 2 twin baskets, wire basket hanger, basket support rack |
| Legs | 6" (15 cm) adjustable steel legs; casters optional |
| Net weight | 165 lb (74.8 kg) |
| Crated dimensions (width x depth x height) | 22" x 36" x 47" (56 x 91 x 119 cm) |
| Certifications | ENERGY STAR, NSF, CSA (US and Canada) |
| Warranty | 1 year parts and labor; frypot: year 1 parts and labor, years 2 to 10 parts only |
Frequently asked questions
What utility connections does the ESG35T need?
It needs only a gas line, a 3/4" NPT connection with 6" to 14" W.C. incoming pressure, and no electrical outlet. The fryer ships set up for natural gas or propane, so specify which one when ordering. A qualified technician should install it.
What clearances are required?
Leave 6" at the sides and rear next to combustible construction. No side or rear clearance is needed next to noncombustible construction. Keep at least 24" clear in front. Do not curb mount.
Will it fit through a standard doorway?
Yes. At 15.5" wide and 29.13" deep it passes through a 36" doorway, and at 44" high it is well under an 80" door opening. Even the crate, at 22" wide, fits through a 36" doorway.
How much can it fry?
The frypot holds 35 lb of oil with a 14" x 13-3/4" frying area and two twin baskets. Frymaster rates its output equal to a 45 lb fryer.
What certifications does it have?
It is ENERGY STAR certified, NSF listed for sanitation and CSA certified for gas safety in the US and Canada. ENERGY STAR certification often qualifies it for utility rebates.
What warranty comes with it?
The fryer has a 1 year parts and labor warranty. The frypot is covered for parts and labor in year 1 and for parts only in years 2 to 10. Adjustments are not covered. Damage from melting solid shortening on the heating tubes, modification, or installation by unqualified personnel can void coverage.
What options are available?
Options are natural gas or propane, casters in place of legs, Piezo push-button ignition, and a high-altitude setup for sites above 2,000 ft. Built-in filtration and basket lifts are not offered.
How is it delivered?
It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
