Hoshizaki Ice Storage Bin Stainless Steel Top-Hinged 22" - 300 lb B-300SF

Hoshizaki Ice Storage Bin Stainless Steel Top-Hinged 22" - 300 lb B-300SF

Regular price $1,555.00 USD
Regular price Sale price $1,555.00 USD

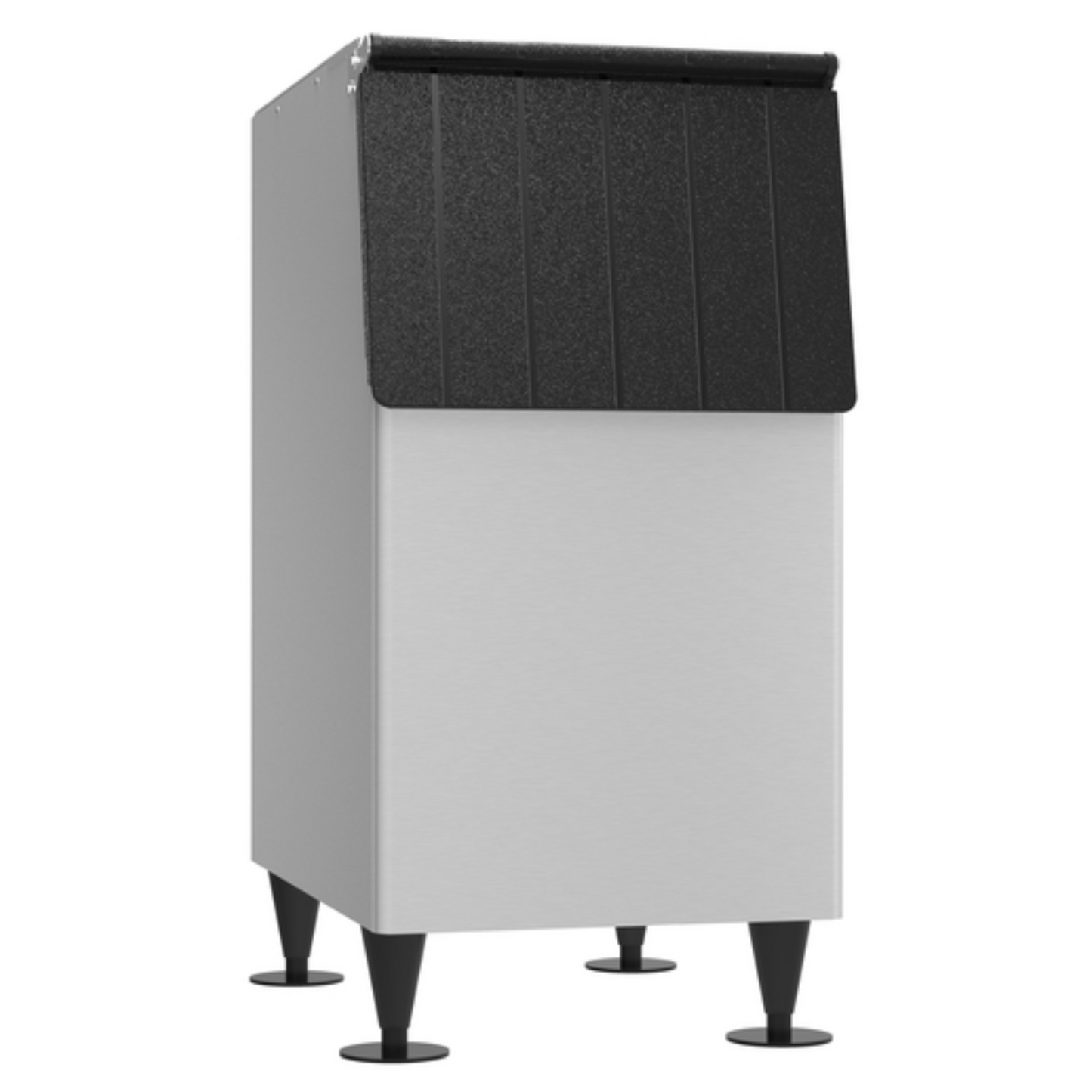

The Hoshizaki B-300SF is a 22" wide stainless steel ice storage bin for restaurants, bars and foodservice operations that run a top-mounted 22" Hoshizaki modular ice machine. It holds up to 300 lb of ice in 11.51 cu. ft. of interior volume. It measures 22" wide, 32.3" deep and 46" high including its 6" legs. The walls and bottom have foamed-in-place polyurethane insulation. The bin has a seamless polyethylene liner, a top-hinged front-opening door and a 3/4" FPT drain.

Key features

  • Holds up to 300 lb of ice, based on 11.51 cu. ft. at an average ice density of 30 lb per cu. ft.
  • 22" width matches Hoshizaki 22" modular units, including the KM-350M, KM-520M, KM-660M, F-450M, F-801M and F-1002M series
  • Strong enough to carry a top-mounted ice machine. Top kits are sold separately where the bin spec sheet calls for one.
  • Stainless steel exterior cabinet
  • Seamless polyethylene liner, protected by H-GUARD Plus antimicrobial agent
  • Foamed-in-place polyurethane insulation in all walls and the bottom
  • Top-hinged, front-opening bin door
  • Four 6" painted flanged legs come standard. Ice scoop included.

Hoshizaki B-300SF specifications

Brand Hoshizaki
Model number B-300SF
Product type Ice storage bin (bin only, ice machine sold separately)
Ice storage capacity 300 lb
Cubic volume 11.51 cu. ft.
Exterior width 22"
Exterior depth 32.3"
Exterior height 46" (including 6" legs)
Interior width 19"
Interior depth 27.7"
Interior height 37.6"
Door Top-hinged, front-opening
Exterior material Stainless steel
Liner Seamless polyethylene, H-GUARD Plus antimicrobial agent
Insulation Foamed-in-place polyurethane, all walls and bottom
Legs Four 6" painted flanged legs (stainless steel LP-6 FLANGE LEG optional)
Drain 3/4" FPT
Mounting Supports top-mounted ice maker
Compatible ice machines KM-350M, KM-520M, KM-660M, F-450M, F-801M, F-1002M series (22" wide)
Included Ice scoop
Shipping carton dimensions 35" length x 24" width x 45" height
Shipping weight 125 lb
Certifications ETL Verified, ETL Sanitation listed
Country of origin United States (Georgia Made Certified)
Warranty 3 years parts and labor (production January 2012 and later), valid in the United States, Canada, Puerto Rico and U.S. territories

Frequently asked questions

Which ice machines fit on the B-300SF?

It fits Hoshizaki 22" wide modular ice machines, including the KM-350M, KM-520M, KM-660M, F-450M, F-801M and F-1002M series. Some combinations need a top kit, which is sold separately. Any KMS or FD model needs a top kit extension on this bin, except the KMS-830MLH. Check the top kit matrix on the Hoshizaki spec sheet for your machine.

Does the B-300SF make ice or need electrical power?

No. It is a storage bin only. Its only utility connection is a 3/4" FPT drain, and the ice machine on top has its own power and water connections.

Will it fit through a standard doorway?

Yes. At 32.3" deep it passes through a 36" doorway, and at 46" high it is well under an 80" door opening.

What warranty comes with it?

Hoshizaki covers bins built in January 2012 or later for 3 years, parts and labor. Coverage is valid in the United States, Canada, Puerto Rico and U.S. territories. For other countries, contact the factory.

What certifications does it have?

It is ETL Verified and ETL Sanitation listed. That confirms it meets the sanitation standards health inspectors expect for commercial food and ice equipment. It is also Georgia Made Certified.

How does the B-300SF differ from the BD-300SF and B-500SF?

The BD-300SF has the same 22" size and 300 lb capacity but fits 24" to 24-1/2" deep ice machines without a top kit extension. That makes it the bin for models such as the KMD-410M, KMS-822M, FD-650M-C and FD-1002M-C. The B-500SF is 30" wide and holds 500 lb in 16.33 cu. ft., for 30" machines.

What options are available?

You can swap the standard painted legs for four 6" stainless steel flanged legs (LP-6 FLANGE LEG). Hoshizaki top kits are available for ice machine combinations that require them.

How is it delivered?

It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
