Jackson DishStar LT Low Temp Undercounter Dishwasher 115V DISHSTAR-LT
Jackson DishStar LT Low Temp Undercounter Dishwasher 115V DISHSTAR-LT
The Jackson DISHSTAR-LT (DishStar LT) is a low temperature, chemical sanitizing undercounter dishwasher for small restaurants, coffee shops and bars. It measures 24-1/4" wide, 25" deep and 33-5/16" high and takes 20" x 20" racks with 14-1/4" of inside clearance. It is rated at 30 racks per hour on a 2-minute cycle and uses 1.16 gallons of water per rack. It runs on 115V/60/1 with a 10.0 A total load and a 1 HP wash pump. East Bay Restaurant Supply ships this model with free shipping.
Key features
- Fill and dump design with a 1.20 gallon wash tank
- Built-in detergent, rinse aid and sanitizer pumps with priming switches
- Low chemical indicator lights warn when detergent and sanitizer run low
- Self-draining stainless steel wash/rinse pump limits soil and detergent carryover
- Automatic pumped drain for floor or wall drain installations
- Automatic fill, push button start, solid-state controls and delime cycle
- Above-water scrap basket and labyrinth style door design
- Insulated double-wall stainless steel cabinet for a cooler exterior and quieter operation
- Includes one peg rack and one combination rack

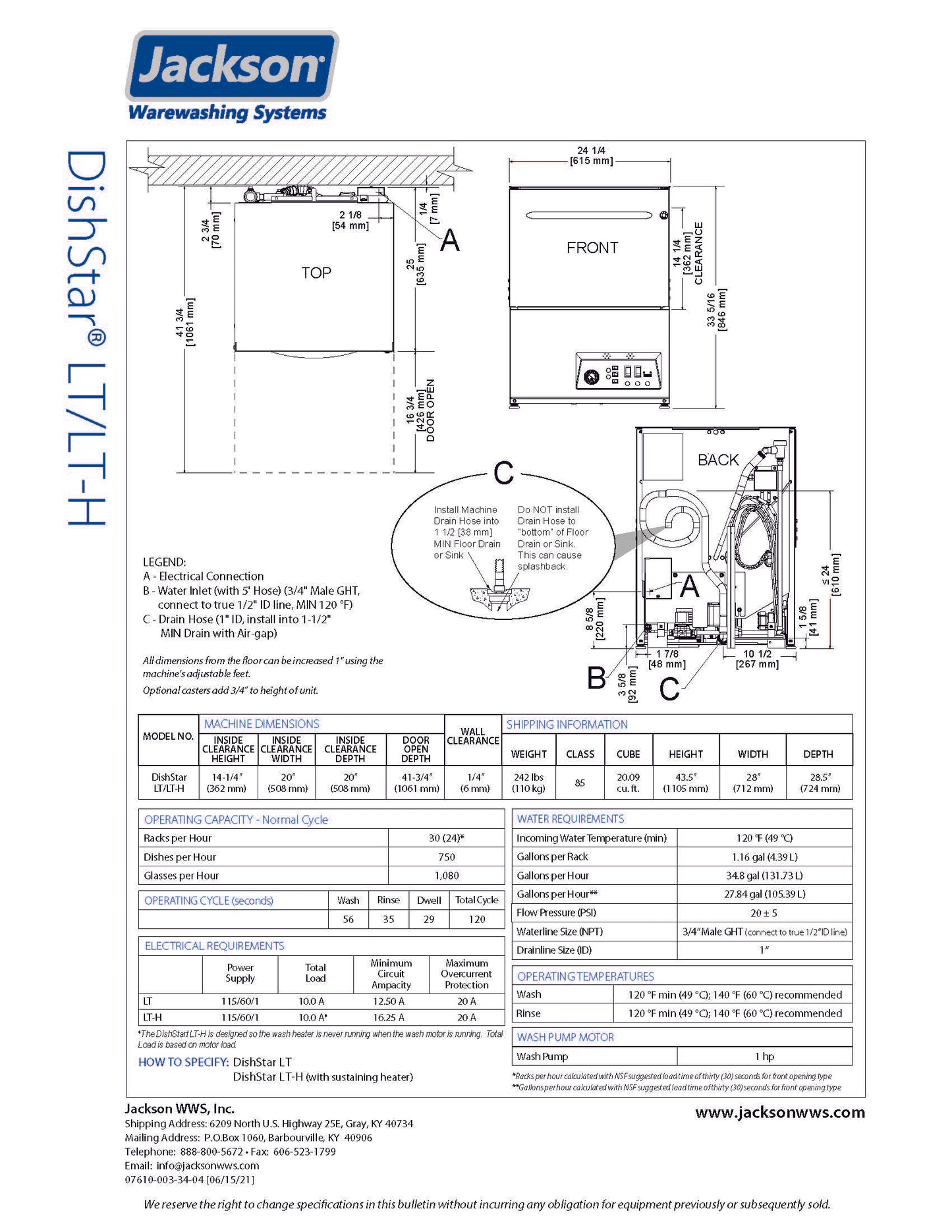

Jackson DISHSTAR-LT specifications
| Brand | Jackson (Jackson WWS) |
|---|---|
| Model number | DISHSTAR-LT (DishStar LT) |
| Product type | Low temperature undercounter dishwasher, chemical sanitizing |
| Racks per hour | 30 (24 at NSF suggested 30-second load time) |
| Dishes or glasses per hour | 750 dishes or 1,080 glasses |
| Cycle time | 120 seconds (56 wash, 29 drain, 35 rinse) |
| Rack size | 20" x 20" |
| Water use | 1.16 gal (4.4 L) per rack; 34.80 gal per hour at 30 racks, 27.84 gal at 24 racks |
| Wash tank capacity | 1.20 gal (4.5 L) |
| Wash and rinse temperature | 120 °F (49 °C) minimum, 140 °F (60 °C) recommended |
| Incoming water temperature | 120 °F (49 °C) minimum, 140 °F (60 °C) recommended |
| Water flow pressure | 20 ± 5 PSI |
| Water inlet | 3/4" male GHT, connect to true 1/2" ID line |
| Drain | Pumped, 1" ID hose into minimum 1-1/2" drain with air gap |
| Exterior width | 24-1/4" (615 mm) |
| Exterior depth | 25" (635 mm) |
| Depth with door open | 41-3/4" (1061 mm) |
| Height | 33-5/16" (846 mm) on feet, adjustable up to 1" higher |
| Inside clearance height | 14-1/4" (362 mm) |
| Wall clearance | 1/4" (7 mm) |
| Electrical | 115 V / 60 Hz / 1 phase |
| Total load | 10.0 A |
| Minimum circuit ampacity | 12.5 A |
| Maximum overcurrent protection | 20.0 A |
| Wash pump motor | 1 HP |
| Construction | Stainless steel, insulated double-wall cabinet |
| Included | 1 peg rack, 1 combination rack, scrap basket |
| Weight | 192 lb (87 kg) |
| Shipping weight | 207 lb (94 kg) |
| Shipping carton width and depth | 29" wide x 30" deep |
| Energy performance | 0.0 kW idle, 0.02 kWh per rack |
| Certifications | ETL Sanitation to NSF/ANSI 3, cETLus, ENERGY STAR |
| Warranty | 1 year limited parts and labor |
Frequently asked questions
What electrical service does the DISHSTAR-LT need?
It needs a 115V, 60 Hz, single-phase supply with at least 12.5 A circuit ampacity and overcurrent protection no larger than 20 A. Total load is 10.0 A.
What water and drain hookups are required?
Supply hot water at 120 °F minimum (140 °F recommended) and 20 ± 5 PSI flow pressure through a true 1/2" ID line to the 3/4" male GHT inlet. The pumped 1" ID drain hose runs to a minimum 1-1/2" drain with an air gap and can be routed up to 24" above the floor.
Will it fit under my counter and through a doorway?
It is 33-5/16" high (the feet add up to 1") and 25" deep, so it passes easily through a 36" doorway. Allow 41-3/4" of depth with the door open. Jackson offers 6" (M24STD-6) and 18" (M24STD-18) stands and a caster kit.
What certifications does it have?
It is rated to NSF/ANSI Standard 3 by ETL Sanitation, cETLus listed and ENERGY STAR certified. NSF/ANSI 3 is the sanitation standard for commercial warewashing equipment.
What warranty comes with it?
Jackson gives a one year limited parts and labor warranty from original installation, up to 18 months from factory shipment, valid in the US and Canada only. You must register the machine or the warranty is void. Labor is covered at regular hourly rates through an authorized agency, with travel limited to 50 miles. The warranty excludes shipping damage, misuse, improper or non-code installation, unauthorized repairs or parts, and residential use.
How does it differ from the DishStar LTH and DishStar HT?
The DishStar LTH is the same low temp machine with a 1.5 kW wash tank heater added, and it needs a 16.25 A minimum circuit ampacity. The DishStar HT sanitizes with hot water instead of chemicals, with a 180 °F minimum rinse, and runs on 208V or 230V.
Does it ship free, and how is it delivered?
Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
