Moffat Stainless Steel Mobile Heated Cabinet - 10 Tray H10D-FS

Moffat Stainless Steel Mobile Heated Cabinet - 10 Tray H10D-FS

Regular price $5,321.00 USD
Regular price Sale price $5,321.00 USD

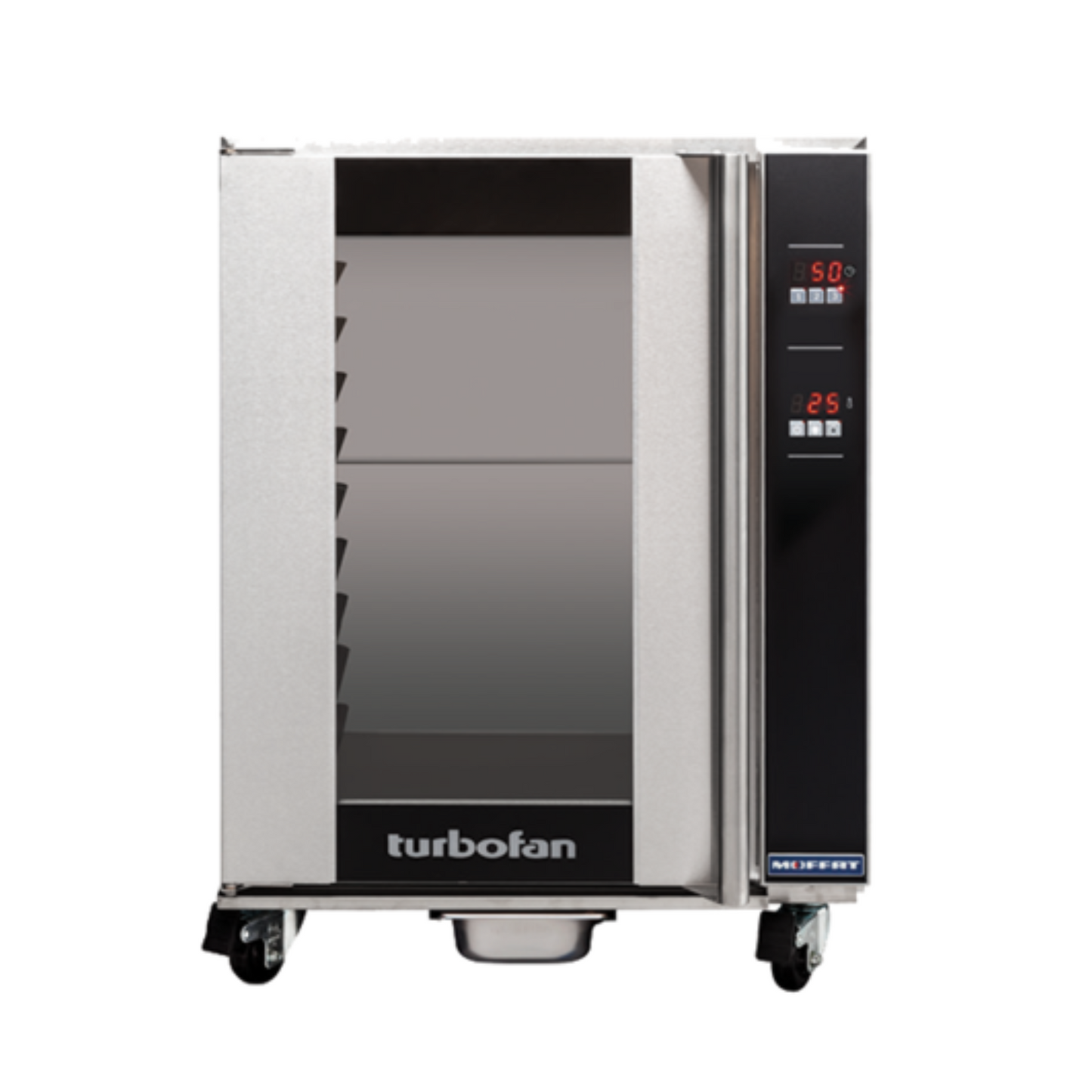

The Moffat Turbofan H10D-FS is a mobile electric heated holding cabinet for restaurants, caterers and institutional kitchens that need to keep cooked food at serving temperature. It holds ten 18" x 26" full-size sheet pans at 2-7/8" spacing. The cabinet is 28-7/8" wide, 31-7/8" deep and 40" high. Digital controls set the temperature from 68 to 194°F (20 to 90°C), and the unit plugs into a 208-240V single-phase NEMA 6-15 outlet. East Bay Restaurant Supply ships this model with free shipping.

Key features

  • Digital temperature and timer controller with 3/4" high LED displays
  • Three hold timers, up to 4 hours, in countdown or count-up mode
  • Low-velocity single-speed fan circulates heat evenly through the cabinet
  • 1,900 W cabinet heating at 240V, 1,430 W at 208V
  • Double-skin construction with a 304 stainless steel interior
  • Side-hinged door with 5 mm glass and a continuous door seal
  • Dual halogen interior lamps and a cabinet drain to a condensate pan
  • Works on its own or as a system with Turbofan E32D convection ovens

Moffat H10D-FS specifications

Brand Moffat
Product line Turbofan H Series
Model number H10D-FS
Product type Heated holding cabinet, full size, digital controls
Doors 1 glass door, side hinged
Capacity 10 full-size 18" x 26" sheet pans
Tray spacing 2-7/8" (74 mm)
Exterior width 28-7/8" (735 mm)
Exterior depth 31-7/8" (810 mm)
Exterior height 40" (1015 mm), including casters
Temperature range 68 to 194°F (20 to 90°C)
Controls Digital, 3 hold timers, timer range up to 4 hours
Heating output 1,900 W at 240V, 1,430 W at 208V
Electrical 208-240V, 60 Hz, 1-phase, 2.05 kW, 8.5 A
Plug NEMA 6-15P, 15 A cordset fitted
Interior material 304 stainless steel
Exterior material Stainless steel front, sides, top and base
Door glass 5 mm
Lighting Dual halogen interior lamps
Casters 4 x 3" diameter, 2 front swivel with wheel locks, 2 rigid rear
Net weight 194 lb (88 kg)
Shipping weight 236 lb (107 kg)
Packed dimensions Width 30.7", depth 37.8", height 51"
Certifications ETL listed, NSF/ANSI 4
Warranty 1 year parts and labor from installation or 18 months from shipment, whichever comes first

Frequently asked questions

What electrical connection does the H10D-FS need?

It needs a 208-240V, 60 Hz, single-phase circuit with a NEMA 6-15R receptacle for the factory-fitted 6-15P cord. It draws 8.5 A and 2.05 kW, and needs no gas or water connection. At 208V the cabinet heating output is 1,430 W, compared with 1,900 W at 240V.

What temperature does it hold, and is it a proofer?

The controller sets 68 to 194°F (20 to 90°C) for hot holding. It is a holding cabinet only, with no humidity control. For proofing, Moffat makes the Turbofan P-series proofer/holding cabinets, such as the P85M12.

Will it fit through a standard doorway?

Yes. At 31-7/8" deep and 28-7/8" wide, it is narrower than a 36" doorway in both directions. At 40" high, it is well under an 80" door opening. It rolls on four casters, and the front swivel casters lock.

What certifications does it have?

It is ETL listed for electrical safety. It is also listed to NSF/ANSI 4, the sanitation standard for commercial cooking and hot food holding equipment that health inspectors look for.

What warranty comes with it?

Moffat covers defects in material and workmanship for 1 year from installation or 18 months from shipment by Moffat, whichever comes first, for units installed in the United States. A Moffat authorized technician does warranty repairs during regular working hours. Using replacement parts Moffat has not authorized ends the warranty. Damage from connecting the wrong voltage is excluded, and Moffat does not warrant non-commercial or residential use. Replacement parts carry a 90-day warranty from the invoice date.

How does it differ from the H10D, H10T-FS and H8D-FS-UC?

The H10D is the half-size version. It is 24" wide, holds 10 half-size sheet pans or 12" x 20" steam pans, and runs at 1,200 W on 120V with a NEMA 5-15P plug. The H10T-FS is the same 10-pan full-size cabinet with touch screen controls. The H8D-FS-UC is an 8-pan full-size undercounter cabinet.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.

SKU:MOFH10D-FS
