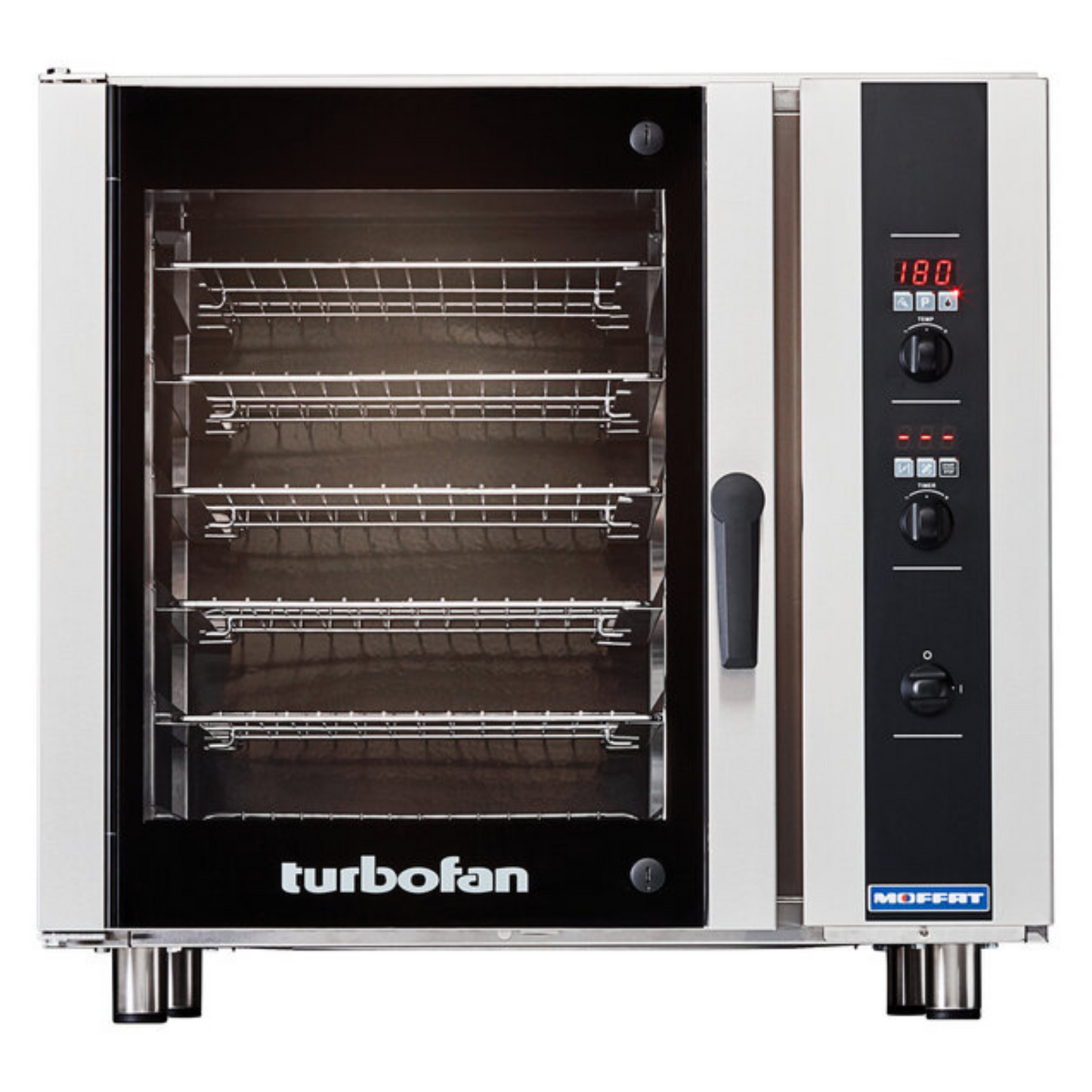

The Moffat E35D6-26 is a Turbofan full size electric convection oven with digital controls and steam injection for bakeries, restaurants and institutional kitchens. It holds six 18" x 26" sheet pans at 4-1/8" spacing in a cabinet 35-7/8" wide, 36-7/8" deep and 34-1/4" high. It runs from 150°F to 500°F and is hardwired at 208V (11.2 kW) or 220-240V (12.5 kW), single or three phase. East Bay Restaurant Supply ships this model with free shipping.
Key features
- Digital time and temperature displays, 3/4" high, with separate setting knobs.
- Manual and program modes, with 30 programs, 3-stage cooking and stage-end alarms.
- Steam injection at 5 levels plus manual injection, with program or manual vent control.
- 2-speed bi-directional reversing fan system.
- Core probe program cooking with the optional M236060 probe kit.
- Safe-Touch vented side-hinged door. Left-hand hinge is standard and the door converts to right-hand in the field.
- Tool-free plug-in door seal, plus removable stainless side racks and fan baffle for cleaning.
- Dual halogen oven lamps and an over-temperature safety cut-out.
Moffat E35D6-26 specifications
| Brand |
Moffat |
| Product line |
Turbofan 30 Series |
| Model number |
E35D6-26 |
| Product type |
Full size electric convection oven, digital control |
| Pan capacity |
6 full size sheet pans, 18" x 26" |
| Tray spacing |
4-1/8" (105 mm) |
| Oven racks |
6 chrome-plated wire racks supplied |
| Exterior width |
35-7/8" (910 mm) |
| Exterior depth |
36-7/8" (923 mm) |
| Exterior height |
34-1/4" (871 mm) including 3" feet |
| Interior dimensions |
18-1/4" wide x 27-1/2" deep x 28" high |
| Interior volume |
8 cu. ft. |
| Temperature range |
150°F to 500°F (50°C to 260°C) |
| Timer range |
180 minutes countdown, 999 minutes count-up |
| Fan |
2-speed, bi-directional reversing |
| Steam injection |
5 levels plus manual injection |
| Electrical, 208V single phase |
208V, 60 Hz, 1 phase, 11.2 kW, 54 A |
| Electrical, 208V three phase |
208V, 60 Hz, 3 phase, 11.2 kW, 31 A per phase |
| Electrical, 220-240V single phase |
220-240V, 60 Hz, 1 phase, 12.5 kW, 52 A |
| Electrical, 220-240V three phase |
220-240V, 60 Hz, 3 phase, 12.5 kW, 30 A per phase |
| Electrical connection |
Hardwired, no cordset supplied |
| Water connection |
3/4" GHT male, cold water, 20 to 80 psi, optional |
| Exterior |
Stainless steel front, sides and top |
| Interior |
Porcelain enameled, fully welded oven chamber |
| Lighting |
Dual halogen oven lamps |
| Feet |
3" high adjustable stainless steel feet, anti-skid |
| Net weight |
302 lb (137 kg) |
| Packed weight |
359 lb (163 kg) |
| Packed volume |
37.7 cu. ft. |
| Certifications |
ETL listed, NSF/ANSI 4 |
| Country of origin |
New Zealand |
| Warranty |
1 year parts and labor from installation or 18 months from shipment, whichever comes first |
Frequently asked questions
What electrical connection does the Moffat E35D6-26 need?
The oven is hardwired with no cord or plug, so specify the supply when you order. At 60 Hz it draws 54 A on 208V single phase, 31 A per phase on 208V three phase, 52 A on 220-240V single phase or 30 A per phase on 220-240V three phase.
Will it fit through a 36" doorway?
Possibly not. Its narrowest floor dimension is the 35-7/8" width, which is more than the clear opening of many 36" doors. The 34-1/4" height clears an 80" door easily. Measure the clear opening first.
Does the E35D6-26 need a water line?
You only need a water line for steam injection, so the connection is optional. The oven takes a 3/4" GHT male cold water connection at 20 to 80 psi. An optional 3M Cuno water filter kit is available.
What warranty comes with it?
For US installations, Moffat covers defects in material and workmanship for 1 year after installation or 18 months after shipment, whichever comes first. A Moffat authorized technician does warranty work during regular working hours. Using replacement parts that Moffat has not authorized ends Moffat's warranty liability.
What options and accessories are available?

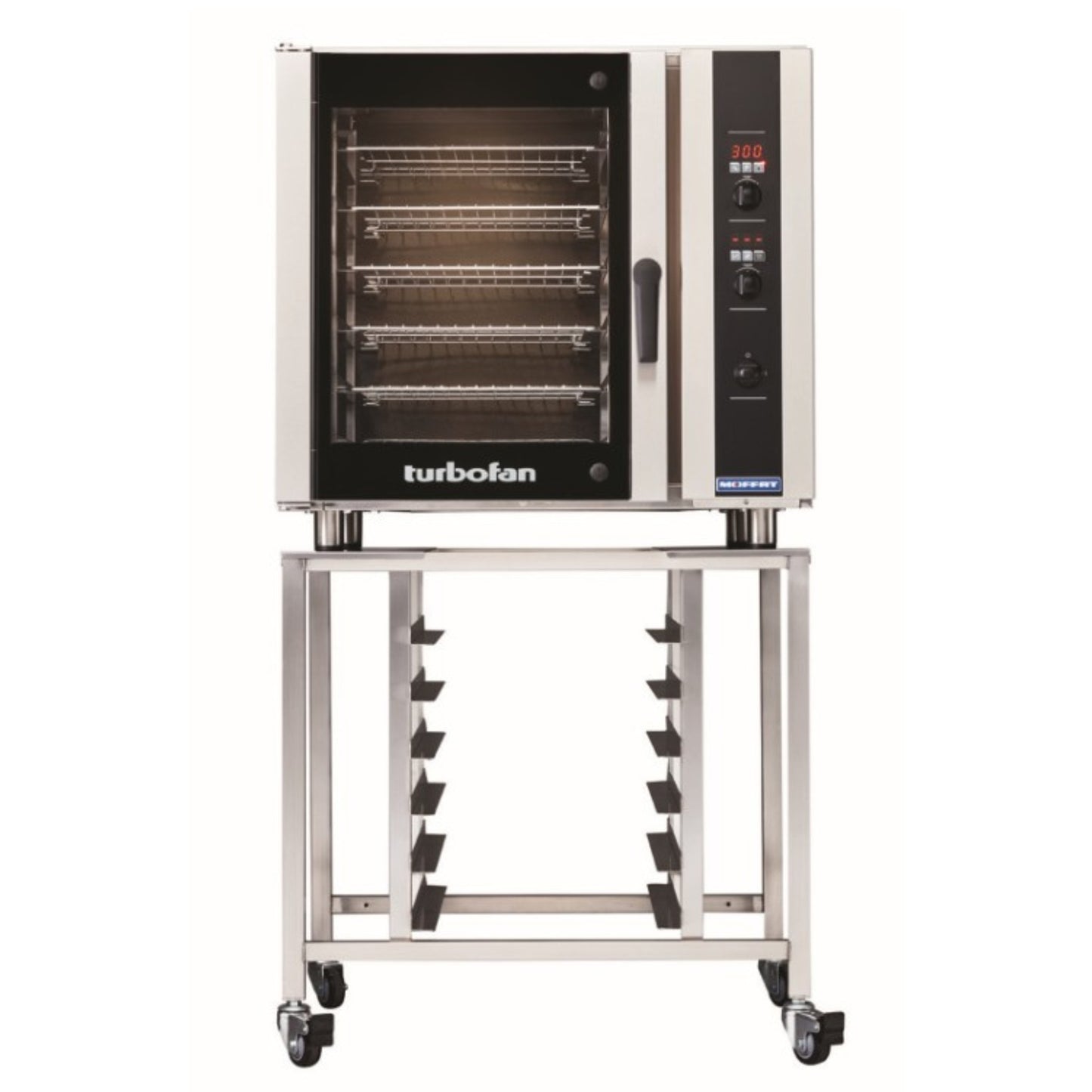

Options include the M236060 core probe kit, the SK35 stainless steel stand and the VH35-26 ventless condensing hood. The oven can also sit on a P85M8 or P85M12 proofer/holding cabinet, or come double stacked as the E35D6-26/2 (adjustable feet) or E35D6-26/2C (casters).
How does the E35D6-26 differ from the E35T6-26?
Both hold six full size sheet pans in the same 35-7/8" wide cabinet and have 5-level steam injection. The E35D6-26 uses digital displays, control knobs and 30 three-stage programs. The E35T6-26 uses an icon-driven touch screen with individual shelf timers.
Does it ship free, and how is it delivered?
Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
