T&S Brass Double Knee Pedal Valve NSF Chrome Brass Ledge Mount 6-1/4" - B-0509

The T&S Brass B-0509 is a commercial double knee pedal valve designed for hands-free water control at prep sinks, handwashing stations, and warewashing areas in restaurants, cafeterias, and institutional kitchens. The ledge mount configuration keeps the controls accessible while leaving both hands free for work at the sink.

• Commercial hands-free valve for use at prep sinks, handwashing stations, and pot scrub areas where reducing hand contact with faucet controls is required for sanitation compliance

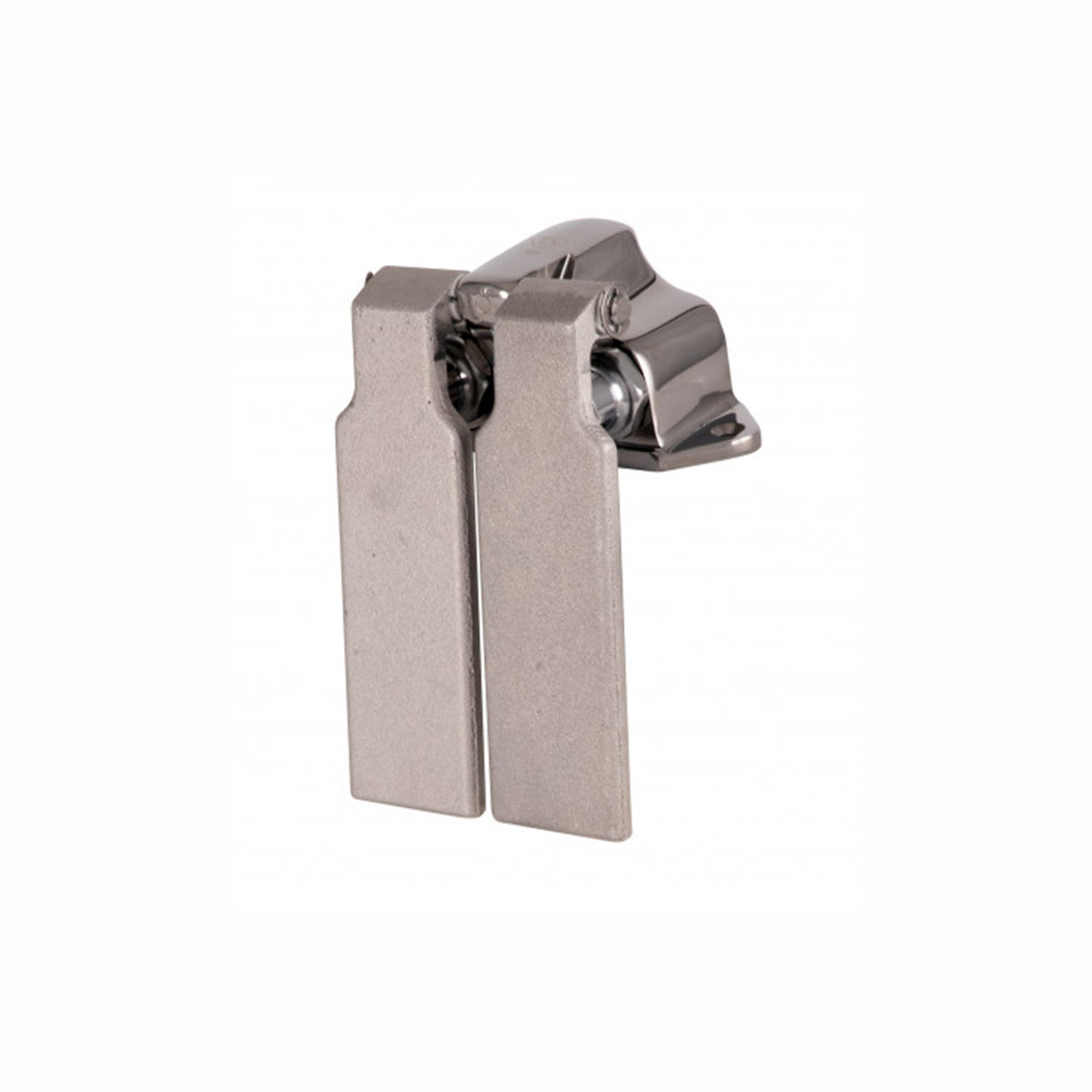

• Polished chrome plated solid brass body with satin-finish aluminum pedals; includes self-closing valves and mounting screws in the box
• Double inlets on 2-1/2" centers; mounts approximately 24" from floor to base of valve; 6-1/4" long pedals; 1/2" NPT female inlets and outlet
• Ledge mount design installs directly to the sink ledge or countertop surface; compatible with standard 1/2" NPT plumbing connections and works with T&S gooseneck and spout accessories sold separately
• Aluminum pedals flip up for access during cleaning; self-closing valves stop water flow automatically when knee pressure is released, reducing waste; rated for 20 to 125 psi and 40 to 140 degrees F
• Made in the USA; sold as a single valve unit
• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372

Dimensions: Pedals 6-1/4" L; approximately 24" floor to base of valve; inlets on 2-1/2" centers; 3-9/16" L x 5-5/16" W (body)
