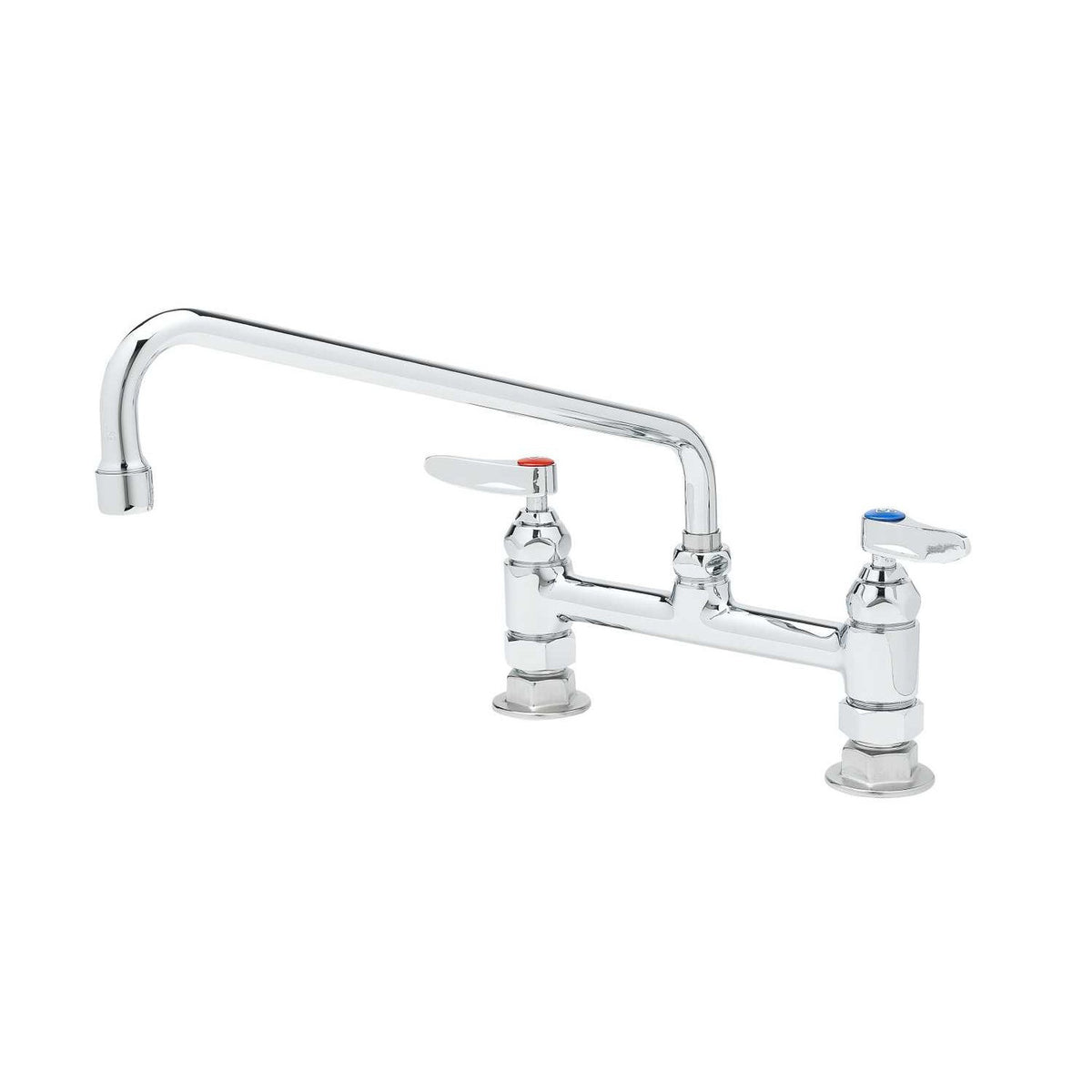

T&S Brass Double Pantry Faucet Chrome Brass Deck Mount 8" Centers - NSF - B-0221

The T&S Brass B-0221 is a commercial double pantry faucet built for deck-mount installation at prep sinks, pot wash stations, and dishwashing areas in foodservice operations. It mounts on 8" centers with an adjustable range of 7-3/4" to 8-1/4" and delivers hot and cold water through a single mixing body with separate lever handle controls.

• Double pantry faucet designed for commercial foodservice use including prep sinks, pot wash, and dishwashing stations
• Polished chrome-plated brass body and tubular spout with chrome-plated metal lever handles and color-coded indexes for hot and cold identification
• 12" swing nozzle with Series 1 stream regulator outlet; overall faucet height 9-9/16", width 12-5/8"; mounts on 8" centers (adjustable 7-3/4" to 8-1/4"); weight approximately 4.94 lbs
• Deck mount installation with 1/2" NPT female eccentric inlets with 2" flanges; lock washer included for rigid, movement-free mounting
• Quarter-turn Eterna compression cartridges with spring checks prevent cross-flow between hot and cold water lines; cartridges are serviceable in the field
• Nozzle flow rated at 18.39 GPM; operating pressure range 20-125 psi; water temperature range 40°F-140°F

• Certified to ASME A112.18.1/CSA B125.1
• NSF/ANSI 61 Section 9 and NSF/ANSI 372 (low lead content) certified
• Meets ADA ANSI/ICC A117.1 requirements

Dimensions: Spout Length: 12" | Faucet Height: 9-9/16" | Faucet Width: 12-5/8" | 8" deck centers (adjustable 7-3/4" to 8-1/4") | Box Dimensions: 3.75" x 10.25" x 15.44"
