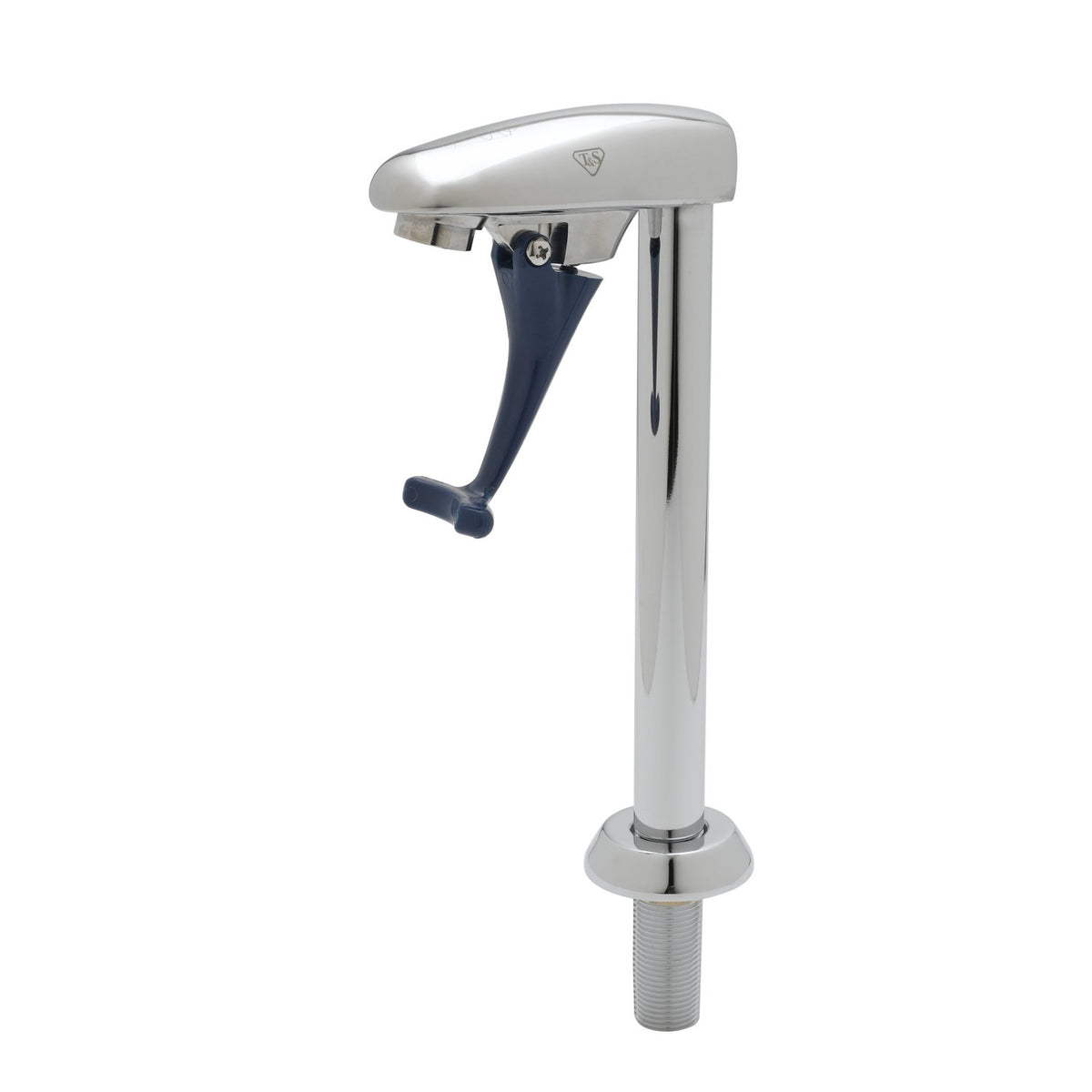

T&S Brass NSF Chrome Brass Deck Mount Glass Filler 8" - Each - B-1210

The T&S Brass B-1210 is an 8-inch NSF-certified deck mount glass filler designed for commercial beverage stations in restaurants, cafes, cafeterias, and hospitality operations where fast, hands-free glass filling is required. It connects directly to standard plumbing via a 1/2" NPT male inlet and installs through a single hole in the countertop.

• Deck-mounted commercial glass filler with a single-pedestal push-back design, allowing staff to activate water flow by pressing the glass against the blue thermoplastic arm for one-handed operation
• Body and pedestal are polished chrome-plated brass; the flange is chrome-plated metal and the actuation arm is thermoplastic, providing a corrosion-resistant, easy-to-wipe construction built for high-cycle commercial use
• 8-inch spout clearance (overall faucet height 9-5/16") with a 3-3/4" spout length and 2" faucet width; accommodates standard tumblers and shorter glassware at countertop beverage stations
• Connects via a 1/2" NPT male inlet with a 2" shank; pedestal includes an adjustable 2" deck flange to accommodate varying countertop thicknesses up to 1-1/8"; single-hole deck installation
• Torx wrench-adjustable flow outlet allows water volume to be set and locked; wrench is included; instantaneous shut-off stops flow immediately when the glass is removed, reducing waste at high-volume fill stations
• Rated for water pressures of 20-125 PSI and temperatures of 40-140 degrees F; carries a 1-year limited manufacturer warranty and is made in the USA; compatible with optional T&S drip pans and water filtration kit accessories

• NSF 61-Section 9 and NSF 372 certified for drinking water system components and lead content compliance
• Certified to ASME A112.18.1/CSA B125.1
• Meets ADA ANSI/ICC A117.1 requirements
• Compliant with the Buy American Act (BAA/ARRA)

Dimensions: Faucet Height: 9-5/16" | Spout Clearance: 8" | Spout Length: 3-3/4" | Faucet Width: 2" | Shank Length: 2" | Box Dimensions: 3.50" x 8.50" x 13.25"
