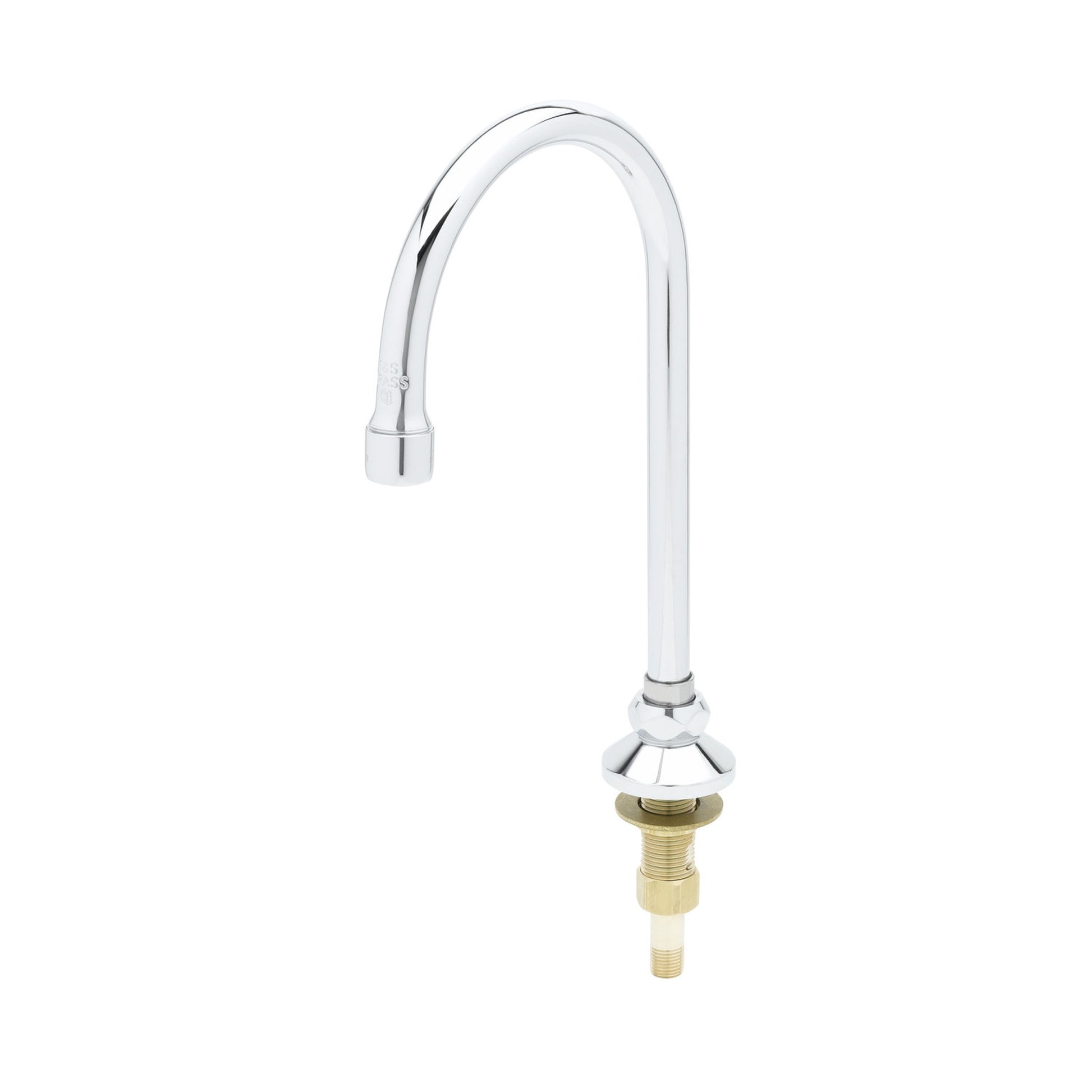

T&S Brass Rigid/Swivel Gooseneck Chrome-Plated Brass Deck Mount NSF - B-0520

The T&S Brass B-0520 is a deck mount rigid/swivel dummy gooseneck spout designed for commercial foodservice, institutional, and laboratory sink installations where water flow is controlled from a remote location rather than from handles at the spout itself. Operators building custom plumbing configurations or replacing a damaged gooseneck on an existing T&S faucet setup will find this a direct, code-compliant solution.

• Deck mount dummy gooseneck spout for commercial foodservice, institutional, and plumbing applications; sold as a spout only with no handles or faucet base included, requiring water to be controlled by a remote valve or handle
• Constructed from polished chrome-plated brass on both the deck flange and the gooseneck tube, providing a corrosion-resistant finish suited for daily commercial use
• Spout measures 10-1/4" to 10-5/8" high with a 5-1/2" to 5-3/4" spread and 5-3/4" to 6-3/16" of clearance beneath the spout, accommodating standard commercial sink depths and larger containers
• Connects via a 1/2" NPSM male inlet; includes a tailpiece and nut to provide an optional 1/4" NPT male connection; fits sink tops up to 1-1/8" thick; lock washer included for rigid installation
• Includes a stream regulator outlet for consistent water delivery; rated to operate at 20-125 psi and water temperatures from 40-140 degrees Fahrenheit
• Functions as both a new installation component and a replacement gooseneck for compatible T&S faucet bases; a lock washer is provided to fix the spout position rigidly when swivel movement is not desired

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372 (low lead compliance)

Dimensions: 10-1/4" H x 5-1/2" Spread x 5-3/4" Clearance (approximately 5.56" D x 10.69" H x 1.69" W)
