True Stainless Steel Horizontal Bottle Cooler, Slide Lid 24.5" TD‐24‐7‐S‐HC
True Stainless Steel Horizontal Bottle Cooler, Slide Lid 24.5" TD‐24‐7‐S‐HC

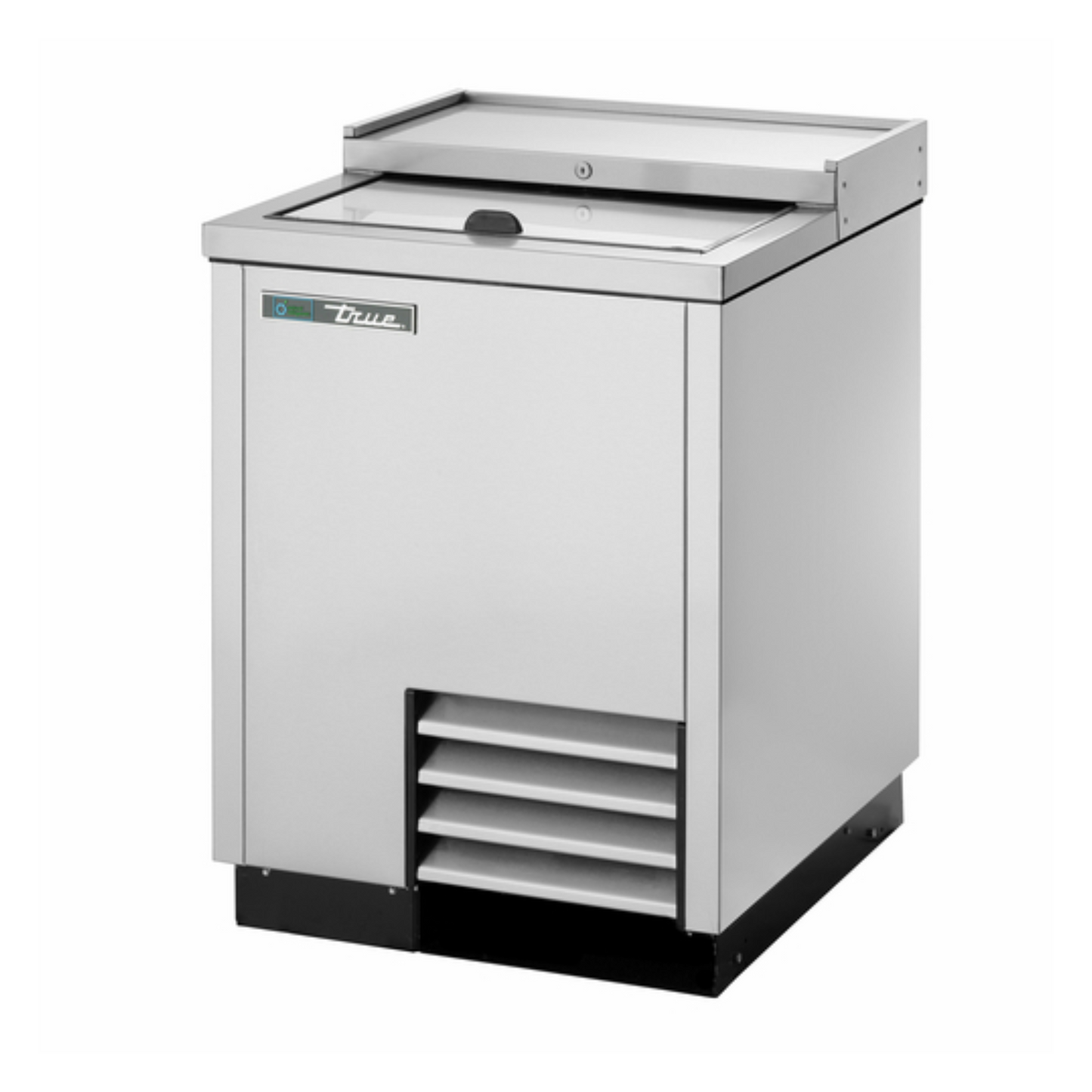

The True TD-24-7-S-HC is a deep well horizontal bottle cooler with a solid slide lid. It is built for bars, taverns and restaurants that keep bottled and canned drinks at the point of service. It measures 24-1/2" wide, 26-7/8" deep and 33-1/2" high and holds 4-1/2 cases of 12 oz. bottles or 6 cases of 12 oz. cans. A 1/10 HP R290 hydrocarbon system holds 33°F to 38°F (0.5°C to 3.3°C) and draws 1.4 A at 115V. The countertop, lid, front, sides and back are stainless steel, and the interior is galvanized steel. East Bay Restaurant Supply ships this model with free shipping.
Key features
- Forced-air cooling with guided airflow that cools the top bottles first
- Evaporator coil runs nearly the full length of the cabinet so temperatures stay even, and it is epoxy coated against corrosion
- Electronically commutated (ECM) evaporator and condenser fan motors
- Condensing unit sits behind the front grill and slides out for maintenance
- Two adjustable bin dividers, heavy duty 10 mil PVC coated
- Safety shielded LED interior lighting
- Barrel lock standard
- Removable bottle cap opener and cap catcher included, installed on site
- Foamed-in-place high density polyurethane insulation with zero ODP and zero GWP
- Welded heavy duty steel frame rail, black powder coated

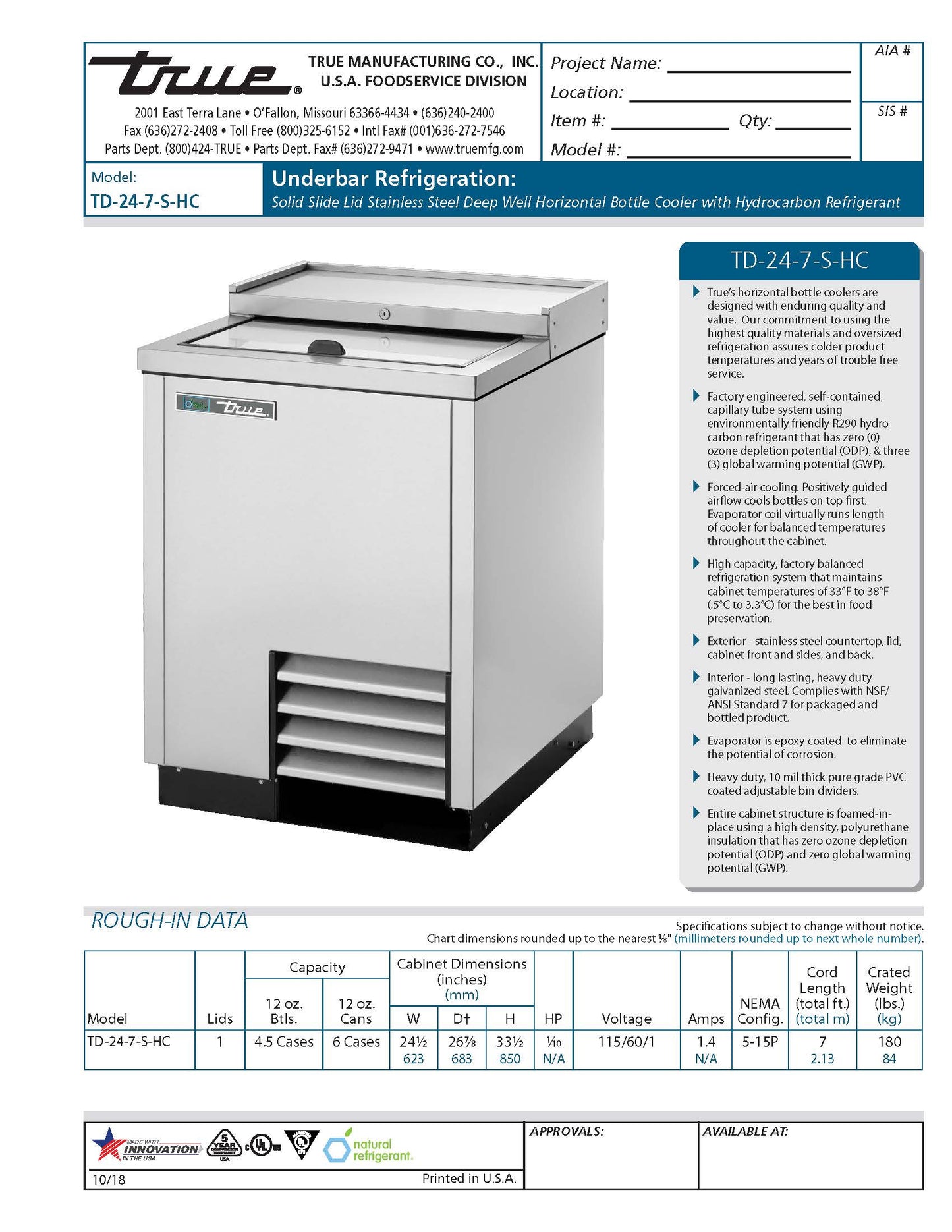

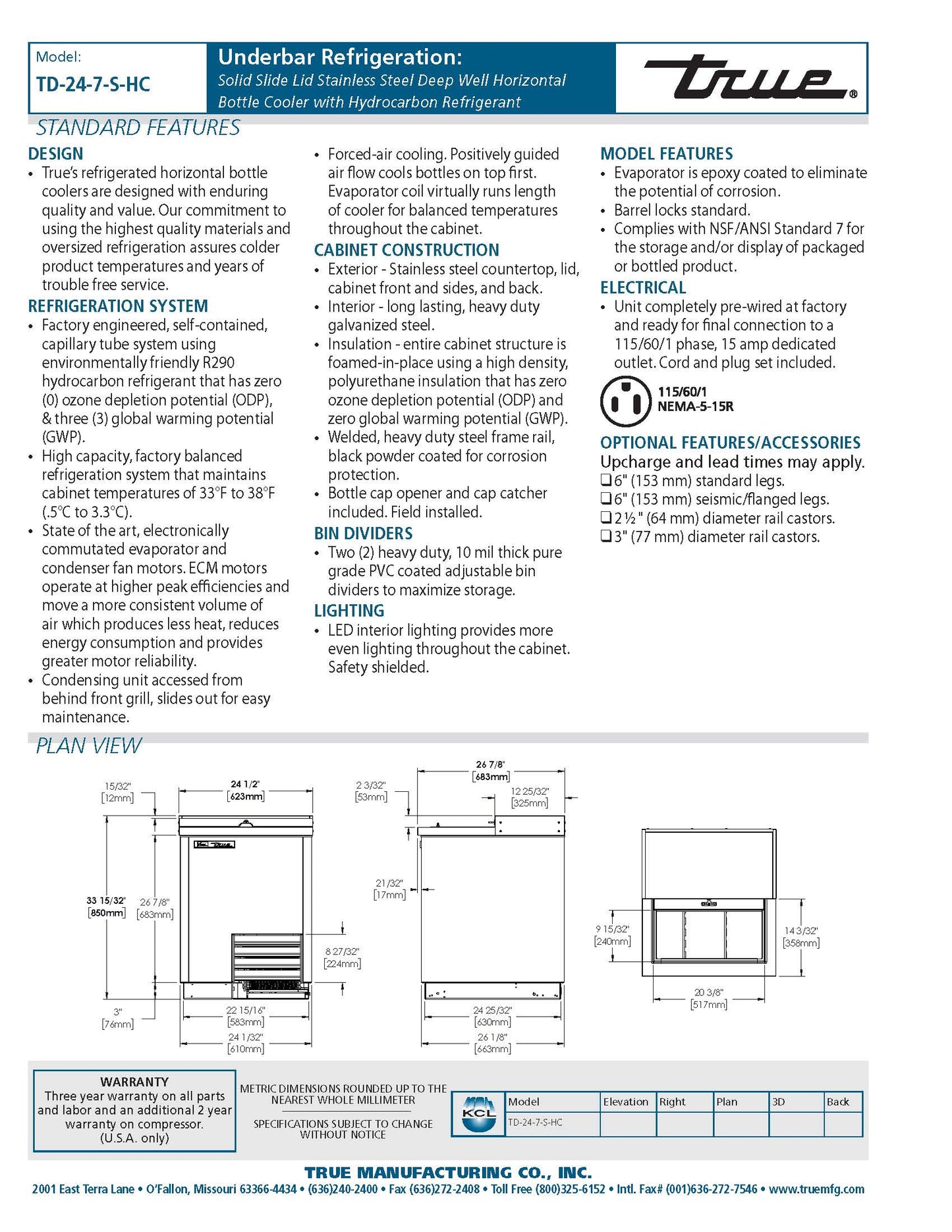

True Refrigeration TD‐24‐7‐S‐HC specifications
| Brand | True Refrigeration |
|---|---|
| Model number | TD-24-7-S-HC |
| Product type | Horizontal bottle cooler, deep well, solid slide lid |
| Lids | 1 stainless steel slide lid |
| 12 oz. bottle capacity | 4-1/2 cases |
| 12 oz. can capacity | 6 cases |
| Bin dividers | 2, adjustable, PVC coated |
| Exterior width | 24-1/2" (623 mm) |
| Exterior depth | 26-7/8" (683 mm) |
| Exterior height | 33-1/2" (850 mm) |
| Temperature range | 33°F to 38°F (0.5°C to 3.3°C) |
| Refrigeration system | Self-contained, capillary tube, forced air |
| Refrigerant | R290 hydrocarbon |
| Compressor | 1/10 HP |
| Electrical | 115V / 60 Hz / 1-phase, 1.4 A |
| Circuit | 15 A dedicated outlet |
| Plug | NEMA 5-15P |
| Cord length | 7 ft (2.13 m) |
| Exterior material | Stainless steel countertop, lid, front, sides and back |
| Interior material | Heavy duty galvanized steel |
| Frame | Welded steel frame rail, black powder coated |
| Insulation | Foamed-in-place high density polyurethane |
| Lighting | LED, safety shielded |
| Lock | Barrel lock |
| Weight | 180 lb (82 kg) |
| Certifications | cULus, UL EPH Classified, complies with NSF/ANSI Standard 7 |
| Country of origin | USA |
| Warranty | 7 years parts, 7 years labor, 7 years compressor (USA and Canada) |
Frequently asked questions
What electrical connection does the TD-24-7-S-HC need?
It needs a dedicated 15 A outlet at 115V, 60 Hz, single phase, with a NEMA 5-15R receptacle. It comes pre-wired from the factory with a 7 ft cord and a NEMA 5-15P plug, and it draws 1.4 A.
Will it fit through a standard doorway?
Yes. It is 26-7/8" deep and 24-1/2" wide, so it passes through a 36" doorway, and at 33-1/2" high it is well under an 80" door opening.
Is this a refrigerator or a freezer?
It is a refrigerator. It holds 33°F to 38°F (0.5°C to 3.3°C) and is meant for chilling bottled and canned drinks, not for frozen storage.
How many bottles or cans does it hold?
It holds 4-1/2 cases of 12 oz. bottles or 6 cases of 12 oz. cans. Two adjustable bin dividers let you keep brands separate in the well.
What certifications does it have?
It is cULus listed for electrical safety in the US and Canada and UL EPH Classified for sanitation. It also complies with NSF/ANSI Standard 7 for storing and displaying packaged or bottled product, which health inspectors look for in commercial bars and kitchens.
What warranty comes with it?
True covers it for 7 years on parts, 7 years on labor and 7 years on the compressor, counted from the original installation date, in the USA and Canada. The warranty covers the original purchaser only and cannot be transferred. Labor is paid at standard straight-time rates, and all claims go directly through True. It does not cover wear parts such as gaskets and bulbs, damage from improper use or installation, failure to clean and maintain the unit, or parts True has not approved.
What factory options are available?
You can order it with 6" standard legs or 6" seismic/flanged legs. These options can add cost and lead time.
How does it differ from the TD-24-7-HC?
Both have the same size, capacity and refrigeration system. The TD-24-7-HC has a stainless steel top and lid with a black powder coated steel front, sides and back. The TD-24-7-S-HC is stainless on all exterior surfaces.
Does it ship free, and how is it delivered?
Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
