True Horizontal Bottle Cooler Solid Slide Lid Deep Well 64 1/2" TD-65-24-HC

True Horizontal Bottle Cooler Solid Slide Lid Deep Well 64 1/2" TD-65-24-HC

Regular price $2,929.22 USD
Regular price Sale price $2,929.22 USD

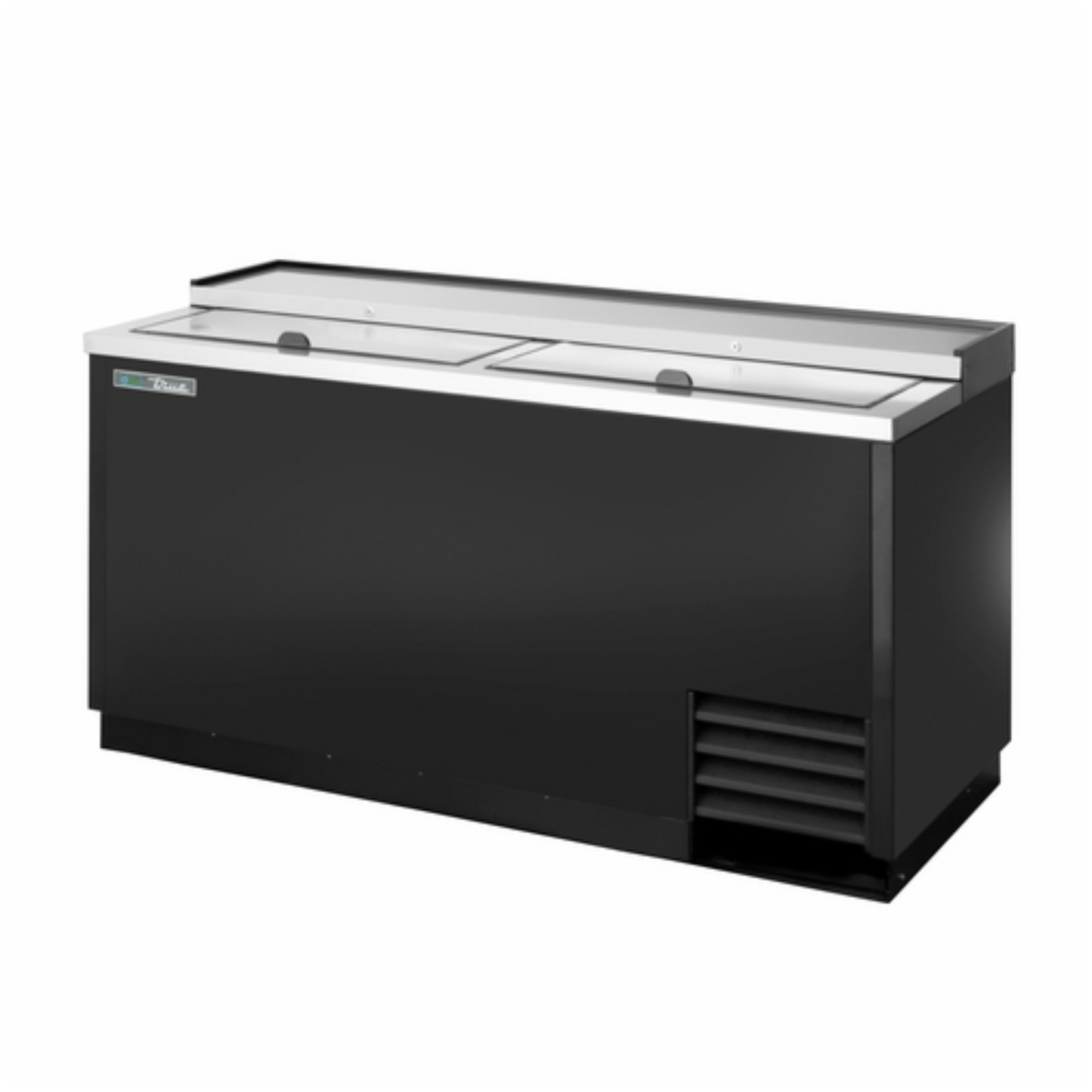

The True Refrigeration TD-65-24-HC is a two-lid deep well horizontal bottle cooler for bars and restaurants that keep bottled and canned beverages at the service line. The 64-1/2" wide cabinet holds 22 cases of 12 oz. bottles or 32.5 cases of 12 oz. cans at 33°F to 38°F (0.5°C to 3.3°C). A 1/5 HP R290 forced-air system runs on 115V at 1.9 A. It has a stainless steel countertop and lids, a black powder coated steel body and a galvanized steel interior. East Bay Restaurant Supply ships this model with free shipping.

Key features

  • Forced air is guided to cool the top layer of bottles first, and the evaporator coil runs almost the full length of the cabinet.
  • Self-contained capillary tube system using R290 hydrocarbon refrigerant.
  • Electronically commutated (ECM) evaporator and condenser fan motors.
  • Epoxy-coated evaporator resists corrosion.
  • Four 10 mil PVC-coated adjustable bin dividers.
  • Two stainless steel sliding lids with barrel locks standard.
  • LED interior lighting.
  • Removable bottle cap opener and cap catcher, field installed.
  • Condensing unit slides out from the front for cleaning and service.

True Refrigeration TD-65-24-HC specifications

Brand True Refrigeration
Model number TD-65-24-HC
Product type Solid slide lid deep well horizontal bottle cooler
Lids 2, stainless steel, sliding
Capacity, 12 oz. bottles 22 cases
Capacity, 12 oz. cans 32.5 cases
Bin dividers 4, PVC coated, adjustable
Exterior width 64-1/2" (1636 mm)
Exterior depth 26-7/8" (683 mm)
Exterior height 33-1/2" (850 mm)
Temperature range 33°F to 38°F (0.5°C to 3.3°C)
Refrigerant R290 hydrocarbon
Refrigeration system Self-contained, capillary tube, forced air
Compressor 1/5 HP
Electrical 115 V / 60 Hz / 1 phase, 1.9 A
Plug NEMA 5-15P
Cord length 7 ft (2.13 m)
Exterior material Stainless steel countertop and lids; black powder coated cold rolled steel front, sides and back
Interior material Heavy-duty galvanized steel
Insulation Foamed-in-place high-density polyurethane, zero ODP and zero GWP
Lighting LED
Locks Barrel locks, standard
Included accessories Bottle cap opener and cap catcher, field installed
Weight 330 lb (150 kg)
Certifications cULus, UL EPH Classified; complies with NSF/ANSI Standard 7 for packaged and bottled product
Country of origin USA
Warranty 7-year parts, 7-year labor, 7-year compressor (US and Canada)

Frequently asked questions

What outlet does the TD-65-24-HC need?

It needs a standard 115V, 15 A grounded receptacle (NEMA 5-15R). The unit comes with a 7 ft cord and a NEMA 5-15P plug and is rated at 1.9 A, 60 Hz, single phase.

Will it fit through a standard doorway?

Yes. The cabinet is 26-7/8" deep and 33-1/2" high, so it fits through a 36" doorway when moved front or back first, and it is far shorter than an 80" door opening. Plan for its 64-1/2" length when turning corners.

Is it a refrigerator or a freezer?

It is a refrigerator. It holds 33°F to 38°F (0.5°C to 3.3°C) for bottled and canned beverages and is not built to freeze product.

How many bottles and cans does it hold?

It holds 22 cases of 12 oz. bottles (528 bottles) or 32.5 cases of 12 oz. cans (780 cans). Four adjustable bin dividers let you split the well by brand or package.

What certifications does it have?

It is cULus listed for electrical safety in the US and Canada and UL EPH Classified for sanitation. Its galvanized interior complies with NSF/ANSI Standard 7 for packaged and bottled product.

What warranty comes with it?

True gives 7 years parts, 7 years labor and 7 years compressor on units shipped to the US and Canada on or after October 1, 2023. Labor runs from the original installation date, and the compressor coverage is for the part only. The warranty does not cover wear parts such as gaskets, problems caused by improper installation or missed basic maintenance, or damage from non-OEM parts. The unit must be bought within 39 months of True's ship date, and claims go directly to True.

How does it compare with other TD models?

The TD-50-18-HC is 49-1/2" wide with three dividers and holds 16.5 cases of bottles or 24 cases of cans. The TD-80-30-HC is 80-1/8" wide with three lids, six dividers and a 1/4 HP compressor, and holds 30 cases of bottles or 42 cases of cans. The TD-65-24-S-HC has the same 22-case capacity and 1/5 HP system but a stainless steel exterior.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
