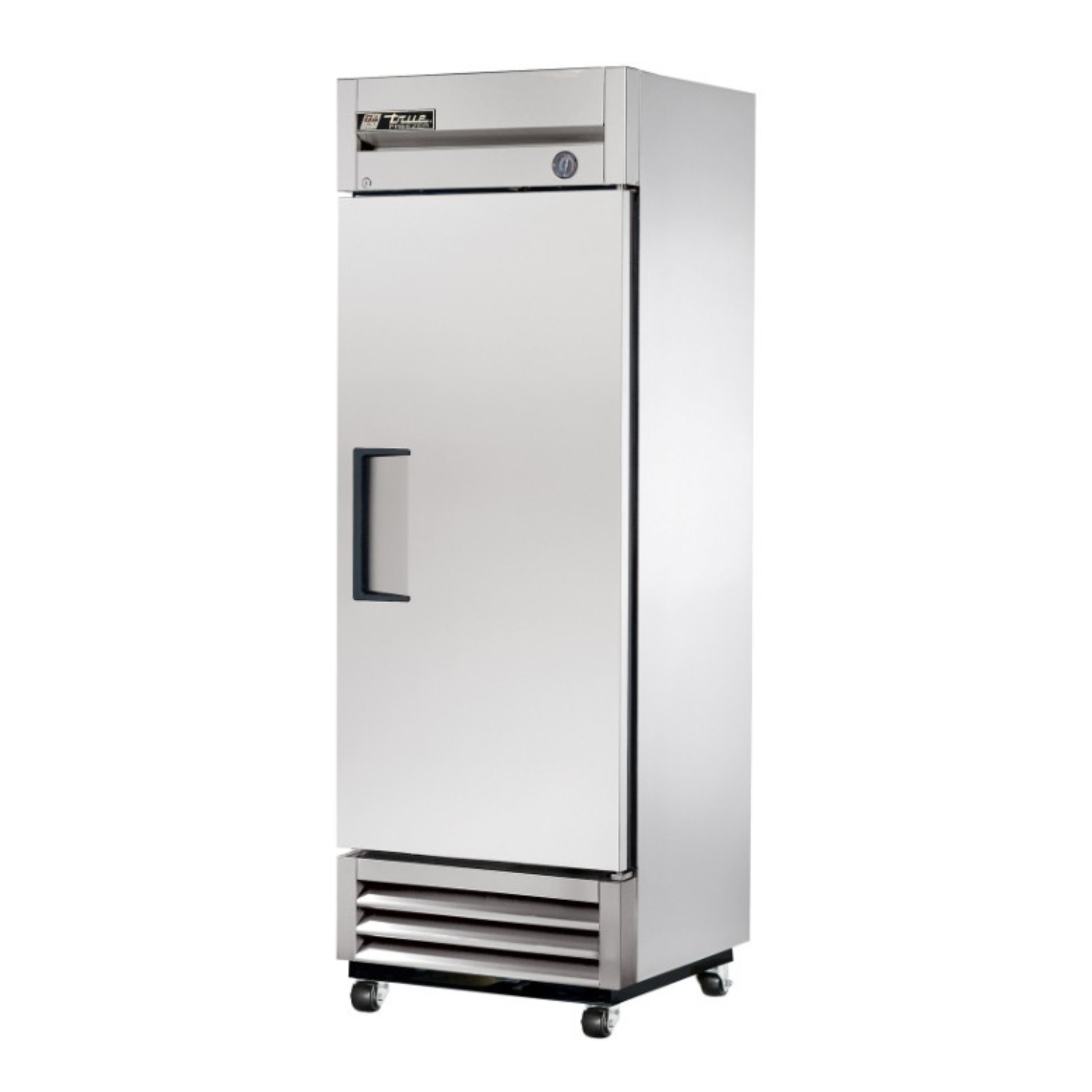

True Stainless Steel Solid Door Reach-In Freezer R290 27" - 1 Section T-19F-HC

The True Refrigeration T-19F-HC is a one-section reach-in freezer with a solid swing door, built for restaurants, cafés and commercial kitchens that need frozen storage on a small footprint. It is 27" wide, 24-1/2" deep and 75-1/4" high (78-1/2" on its standard 2-1/2" casters), with a nominal capacity of 19 cu. ft. A 1/2 HP bottom-mounted system running on R290 hydrocarbon refrigerant holds -10°F (-23.3°C), cold enough for frozen food and ice cream. It plugs into a standard 115V outlet, draws 3.7 A and is ENERGY STAR certified. East Bay Restaurant Supply ships this model with free shipping.

Key features

• Holds -10°F (-23.3°C) for frozen food and ice cream
• Stainless steel solid door and front, anodized aluminum ends, GalFan coated steel back
• Clear coated aluminum interior liner with a stainless steel floor and coved corners
• Three adjustable PVC coated wire shelves, 22-7/8" wide by 18-1/4" deep, adjustable in 1/2" steps
• Bottom-mounted condensing unit gives a "no stoop" lower shelf, leaves the top free for storage and keeps the condenser coil easy to clean
• Electronically commutated (ECM) evaporator and condenser fan motors and an epoxy coated evaporator
• Automatic defrost, started by a timer and ended by temperature
• Self-closing door with positive seal and lifetime guaranteed hinges and torsion closure system
• Exterior temperature display, LED interior lighting and a standard door lock
• Rated energy use of 3.89 kWh per 24 hours
• Made in USA

True Refrigeration T-19F-HC specifications

Brand	True Refrigeration
Model number	T-19F-HC
Product type	Reach-in freezer, one section, solid swing door
Sections / doors	1 section, 1 solid swing door, hinged on the right as standard
Capacity	19 cu. ft. nominal (14.79 cu. ft. ENERGY STAR rated volume)
Exterior width	27" (686 mm)
Exterior depth	24-1/2" (623 mm)
Exterior height without casters	75-1/4" (1912 mm)
Exterior height with casters	78-1/2" (casters add 3-1/4")
Exterior height with optional legs	81-1/4" (legs add 6")
Temperature	-10°F (-23.3°C)
Refrigerant	R290 hydrocarbon
Refrigeration system	Self-contained, bottom mounted, capillary tube
Compressor	1/2 HP
Electrical	115 V / 60 Hz / 1 phase, 3.7 A, 15 A dedicated outlet
Plug	NEMA 5-15P
Cord length	9 ft. (2.74 m)
Energy use	3.89 kWh per 24 hours
Shelves	3 adjustable PVC coated wire shelves, 22-7/8" wide by 18-1/4" deep, 4 shelf clips per shelf
Exterior material	Stainless steel door and front, anodized aluminum ends, GalFan coated steel back
Interior material	Clear coated aluminum liner, stainless steel floor with coved corners
Insulation	High density polyurethane, foamed in place in cabinet and door
Lighting	LED interior
Casters	2-1/2" casters, locks on front set
Crated weight	265 lb (120 kg)
Certifications	cULus, UL EPH Classified, ENERGY STAR, NSF/ANSI Standard 7 compliant
Country of origin	USA
Warranty	7 years parts, 7 years labor, 7 years compressor

Frequently asked questions

Is the True T-19F-HC a refrigerator or a freezer?

It is a freezer that holds -10°F (-23.3°C), cold enough for frozen food and ice cream. For a refrigerator of the same size, see the T-19-HC.

What electrical connection does the T-19F-HC need?

It needs a 115V, 60 Hz, single-phase, 15 A dedicated outlet that takes a NEMA 5-15 plug. The unit draws 3.7 A and comes with a 9 ft. cord and plug.

Will the T-19F-HC fit through a standard doorway?

Yes. At 24-1/2" deep and 27" wide it fits through a 36" doorway with room to spare, and at 78-1/2" high on casters it clears an 80" door opening.

Will full-size sheet pans fit on the shelves?

No. The shelves are 22-7/8" wide by 18-1/4" deep, so 18" by 26" full-size sheet pans will not lie flat on them. Half-size sheet pans (18" by 13") fit.

What certifications does it have?

It is cULus listed, UL EPH Classified and ENERGY STAR certified, and it complies with NSF/ANSI Standard 7 for open food product. In practice, that means it meets electrical safety and food-equipment sanitation standards that health inspectors look for, and it qualifies as energy efficient.

What warranty comes with the T-19F-HC?

True covers it for 7 years on parts, 7 years on labor and 7 years on the compressor, counted from the original installation date, for units shipped to the US and Canada. Labor coverage is standard straight-time labor plus reasonable travel time. The warranty does not cover wear parts such as door gaskets and bulbs, or problems caused by improper installation or skipped preventive maintenance. To qualify, the unit must be bought within 39 months of leaving the factory.

What factory options are available?

Factory options include 220 to 240V/50 Hz electrical, 6" standard legs, 6" seismic/flanged legs, extra shelves, novelty baskets, a left-hinged door and a stainless steel back.

How does the T-19F-HC differ from the T-19FZ-HC and T-19F-FLX-HC?

The T-19F-HC holds -10°F, while the T-19FZ-HC is the same size cabinet set to 0°F. The T-19F-FLX-HC is a convertible version that switches between -10°F freezer and 38°F refrigerator use, with a 24-5/8" depth and a 10 ft. cord.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
