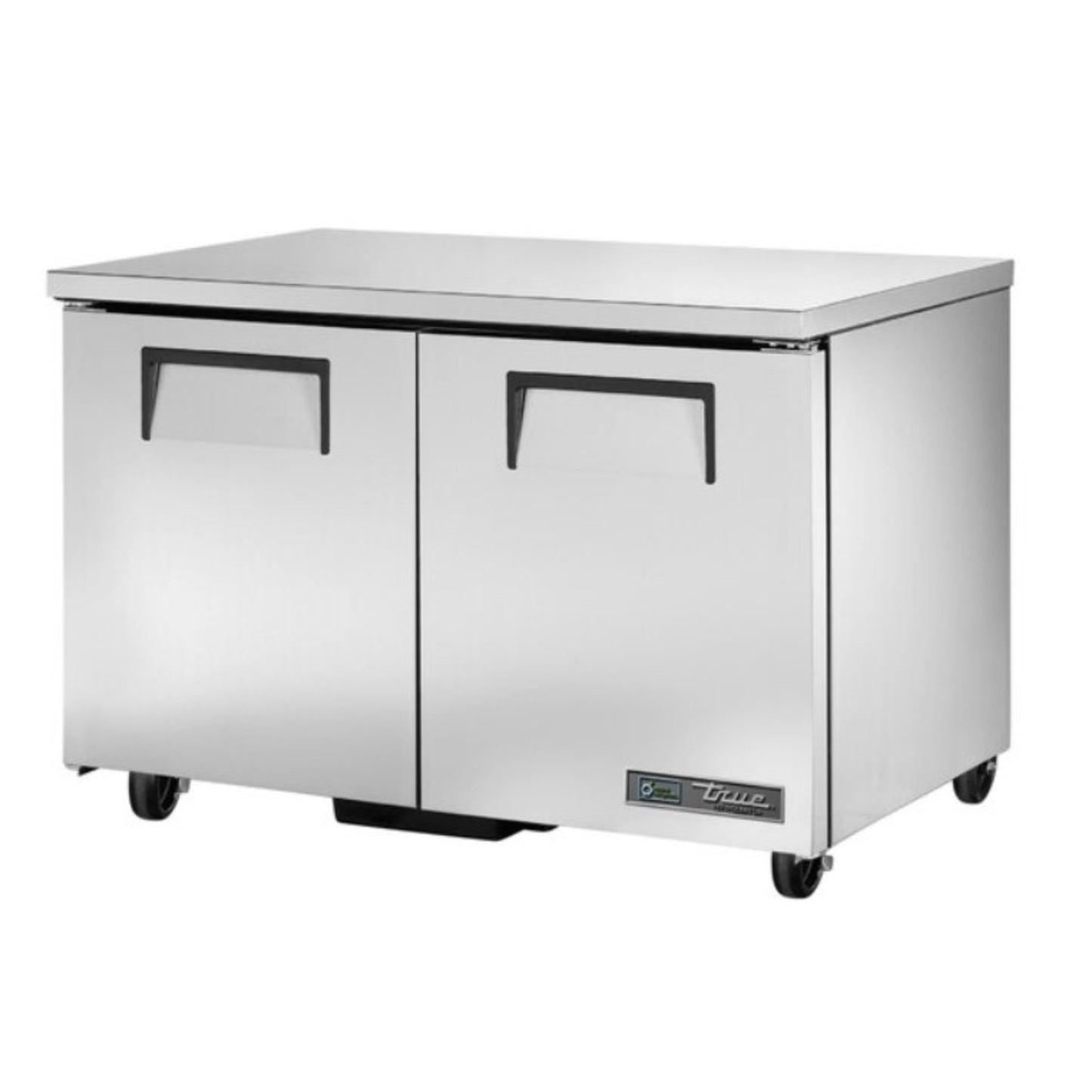

True ADA Undercounter Refrigerator Stainless Steel 48" - 2 Doors TUC-48-ADA-HC
True ADA Undercounter Refrigerator Stainless Steel 48" - 2 Doors TUC-48-ADA-HC
The True Refrigeration TUC-48-ADA-HC is a two-door, ADA-compliant undercounter refrigerator for commercial kitchens, bars and service areas that need a 34" work surface. It is 48-3/8" wide and 30-1/8" deep, holds 12 cu. ft. across two sections, and keeps product at 33°F to 38°F (0.5°C to 3.3°C). A self-contained 1/5 HP system using R290 hydrocarbon refrigerant runs on 115 V and plugs into a standard NEMA 5-15 outlet. The front, top and ends are stainless steel, the back is GalFan coated steel, and the interior is clear coated aluminum with a stainless steel floor. East Bay Restaurant Supply ships this model with free shipping.
Key features
- 34" (864 mm) work surface height on 3" (77 mm) stem castors, meeting Americans with Disabilities Act (ADA) height requirements
- Oversized, factory balanced forced-air refrigeration holds 33°F to 38°F
- Self-contained capillary tube system with R290 hydrocarbon refrigerant: zero ozone depletion potential, global warming potential of 3
- Front breathing. The condensing unit slides out the back for service
- Epoxy coated evaporator resists corrosion
- Positive seal, self-closing doors with 90° stay-open feature and recessed, foamed-in-place handles
- One-piece magnetic door gaskets come off without tools for cleaning
- Four adjustable heavy duty PVC coated wire shelves, two per section
- Cabinet and doors foamed-in-place with high density polyurethane insulation
True Refrigeration TUC-48-ADA-HC specifications
| Brand | True Refrigeration (True Manufacturing) |
|---|---|
| Model number | TUC-48-ADA-HC |
| Product type | ADA-compliant undercounter refrigerator, solid door |
| Sections / doors | 2 sections, 2 solid swing doors |
| Capacity | 12 cu. ft. |
| Exterior width | 48-3/8" (1229 mm) |
| Exterior depth | 30-1/8" (766 mm) |
| Cabinet height without castors | 29-3/4" (756 mm) |
| Work surface height with castors | 34" (864 mm) |
| Temperature range | 33°F to 38°F (0.5°C to 3.3°C) |
| Refrigerant | R290 hydrocarbon |
| Refrigeration system | Self-contained, capillary tube, forced air, front breathing |
| Compressor | 1/5 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 3.0 A |
| Circuit | 15 A dedicated outlet |
| Plug | NEMA 5-15P |
| Cord length | 7 ft. |
| Shelves | 4 adjustable heavy duty PVC coated wire shelves |
| Exterior material | Stainless steel front, top and ends. GalFan coated steel back |
| Interior material | Clear coated aluminum liner, stainless steel floor |
| Insulation | Foamed-in-place high density polyurethane |
| Casters | 4 stem castors, 3" (77 mm) diameter |
| Crated weight | 260 lb |
| Certifications | cULus, UL EPH Classified, CE, ADA compliant |
| Country of origin | USA |
| Warranty | 7-year parts, 7-year labor, 7-year compressor (USA and Canada) |
Frequently asked questions
What electrical connection does the TUC-48-ADA-HC need?
It needs a 115 V, 60 Hz, single-phase, 15 A dedicated outlet that accepts its NEMA 5-15P plug. It draws 3.0 A and comes with a 7 ft. cord and plug. Do not use an extension cord.
Will it fit through a standard doorway?
Yes. The cabinet is 30-1/8" deep and stands 34" tall on its castors, so it passes through a 36" doorway and is far below an 80" door opening.
Is this a refrigerator or a freezer, and what temperature does it hold?
It is a refrigerator. It holds 33°F to 38°F (0.5°C to 3.3°C), which suits fresh produce, dairy, proteins and prepped ingredients.
What makes it ADA compliant?
Its 3" castors set the work surface at 34", which meets ADA height requirements for accessible work and service counters.
How does it differ from similar True models?
The TUC-48-HC is the standard version on 5" castors with a 36" work surface, and the TUC-48-LP-HC is a low profile version with a 31-7/8" work surface. The TUC-48F-ADA-HC is the ADA-height freezer, holding -10°F, and the TUC-48G-ADA-HC~FGD01 has glass doors.
What certifications does it carry?
It is cULus listed for US and Canadian electrical safety, UL EPH Classified for sanitation, and CE marked. True also states the line complies with NSF/ANSI Standard 7 for open food product, which health inspectors look for.
What warranty comes with it?
True gives 7 years of parts, 7 years of labor and 7 years of compressor coverage on General Foodservice units sold in the USA and Canada and shipped after October 1, 2023. Labor runs from the original installation date. The warranty does not cover door gaskets, bulbs, improper installation or use, or damage from wrong or unstable voltage or extension cords.
Does it ship free, and how is it delivered?
Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
