Jackson Conserver XL-HH Door Type Dishwasher Low Temp WWS CONSERVER XL-HH
Jackson Conserver XL-HH Door Type Dishwasher Low Temp WWS CONSERVER XL-HH

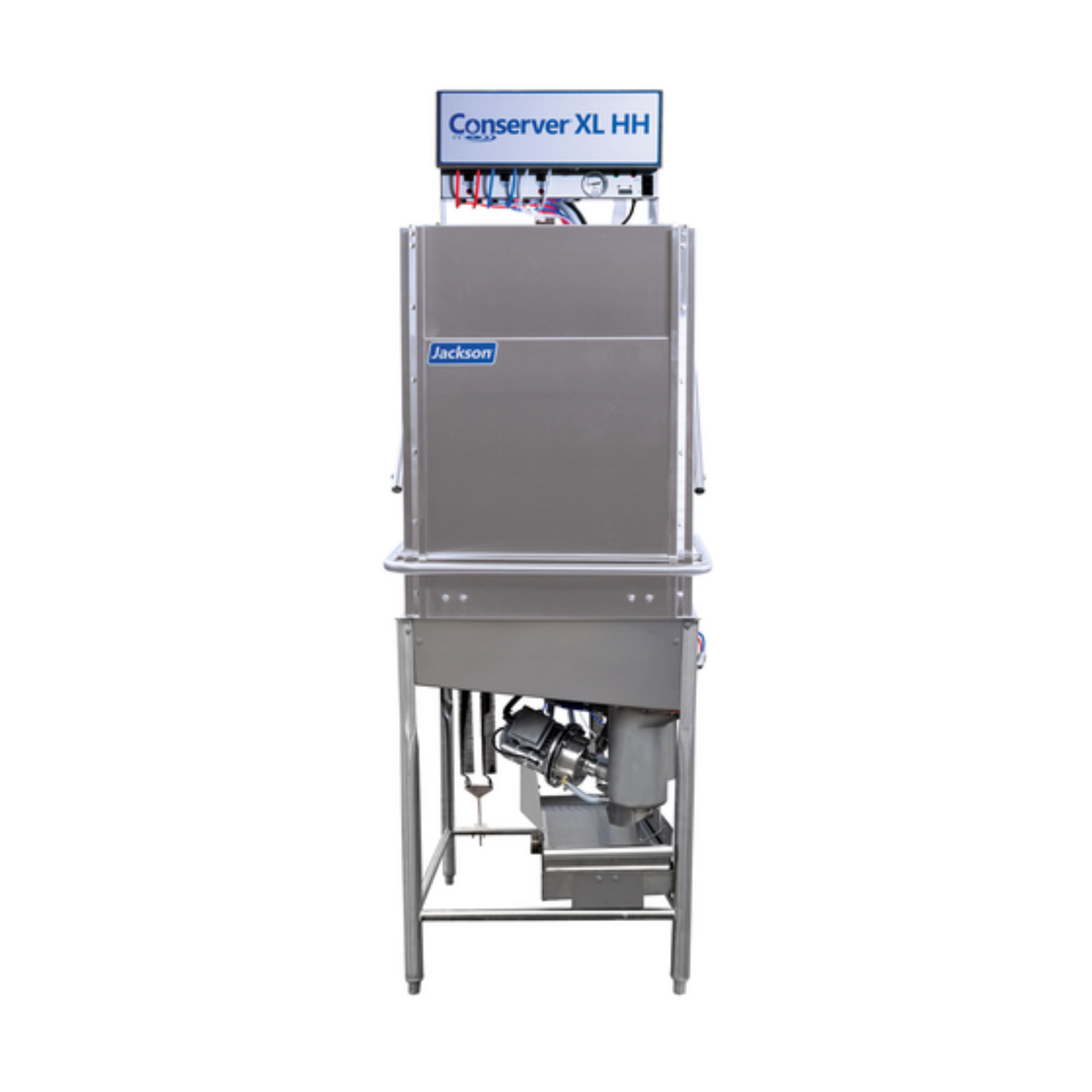

The Jackson Conserver XL-HH is a low temperature, chemical sanitizing, single-rack high hood door-type dishwasher for restaurants, bars and institutions that wash sheet pans and 60 qt. mixing bowls. It measures 29-1/4" wide, 29-1/2" deep and 79" high, with 27" of inside clearance. It washes 41 racks per hour using 1.53 gallons per rack on a hardwired 115 V, 11.4 A connection. East Bay Restaurant Supply ships this model with free shipping.
Key features
- 27" (686 mm) vertical inside clearance fits full-size sheet pans and 60 qt. mixing bowls
- Three built-in chemical pumps with priming switches and low chemical indicator lights
- Fill and dump design replaces the wash water with fresh rinse water every cycle
- Fully automatic cycle with electronic timer, door-actuated auto start and top-mounted controls
- 1 HP self-draining stainless steel wash pump prevents detergent carryover
- Can be converted on site from straight-through to corner and back (kit required)
- Interchangeable upper and lower stainless steel wash/rinse arms
- Built-in scrap accumulator, removable scrap screen and internal sump
- Delime switch, wash thermometer, door switch, and an air gap instead of a vacuum breaker

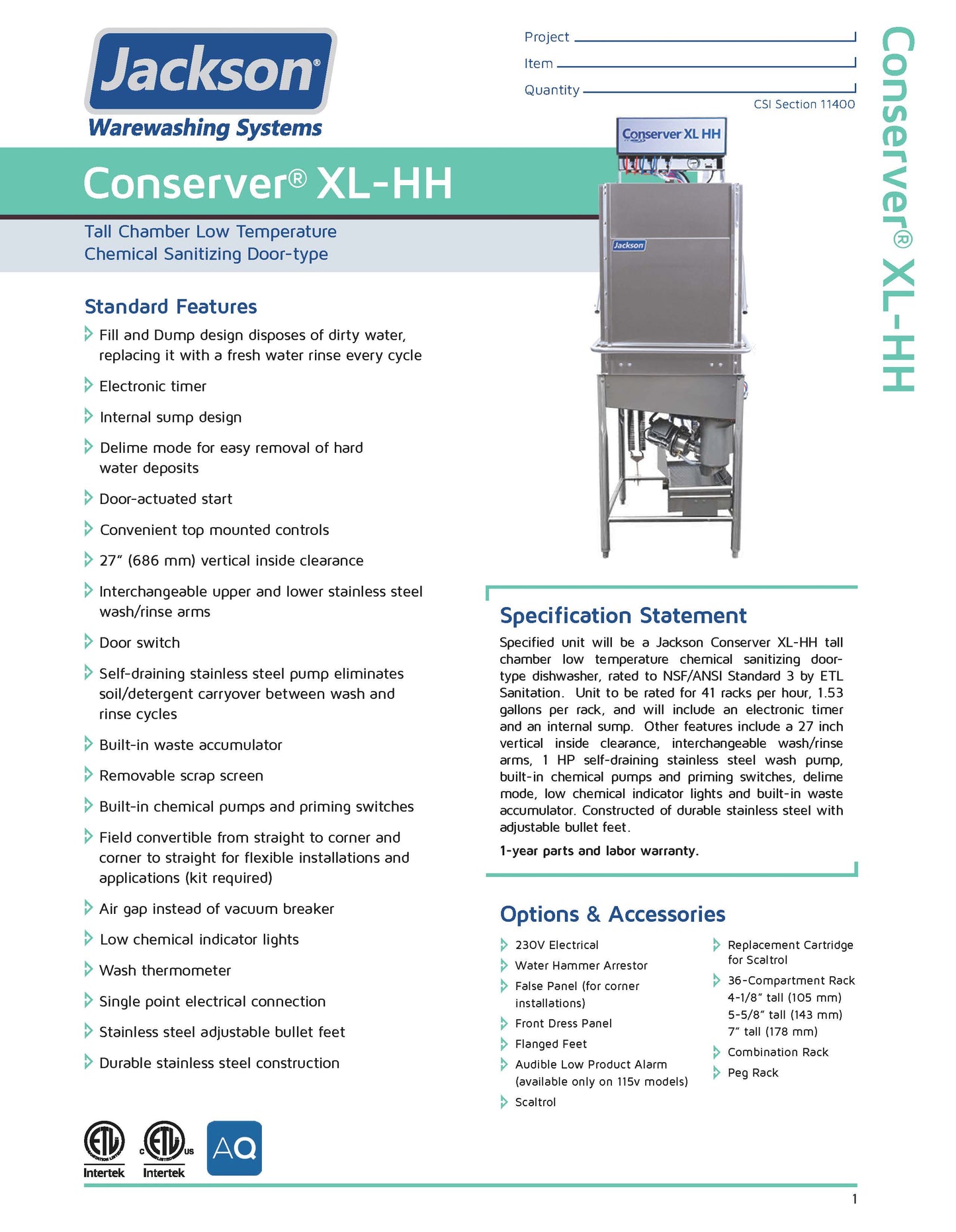

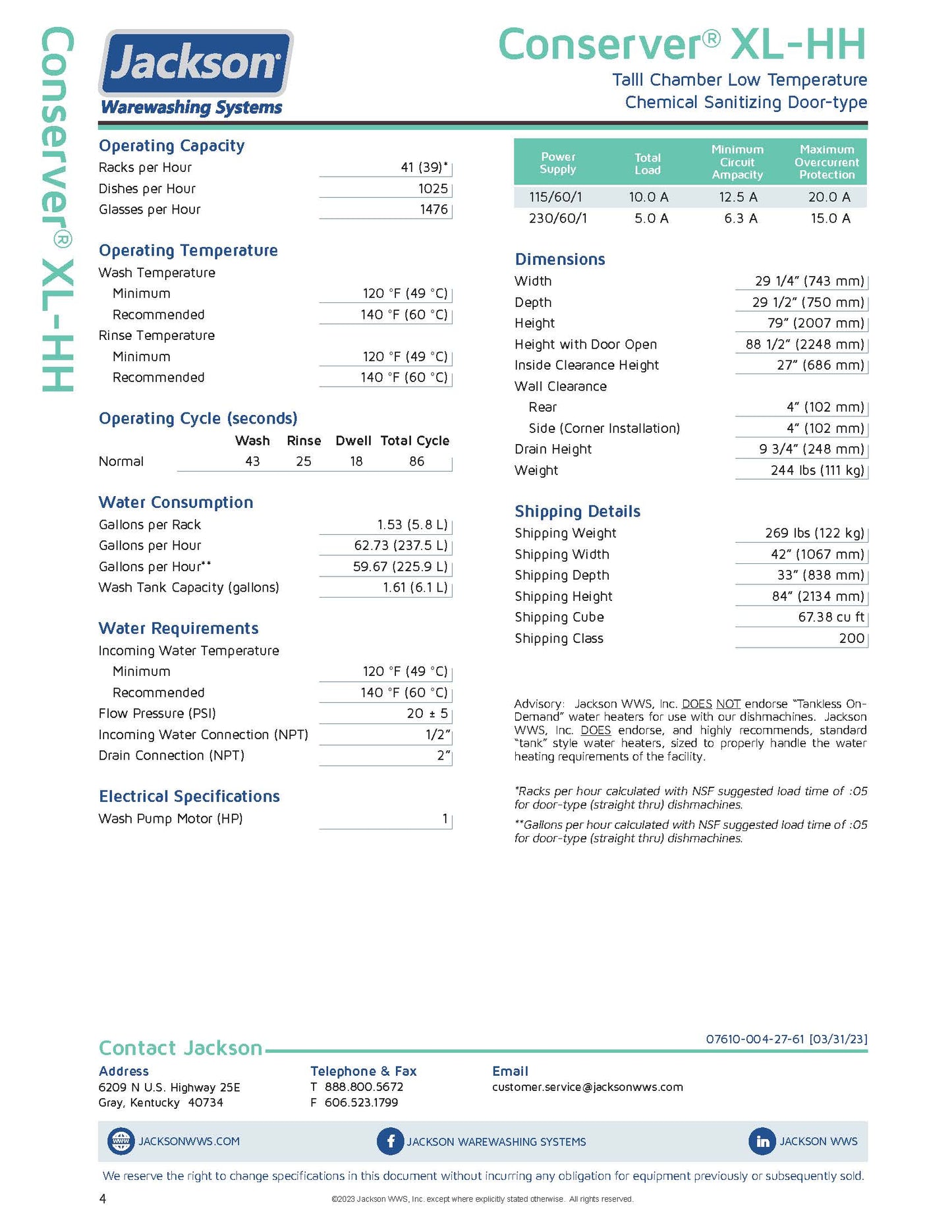

Jackson WWS CONSERVER XL-HH specifications
| Brand | Jackson (Jackson WWS) |
|---|---|
| Model number | Conserver XL-HH (WWS CONSERVER XL-HH) |
| Product type | Low temperature door-type dishwasher, high hood, chemical sanitizing |
| Configuration | Single rack, straight-through or corner |
| Racks per hour | 41 (39 at NSF suggested 5-second load time) |
| Water consumption | 1.53 gallons per rack |
| Cycle time | 86 seconds (43 s wash, 18 s dwell, 25 s rinse) |
| Vertical inside clearance | 27" (686 mm) |

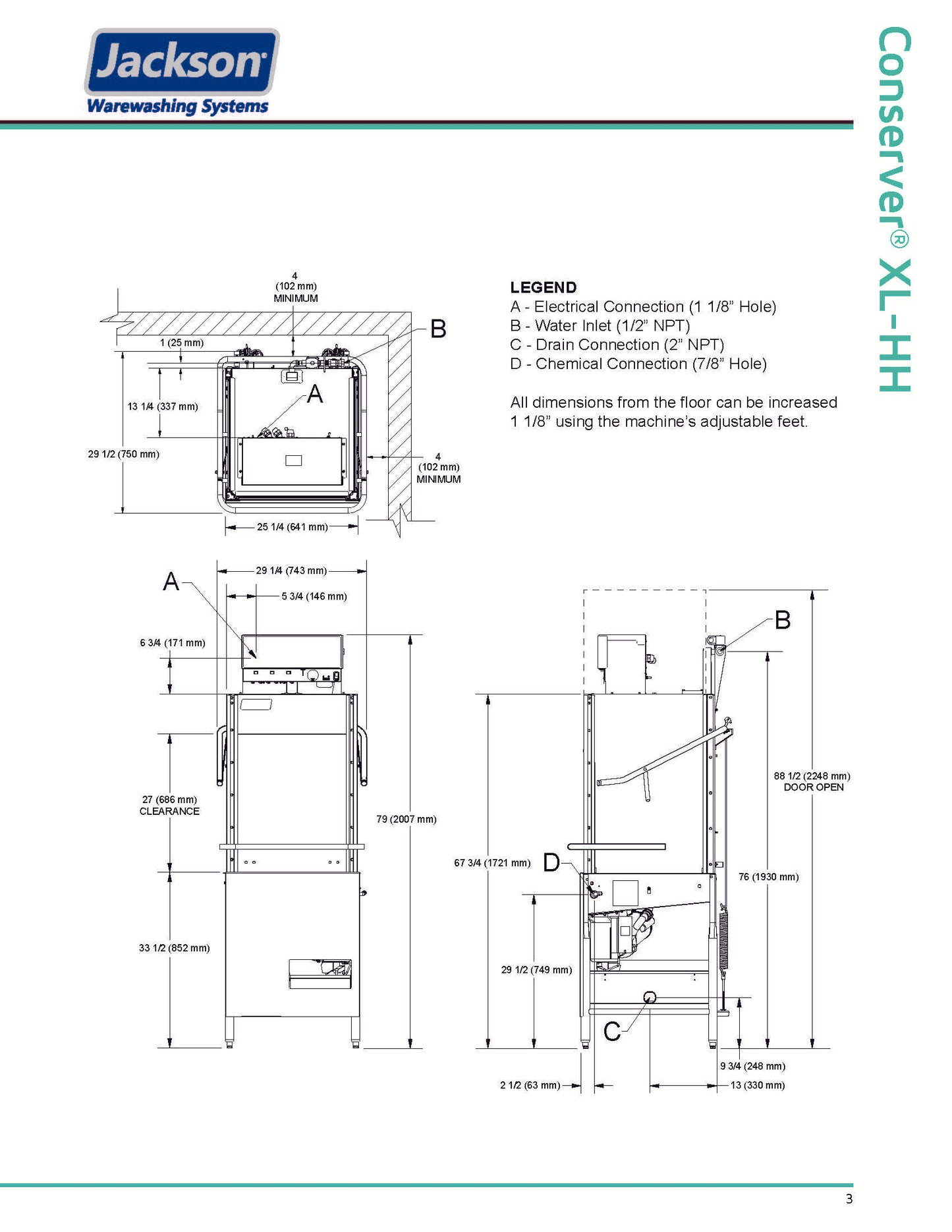

| Exterior width | 29-1/4" |
| Exterior depth | 29-1/2" |
| Exterior height | 79" on feet, adjustable up to 1-1/2" higher |
| Height with door open | 88-1/2" |
| Minimum wash and incoming water temperature | 120°F |
| Minimum chlorine required | 50 ppm |
| Water inlet | 3/4" NPT, 20 ± 5 PSI flow pressure |
| Drain connection | 2" NPT |
| Wash pump motor | 1 HP |
| Electrical | 115 V, 60 Hz, 1-phase, 11.4 A |
| Maximum overcurrent protection | 20 A |
| Electrical connection | Hardwired, single point connection (no plug) |
| Chemical pumps | 3, built in |
| Construction | Stainless steel |
| Feet | 3" adjustable stainless steel bullet feet |
| Weight | 276 lb |
| Certifications | cETLus, ETL Sanitation (NSF/ANSI Standard 3) |
| Warranty | 1 year limited parts and labor |
Frequently asked questions
What electrical and water connections does the Conserver XL-HH need?
It needs a hardwired 115 V, 60 Hz, single-phase circuit. It draws 11.4 A, and overcurrent protection must not exceed 20 A. There is no plug. Plumbing needs a 3/4" NPT water inlet supplying at least 120°F water and a 2" NPT drain. It sanitizes with chemicals and has no booster heater.
Will it fit through a standard doorway?
Yes. Its 29-1/2" depth clears a 36" doorway. The 79" height is only about 1" under a standard 80" door opening, so measure the path first. In place, allow 88-1/2" of height for the door to open.
What can it wash and how fast?
The 27" inside clearance fits full-size sheet pans and 60 qt. mixing bowls. It washes 41 racks per hour (39 at the NSF 5-second load time) on an 86-second cycle, using 1.53 gallons per rack.
What certifications does it have?
It is cETLus listed for electrical safety in the US and Canada, and ETL Sanitation certified to NSF/ANSI Standard 3 for commercial warewashers. Health inspectors look for these listings.

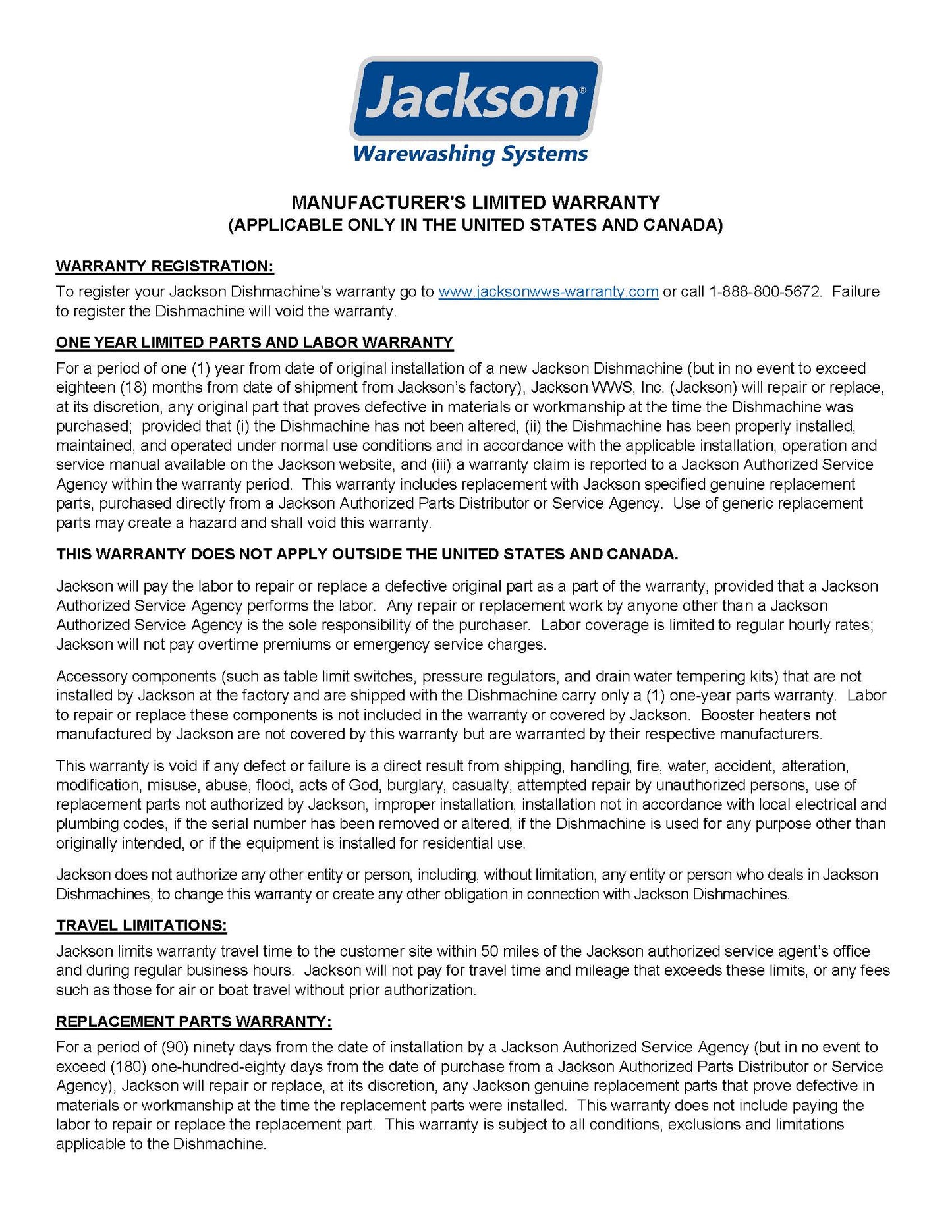

What warranty comes with it?
Jackson gives a one year limited parts and labor warranty from purchase, ending no later than 18 months after the unit leaves the factory. Labor must be done by a Jackson authorized agency at regular hourly rates, and travel is limited to 2 hours and 100 miles. An unregistered unit loses its warranty. Cleaning, deliming, and damage from accident, misuse, fire or water are excluded, and wear items such as gaskets have limited coverage.
What options and accessories are available?
Jackson offers a water hammer arrestor, Scaltrol water treatment, a false panel, flanged feet and an audible low product alarm. It also offers combination, peg and 36-compartment racks.

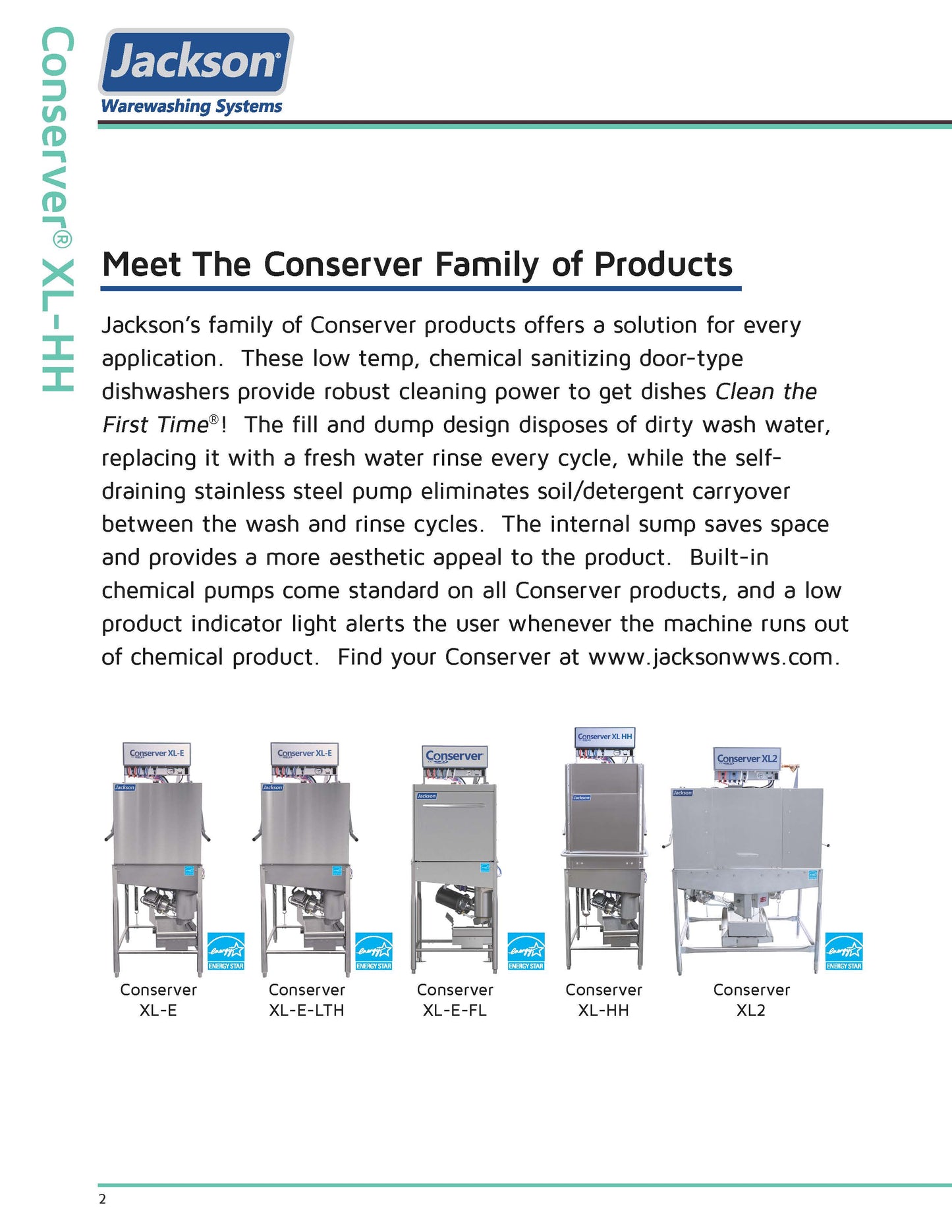

How does it differ from the Conserver XL-E?
The Conserver XL-E is a standard height model. It has 17-1/4" clearance, stands 68-1/2" high, uses 1.02 gallons per rack and is ENERGY STAR rated. The XL-E-LTH adds a built-in booster heater. Choose the XL-HH when you need to wash tall sheet pans and bowls.
Does it ship free, and how is it delivered?
Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.
