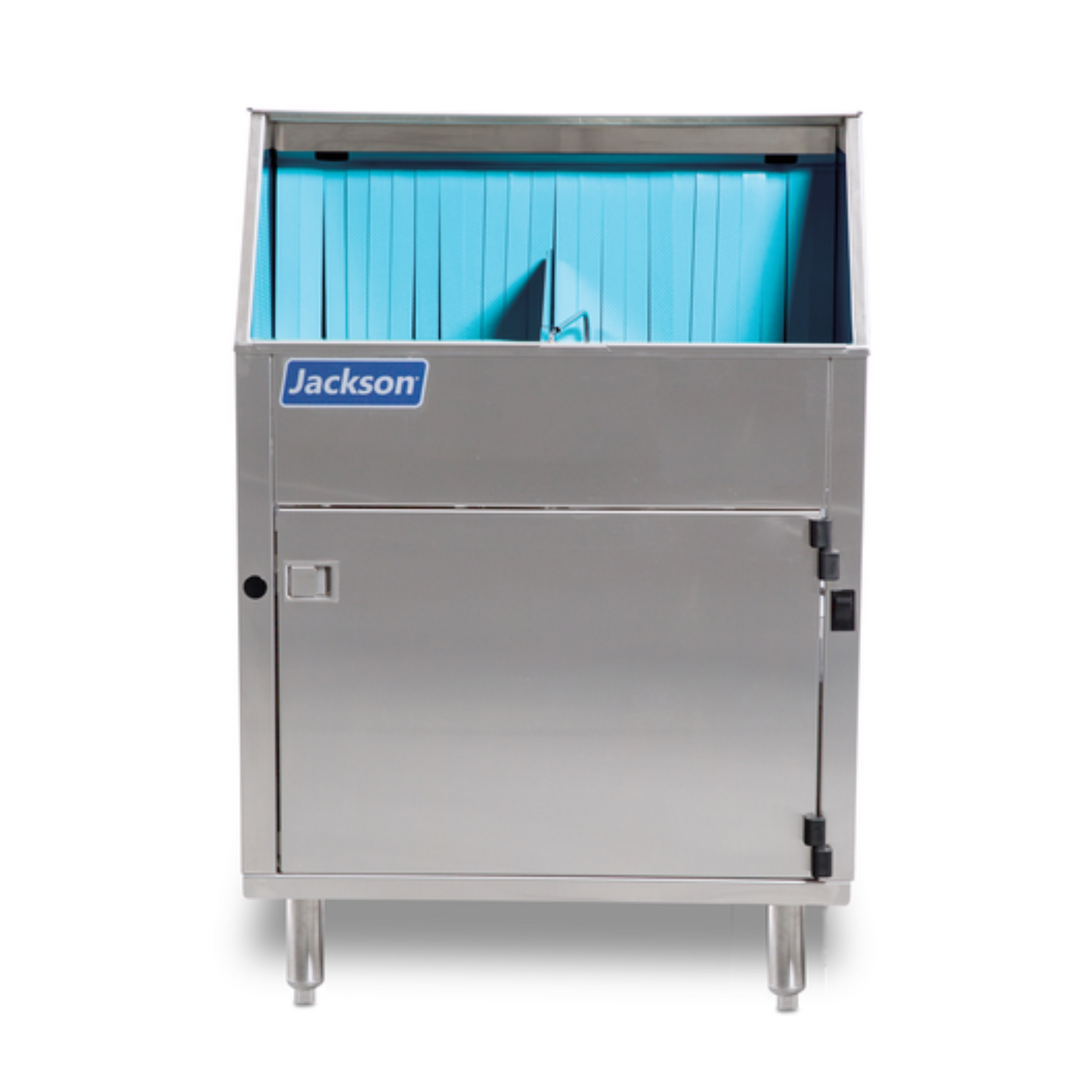

Jackson Rotary Undercounter Glasswasher 115V - 1200 Glasses/Hr WWS DELTA 115

Jackson Rotary Undercounter Glasswasher 115V - 1200 Glasses/Hr WWS DELTA 115

Regular price $8,626.00 USD
Regular price Sale price $8,626.00 USD

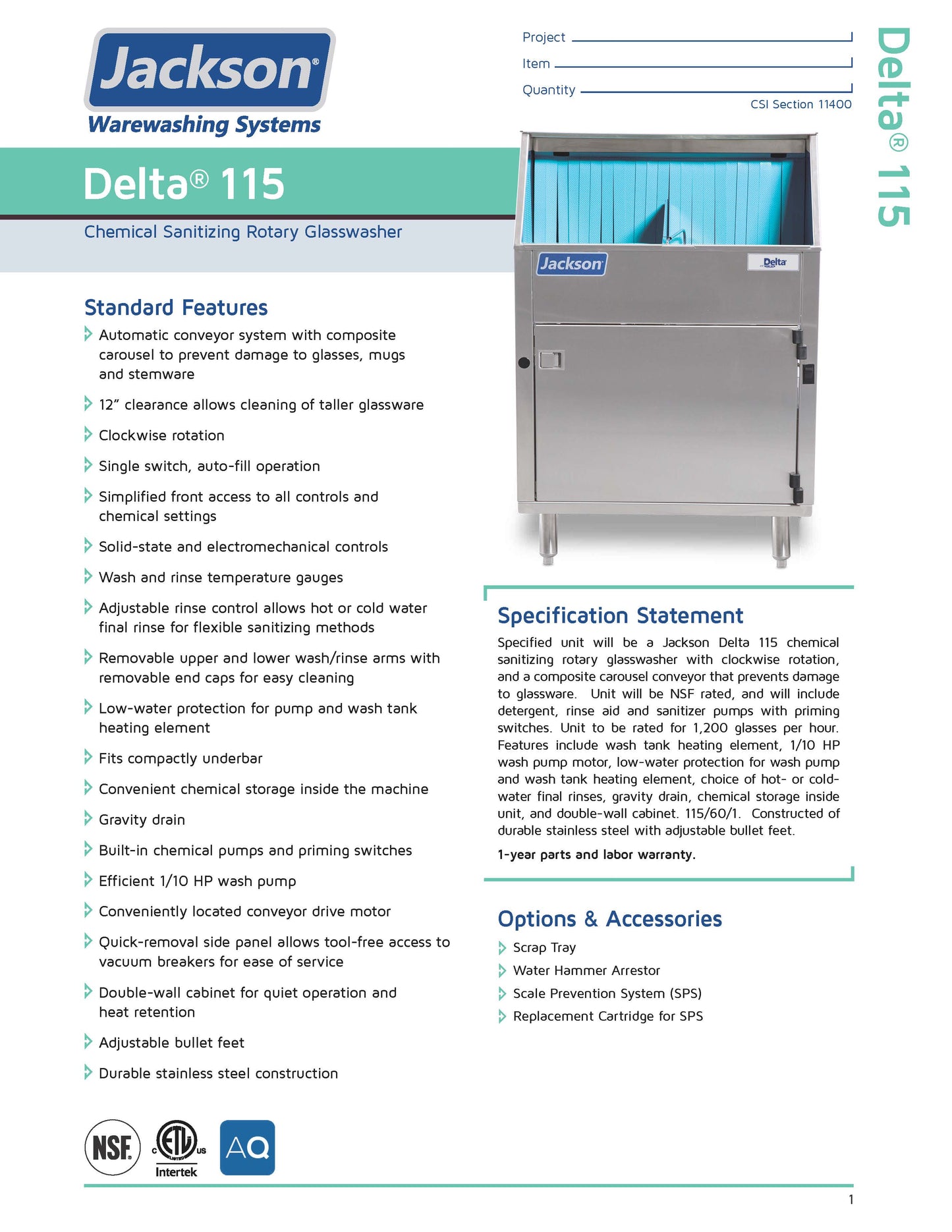

The Jackson WWS Delta 115 is a low-temperature, chemical-sanitizing rotary glasswasher for bars, restaurants and hotels that wash a lot of glassware at the bar. It is the 115 V version of the Delta 1200 and cleans about 1,200 glasses per hour on a composite carousel conveyor. It measures 25-1/4" wide, 25-1/4" deep and 39" high, with 12" of wash clearance, a 3.0 gal wash tank and a double-wall stainless steel cabinet. East Bay Restaurant Supply ships this model with free shipping.

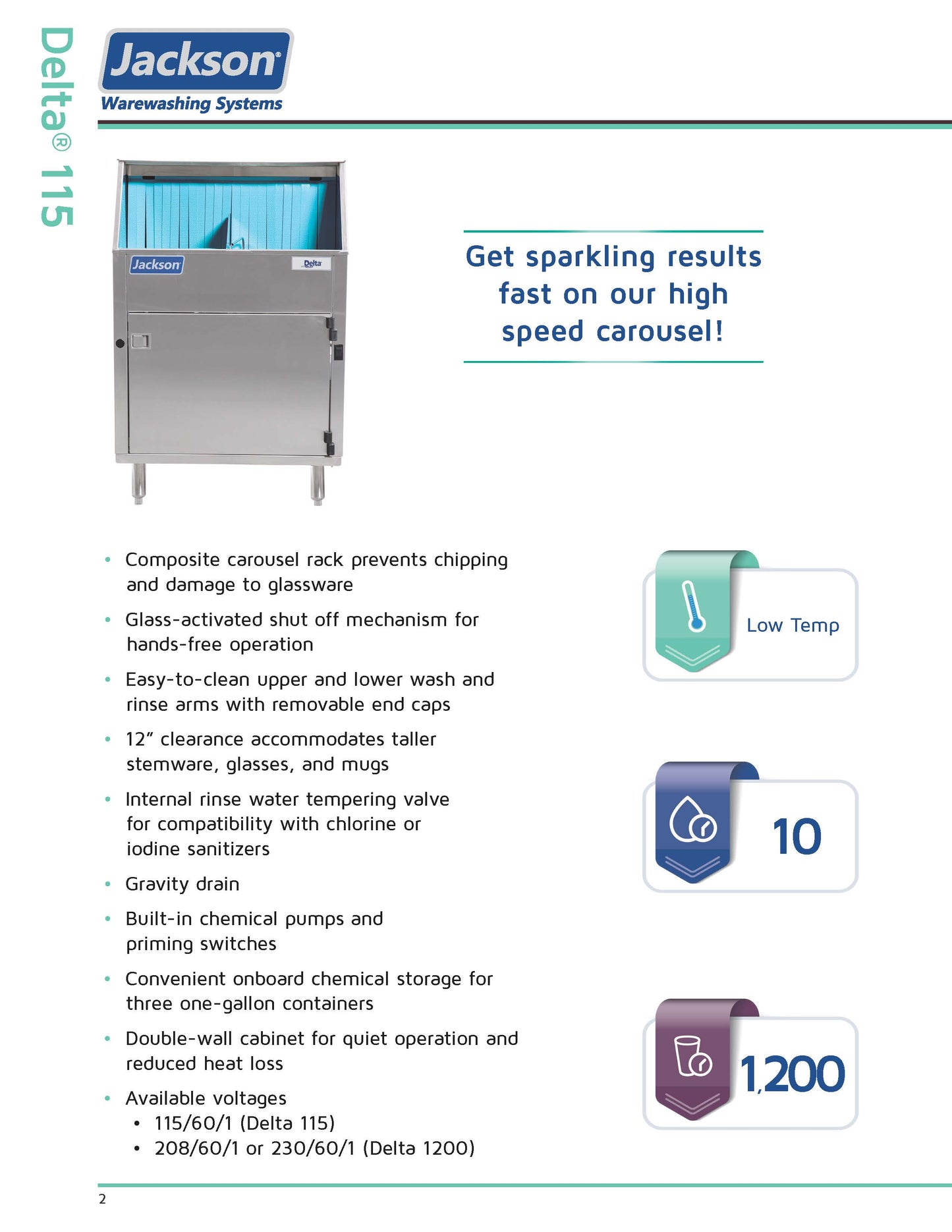

Key features

  • Washes about 1,200 glasses per hour on a 120-second cycle
  • The composite carousel conveyor turns clockwise and keeps glasses, mugs and stemware from chipping
  • 12" wash clearance fits taller stemware, glasses and mugs
  • Three built-in chemical pumps for detergent, rinse aid and sanitizer, with priming switches and chemical storage inside the unit
  • 1.3 kW electric wash tank heat, with low-water protection for the wash pump and heating element
  • Adjustable rinse control lets you choose a hot or cold final rinse
  • Wash arms, rinse arms and manifold are stainless steel. The upper and lower arms come out for cleaning and have removable end caps
  • Single-switch auto-fill and front access to the controls and chemical settings. A side panel comes off without tools to reach the vacuum breakers

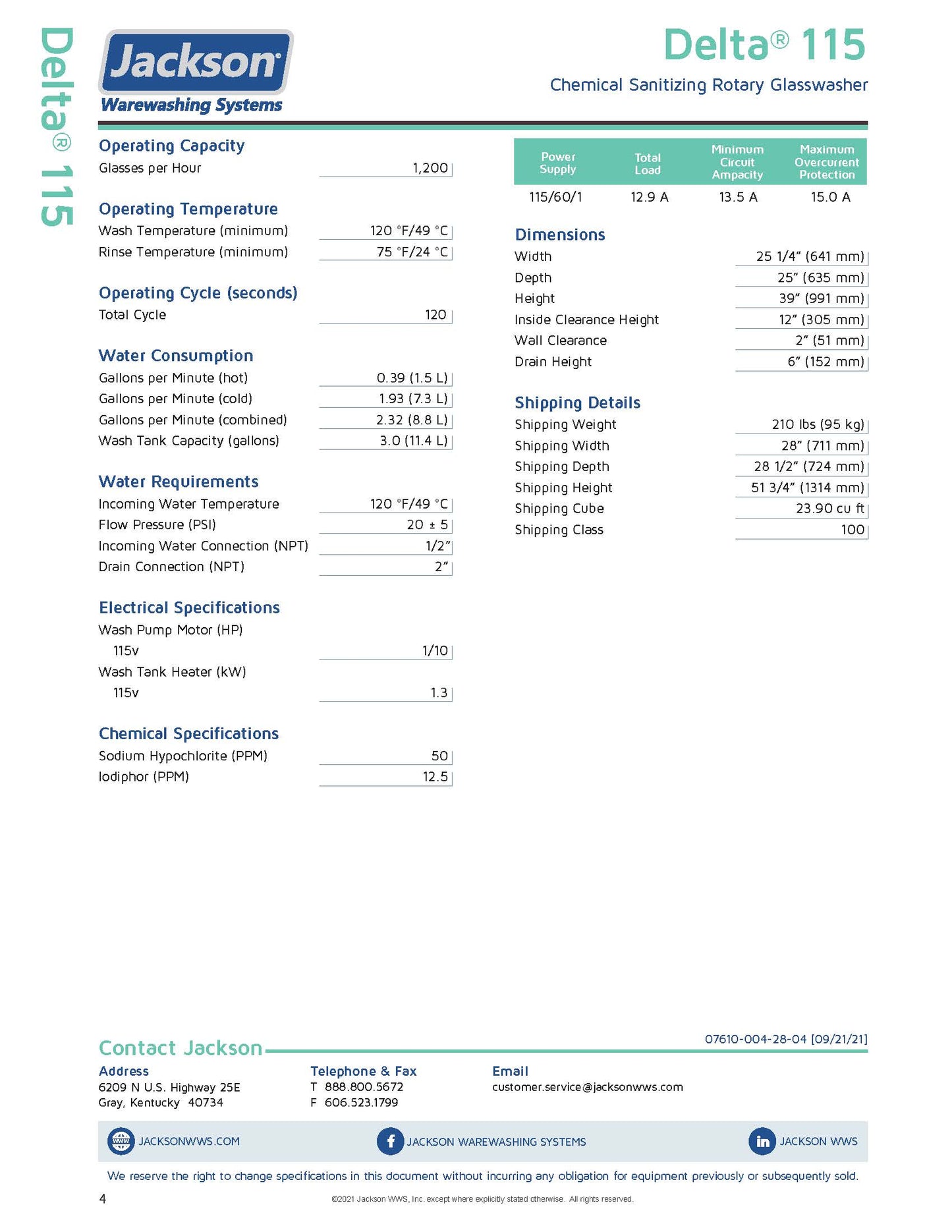

Jackson WWS DELTA 115 specifications

Brand Jackson WWS
Model number DELTA 115 (WWS DELTA 115)
Product type Rotary underbar glasswasher, low temperature chemical sanitizing
Capacity About 1,200 glasses per hour
Cycle time 120 seconds

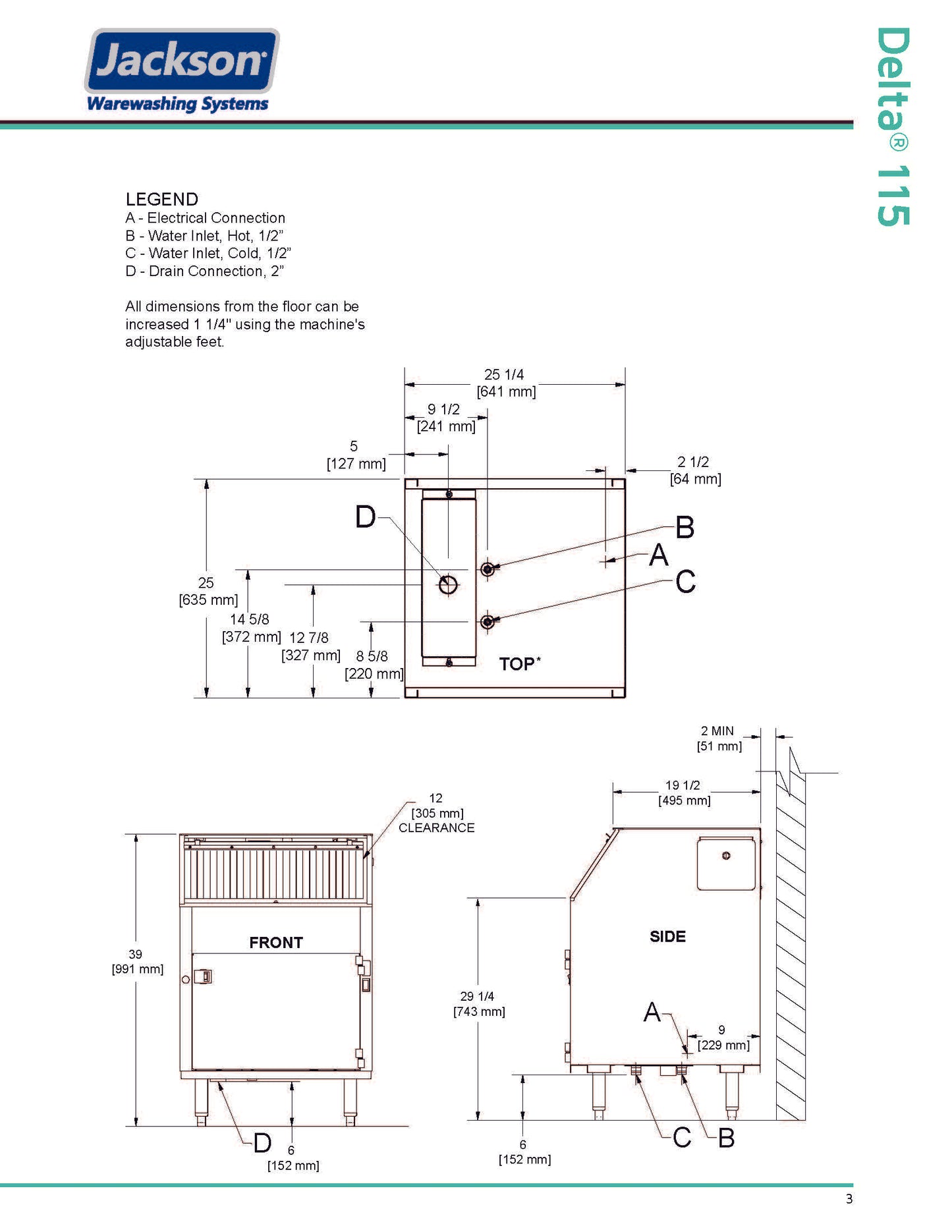

Wash clearance 12" (305 mm)
Exterior width 25-1/4" (641 mm)
Exterior depth 25-1/4" (641 mm)
Exterior height 39" (991 mm), on adjustable bullet feet
Wash tank capacity 3.0 gal (11.4 L)
Wash pump 1/10 HP, 55 GPM
Wash tank heater 1.3 kW
Chemical pumps 3 (detergent, rinse aid, sanitizer)
Sanitizing Chemical, 50 ppm chlorine minimum
Hot water supply 120°F (48.8°C) minimum, 10 gallons per hour at 15 to 25 PSI
Cold water supply 75°F minimum, 15 to 25 PSI
Water line size 1/2" NPT
Drain Gravity, 1-1/2" minimum drain line
Electrical 115 V / 60 Hz / 1 phase, 12.9 A total load
Circuit requirement 13.5 A minimum circuit ampacity, 15 A maximum overcurrent protection
Electrical connection Hardwired
Construction Stainless steel, double-wall cabinet
Conveyor rotation Clockwise
Options and accessories Scrap tray, water hammer arrestor, Scale Prevention System (SPS), replacement SPS cartridge
Shipping weight 210 lb (95 kg)
Shipping dimensions 51" high x 33" wide x 29" deep
Certifications NSF, cETLus
Country of origin USA
Warranty 1 year parts and labor

Frequently asked questions

What electrical service does the Delta 115 need?

It needs a 115 V, 60 Hz, single-phase circuit. Total load is 12.9 A, minimum circuit ampacity is 13.5 A and maximum overcurrent protection is 15 A. The unit is hardwired, so a licensed electrician should make the connection.

What water and drain connections does it need?

It needs hot water at 120°F (48.8°C) minimum, 10 gallons per hour at 15 to 25 PSI, and cold water at 75°F minimum. Both supply lines are 1/2" NPT. It drains by gravity to a drain line of at least 1-1/2".

Will it fit through a standard doorway?

Yes. It is 25-1/4" wide and 25-1/4" deep, so it passes through a 36" doorway, and at 39" high it is well under an 80" door opening.

How does it sanitize glasses?

It sanitizes with chemicals at low temperature. Built-in pumps feed detergent, rinse aid and sanitizer, and Jackson specifies at least 50 ppm chlorine.

What certifications does it have?

It is NSF listed for food equipment sanitation and cETLus listed for electrical safety in the United States and Canada.

What warranty comes with the Delta 115?

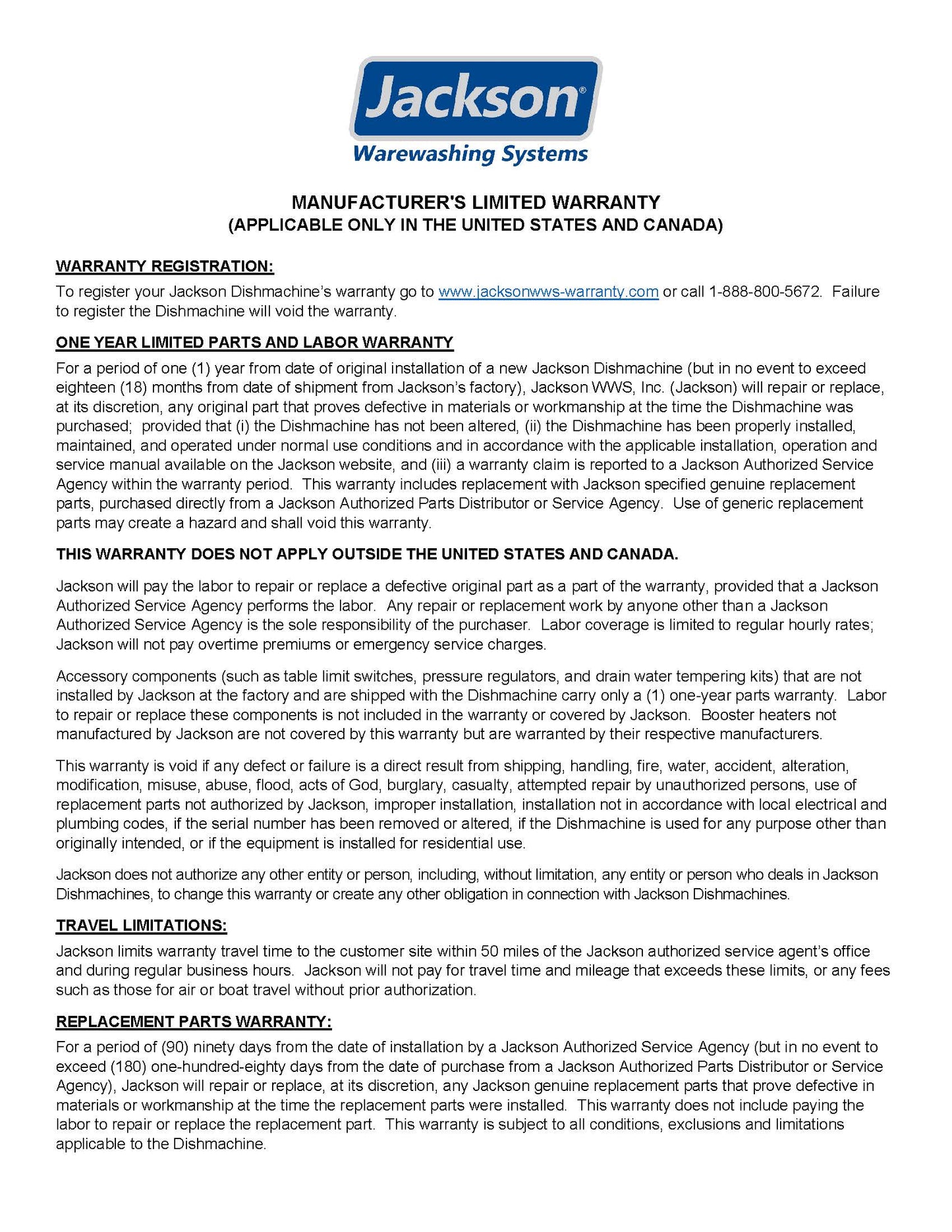

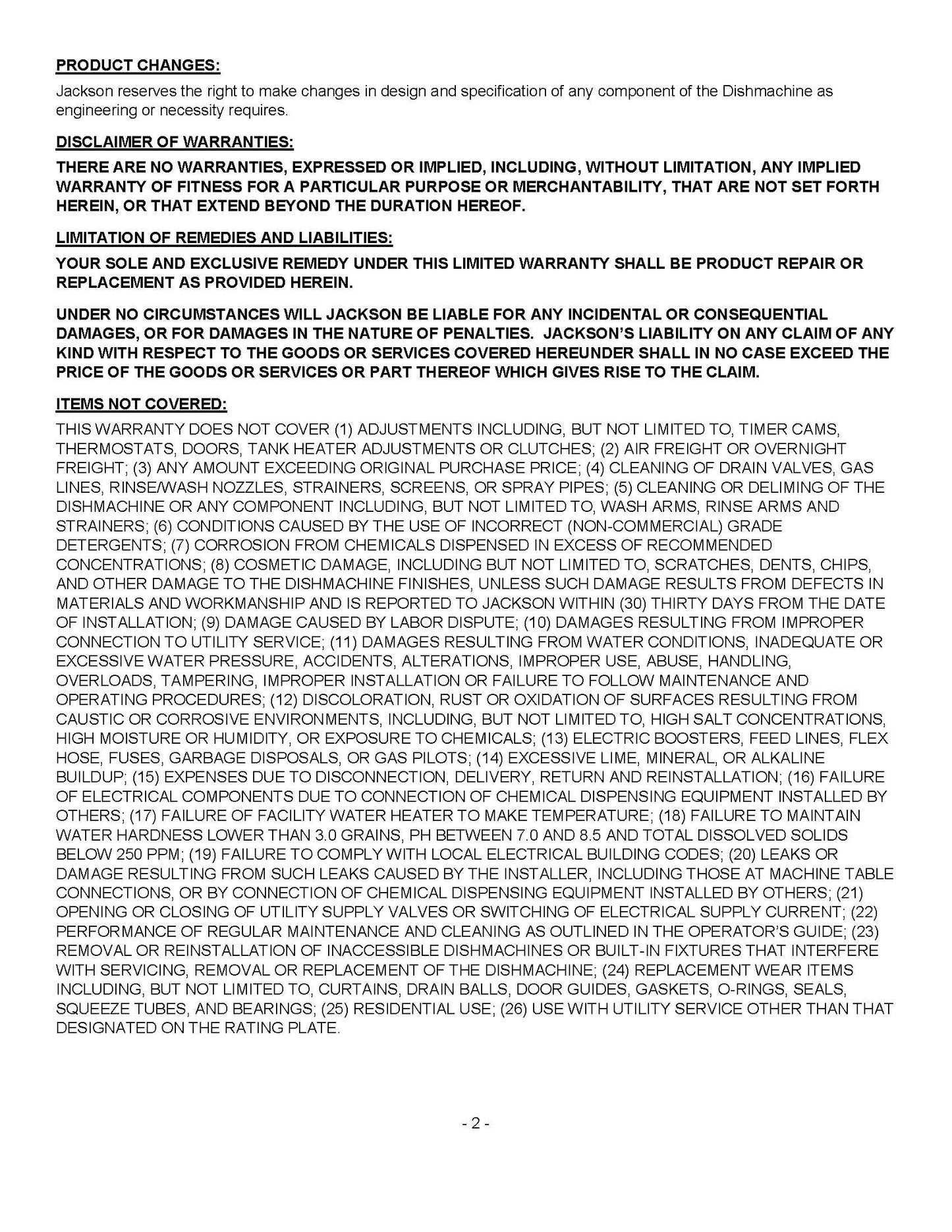

Jackson gives a one-year parts and labor warranty from the date of original installation, but no longer than 18 months from when it ships from the factory. A Jackson authorized service agency must do the labor, paid at regular hourly rates. The warranty does not cover adjustments, wear items such as gaskets, O-rings and seals, cosmetic damage, or failures caused by shipping, improper installation or misuse.

How does it differ from the Delta 1200 and Delta 5-E?

The Delta 1200 has the same carousel design, the same 1,200 glasses per hour rating and the same footprint. It runs on 208 or 230 V and has a larger 2.7 or 3.3 kW wash heater. The Delta 5-E is a 115 V door-type underbar dish/glasswasher that washes in racks instead of on a carousel.

Does it ship free, and how is it delivered?

Yes, this model ships free. It ships on a pallet by freight truck. A lift gate fee applies to large items like this one if you don't have a loading dock and is calculated at checkout.

SKU:WWS-DELTA-115
