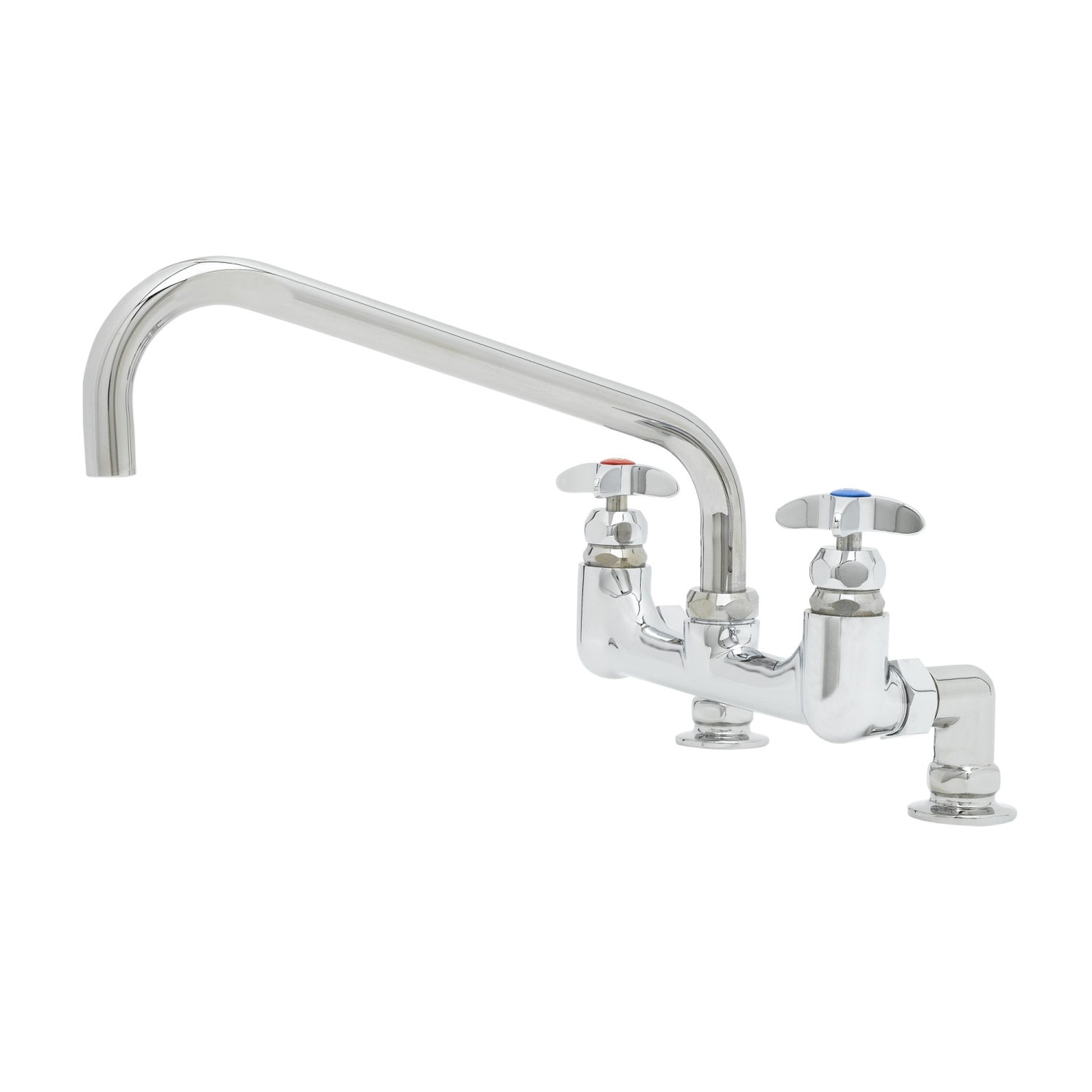

T&S Brass Big-Flo Chrome Brass Mixing Faucet 8" Deck Mount 12" Swing - B-0293

The T&S Brass B-0293 Big-Flo is a commercial deck-mount mixing faucet built for high-volume pot and kettle sink applications in foodservice operations. It delivers a large, consistent flow of water using Big-Flo compression cartridges designed to maintain high pressure output.

• Deck-mount mixing faucet with 8" centers, suited for commercial pot and kettle sink installations.

• Polished chrome-plated brass body construction throughout.

• Spout length 12", faucet height 8-1/16", faucet width 10-11/16" requires 8" centers and 1-1/4" diameter holes in the deck.
• Includes 3/4" NPT female eccentric inlets with 2" flanges and 3/4" NPT female short inlet elbows.

A lock washer is included for rigid nozzle application when swivel is not needed.

• The nozzle swivel joint allows free rotation, and the four-arm handles feature color-coded indexes for hot/cold identification.

• Covered by a one-year limited warranty from T&S Brass.

• NSF listed, ADA compliant, and made in the United States.

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.

Dimensions: Spout Length: 12" | Faucet Height: 8-1/16" | Faucet Width: 10-11/16"
