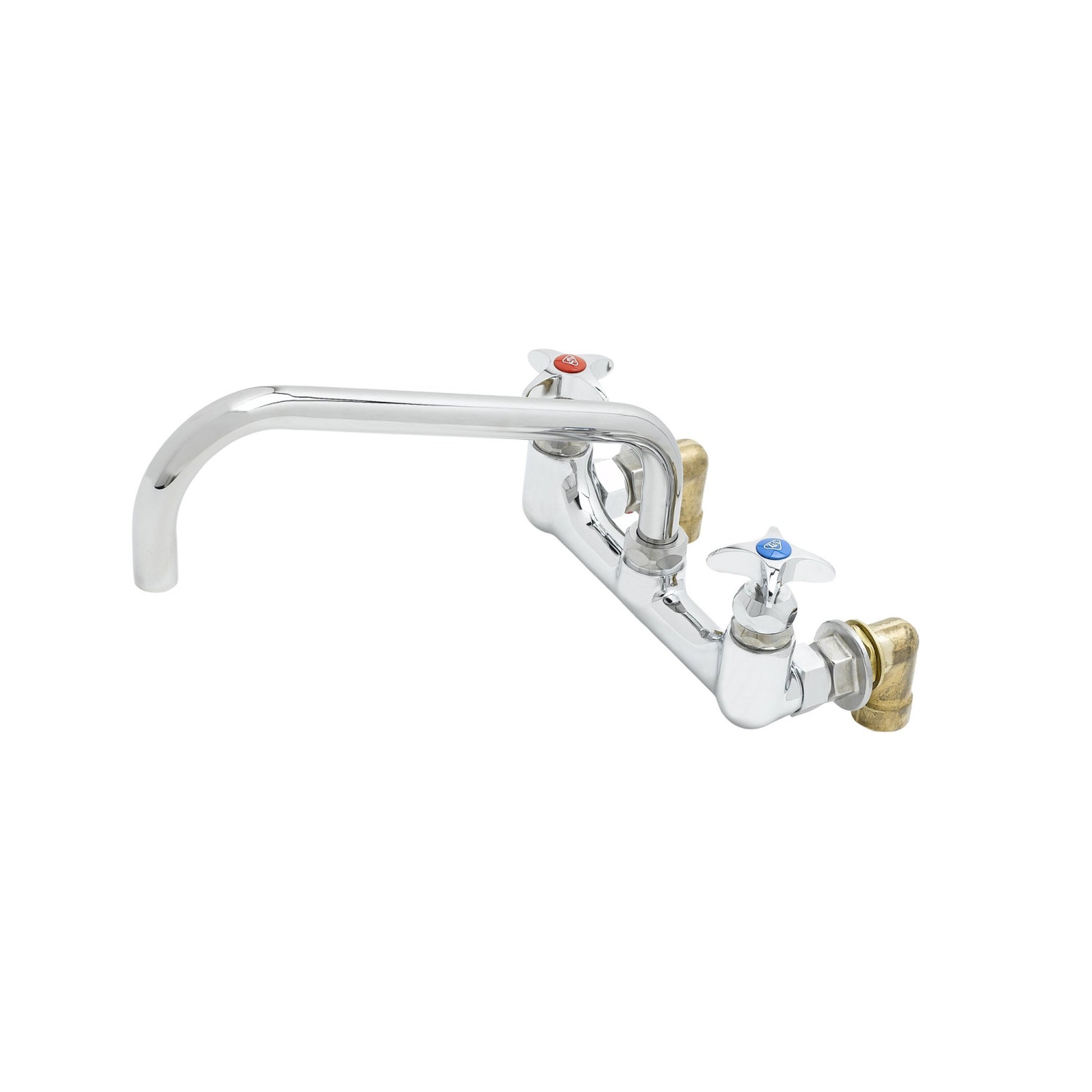

T&S Brass Big-Flo Chrome Brass Wall Mount Mixing Faucet 8" Centers, 12" - B-0290

The T&S Brass B-0290 Big-Flo wall mount mixing faucet is a high-volume commercial faucet built for pot sinks, kettle sinks, and heavy-use prep stations that require fast, high-flow water delivery.

It mounts at 8" centers and includes a 12" plain end swing nozzle, Big-Flo compression spindles, 4-arm handles, and 3/4" NPT female inlets with short inlet elbows.

• Commercial wall mount large-flow mixing faucet designed for high-volume water delivery in foodservice sink applications.

• Body and tubular spout are constructed of polished chrome-plated brass.

• Requires 8" centers and 1-1/4" diameter holes in the sink backsplash; spout length is 12", faucet height is 8-1/8", and faucet width is 10-11/16".

• Connects to water supply via 3/4" NPT female inlets.

Includes a lock washer for rigid nozzle application when swing is not needed.

• Two 4-arm handles rated to 175°F include color-coded indexes for hot and cold identification. Compression spindles allow individual valve servicing without replacing the full faucet body.
• Made in the United States of America.

Certifications:

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372.

• Meets ADA ANSI/ICC A117.1 requirements.

Dimensions: Spout Length: 12" | Faucet Height: 8-1/8" | Faucet Width: 10-11/16" | Centers: 8"
