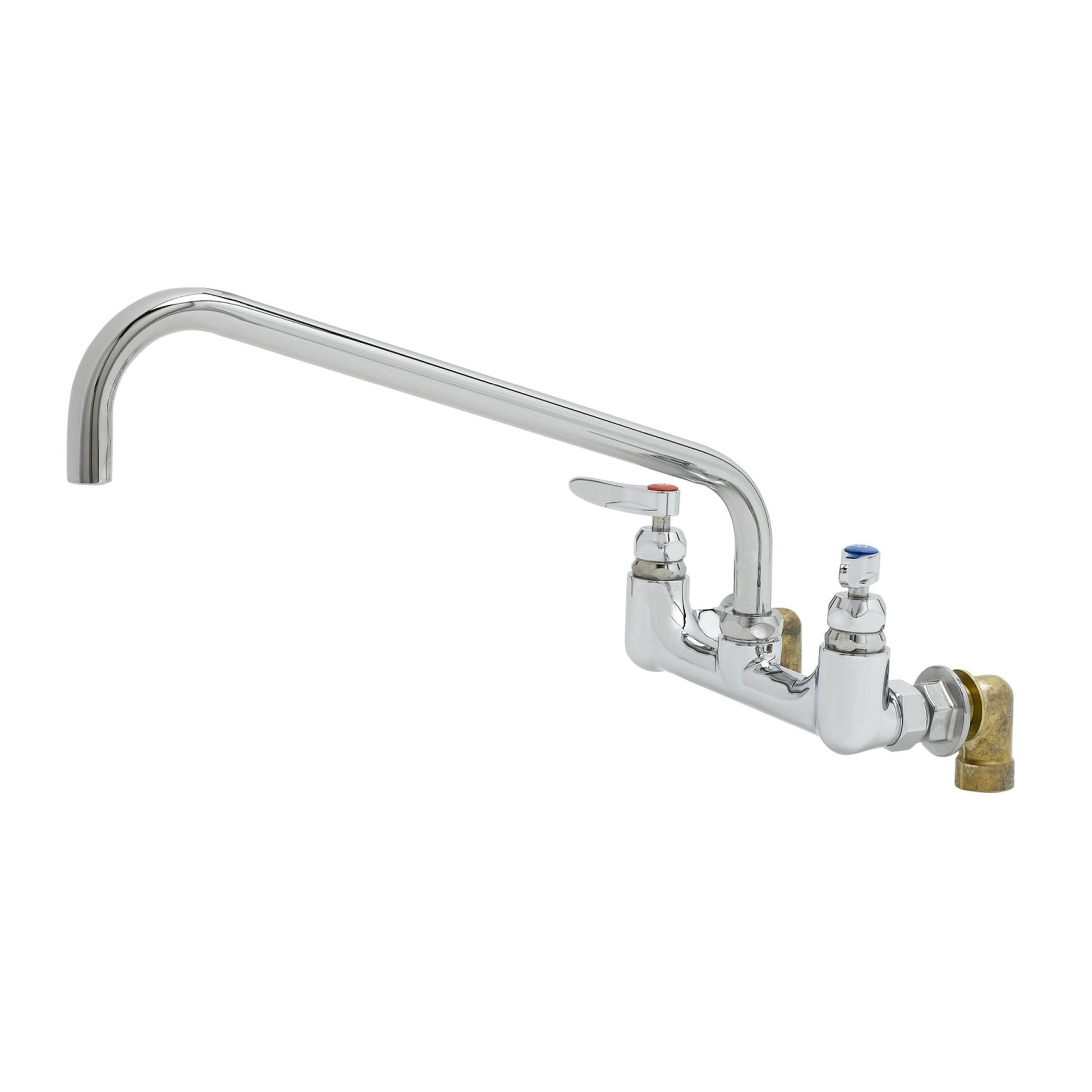

T&S Brass Big-Flo Mixing Faucet Wall Mount NSF ADA 8" Centers 16" - B-0290-01

The T&S Brass Big-Flo mixing faucet, model B-0290-01, is a commercial wall mount faucet built for high-volume water delivery at pot sinks, kettle sinks, and food prep stations in commercial kitchens. It combines a long-reach 16" swing nozzle with a large-flow design to handle the demands of busy foodservice operations.

• Commercial wall mount large-flow mixing faucet with a polished chrome-plated brass body, designed for high-volume water delivery in foodservice sink applications.

• Body is polished chrome-plated brass; includes compression spindles, 4-arm handles, and a 16" swing nozzle with a plain end outlet.

• Mounts with 8" adjustable centers; the 16" swing nozzle with plain end outlet reaches the center of pot and kettle sinks for efficient filling.

• Connects via 3/4" NPT female inlets and 3/4" NPT female short inlet elbows; requires 1-1/4" diameter holes in the sink backsplash.

• 4-arm handles feature color-coded indexes for easy hot/cold identification, and Big-Flo compression spindles are field-serviceable for long-term durability.

• Lever handles with color-coded indexes are included; faucet is low-lead compliant and ships as a complete wall mount assembly.

• Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372.

• Meets ADA ANSI/ICC A117.1 requirements.

Dimensions: 8" Centers, 16" Swing Nozzle
